SCSI8068ALDR
Main Image

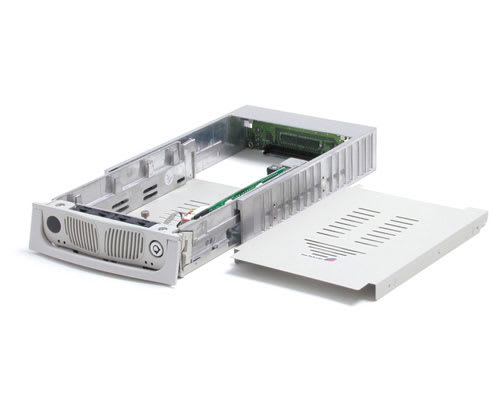

Product Name *D* 80 to 68 SCSI U160 Drive Drawer w Alarm Product Number SCSI8068ALDR UPC 065030788489 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX075X Product Title (Long) 80 Pin SCA to 68 Pin SCSI Ultra 160 Drive Drawer with Alarm Bullet 1 Easy to install and operate Bullet 2 Portable Bullet 3 Keylock security Bullet 4 Convenient to service Bullet 5 Easy to add drive capacity Marketing Copy The StarTech.com SCA drive drawer is an aluminum drive caddy and receiving bay for internally mounting 3.5" SCA drives into half-height, 5.25" peripheral bays. This allows SCA hard drives to be quickly added or removed from any PC with an available 5.25 inch drive bay without opening the computer. The 2-piece unit consists of a bay that mounts into the PC and a removable drawer or caddy that encases the hard disk. A locking mechanism controls power to the drive to prevent it from being removed while operating. A handle activated drawer release mechanism allows the drive to be inserted or removed with minimal force. Dual front mounted ball-bearing cooling fans provide fresh cool air flow over the hard drive, preventing overheating and data loss. Additionally, if your drive gets too hot or if the fan fails, the built-in alarm will sound, warning you of the problem. The Removable Hard Disk Drawer is perfect for educational use, where the same PC needs to run several different operating systems, high speed, high capacity backups, hot-swap server drives, or any mission critical PC where downtime must be minimized. Related Products SCSIU3WDRBK Color Beige Material Aluminum and Plastic Product Height (mm) 41 Product Weight (g) 1000 TAA Compliant No General Specifications - Dimensions: Fits into standard 5.25in PC case bay
- Internal Connectors: SCA 80 pin
- External Connectors: 68 pin SCSI
- LEDs: ID# display, power, thermal, fan, HDD access
- Fans: 2 x front mounted ball bearing fans
- Material: Aluminum, Metal covers
- Weight: 2.22lbs (1kg)
- Certifications: CE
- Note: Unit is model specific and is not meant for use with different models of drive drawer unless otherwise stated
Fans 2 - 40 mm Front Door Key Lock Yes LED Indicators - 1 - Power
- 1 - Activity
- 1 - Fan OK
- 1 - Temperature Warning
Carton Depth (mm) 0 Carton Height (mm) 0 Carton Weight Gross (g) 0 Included in Package - 1 - Instruction Manual
- 1 - 80 to 68 SCSI U160 Drive Drawer w Alarm
- 1 - Set of screws and keys
Package Depth (mm) 48 Package Height (mm) 252 Package Width (mm) 155 Package Weight (g) 970 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SCA SCSI (80-Pin) Connector 1 (Quantity) 1 Connector 2 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 2 (Quantity) 1 Connector 3 HPDB68 SCSI-3 (68-Pin) Connector 3 (Quantity) 1 Connector 4 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 4 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
