Main Image
SCSIU3WDRBK
Main Image

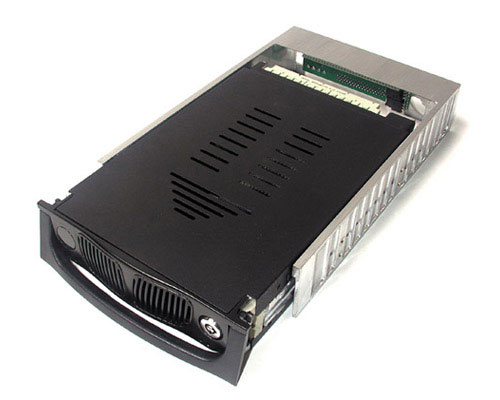

Product Name Black SCSI U3 160MB's Aluminum Drive Drawer Product Number SCSIU3WDRBK UPC 065030793520 Warranty 2 Years Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) 1 Product Title (Long) Black SCSI U3 160MB's Aluminum Drive Drawer Bullet 1 Easy to operate, high security, portable Hard Disk Drive system for 3.5" HDDs Bullet 2 Black cast aluminum frame provides fast heat dissipation Bullet 3 Includes 7-segment LED display, 4 LEDs for operating status, dual cooling fans, and a keylock that prevents the drive from being removed while in operation Bullet 4 Provides removable high capacity data storage Bullet 5 68-pin U3W 160 Mbps SCSI interface to host controller Marketing Copy The StarTech.com U3W 160Mbps SCSI drive drawer is a black aluminum drive caddy and receiving bay for internally mounting an 3.5" 68 pin SCSI drives into half-height, 5.25" peripheral bays. This allows SCSI hard drives to be quickly added or removed from any PC with an available 5.25 inch drive bay without opening the computer. The 2-piece unit consists of a bay that mounts into the PC, and a removable drawer or caddy that encases the hard disk. A locking mechanism controls power to the drive to prevent it from being removed while operating. A handle activated drawer release mechanism allows the drive to be inserted or removed with minimal force. Dual front mounted ball-bearing cooling fans provide fresh cool air-flow over the hard drive, preventing overheating and data loss. The Removable Hard Disk Drawer is perfect for educational use, where the same PC needs to run several different operating systems, high speed, high capacity backups, hot-swap server drives, or any mission critical PC where downtime must be minimized. Applications - Server drive arrays
- High-end workstation drives
- Mission critical control PCs where downtime must be minimized
Accessory Products DRAWERBAG Related Products SCSIU3WDRWR Color Black Material Aluminum and Plastic Product Height (mm) 41 TAA Compliant No General Specifications - Drawer internal SCSI connector: HPDB68 Male
- Bay SCSI connector: HPDB68 Female
- LEDs: 7 segment drive ID display, power, drive activity, status indicator of each fan
- Certifications: CE
- Note: Unit is model specific and is not meant for use with different models of drive drawer unless otherwise stated
Fans 2 - 40 mm Front Door Key Lock Yes LED Indicators - 1 - Power
- 1 - Activity
- 1 - Left Fan OK
- 1 - Right Fan OK
- 1 - SCSI ID
Included in Package - 1 - Black SCSI U3 160MB's Alum. Drive Drawer
- 1 - Set of Screws and Keys
- 1 - Manual
Connector 1 HPDB68 SCSI-3 (68-Pin) Connector 1 (Quantity) 1 Connector 2 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 2 (Quantity) 1 Connector 3 HPDB68 SCSI-3 (68-Pin) Connector 3 (Quantity) 1 Connector 4 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 4 (Quantity) 1 en-US Content Approved Yes
