SCSIU3WDRWR
Main Image

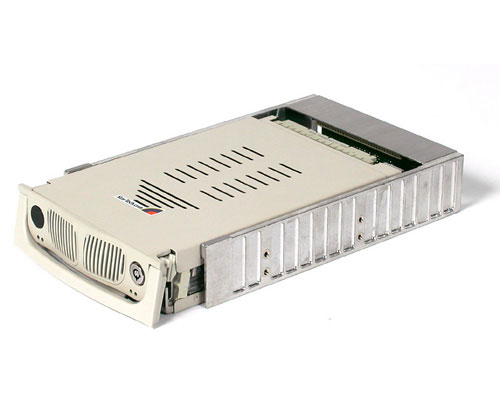

Product Name *D* SCSI U3W Aluminum Drive Drawer 160 Mbps Product Number SCSIU3WDRWR UPC 065030786515 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Product Title (Long) SCSI U3W 160 MBps Aluminum Drive Drawer Bullet 1 Easy to operate, high security, portable Hard Disk Drive system for 3.5" HDDs Bullet 2 Cast aluminum frame provides fast heat dissipation Bullet 3 Includes 7-segment LED display, 4 LEDs for operating status, dual cooling fans, and a keylock that prevents the drive from being removed while in operation Bullet 4 Provides removable high capacity data storage Bullet 5 68-pin U3W 160 Mbps SCSI interface to host controller Marketing Copy The StarTech.com U3W 160Mbps SCSI drive drawer is an aluminum drive caddy and receiving bay for internally mounting an 3.5" 68 pin SCSI drives into half-height, 5.25" peripheral bays. This allows SCSI hard drives to be quickly added or removed from any PC with an available 5.25 inch drive bay without opening the computer. The 2-piece unit consists of a bay that mounts into the PC, and a removable drawer or caddy that encases the hard disk. A locking mechanism controls power to the drive to prevent it from being removed while operating. A handle activated drawer release mechanism allows the drive to be inserted or removed with minimal force. Dual front mounted ball-bearing cooling fans provide fresh cool air-flow over the hard drive, preventing overheating and data loss. The Removable Hard Disk Drawer is perfect for educational use, where the same PC needs to run several different operating systems, high speed, high capacity backups, hot-swap server drives, or any mission critical PC where downtime must be minimized. Applications - Server drive arrays
- High-end workstation drives
- Mission critical control PCs where downtime must be minimized
Accessory Products DRAWERBAG Related Products SCSIU3WDRBK Color Beige Material Aluminum and Plastic Product Height (mm) 41 TAA Compliant No General Specifications - Drawer internal SCSI connector: HPDB68 Male
- Bay SCSI connector: HPDB68 Female
- LEDs: 7 segment drive ID display, power, drive activity, status indicator of each fan
- Certifications: CE
- Note: Unit is model specific and is not meant for use with different models of drive drawer unless otherwise stated
Fans 2 - 40 mm Front Door Key Lock Yes LED Indicators - 1 - Power
- 1 - Activity
- 1 - Left Fan OK
- 1 - Right Fan OK
- 1 - SCSI ID
Carton Depth (mm) 0 Carton Height (mm) 0 Carton Weight Gross (g) 0 Included in Package - 1 - SCSI U3W 160Mbps Alum. Drive Drawer
- 1 - Set of keys and screws
- 1 - Inside cable is green and red.
Package Depth (mm) 50 Package Height (mm) 252 Package Width (mm) 156 Package Weight (g) 1000 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HPDB68 SCSI-3 (68-Pin) Connector 1 (Quantity) 1 Connector 2 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 2 (Quantity) 1 Connector 3 HPDB68 SCSI-3 (68-Pin) Connector 3 (Quantity) 1 Connector 4 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 4 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
