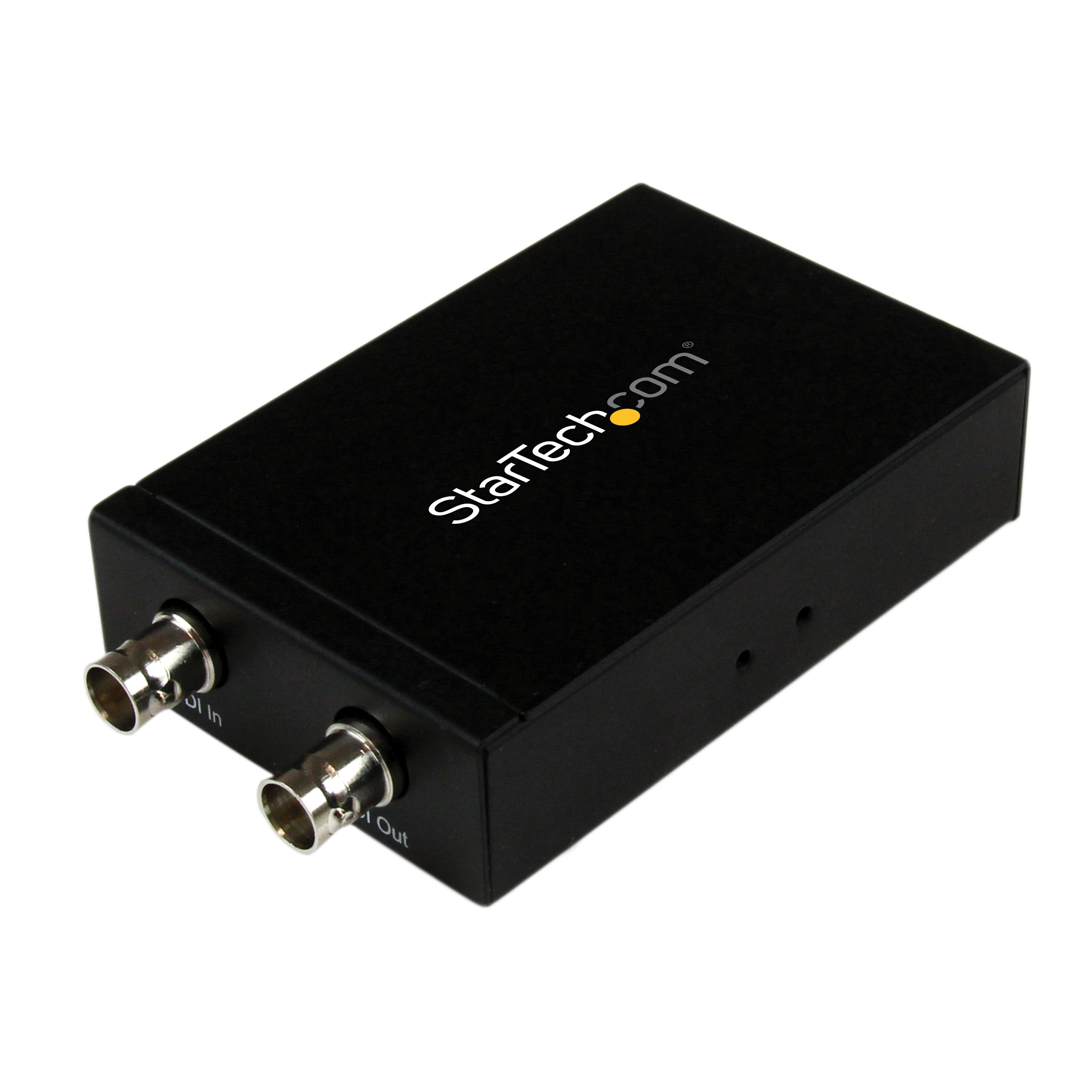

SDI2HD
SDI to HDMI converter
Connect your HDMI Display to an SDI Video Source
Main Image
Product Images
Product Images
BOM Image
Product Name SDI to HDMI converter Product Number SDI2HD UPC 065030854986 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > AV Converters Category Level 1 Video Display Connectivity Category Level 2 AV Converters and Scalers Category Level 3 SDI Converters Family No Family Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX012X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX190X Product Title (Ultra-Short) SDI to HDMI Adapter Product Title (Short) 3G SDI to HDMI Adapter Converter Product Title (Medium) SDI to HDMI Converter – 3G SDI to HDMI Adapter with SDI Loop Through Output Product Title (Standard) SDI to HDMI Converter – 3G SDI to HDMI Adapter with SDI Loop Through Output Product Title (Long) SDI to HDMI Converter – 3G SDI to HDMI Adapter with SDI Loop Through Output Product Title (AMZ) SDI to HDMI Converter – 3G SDI to HDMI Adapter with SDI Loop Through Output – SDI to HDMI Audio/Video Adapter – 755ft (230m) (SDI2HD) Title Ingram (Part 1) 3G SDI to HDMI Converter – SDI Title Ingram (Part 2) to HDMI w/ SDI Output Website Product Headline Connect your HDMI Display to an SDI Video Source Bullet 1 Supports video resolutions up to 1920x1200 / 1080p Bullet 2 Plug and play SDI to HDMI conversion Bullet 3 Receives 3G SDI signals from up to 755ft (230m) Bullet 4 Built-in 3G SDI daisy chain port Bullet 5 Supports AES & EBU Audio Decoding Bullets (Consolidated) Connect your HDMI Display to an SDI Video Source - Connect an SDI Equipped audio/video source device such as a video camera to an HDMI display - 3G SDI to HDMI/BNC HDMI Converter/BNC to HDMI Adapter/BNC to HDMI Converter/Camera to HDMI Converter/Convert SDI to HDMI/Convert SDI Video Sources to HDMI Video Output – 755ft (230m) Marketing Copy Applications - Convert a 3G SDI video run to HDMI from up to 755ft (300m) away
- Connect your HDMI display to a 3G SDI video run
- Output to an HDMI Display and continue your 3G SDI run up to an additonal 755ft (300m) using the daisy chain port
Website Search Keyword - sdi to HDMI
- 3g sdi to HDMI
- bnc to hdmi
- bnc sdi to HDMI
- camera to hdmi adapter
- sdi to hdmi adapter
- sdi to hdmi converter
- 3g sdi to hdmi converter
- 3g sdi to hdmi adapter
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Accessory Products - HDMM6
- HDMM10
- HDMM15
- SVA5M3NEUA

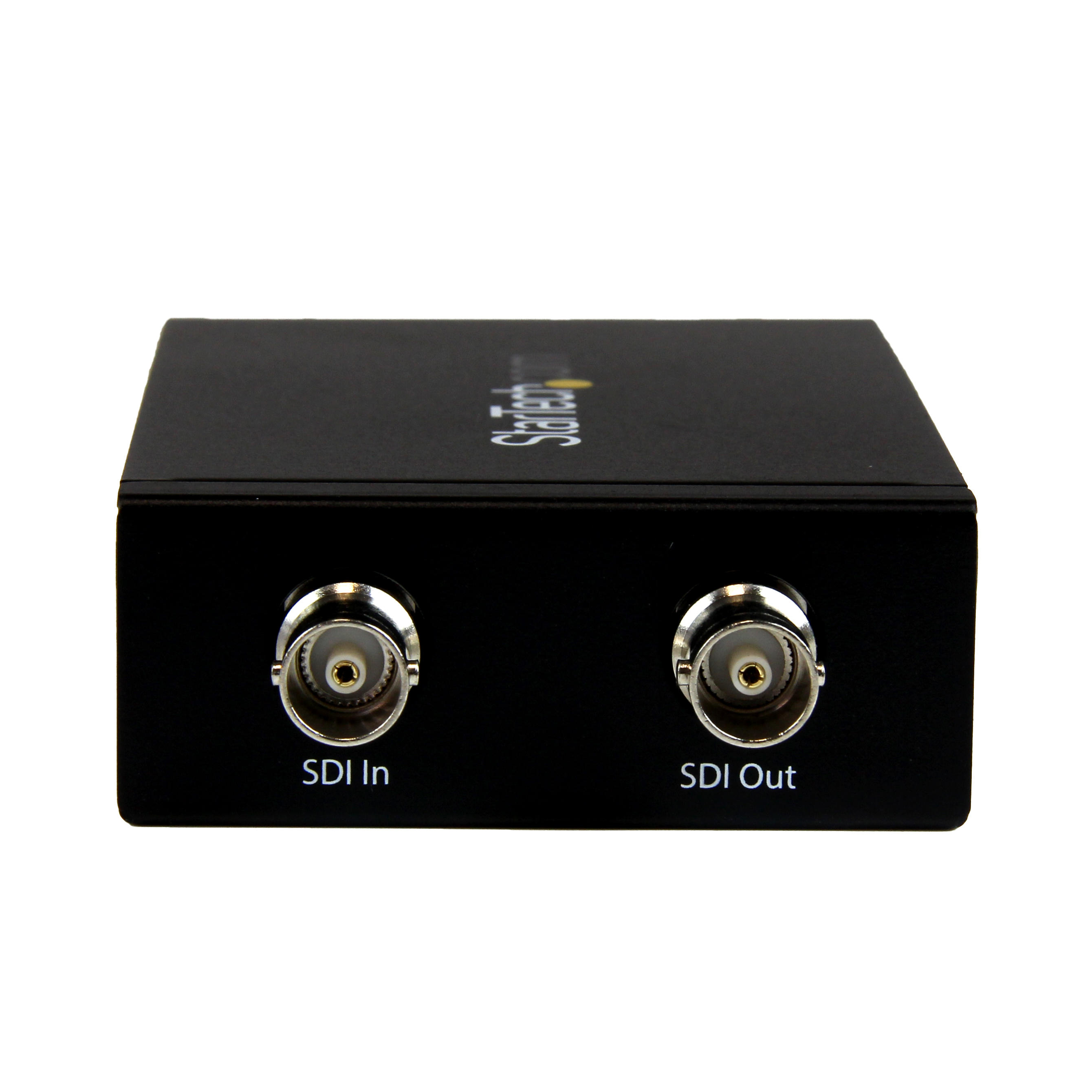

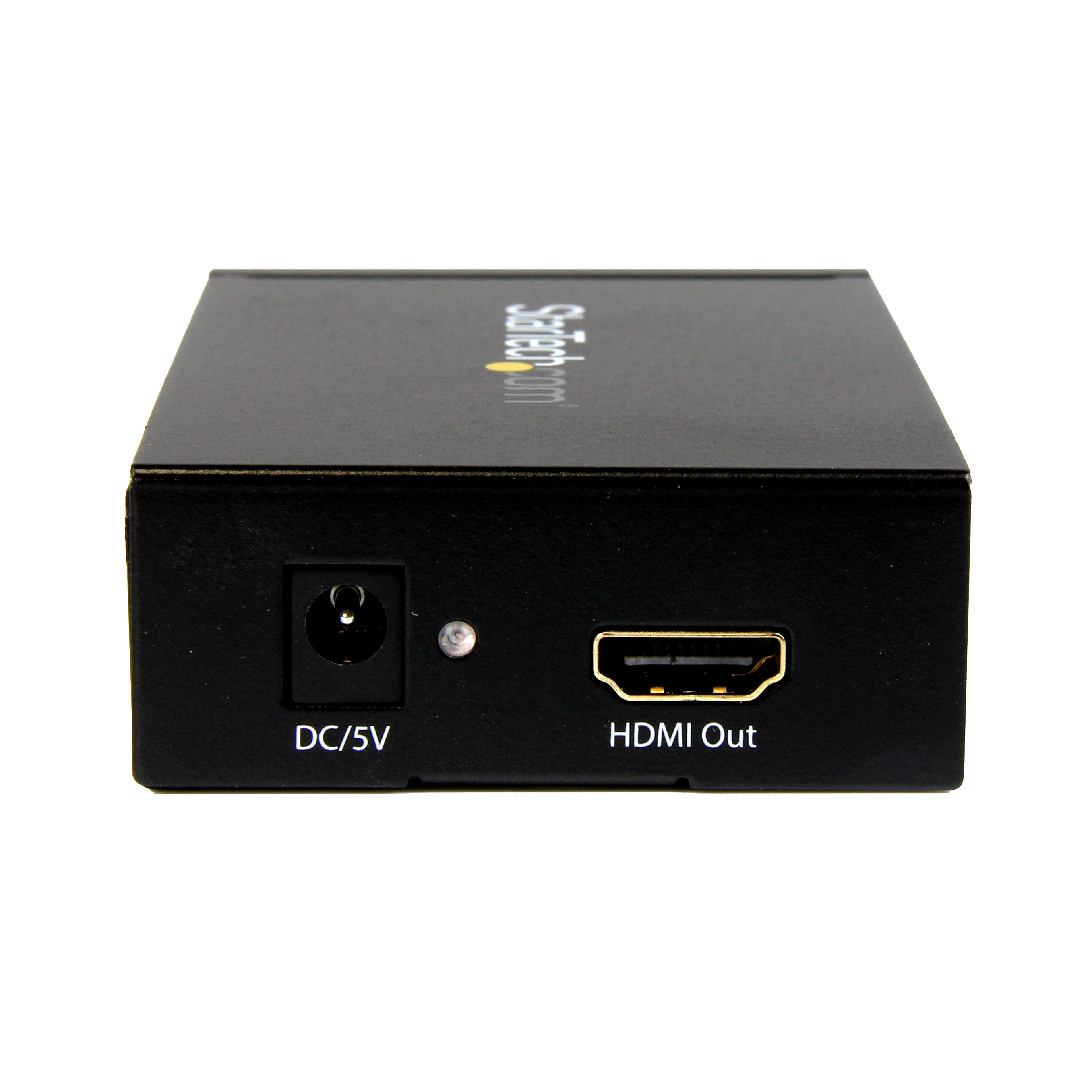

Input Current 0.4 A Input Voltage 100 - 240 AC Output Current 2 A Output Voltage (V) 5 DC Power Consumption (In Watts) 10 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 5% to 90 % RH (no condensation) Material Steel Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Steel Product Length (mm) 112.000 Product Width (mm) 65.000 Product Height (mm) 25.000 Product Weight (g) 207.000 Storage Temperature -10°C to 80°C (14°F to 176°F) TAA Compliant No General Specifications Max Distance 230m [755ft] Maximum Cable Length (mm) 230000 Maximum Data Transfer Rate 2.97 Gbps Maximum Digital Resolutions 1080p Supported Resolutions Wide Screen Supported Yes Active or Passive Adapter Active Audio Yes AV Input SDI (BNC) AV Output - HDMI
- SDI (BNC)

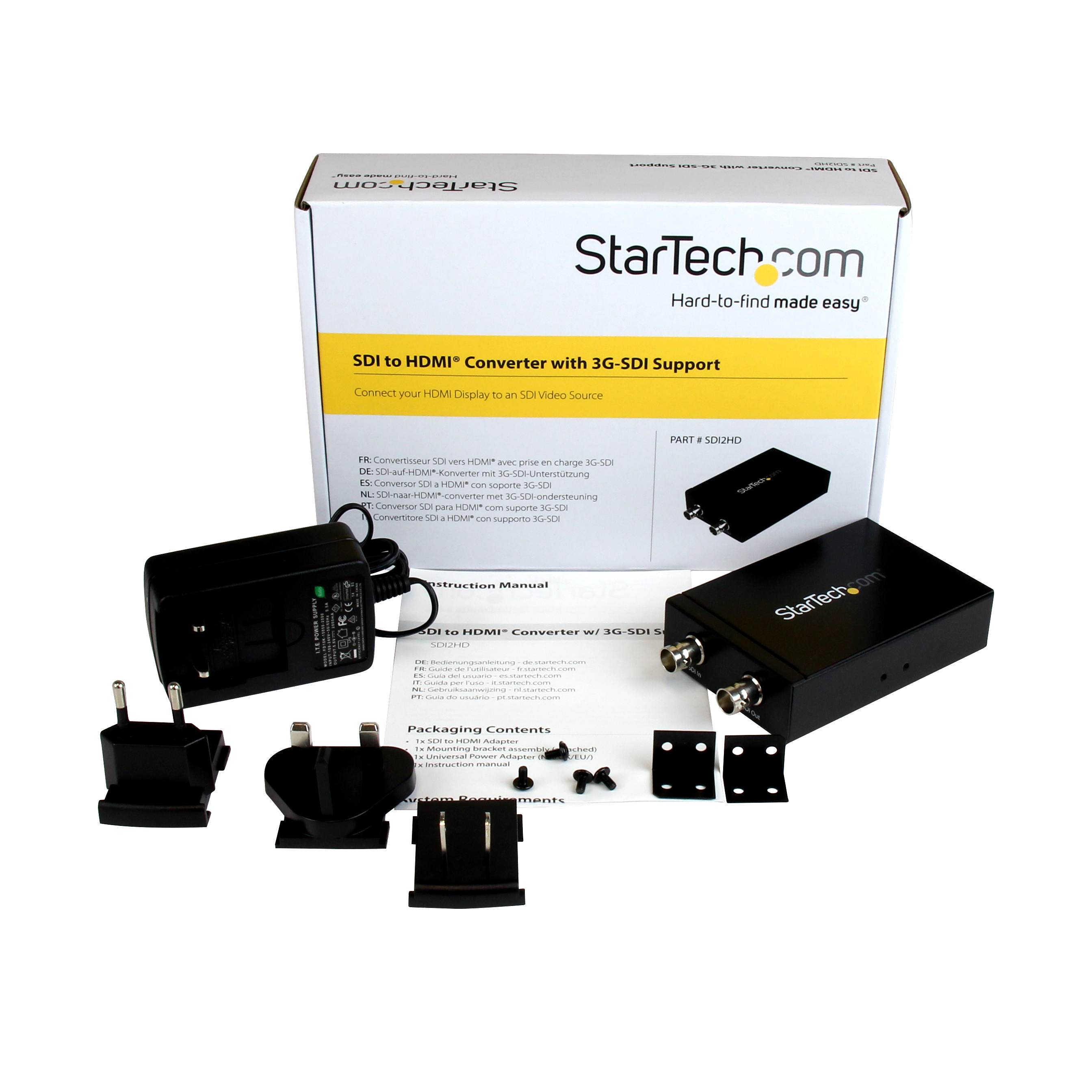

Cabling Coaxial Cascadable Yes Chipset ID Gennum - GV7600 Converter Type Format Converter Rack-Mountable Yes Carton Depth (mm) 330 Carton Height (mm) 248 Carton Quantity 18 Carton Weight Gross (g) 9194 Included in Package - 1 - SDI to HDMI Adapter
- 1 - Universal Power Adapter (NA/UK/EU/)
- 1 - Instruction manual
- 1 - Mounting bracket assembly (attached)
Package Depth (mm) 152 Package Height (mm) 53 Package Width (mm) 216 Package Quantity 1 Package Weight (g) 438 Packaging Description SDI to HDMI Converter w/ 3G-SDI Support Packaging Description India SDI to HDMI Converter w/ 3G-SDI Support Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SDI (BNC, 75 Ohm) Connector 1 (Quantity) 1 Connector 2 SDI (BNC, 75 Ohm) Connector 2 (Quantity) 1 Connector 3 HDMI Connector 3 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-02-27 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,CO,DE,DK,ES,EU,FR,IE,IT,JP,NL,SE,UK,US Primary Technology None Product Development Specialist Greg Visser Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None
