SDOCK2U313

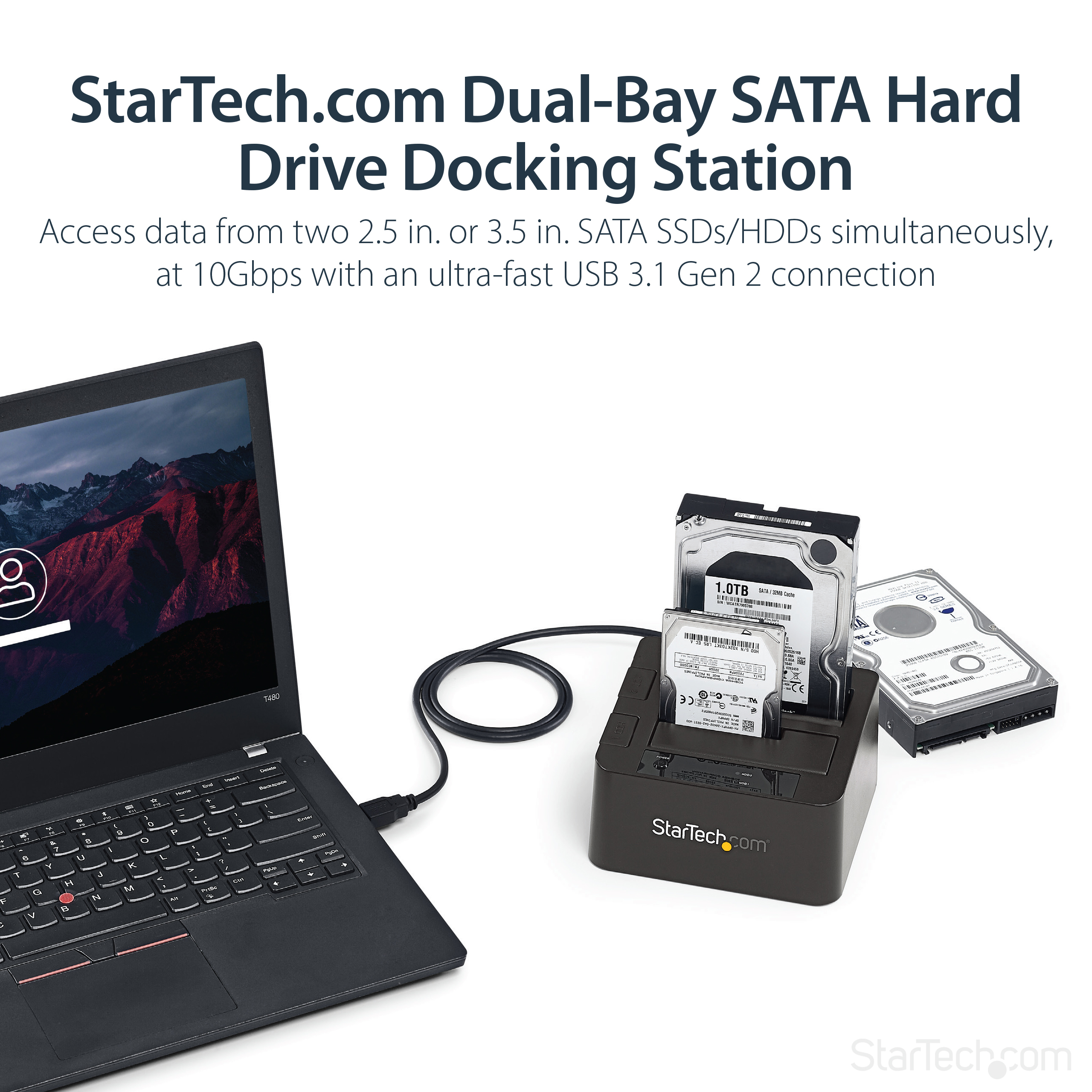

USB 3 1 Dual Bay HDD SSD Drive Docking Station
External SSD/HDD Docking Station | USB 3.2 Gen 2 (10 Gbps) to SATA I/II/III
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Product Name USB 3 1 Dual Bay HDD SSD Drive Docking Station Product Number SDOCK2U313 UPC 065030861663 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > External Drive Enclosures Category Level 1 Data Storage Category Level 2 Drive Docking Stations Category Level 3 HDD Docking Stations - 10Gbps Family Dual Bay SATA Dock 10Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX157X Product Title (Ultra-Short) 2-Bay SATA Dock Product Title (Short) 2-Bay USB 3.1 Hard Drive Docking Station Product Title (Medium) 2-Bay USB 10Gbps to SATA Hard Drive Docking Station, 2.5/3.5" SATA III SSD/HDD Product Title (Standard) Dual-Bay USB 10Gbps to SATA Hard Drive Docking Station, 2.5/3.5" SATA I/II/III, SSD/HDD Dock, USB Hard Drive Bay, Top-Loading Product Title (Long) Dual-Bay USB 3.2 Gen 2 to SATA Hard Drive Docking Station, USB 10Gbps Hard Drive Dock, External 2.5/3.5" SATA I/II/III SSD/HDD Docking Station, Hot-Swap Hard Drive Bay, Top-Loading Product Title (AMZ) Dual-Bay USB 3.1 to SATA Hard Drive Docking Station, USB 3.1 (10 Gbps), External 2.5/3.5" SATA I/II/III, SSD/HDD Docking Station, Hot-Swap Hard Drive Bay, Top-Loading (SDOCK2U313) Title Ingram (Part 1) 2-Bay Hard Drive Dock - Title Ingram (Part 2) USB 10Gbps to 2.5/3.5" SATA SSD/HDD Website Product Headline External SSD/HDD Docking Station | USB 3.2 Gen 2 (10 Gbps) to SATA I/II/III Bullet 1 HARD DRIVE DOCKING STATION: This 2-bay hard drive dock delivers instant access to your 2.5/3.5" SATA hard drives for file backup, disk imaging, or data transfer over USB 3.2 Gen 2 (10 Gbps). Tool-less design enables easy drive hot-swapping. Bullet 2 DRIVE COMPATIBILITY: Supports 2.5/3.5" SATA HDDs & SSDs of any capacity | OS Independent | Backwards compatible w/ SATA I/II | IDE adapter (SAT2IDEADP) sold separately | Includes 3ft USB-A cable and universal power adapter Bullet 3 THE IT PRO’S CHOICE: Designed and built for IT Professionals, this Dual-Bay Hard Drive Dock is backed for 2 years, including free lifetime 24/5 multilingual technical assistance Bullet 4 SPECS: 2-Bay Hard Drive Dock | SATA I/II/III (1.5/3/6 Gbps) | USB 3.2 Gen 2 (10 Gbps) Host Connection | Tool-less/Tray-less Design | Hot-Swappable Drive Bays | Top-Loading/Toaster-Style with Eject Buttons | LED Activity Lights Bullet 5 PERFORMANCE: Get maximum performance from your SATA III drive with a 10 Gbps USB 3.2 host connection. Drive bays with 5,000-cycle insertion rating for maximum durability. Bullets (Compact) Dual-Bay Hard Drive Dock for 2.5" / 3.5" SATA Drives; SATA III (6.0 Gbps) HDD/SSD; USB 3.2 Gen 2 (10 Gbps) Host Connection; Top-Loading Drive Bay w/ Drive Doors and Eject Buttons; LED Status Lights; Hot Swappable; No software or drivers required Bullets (Consolidated) Dual-bay hard drive docking station delivers instant access to two 2.5/3.5" SATA drives without having to install the drive in an external enclosure - Hot-swappable bays work with 2.5" / 3.5" SATA drives. Tool-less design and top slot loading with eject buttons - SATA III (6.0 Gbps) | USB 3.2 Gen 2 (10 Gbps) | No capacity limit | OS Independent - Includes 3ft USB-A cable and universal power adapter Marketing Copy Marketing Copy (No HTML) Applications - Perfect for system builders and IT professionals who need quick access to drives for imaging
- Back up data quickly to an external drive for archiving
- Transfer data from one hard drive to another
- Convenient for technicians who test or benchmark multiple hard drives
- Easily take backup data to an offsite location for safekeeping
Website Search Keyword - USB 3.1 Gen 2 Hard Drive Dock
- HDD Dock
- SDD Dock
- SATA HDD & SSD Dock
- USB Hard Drive Dock
- SATA 2.5 or 3.5 HDD & SSD Dock
- External Hard Drive Docking Station
- USB 3.1 Gen 2 (10 Gbps) Dock with UASP
- 2.5/3.5 SATA dock
- dock
- docking station
- 2-drive dock
- 2-bay dock
- 2-drive docking station
- USB 3.1 Gen 2 docking station
- 2.5/3.5" SATA dock
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes Windows 7 and earlier Windows versions do not support TRIM with USB to SATA devices. Related Products - SDOCKU33HB
- SATDOCKU3SEF
- USB3S2SATA
- UNIDOCK3U
- SATDOCK22U3S
- SDOCK2U33HFB
- SDOCK2U33HFW
- SATDOCKU3S
- SDOCKU33HW
- SDOCKU33BV
- SDOCK2U33RE
- SDOCKU313
- S251BMU313
- S351BU313
- USB312SAT3CB
- S251BPU313

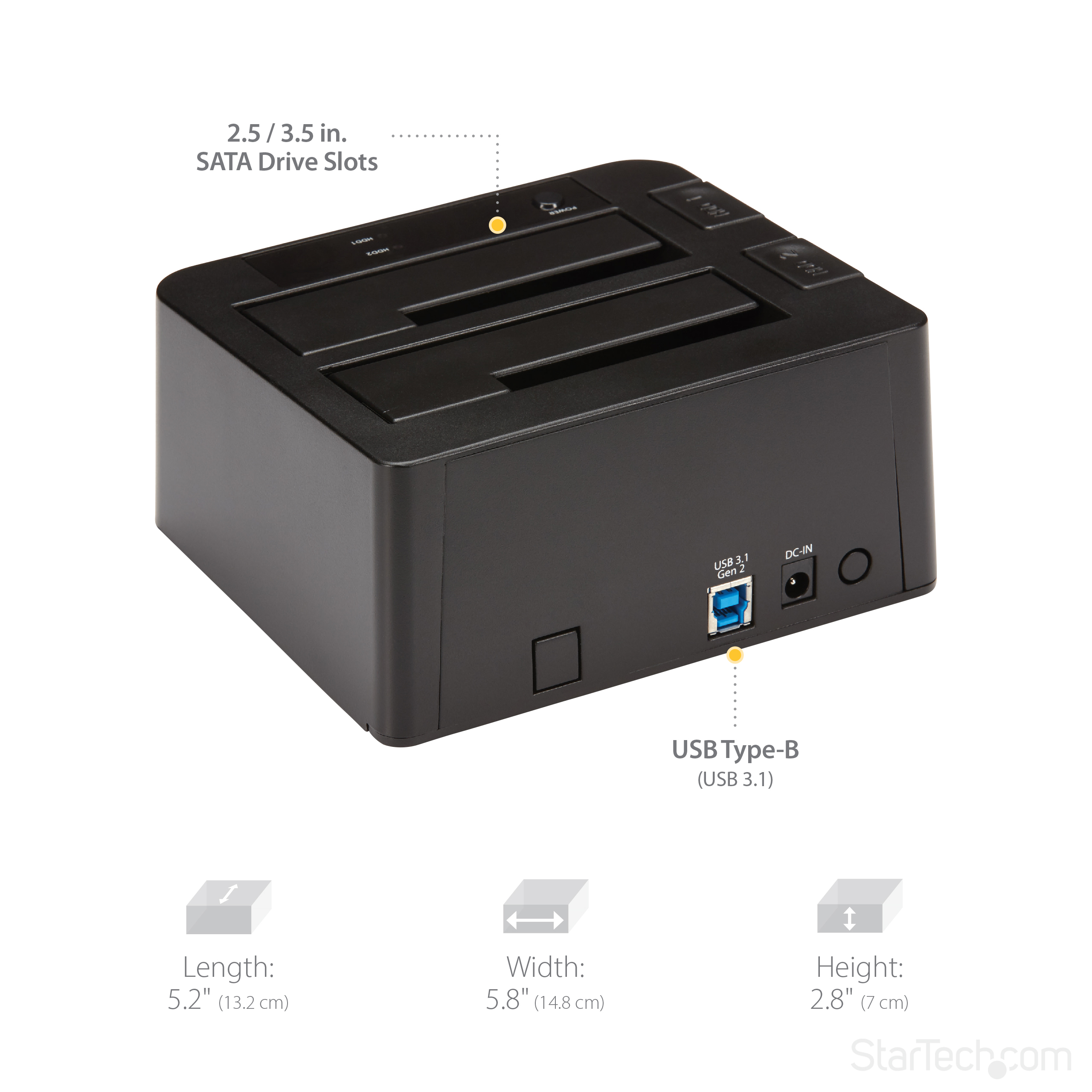

Constrained SKU Alternatives (Limited Stock) SDOCK2U33EB Input Current 1.3A Input Voltage 100 - 240 AC Output Current 3000 mA Output Voltage (V) 12V DC Power Consumption (In Watts) 36 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 20% ~ 80% RH Material Plastic Operating Temperature 5°C to 35°C (35°F to 95°F) Primary Material Plastic Product Length (mm) 132.000 Product Width (mm) 148.000 Product Height (mm) 70.000 Product Weight (g) 490.000 Storage Temperature -20°C to 50°C (-4°F to 122°F) TAA Compliant No 4Kn Support Yes Maximum Data Transfer Rate 10 Gbps OS Compatibility OS Independent SATA Type and Rate SATA III (6 Gbps) TRIM Support Yes UASP Support Yes Chipset ID ASMedia - ASM1352R Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 3.2 Gen 2 (10 Gbps) LED Indicators - 1 - Power
- 2 - HDD Activity

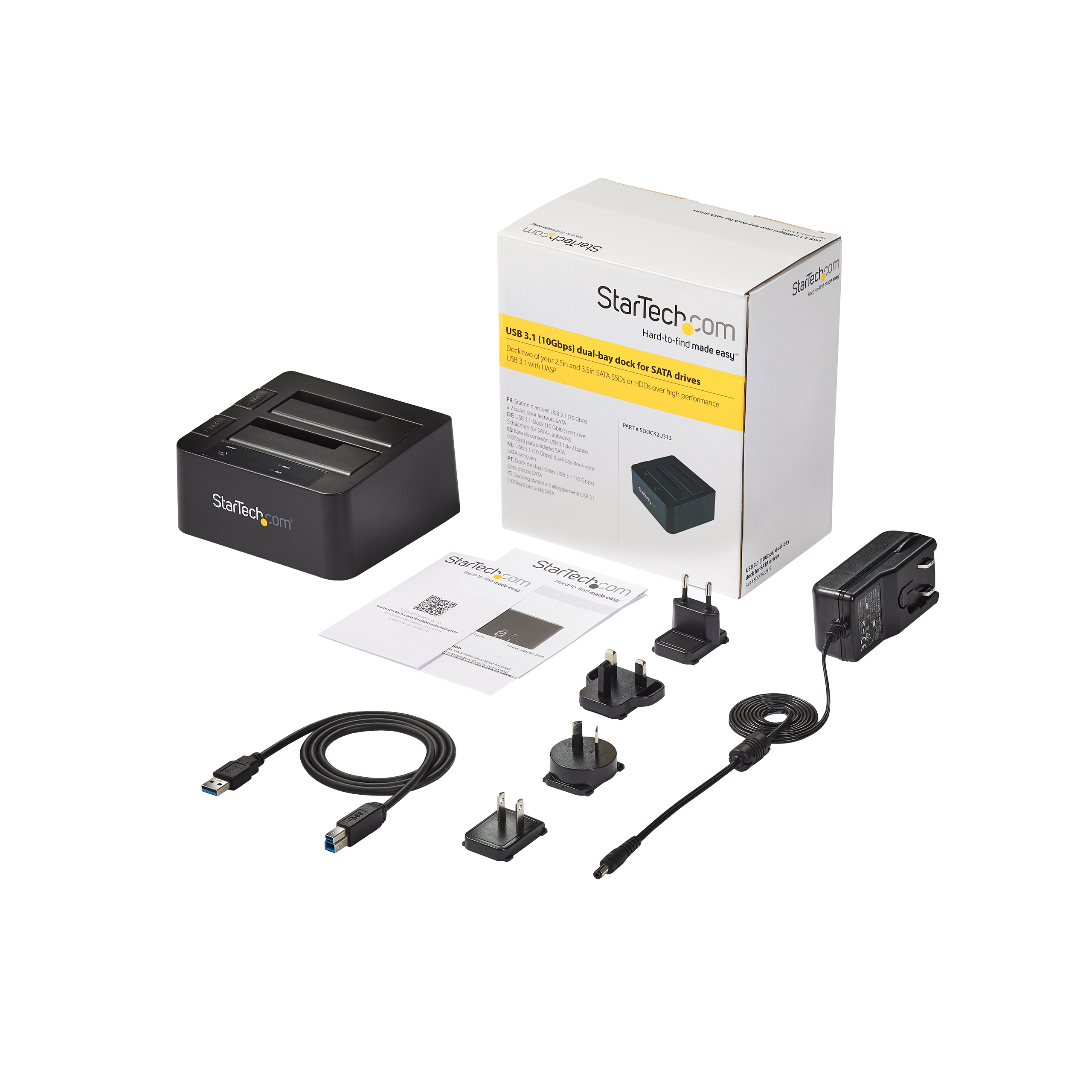

Number of Drives 2 Carton Depth (mm) 617 Carton Height (mm) 466 Carton Quantity 10 Carton Weight Gross (g) 10210 Included in Package - 1 - USB 3.1 Dual-drive HDD Dock
- 1 - USB 3.1 A-to-B Cable - 41 inches
- 1 - Universal Power Adapter - 49.5 inches (cable)
- 1 - Quick Install Guide
- 4 - Power Adapter Plugs (NA/EU/UK/AUS)
Package Depth (mm) 213 Package Height (mm) 120 Package Width (mm) 190 Package Quantity 1 Package Weight (g) 932 Packaging Description USB 3.1 (10Gbps) dual-bay dock for SATA drives Packaging Description India USB 3.1 (10Gbps) dual-bay dock for SATA drives Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 2 Host Connector 1 USB-B (10Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2015-04-09 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IT,MX,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2015-04-17 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
