SDOCK2U33

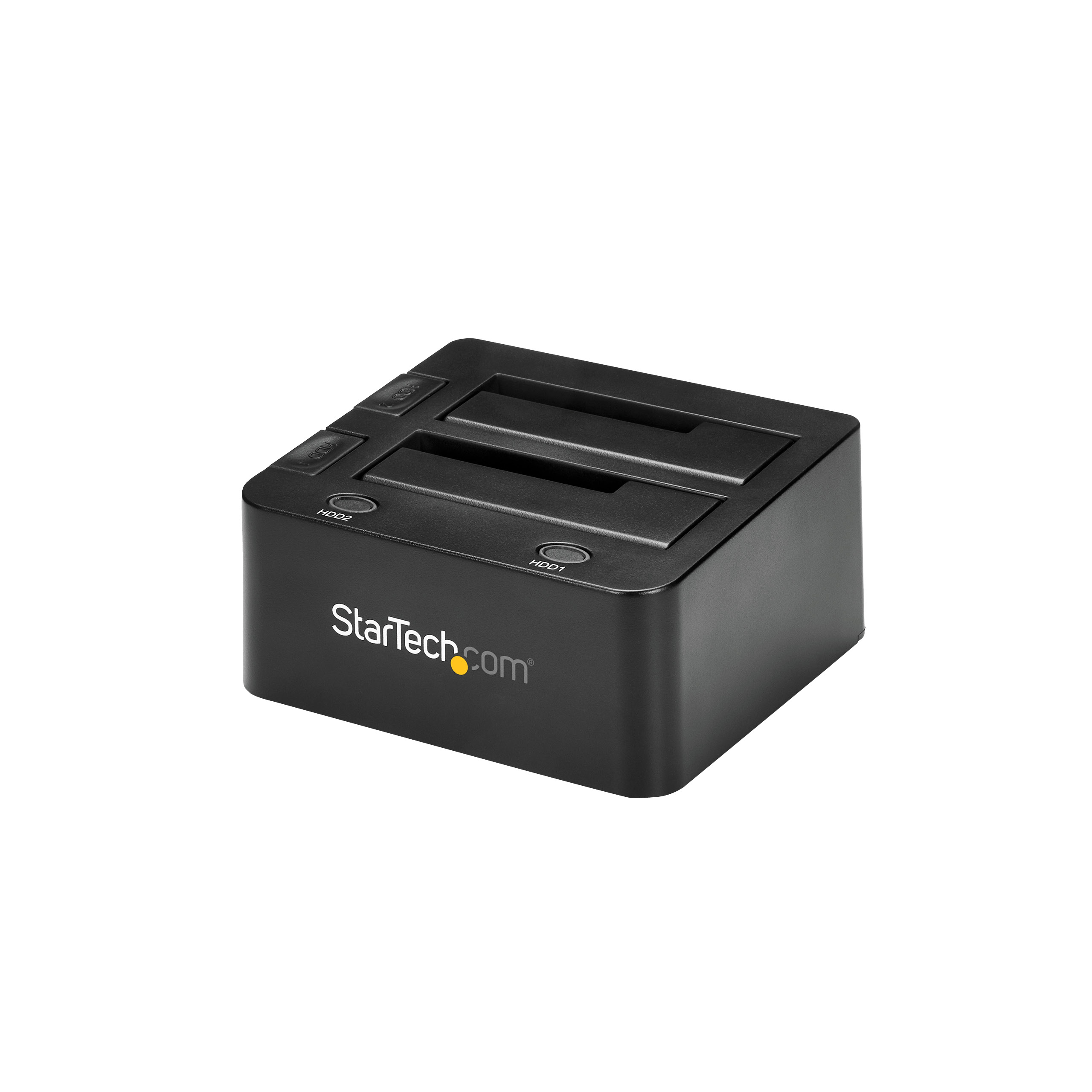

USB 3 0 Dual SATA HDD SSD Docking Station w UASP
External SSD/HDD Docking Station | USB 3.2 Gen 1 (5 Gbps) to SATA I/II/III
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Product Name USB 3 0 Dual SATA HDD SSD Docking Station w UASP Product Number SDOCK2U33 UPC 065030856928 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > External Drive Enclosures Category Level 1 Data Storage Category Level 2 Drive Docking Stations Category Level 3 HDD Docking Stations - 5Gbps Family Dual Bay SATA Dock 5Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX157X Product Title (Ultra-Short) 2-Bay SATA Dock Product Title (Short) 2-Bay USB 3.0 Hard Drive Docking Station Product Title (Medium) 2-Bay USB 3.0 to SATA Hard Drive Docking Station, 2.5/3.5" SATA III SSD/HDD Dock Product Title (Standard) Dual-Bay USB 3.0 to SATA Hard Drive Docking Station, 2.5/3.5" SATA I/II/III, SSD/HDD Dock, USB Hard Drive Bay, Top-Loading Product Title (Long) Dual-Bay USB 3.0 to SATA Hard Drive Docking Station, USB Hard Drive Dock, External 2.5/3.5" SATA I/II/III SSD/HDD Docking Station, Hot-Swap Hard Drive Bay, Top-Loading Product Title (AMZ) Dual-Bay USB 3.0 to SATA Hard Drive Docking Station, USB Hard Drive Dock, External 2.5/3.5" SATA I/II/III, SSD/HDD Docking Station, Hot-Swap Hard Drive Bay, Top-Loading (SDOCK2U33) Title Ingram (Part 1) 2-Bay Hard Drive Dock - Title Ingram (Part 2) USB 3.0 to 2.5/3.5" SATA SSD/HDD Website Product Headline External SSD/HDD Docking Station | USB 3.2 Gen 1 (5 Gbps) to SATA I/II/III Bullet 1 HARD DRIVE DOCKING STATION: This 2-bay hard drive dock delivers instant access to your 2.5/3.5" SATA hard drives for file backup, disk imaging, or data transfer over USB 3.2 Gen 1 (5 Gbps). Tool-less design enables easy drive hot-swapping. Bullet 2 PERFORMANCE: Independent power buttons for each bay enables you to hot-swap an idle drive while the other bay is in use. Drive bays with 15,000-cycle insertion rating for maximum durability. Bullet 3 SPECS: 2-Bay Hard Drive Dock | SATA I/II/III | USB 3.2 Gen 1 (5 Gbps) Host Connection | Tool-less/Tray-less Design | Hot-Swappable Drive Bays | Top-Loading/Toaster-Style with Eject Buttons | LED Activity Lights Bullet 4 THE IT PRO’S CHOICE: Designed and built for IT Professionals, this Dual-Bay Hard Drive Dock is backed for 2 years, including free lifetime 24/5 multilingual technical assistance Bullet 5 DRIVE COMPATIBILITY: Supports 2.5/3.5" SATA HDDs & SSDs of any capacity | OS Independent | Backwards compatible w/ SATA I/II | IDE adapter (SAT2IDEADP) sold separately | Includes 3ft USB-A cable and universal power adapter Bullets (Compact) Dual-Bay Hard Drive Dock for 2.5" / 3.5" SATA Drives; SATA III (6.0 Gbps) HDD/SSD; USB 3.2 Gen 1 (5 Gbps) Host Connection; Top-Loading Drive Bay w/ Drive Doors and Eject Buttons; LED Status Lights; Hot Swappable; No software or drivers required Bullets (Consolidated) Dual-bay hard drive docking station delivers instant access to two 2.5/3.5" SATA drives without having to install the drive in an external enclosure - Hot-swappable bays work with 2.5" / 3.5" SATA drives. Tool-less design and top slot loading with eject buttons - SATA I/II/III | USB 3.2 Gen 1 (5 Gbps) | No capacity limit | OS Independent - Includes 3ft USB-A cable and universal power adapter Marketing Copy Marketing Copy (No HTML) Applications - System builders and I.T. specialists who need quick access to drives for imaging
- Backup data quickly to an external drive for archiving
- Transferring data from one hard drive to another
- Technicians who test or benchmark multiple hard drives
- Backup important data and easily take the drive to an offsite location for safekeeping
Website Search Keyword - UASP Dock
- Dual Hard Drive Dock
- USB 3.0 dock
- usb 3.0 sata hard drive docking station
- usb 3.0 uasp
- UASP
- SATA hard drive docking station
- 2.5 docking station
- 3.5 docking station
- 2 bay docking station
- U339-002
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Accessory Products - SAT2IDEADP
- HDDSLEV25
- HDDCASE25WH
- HDDCASE25YW
- PEXUSB3S2
- PEXUSB3S11
- HDDCASE25BK
- HDDSLEV35
- HDDCASE25BL
- USB3SAB3
- USB3SAB6
- USB3SAB10
- HDDCASE25GN
- HDDCASE25OR
- PEXUSB3S4V
- PEXUSB3S400
- MPEXUSB3S22B
- PEXUSB3S22
- MPEXUSB3S2
- PEXUSB3S4
- SVA12M5NA
Related Products - SDOCKU33HB
- SATDOCKU3SEF
- USB3S2SATA
- UNIDOCK3U
- SATDOCK22U3S
- SDOCK2U33HFB
- SDOCK2U33HFW
- SATDOCKU3S
- SDOCKU33HW
- SDOCKU33BV
- SDOCK2U33EB
- SDOCK2U33RE

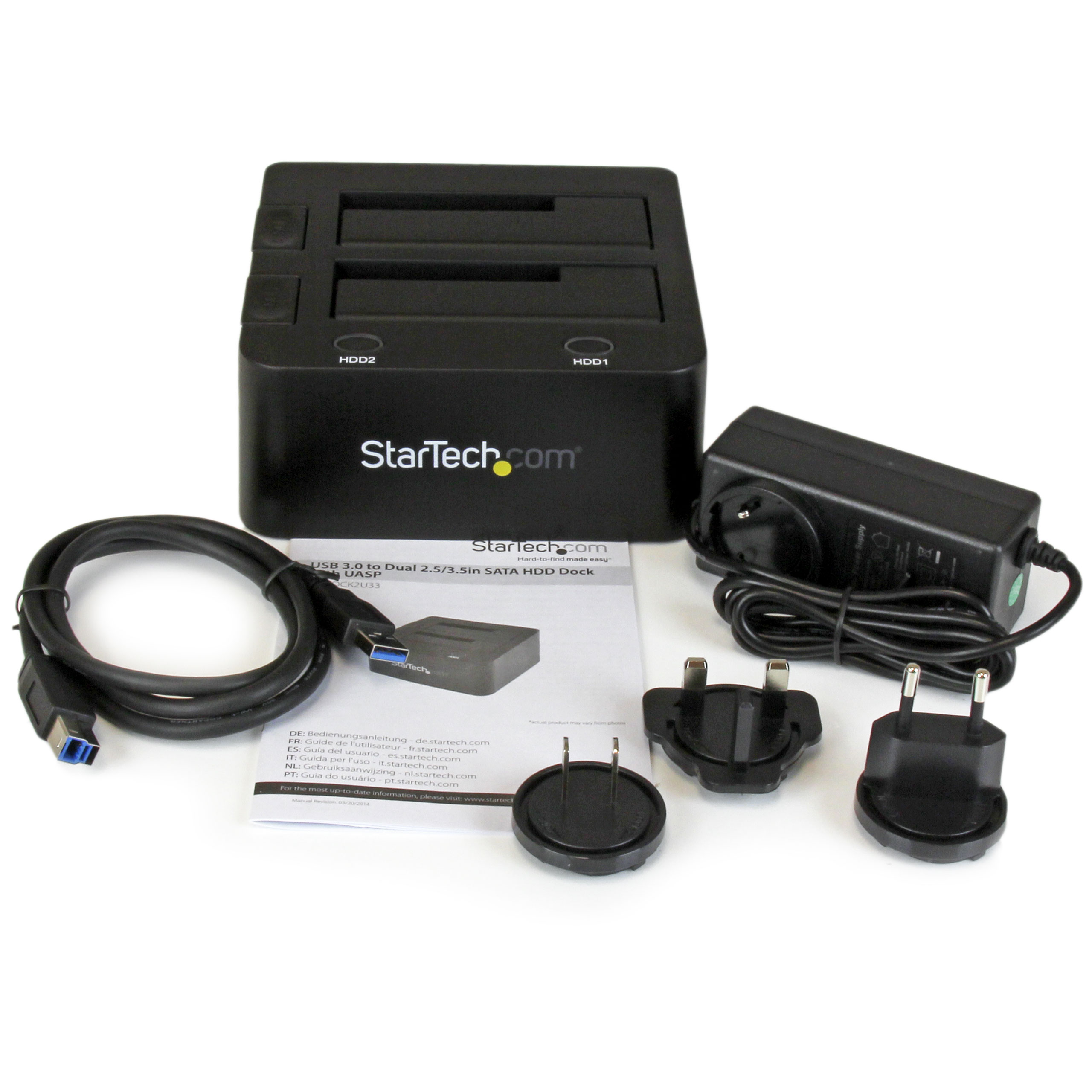

Constrained SKU Alternatives (Limited Stock) SDOCK2U33EB Input Current 1.3 A Input Voltage 100 - 240 AC Output Current 3 A Output Voltage (V) 12V DC Power Consumption (In Watts) 36 Power Source AC Adapter Included Plug Type M Color Black Humidity 20%RH~80%RH Material Plastic Operating Temperature 5°C to 35°C (41°F to 95°F) Primary Material Plastic Product Length (mm) 148.000 Product Width (mm) 132.000 Product Height (mm) 70.000 Product Weight (g) 513.000 Storage Temperature -20°C to 50°C (-4°F to 122°F) TAA Compliant No Insertion Rating 15,000 Cycles MTBF (hours) 30,000 OS Compatibility OS Independent UASP Support Yes Chipset ID Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 3.2 Gen 1 (5Gbps) LED Indicators 2 - Drive Power / Activity Number of Drives 2 Carton Depth (mm) 643 Carton Height (mm) 477 Carton Quantity 10 Carton Weight Gross (g) 10288 Included in Package - 1 - USB 3.0 to Dual 2.5/3.5in SATA hard drive docking station
- 1 - Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand
- 1 - Instruction Manual
- 1 - 3ft (1m) USB 3.0 Cable
Package Depth (mm) 212 Package Height (mm) 122 Package Width (mm) 189 Package Quantity 1 Package Weight (g) 940 Packaging Description USB 3.0 to Dual 2.5/3.5in SATA HDD Dock w/ UASP Packaging Description India USB 3.0 to Dual 2.5/3.5in SATA HDD Dock w/ UASP Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 2 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-04-07 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IT,MX,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
