Main Image
SDOCK2U33EB
eSATA USB 3 0 Dual 2 5 3 5 SATA HDD Dock w UASP
External SSD/HDD Docking Station | USB 3.2 Gen 1 (5 Gbps) / eSATA to SATA
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name eSATA USB 3 0 Dual 2 5 3 5 SATA HDD Dock w UASP Product Number SDOCK2U33EB UPC 065030855891 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > External Drive Enclosures Category Level 1 Data Storage Category Level 2 Drive Docking Stations Category Level 3 HDD Docking Stations - 5Gbps Family Dual Bay SATA Dock 5Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX157X Product Title (Ultra-Short) 2-Bay SATA Dock Product Title (Short) 2-Bay USB 3.0/eSATA Hard Drive Dock Product Title (Medium) 2-Bay USB 3.0 / eSATA to SATA Hard Drive Docking Station, 2.5/3.5" SSD/HDD Dock Product Title (Standard) Dual-Bay USB 3.0 / eSATA to SATA Hard Drive Docking Station, 2.5/3.5" SATA III, SSD/HDD Dock, Top-Loading Product Title (Long) Dual-Bay USB 3.0 / eSATA to SATA Hard Drive Docking Station, USB Hard Drive Dock, External 2.5/3.5" SATA I/II/III SSD/HDD Docking Station, Hot-Swap Hard Drive Bays, Top-Loading Product Title (AMZ) Dual-Bay USB 3.0 / eSATA to SATA Hard Drive Docking Station, External 2.5/3.5" SATA I/II/III, SSD/HDD Docking Station, Hot-Swap Hard Drive Bays, Top-Loading (SDOCK2U33EB) Title Ingram (Part 1) 2-Bay Hard Drive Dock - Title Ingram (Part 2) USB 3.0/eSATA to SATA SSD/HDD Website Product Headline External SSD/HDD Docking Station | USB 3.2 Gen 1 (5 Gbps) / eSATA to SATA Bullet 1 HARD DRIVE DOCKING STATION: This 2-bay hard drive dock enables instant access to 2.5/3.5" SATA drives for file backup, disk imaging, or data transfer over USB 3.2 Gen 1 (5 Gbps) or eSATA; Toolless design facilitates quick drive hot-swapping Bullet 2 SPECS: 2-Bay Hard Drive Dock; SATA I/II/III; eSATA or USB 3.2 Gen 1 (5 Gbps) Host Connection; Toolless Design; Hot-Swappable Drive Bays; Top-Loading/Toaster-Style with Eject Buttons; LED Activity Lights Bullet 3 PERFORMANCE: Independent eject buttons for each bay enables hot-swapping of an idle drive while the other bay is in use; Drive bays with 15,000 insertion/removal cycle rating for maximum durability Bullet 4 DRIVE COMPATIBILITY: Supports 2.5/3.5" SATA HDDs and SSDs of any capacity; OS independent; Compatible w/ SATA I/II/III - IDE adapter (SAT2IDEADP) sold separately; Includes 3ft (1m) eSATA and USB-A cables and universal power adapter Bullets (Compact) Dual-Bay Hard Drive Dock for 2.5" / 3.5" SATA Drives; SATA I/II/III HDD/SSD; eSATA (6 Gbps) or USB 3.2 (5 Gbps) Host Connection; Top-Loading Drive Bays w/ Drive Doors and Eject Buttons; Status LEDs; Hot-Swap Drive Bays; OS Independent Bullets (Consolidated) Dual-bay hard drive docking station enables access to two 2.5/3.5" SATA drives without having to install the drive - Hot-swap capable drive bays| Toolless design and top loading with eject buttons - SATA I/II/III | eSATA or USB 3.2 Gen 1 (5 Gbps) Host Connection | No capacity limit | OS independent - Includes 3ft (1m) eSATA and USB-A Cables and Universal Power Adapter Marketing Copy Applications - System builders and I.T. specialists who need quick access to drives for imaging
- Backup data quickly to an external drive for archiving
- Transferring data from one hard drive to another
- Technicians who test or benchmark multiple hard drives
- Backup important data and easily take the drive to an offsite location for safekeeping
Website Search Keyword - USB 3.0 dock
- eSATA Dock
- hard drive dock
- uasp
- uasp hard drive dock
- uasp hdd dock
- 3.5" hard drive dock
- 2.5" hard drive dock
- sata 6 Gbps dock
- dual hard drive dock
- ssd dock
- U339-002
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes For both drives to be detected while connected via eSATA the host controller must support SATA Port Multiplier. Accessory Products - SAT2IDEADP
- HDDSLEV25
- HDDCASE25WH
- HDDCASE25YW
- PEXUSB3S2
- ECUSB3S2
- PEXUSB3S11
- HDDCASE25BK
- HDDSLEV35
- HDDCASE25BL
- USB3SAB3
- USB3SAB6
- USB3SAB10
- HDDCASE25GN
- HDDCASE25OR
- PEXUSB3S4V
- PEXUSB3S400
- MPEXUSB3S22B
- PEXUSB3S22
- MPEXUSB3S2
- PEXUSB3S4
- SVA12M5NA
Related Products - SDOCKU33HB
- SATDOCKU3SEF
- USB3S2SATA
- UNIDOCK3U
- SATDOCK22U3S
- SDOCK2U33HFB
- SDOCK2U33HFW
- SATDOCKU3S
- SDOCKU33HW
- SDOCKU33BV
- SDOCK2U33
- SDOCK2U33RE
Constrained SKU Alternatives (Limited Stock) SDOCK2U33 Input Current 1.5 A Input Voltage 100 - 240 AC Output Current 3.0 A Output Voltage (V) 12V DC Power Consumption (In Watts) 36 Power Source AC Adapter Included Plug Type M Color Black Humidity 20%RH~80%RH Material Plastic Operating Temperature 5°C to 35°C (41°F to 95°F) Primary Material Plastic Product Length (mm) 143.000 Product Width (mm) 132.000 Product Height (mm) 70.000 Product Weight (g) 524.000 Storage Temperature -20°C to 50°C (-4°F to 122°F) TAA Compliant No Insertion Rating 15,000 Cycles Max Drive Capacity Currently tested with up to 4TB 7200 RPM 3.5" hard drives per bay (8TB total) and 2TB 5900 RPM 2.5" hard drives (2TB total) OS Compatibility OS Independent Port Multiplier Yes SATA Type and Rate SATA III (6 Gbps) UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Chipset ID JMicron - JMS562 Compatible Drive Types SATA Interface/Bridge USB 3.0 & eSATA LED Indicators - 1 - Power
- 1 - Drive 1 Activity
- 1 - Drive 2 Activity

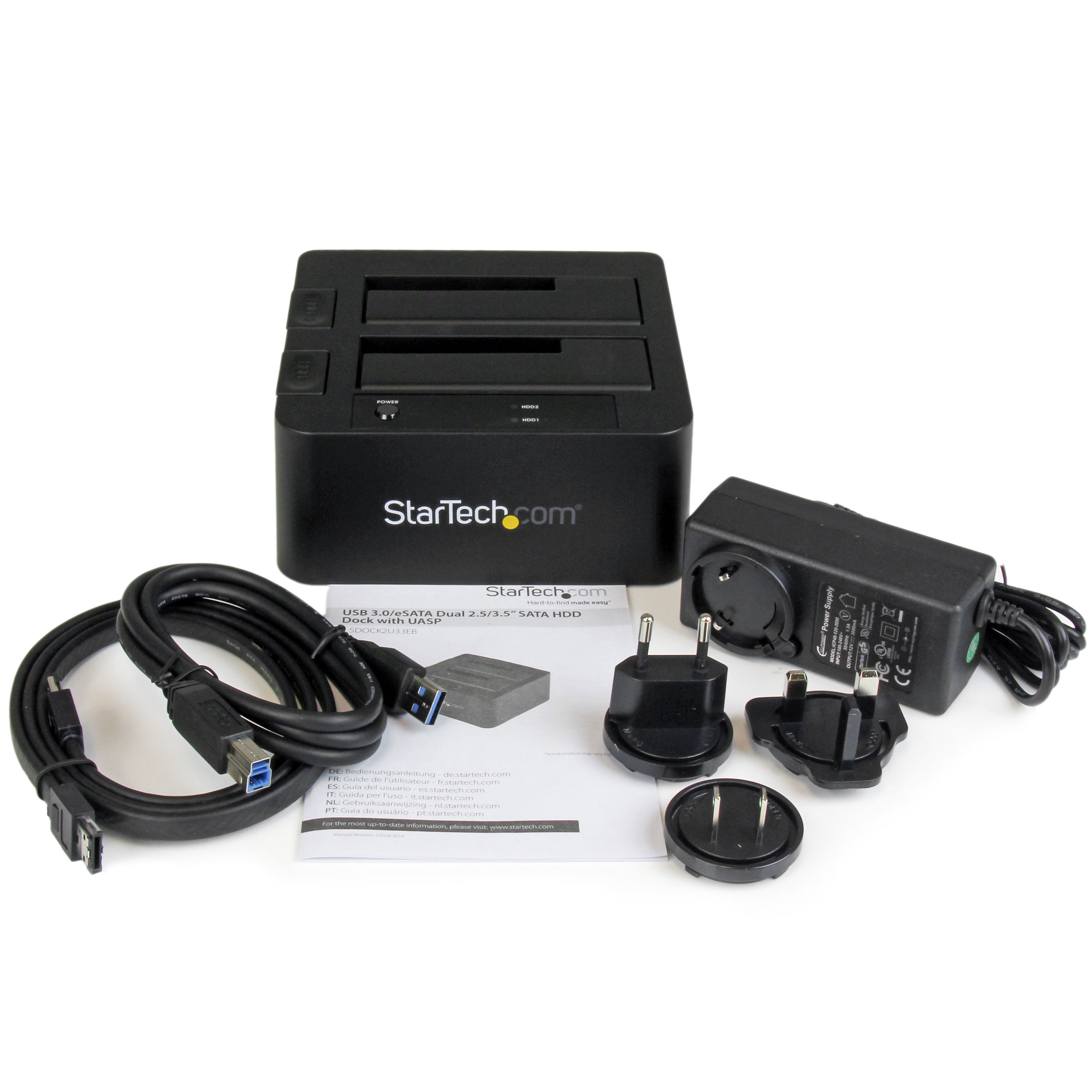

Number of Drives 2 Carton Depth (mm) 686 Carton Height (mm) 471 Carton Quantity 10 Carton Weight Gross (g) 10712 Included in Package - 1 - USB 3.0/eSATA to Dual 2.5/3.5in SATA Hard Drive Docking Station
- 1 - eSATA Cable
- 1 - USB 3.0 Cable
- 1 - Instruction Manual
- 1 - Universal Power Adapter (NA,EU,UK,ANZ)
Package Depth (mm) 188 Package Height (mm) 213 Package Width (mm) 123 Package Weight (g) 994 Packaging Description USB 3.0/eSATA Dual 2.5/3.5” SATA HDD Dock w/ UASP Packaging Description India USB 3.0/eSATA Dual 2.5/3.5” SATA HDD Dock w/ UASP Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 2 Host Connector 1 eSATA (7-Pin) Host Connector 1 (Quantity) 1 Host Connector 2 USB-B (5Gbps, 4.5W) Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-11-20 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IT,MX,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
