SDOCK2U33HFB
USB 3.0 Dual SATA HDD Dock w/ Fast Charge Hub/UASP
Dock up to two 2.5” or 3.5” SATA SSDs/HDDs in a stylish black docking station with an integrated 2-port USB 3.0 hub
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name USB 3.0 Dual SATA HDD Dock w/ Fast Charge Hub/UASP Product Number SDOCK2U33HFB UPC 065030852708 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Drive Docking Stations Category Level 3 HDD Docking Stations - 5Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX073X Product Title (Ultra-Short) USB 3 Dual HDD Dock Product Title (Short) USB 3.0 Dual HDD Dock w/ Fast Charge Hub Product Title (Standard) USB 3.0 Dual SATA Hard Drive Docking Station with integrated Fast Charge USB Hub UASP support and Fan - Black Product Title (Long) USB 3.0 Dual SATA Hard Drive Docking Station with integrated Fast Charge USB Hub UASP support and Fan - Black Product Title (AMZ) USB 3.0 Dual SATA Hard Drive Docking Station with Fast Charge Hub UASP and Fan - HDD / SSD Dock for 2.5 / 3.5" Drives - Black (SDOCK2U33HFB) Title Ingram (Part 1) USB 3.0 Dual SATA HDD Dock w/ Title Ingram (Part 2) Fast Charge Hub & UASP - Black Website Product Headline Dock up to two 2.5” or 3.5” SATA SSDs/HDDs in a stylish black docking station with an integrated 2-port USB 3.0 hub Bullet 1 Supports 2.5in and 3.5in form factor SATA hard drives (HDD) and solid state drives (SSD) Bullet 2 Built-in USB 3.0 Hub with Fast Charging Port Bullet 3 UASP Compliant Bullet 4 SuperSpeed USB 3.0 compliant host interface, with up to 5 Gbps of data bandwidth Bullet 5 Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) drives Bullets (Consolidated) Dock up to two 2.5" or 3.5" SATA SSDs/HDDs in a stylish black docking station with an integrated 2-port USB 3.0 hub - Compatible with USB enabled computer systems such as ThinkPad Edge E531 and 2.5in or 3.5in SATA solid-state drives and hard drives - HDD Dock/SSD Dock/USB Hard Drive Dock/SATA Hard Drive Dock/SATA III 6Gbps/Docking Staiton/SATA HDD and SSD Dock/USB DOCK Hub - Easily transfer data from one hard drive to another - Connect addtional USB devices to the built-in USB hub Marketing Copy Applications - System administrators who need quick access to drives for imaging
- Technicians who regularly test or benchmark different hard drives and need to swap between them
- Backup data quickly to an external data archive
- Easily copy data from one external drive to another in a single external dock through one USB connection
- IT professional that need to charge tablets and Smart phone devices
- Data recovery specialists who need quick access to drives to recover/retrieve data
Microsoft WHQL Certified Yes Special Notes Note: Certain devices may not support charging and syncing simultaneously. In these instances disconnect the device, and set the charge only switch to “on”, then reconnect the device. Accessory Products - SAT2IDEADP
- PEXUSB3S11
- HDDCASE25BK
- HDDSLEV35
- HDDCASE25GN
- HDDCASE25OR
- HDDCASE25BL
- PEXUSB3S2
- ECUSB3S2
- USB3SAB6
- HDDCASE25WH
- HDDSLEV25
- HDDCASE25YW
- USB3SAB3
- USB3SAB10
- PEXUSB3S4V
- PEXUSB3S4
- PEXUSB3S22
- MPEXUSB3S2
- MPEXUSB3S22B
- PEXUSB3S400
Related Products - SDOCKU33HW
- SATDOCKU3SEF
- SATDOCKU3S
- UNIDOCK3U
- SATDOCK22U3S
- SDOCK2U33HFW
- USB3S2SATA
- SDOCKU33HB
Input Current 1.5A Input Voltage 100 - 240 AC Output Current 6A Output Voltage (V) 12V DC Power Consumption (In Watts) 72 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black & Silver Humidity 20%RH ~ 80%RH Operating Temperature 5°C to 35°C (41°F to 95°F) Product Length (mm) 185 Product Width (mm) 122 Product Height (mm) 145 Product Weight (g) 826 Storage Temperature -20°C to 50°C (-4°F to 122°F) TAA Compliant No Max Drive Capacity Currently tested with up to 4TB 5400 RPM 3.5" hard drives and 1TB 5400 RPM 2.5" hard drives OS Compatibility OS Independent RAID No SATA Type and Rate SATA III (6 Gbps) UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Chipset ID Compatible Drive Types SATA Fans 1 - 80 mm Fans Included? Yes/No Yes Interface/Bridge USB 3.2 Gen 1 (5Gbps) LED Indicators - 1 - Power/Activity (Drive 1)
- 1 - Power/Activity (Drive 2)

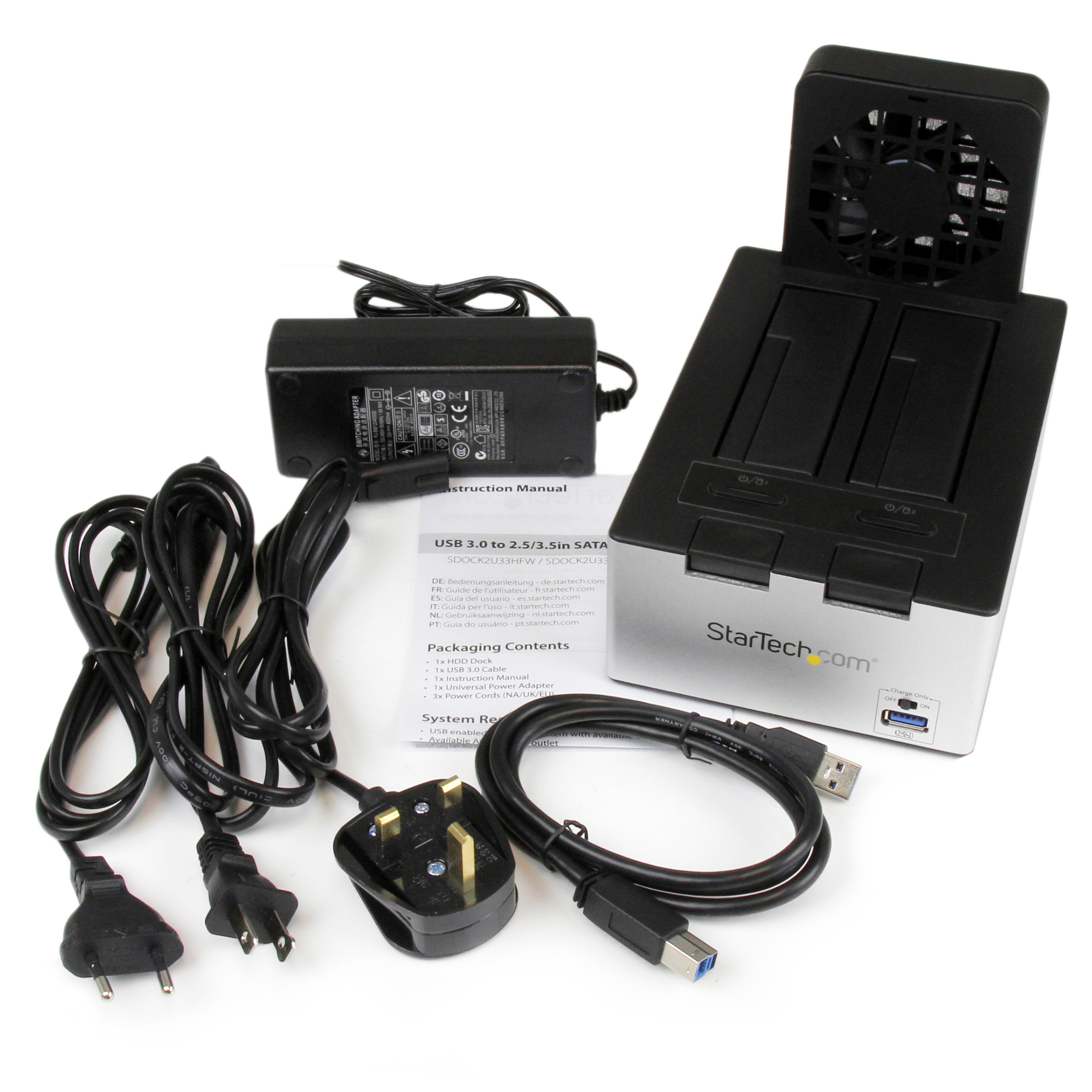

Number of Drives 2 Carton Depth (mm) 340 Carton Height (mm) 310 Carton Quantity 8 Carton Weight Gross (g) 12980 Included in Package - 1 - HDD Dock
- 3 - Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand
- 1 - Instruction Manual
- 1 - USB 3.0 Cable (1m)
Package Depth (mm) 160 Package Height (mm) 130 Package Width (mm) 195 Package Quantity 1 Package Weight (g) 1510 Packaging Description USB 3.0 Dual 2.5/3.5in SATA HDD Dock w/ Hub and Fan Packaging Description India USB 3.0 Dual 2.5/3.5in SATA HDD Dock w/ Hub and Fan Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 1 Connector 2 USB-A (7.5W Power Only) Connector 2 (Quantity) 1 Connector 3 SATA (7-Pin + 15-Pin) Connector 3 (Quantity) 2 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-08-05 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,EU,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy
