Main Image
SDOCK2U33HFW

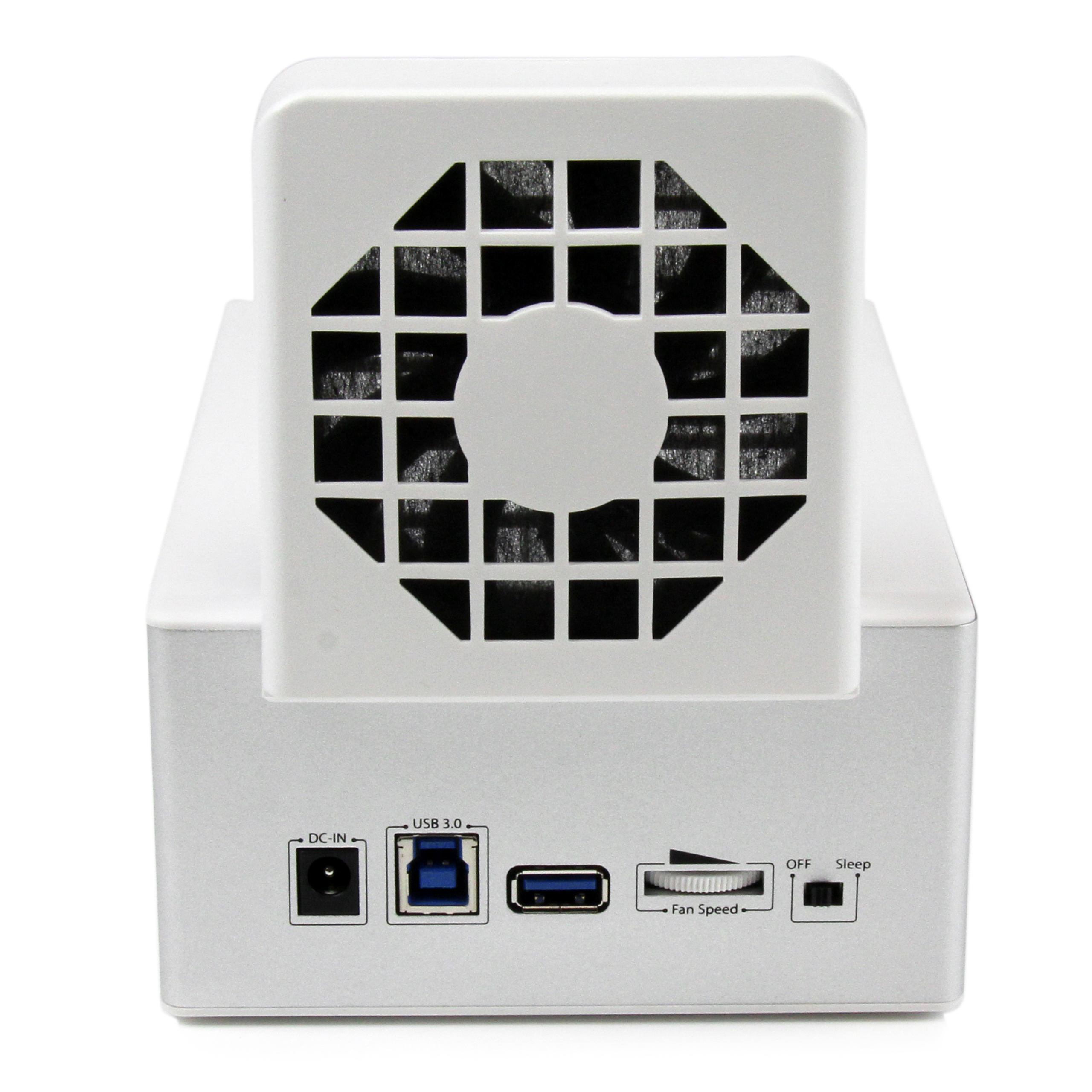

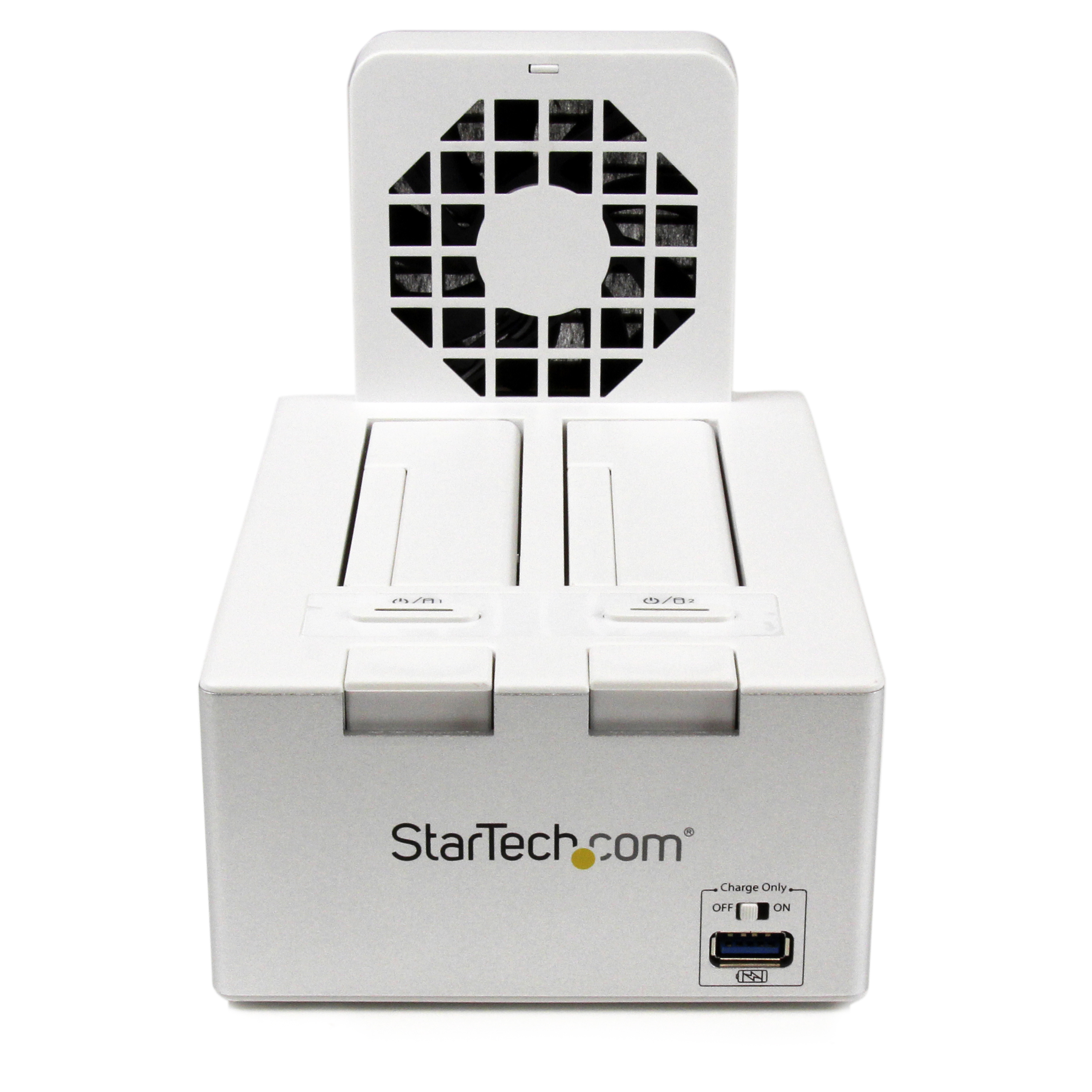

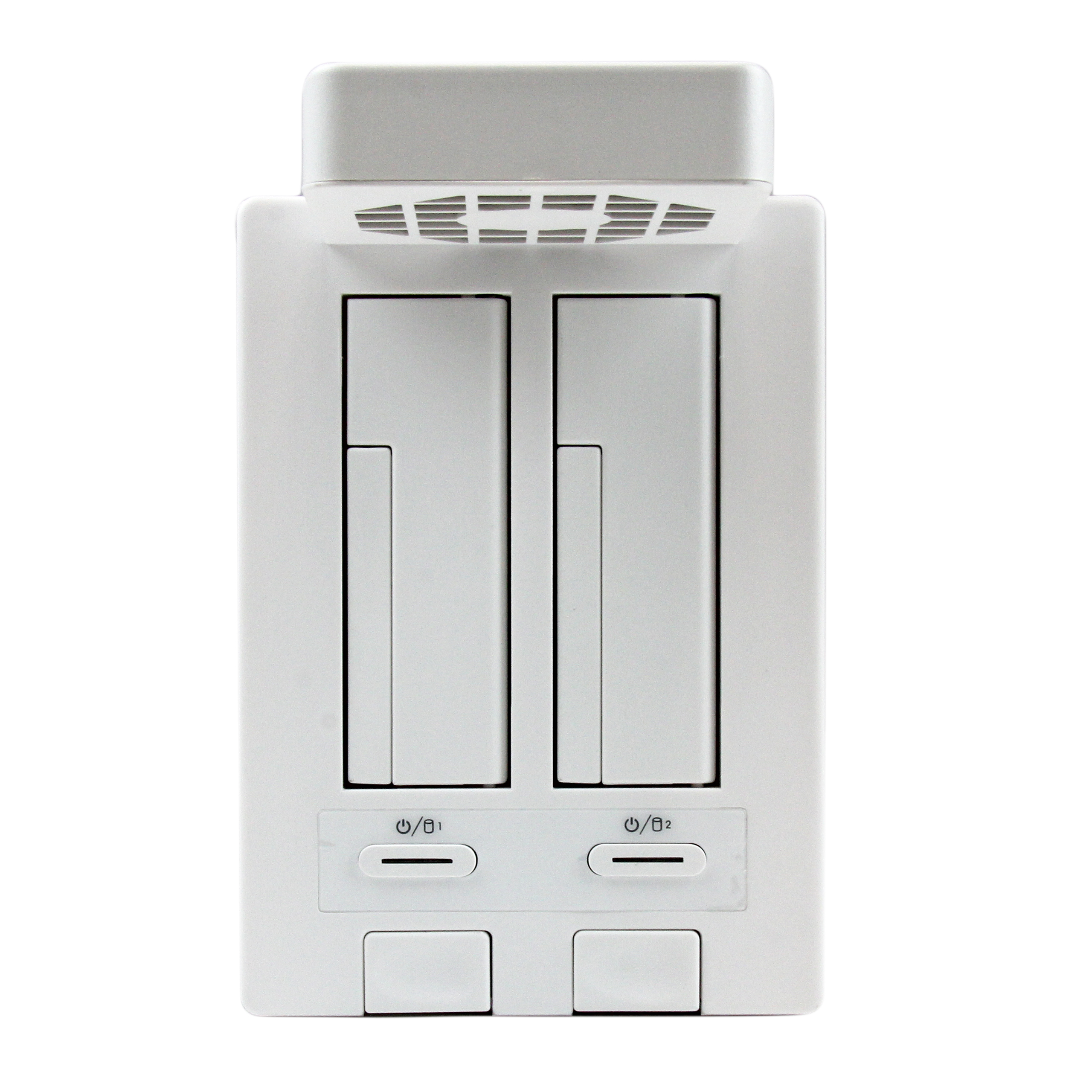

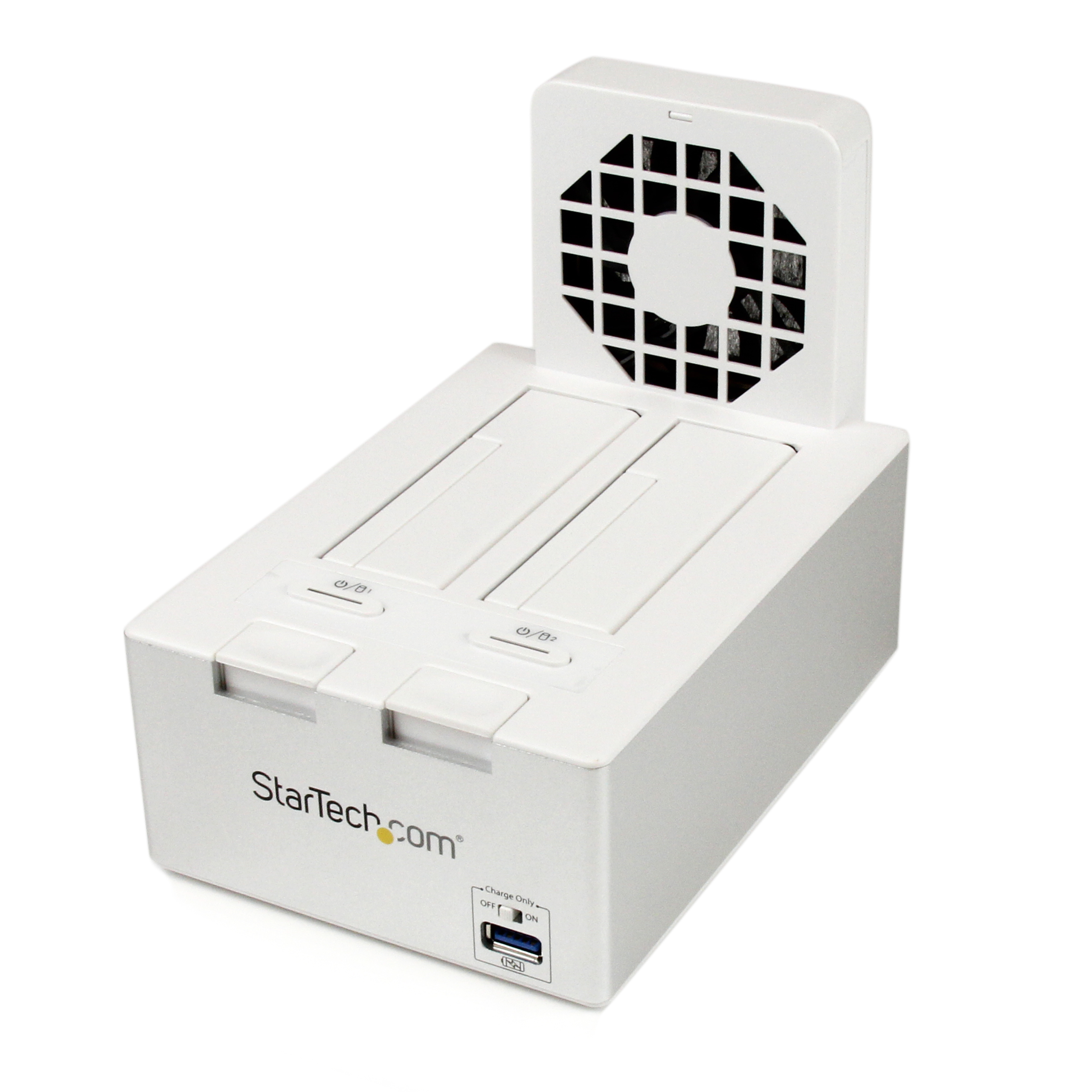

USB 3 Dual SATA HDD Dock w/ Fast Charge Hub / UASP
Dock up to two 2.5” or 3.5” SATA SSDs/HDDs in a stylish white docking station with an integrated 2-port USB 3.0 hub
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name USB 3 Dual SATA HDD Dock w/ Fast Charge Hub / UASP Product Number SDOCK2U33HFW UPC 065030852715 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Drive Docking Stations Category Level 3 HDD Docking Stations - 5Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX073X Product Title (Ultra-Short) USB 3 Dual HDD Dock Product Title (Short) USB 3.0 Dual HDD Dock w/ Fast Charge Hub Product Title (Standard) USB 3.0 Dual SATA Hard Drive Docking Station with integrated Fast Charge USB Hub UASP support and Fan - White Product Title (Long) USB 3.0 Dual SATA Hard Drive Docking Station with integrated Fast Charge USB Hub UASP support and Fan - White Product Title (AMZ) USB 3.0 Dual SATA Hard Drive Docking Station with Fast Charge Hub UASP and Fan - HDD SSD Dock for 2.5 / 3.5" Drives - White (SDOCK2U33HFW) Title Ingram (Part 1) USB 3.0 Dual SATA HDD Dock w/ Title Ingram (Part 2) Fast Charge Hub & UASP - White Website Product Headline Dock up to two 2.5” or 3.5” SATA SSDs/HDDs in a stylish white docking station with an integrated 2-port USB 3.0 hub Bullet 1 Supports 2.5in and 3.5in form factor SATA hard drives (HDD) and solid state drives (SSD) Bullet 2 SuperSpeed USB 3.0 compliant host interface, with up to 5 Gbps of data bandwidth Bullet 3 Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) drives Bullet 4 Plug-and-Play and Hot-Swap compatible Bullet 5 Stylish full white design with silver trim Bullets (Consolidated) Dock up to two 2.5" or 3.5" SATA SSDs/HDDs in a stylish white docking station with an integrated 2-port USB 3.0 hub - Compatible with USB enabled computer systems such as MacBook Pro and 2.5in or 3.5in SATA solid-state drives and hard drives - HDD Dock/SSD Dock/USB Hard Drive Dock/SATA Hard Drive Dock/External Hard Drive Docking Staiton/SATA HDD and SSD Dock/SATA III 6Gbps - Connect addtional USB devices to the built-in USB hub - White and Silver Dock looks great with your Mac Marketing Copy Applications - System administrators who need quick access to drives for imaging
- Backup data quickly to an external data archive
- Easily copy data from one external drive to another in a single external dock through one USB connection
- Technicians who regularly test or benchmark different hard drives and need to swap between them
- IT professional that need to charge tablets and Smart phone devices
- Data recovery specialists who need quick access to drives to recover/retrieve data
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes Note: Certain devices may not support charging and syncing simultaneously. In these instances disconnect the device, and set the charge only switch to “on”, then reconnect the device. Accessory Products - SAT2IDEADP
- HDDCASE25BK
- HDDSLEV35
- HDDCASE25GN
- HDDCASE25OR
- HDDCASE25BL
- PEXUSB3S2
- ECUSB3S2
- USB3SAB6
- HDDSLEV25
- HDDCASE25YW
- USB3SAB3
- USB3SAB10
- HDDCASE25WH
- PEXUSB3S11
Related Products - SDOCKU33HW
- SATDOCKU3S
- UNIDOCK3U
- SATDOCK22U3S
- SDOCK2U33HFB
- USB3S2SATA
- SATDOCKU3SEF
Replacement Product SDOCK2U33 Input Current 1.5A Input Voltage 100 - 240 AC Output Current 4A Output Voltage (V) 12V DC Power Consumption (In Watts) 72 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color White & Silver Humidity 20%RH ~ 80%RH Operating Temperature 5°C to 35°C (41°F to 95°F) Product Length (mm) 185.000 Product Width (mm) 122.000 Product Height (mm) 145.000 Product Weight (g) 1350.116 Storage Temperature -20°C to 50°C (-4°F to 122°F) TAA Compliant No Max Drive Capacity Currently tested with up to 4TB 7200 RPM 3.5" hard drives and 1TB 7200 RPM 2.5" hard drives OS Compatibility OS Independent SATA Type and Rate SATA III (6 Gbps) UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Chipset ID Compatible Drive Types SATA Fans 1 - 80 mm Fans Included? Yes/No Yes Interface/Bridge USB 3.2 Gen 1 (5Gbps) LED Indicators - 1 - Power/Activity (Drive 1)
- 1 - Power/Activity (Drive 2)

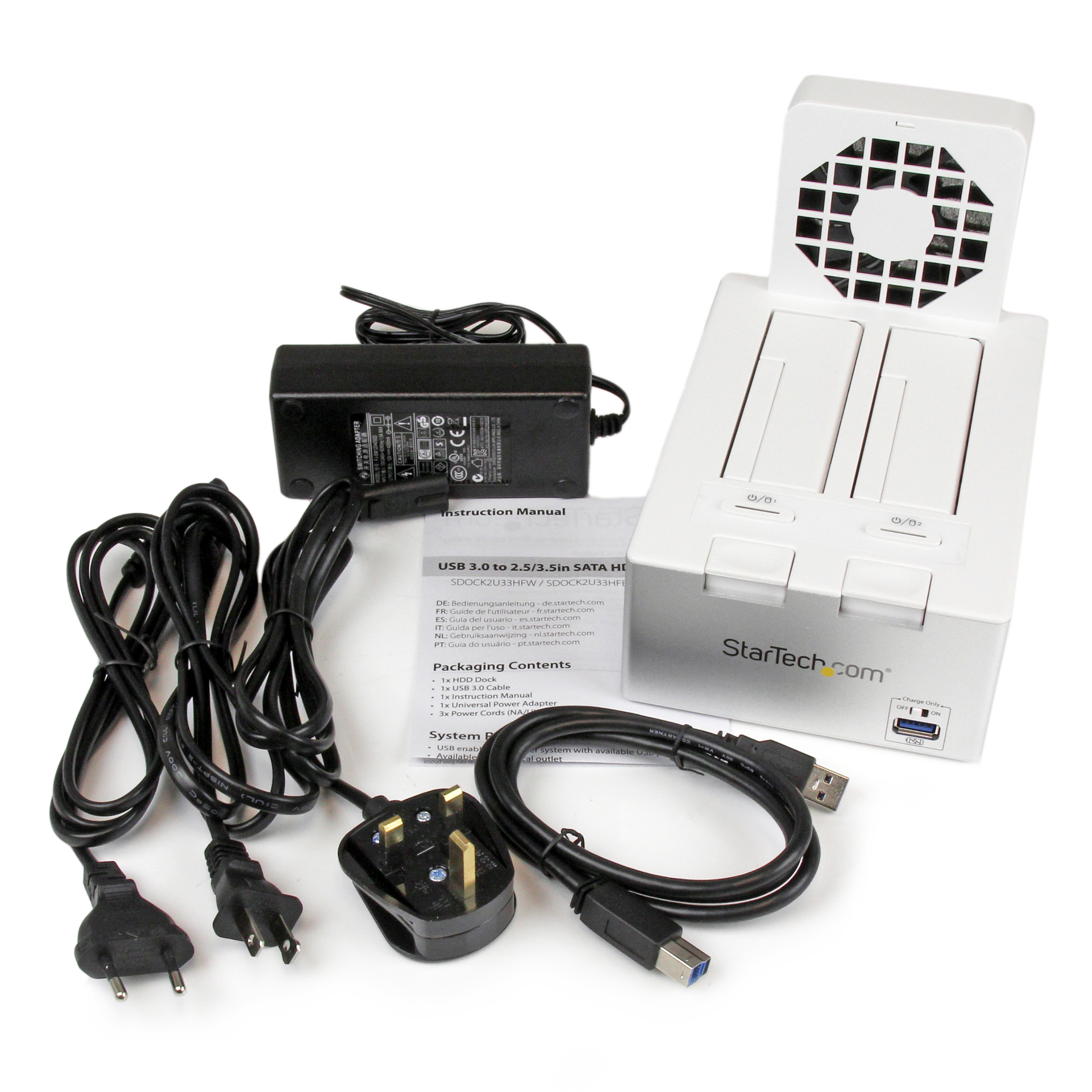

Number of Drives 2 Carton Depth (mm) 341 Carton Height (mm) 313 Carton Quantity 8 Carton Weight Gross (g) 12850 Included in Package - 1 - HDD Dock
- 1 - USB 3.0 Cable (1m)
- 1 - Instruction Manual
- 1 - Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand
Package Depth (mm) 162 Package Height (mm) 134 Package Width (mm) 196 Package Quantity 1 Package Weight (g) 1510.234 Packaging Description USB 3.0 Dual 2.5/3.5in SATA HDD Dock w/ Hub and Fan Packaging Description India USB 3.0 Dual 2.5/3.5in SATA HDD Dock w/ Hub and Fan Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 1 Connector 2 USB-A (7.5W Power Only) Connector 2 (Quantity) 1 Connector 3 SATA (7-Pin + 15-Pin) Connector 3 (Quantity) 2 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-08-05 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy
