Main Image
SDOCK2U33V
Dual Bay Drive Docking Station for 2 5 3 5
External SSD/HDD Docking Station | USB 3.2 Gen 1 (5 Gbps) to SATA
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name Dual Bay Drive Docking Station for 2 5 3 5 Product Number SDOCK2U33V UPC 065030870634 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > External Drive Enclosures Category Level 1 Data Storage Category Level 2 Drive Docking Stations Category Level 3 HDD Docking Stations - 5Gbps Family Dual Bay SATA Dock 5Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX080X Product Title (Ultra-Short) 2-Bay SATA Dock Product Title (Short) 2-Bay USB 3.0 Hard Drive Docking Station Product Title (Medium) 2-Bay USB 3.0 to SATA Hard Drive Docking Station, 2.5/3.5" SATA III SSD/HDD Dock Product Title (Standard) Dual-Bay USB 3.0 to SATA Hard Drive Docking Station, 2.5/3.5" SATA I/II/III, SSD/HDD Dock, USB Hard Drive Bays, Top-Loading Product Title (Long) Dual-Bay USB 3.0 to SATA Hard Drive Docking Station, USB Hard Drive Dock, External 2.5/3.5" SATA I/II/III SSD/HDD Docking Station, Hot-Swap Hard Drive Bays, Top-Loading Product Title (AMZ) Dual-Bay USB 3.0 to SATA Hard Drive Docking Station, USB Hard Drive Dock, External 2.5/3.5" SATA I/II/III, SSD/HDD Docking Station, Hot-Swap Hard Drive Bays, Top-Loading (SDOCK2U33V) Title Ingram (Part 1) 2-Bay Hard Drive Dock - Title Ingram (Part 2) USB 3.0 to 2.5/3.5" SATA SSD/HDD Website Product Headline External SSD/HDD Docking Station | USB 3.2 Gen 1 (5 Gbps) to SATA Bullet 1 HARD DRIVE DOCKING STATION: This 2-bay hard drive dock enables access to 2.5/3.5" SATA drives for file backup, disk imaging, or data transfer over USB 3.2 Gen 1 (5 Gbps) Bullet 2 DRIVE COMPATIBILITY: Supports 2.5/3.5" SATA HDDs and SSDs of any capacity; OS independent; Compatible w/ SATA I/II/III; IDE adapter (SAT2IDEADP) sold separately; Includes 4ft (1.2m) USB-A cable and universal power adapter Bullet 3 PERFORMANCE: Toolless design enables hot-swapping of an idle drive while the other bay is in use; Drive bays with 15,000 insertion/removal cycle rating for maximum durability Bullet 4 SPECS: 2-Bay Hard Drive Dock; SATA I/II/III; USB 3.2 Gen 1 (5 Gbps) Host Connection; Hot-Swappable Drive Bays; Top-Loading/Toaster-Style with Drive Doors - LED Activity Lights Bullets (Compact) Dual-Bay Hard Drive Dock for 2.5" / 3.5" SATA Drives; SATA I/II/III HDD/SSD; USB 3.2 Gen 1 (5 Gbps) Host Connection; Top-Loading Drive Bays w/ Drive Doors; Status LEDs; Hot Swap Compatible; No Software or Drivers Required Bullets (Consolidated) Dual-bay hard drive docking station enables access to two 2.5/3.5" SATA drives without having to install the drive - Hot-swap capable drive bays | Toolless design and top loading - SATA I/II/III | USB 3.2 Gen 1 (5 Gbps) | No capacity limit | OS independent - Includes 4ft USB-A Cable and Universal Power Adapter Marketing Copy Applications - Ideal for system builders and other IT specialists who need quick access to drives for imaging
- Backup data quickly to an external drive for archiving
- Transfer data from one hard drive to another
- Backup important data and easily take the drive to an offsite location for safekeeping
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Special Notes Windows 7 and earlier Windows versions do not support TRIM with USB to SATA devices. Accessory Products - SAT2IDEADP
- HDDSLEV25
- HDDCASE25WH
- HDDCASE25YW
- PEXUSB3S2
- PEXUSB3S11
- HDDCASE25BK
- HDDSLEV35
- HDDCASE25BL
- USB3SAB3
- USB3SAB6
- USB3SAB10
- HDDCASE25GN
- HDDCASE25OR
- PEXUSB3S4V
- PEXUSB3S400
- MPEXUSB3S22B
- PEXUSB3S22
- MPEXUSB3S2
- PEXUSB3S4
- SVA12M5NA
Related Products - SDOCKU33HB
- SATDOCKU3SEF
- USB3S2SATA
- UNIDOCK3U
- SATDOCK22U3S
- SATDOCKU3S
- SDOCKU33HW
- SDOCKU33BV
- SDOCK2U33
- SDOCK2U313
- SDOCK2U313R
Constrained SKU Alternatives (Limited Stock) SDOCK2U33EB Input Current 1.5 A Input Voltage 100 - 240 AC Output Current 3 A Output Voltage (V) 12V DC Power Consumption (In Watts) 36 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 20%RH~80%RH Material Aluminum and Plastic Operating Temperature 5°C to 35°C (41°F to 95°F) Primary Material Aluminum Product Length (mm) 130.000 Product Width (mm) 114.000 Product Height (mm) 62.000 Product Weight (g) 356.000 Storage Temperature -20°C to 50°C (-4°F to 122°F) TAA Compliant No 4Kn Support Yes Max Drive Capacity Currently tested with hard drives up to 10TB at 7200 RPM OS Compatibility OS Independent Port Multiplier No RAID No SATA Type and Rate SATA III (6 Gbps) S.M.A.R.T. Support Yes TRIM Support Yes UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID ASMedia - ASM1153E Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 3.2 Gen 1 (5Gbps) LED Indicators - 2 - drive activity LED
- 1 - power LED

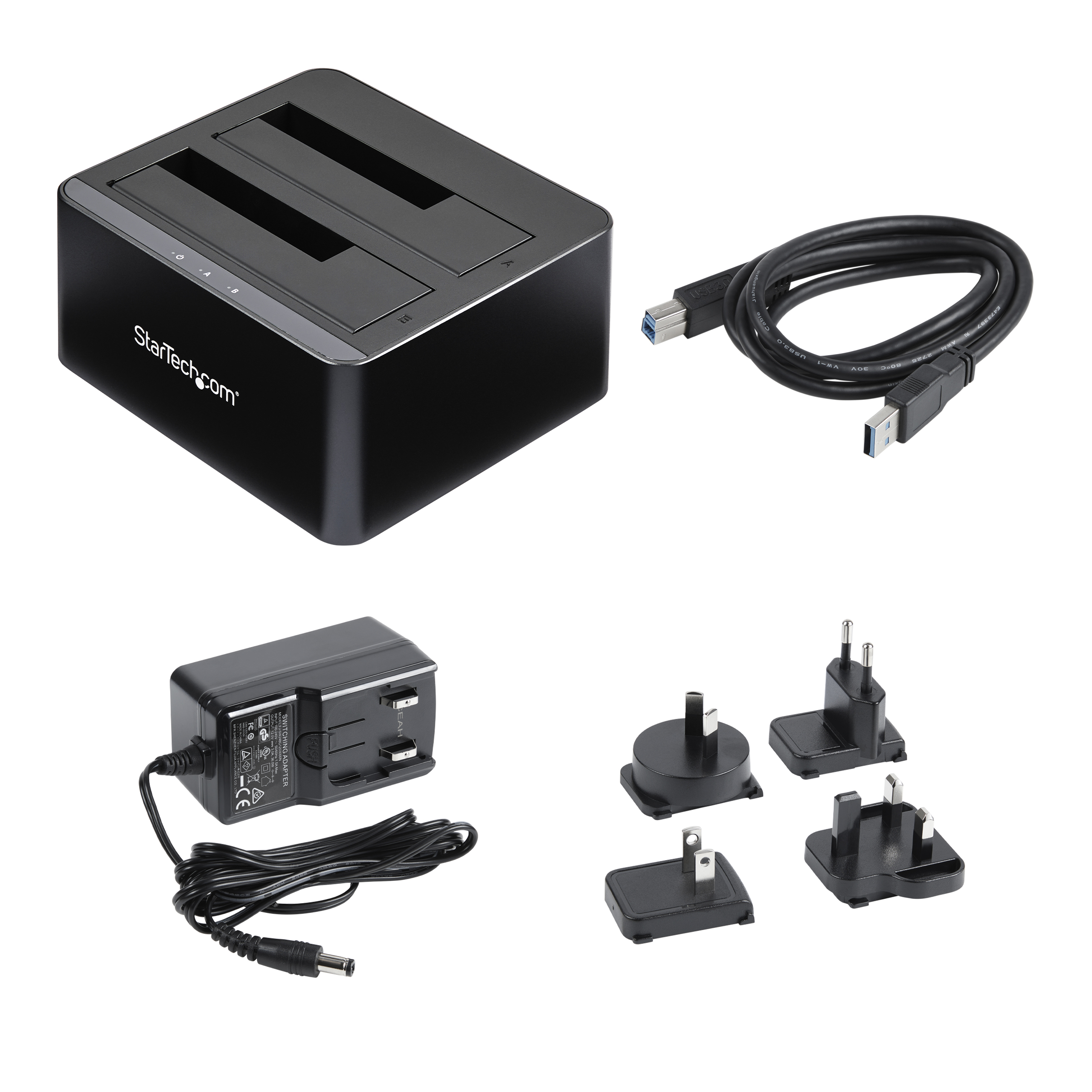

Number of Drives 2 Carton Depth (mm) 632 Carton Height (mm) 169 Carton Quantity 10 Carton Weight Gross (g) 7848 Included in Package - 1 - drive docking station
- 1 - 1.2 m USB 3.0 cable
- 1 - universal power adapter (NA/JP, UK, EU, ANZ)
- 1 - quick-start guide
Package Depth (mm) 128 Package Height (mm) 126 Package Width (mm) 137 Package Quantity 1 Package Weight (g) 728 Packaging Description Dual Drive Dock for 2.5/3.5" SATA SSDs/HDDs - USB 3.0 Packaging Description India Dual Drive Dock for 2.5/3.5" SATA SSDs/HDDs - USB 3.0 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 2 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Actual Inbox Documents Created Manual in the box Amazon Merchandising Manager Veronica Ye Artwork Due Date 2017-04-11 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Digital Content Due Date 2017-07-04 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IT,JP,MX,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2017-03-31 Target Production Release 2017-04-13 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
