SDOCK4U313
4 Bay SATA SSD HDD Docking Station USB C USB A
External SSD/HDD Docking Station | USB 3.2 Gen 2 (10 Gbps) to SATA I/II/III
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 4 Bay SATA SSD HDD Docking Station USB C USB A Product Number SDOCK4U313 UPC 065030870672 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > External Drive Enclosures Category Level 1 Data Storage Category Level 2 Drive Docking Stations Category Level 3 HDD Docking Stations - 10Gbps Family Quad Bay SATA Dock 10Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX157X Product Title (Ultra-Short) 4-Bay SATA Dock Product Title (Short) 4-Bay USB 10G Hard Drive Docking Station Product Title (Medium) 4-Bay USB to SATA Hard Drive Docking Station, 10Gbps, 2.5/3.5" SATA III SSD/HDD Product Title (Standard) 4-Bay USB to SATA Hard Drive Docking Station, USB 10Gbps, External 2.5/3.5" SSD/HDD Dock, SATA III, Hot-Swap, Top-Loading Product Title (Long) 4-Bay USB to SATA Hard Drive Docking Station, USB 10Gbps, External 2.5" & 3.5" SSD / HDD Dock, SATA III, Hot-Swap Hard Drive Bay, Top-Loading Product Title (AMZ) 4-Bay USB to SATA Hard Drive Docking Station, USB 10Gbps, External 2.5/3.5" SSD/HDD Dock, SATA III, Hot-Swap, Top-Loading Title Ingram (Part 1) 4-Bay Hard Drive Dock - Title Ingram (Part 2) USB 3.1 to 2.5/3.5" SATA SSD/HDD Website Product Headline External SSD/HDD Docking Station | USB 3.2 Gen 2 (10 Gbps) to SATA I/II/III Bullet 1 HARD DRIVE DOCKING STATION: This 4-bay hard drive dock delivers instant access to up to four 2.5/3.5" SATA hard drives for file backup, imaging, or data transfer over USB 3.2 Gen 2 (10 Gbps). Tool-less design enables quick hot-swapping. Bullet 2 DRIVE COMPATIBILITY: Supports 2.5/3.5" SATA HDDs & SSDs of any capacity | OS Independent | Backwards compatible w/ SATA I/II | IDE adapter (SAT2IDEADP) sold separately | Includes 3ft USB A/C cables and universal power adapter Bullet 3 PERFORMANCE: Independently-powered SATA controllers enable drive hot swapping without interrupting other drive bays that are in use. Dual 60mm fans maintain optimal drive temperature for reliability and performance. Bullet 4 SPECS: 4-Bay Hard Drive Dock | SATA I/II/III (1.5/3/6 Gbps) | USB 3.2 Gen 2 (10 Gbps) Host Connection | Dual 60mm Fans | Tool-less/Tray-less Design | Hot-Swappable Drive Bays | Top-Loading/Toaster-Style with Eject Buttons | LED Activity Lights Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this Quad-Bay Hard Drive Dock is backed for 2 years, including free lifetime 24/5 multilingual technical assistance Bullets (Compact) Quad-Bay Hard Drive Dock for 2.5" / 3.5" SATA drives; SATA III (6.0 Gbps) HDD/SSD; USB 3.2 Gen 2 (10 Gbps); Dual 60mm Fans; Top-Loading Drive Bay w/ Dust Covers and Eject Buttons; LED Status Lights; Hot Swappable; No software or drivers required Bullets (Consolidated) Quad-bay hard drive docking station delivers instant access to up to four 2.5/3.5" SATA drives without having to install the drive in an external enclosure - Hot-swappable bays work with 2.5" / 3.5" SATA drives. Tool-less design and top slot loading with eject buttons - SATA III (6.0 Gbps) | USB 3.2 Gen 2 (10 Gbps) | No capacity limit | Dual 60mm fans | OS Independent - Includes 3ft USB A/C cables and universal power adapter Marketing Copy Marketing Copy (No HTML) This USB 10Gbps hard drive docking station lets you access up to four solid-state drives or hard drives simultaneously over USB 3.2 Gen 2 (10Gbps), and hot swap drives with ease. Ideal for IT professionals, the docking station for 2.5"/3.5" SSDs/HDDs provides large data capacity and fast file transfers, helping you manage your workflow more efficiently. When you're managing many drives, the external hard drive docking station saves you time. Quickly dock and swap your drives for disk imaging, data recovery from failing drives, data backups, or other tasks. The USB docking station also has SMART support, for accessing important drive information such as hours in use, number of power cycles, and disk health. With USB 3.2 Gen 2, the 4-bay SATA HDD docking station lets you leverage the high performance of the latest SSDs and hard drives, while alleviating bottlenecks in your data transfers. The USB 10Gbps hard drive docking station includes a USB Type-C cable, for connecting to USB-C equipped laptops and devices, and a USB Type-A cable, for backward compatibility with your existing USB 3.0, 2.0 and 1.x devices. The docking station for 2.5"/3.5" SSDs/HDDs also works with 2.5" and 3.5" IDE hard drives, mSATA drives and M.2 drives using a compatible StarTech.com adapter: IDE hard drives: Use StarTech.com adapter SAT2IDEADP, mSATA drives: Use StarTech.com adapter SAT32MSAT257, M.2 drives: Use StarTech.com adapter SAT32M225.The external hard drive docking station is backed by a StarTech.com 2-year warranty and free lifetime technical support. Applications - Perfect for system builders and IT professionals who need quick access to drives for imaging
- Quickly recover and backup data from an old drive
- Transfer data from one hard drive to another
- Convenient for technicians who test or benchmark multiple hard drives
Website Search Keyword - 4 Bay SATA HDD Docking Station
- 4 Bay SATA HDD Dock
- Hard Drive Docking Station
- SATA Docking Station
- SSD Dock
- SATA Drive Dock
- SATA hard drive docking station
- SSD docking station
- SATA drive dock
- USB 3.1 hard drive dock
- USB C hard drive dock
- USB C HDD dock
- USB C HDD docking station
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes Windows 7 and earlier Windows versions do not support TRIM with USB to SATA devices. Accessory Products - SAT2IDEADP
- SAT32M225
- SAT32MSAT257
- HDDSLEV35
- HDDSLEV25
- HDDCASE25BK
- PEXUSB312C2
- PEXUSB312A2
- PEXUSB314A2V
- USB31CC50CM
- USB31C5C1M
- USB31CC1M
- USB31AC1M
- USB31AC50CM
- PEXUSB311AC3
Related Products - SDOCKU313
- SDOCK2U313
- SDOCKU313E
- SDOCK4U33
- SDOCK4U33E
- S252BU313R
- S352BU313R
- SM21BMU31C3
- SM22BU31C3R
- SMS1BMU313
- SMS2BU31C3R
- S251BU31C3CB
- S251BPU313
- S251BPU31C3
- S251BU31REMD
- S251BU31315
- S251BMU313
Input Current 2.0A Input Voltage 100 - 240 AC Output Current 6500mA Output Voltage (V) 12V DC Power Consumption (In Watts) 78 Power Source AC Adapter Included Plug Type 4-pin DIN Color Black Humidity 20% ~ 80% RH Material Plastic Operating Temperature 5°C to 35°C (41°F to 95°F) Primary Material Plastic Product Length (mm) 291.000 Product Width (mm) 171.000 Product Height (mm) 94.700 Product Weight (g) 2200.000 Storage Temperature -20°C to 50°C (-4°F to 122°F) TAA Compliant No 4Kn Support Yes Hot Swap Capability Yes Insertion Rating 10000 Max Drive Capacity Tested up to 10TB Maximum Data Transfer Rate 10Gbps MTBF (hours) 30000 hours Noise Level 19.04 dBA OS Compatibility OS Independent SATA Type and Rate SATA III (6 Gbps) S.M.A.R.T. Support Yes TRIM Support Yes UASP Support Yes Chipset ID Compatible Drive Types SATA Fan Bearing Type Sleeve Bearing Fans 2 - 60 mm Fans Included? Yes/No Yes Interface/Bridge USB 3.2 Gen 2 (10 Gbps) LED Indicators - 4 - Power
- 4 - Activity

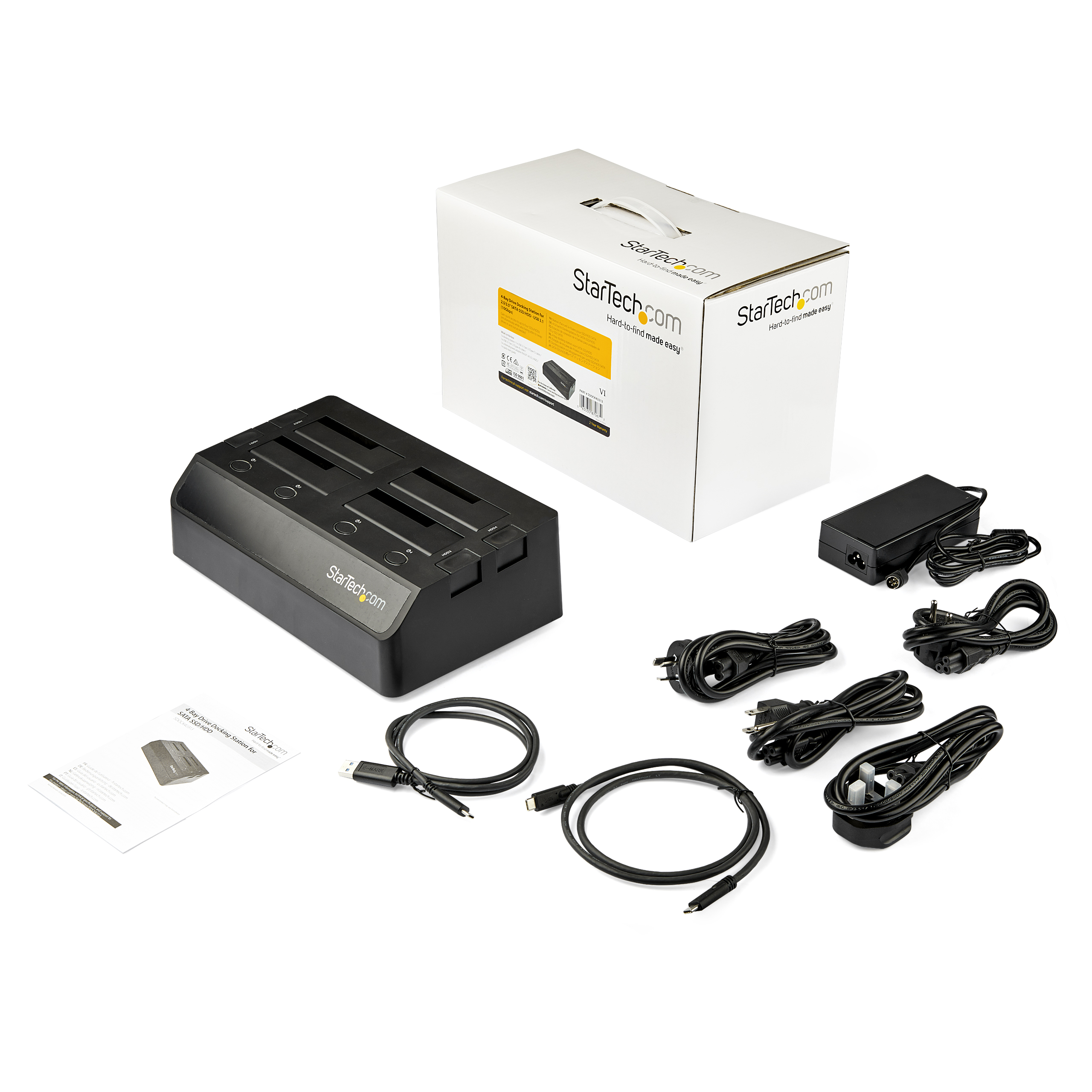

Number of Drives 4 Carton Depth (mm) 369 Carton Height (mm) 477 Carton Quantity 4 Carton Weight Gross (g) 10620 Included in Package - 1 - Docking Station
- 1 - 3.3 ft [1 m] USB 3.1 (Type-C) Cable
- 1 - 3.3 ft [1 m] USB 3.1 (Type-A) Cable
- 1 - Universal Power Adapter (NA/JP, UK, EU, ANZ)
- 1 - Quick-Start Guide
Package Depth (mm) 344 Package Height (mm) 224 Package Width (mm) 177 Package Quantity 1 Package Weight (g) 2396 Packaging Description 4-Bay Docking Station for SATA SSD/HDD Packaging Description India 4-Bay Docking Station for SATA SSD/HDD Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 4 Host Connector 1 USB-C (10Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2017-09-29 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2017-12-08 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,IE,IT,JP,MX,NL,NZ,PE,SE,UK,US Primary Technology USB-C Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2018-04-13 Target Production Release 2018-04-20 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream Vending Machine Not Compatible with Vending Machine
