SDOCK4U33

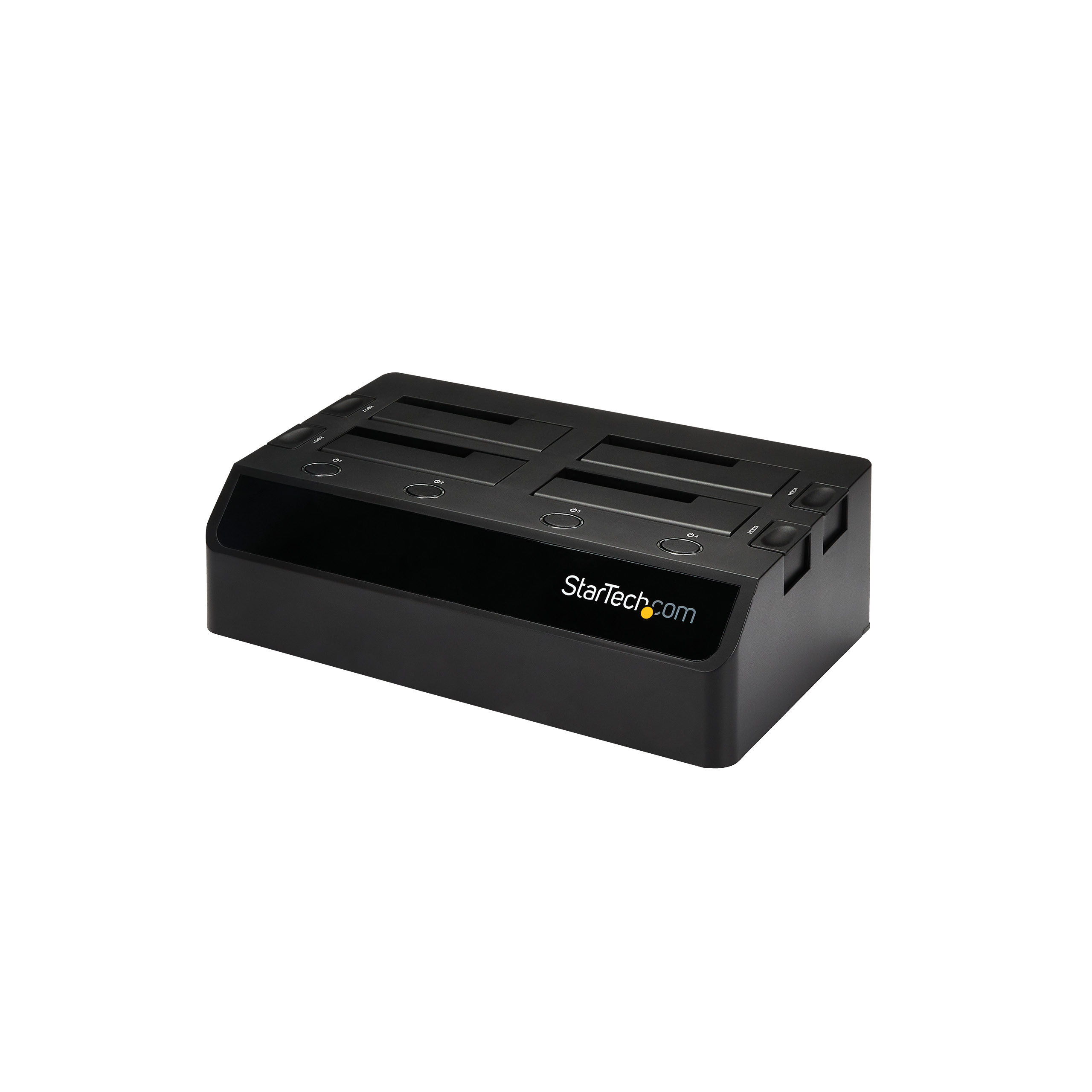

USB 3 0 4 Bay SATA HDD SSD Docking Station w UASP
External SSD/HDD Docking Station | USB 3.2 Gen 1 (5 Gbps) to SATA I/II/III
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Product Name USB 3 0 4 Bay SATA HDD SSD Docking Station w UASP Product Number SDOCK4U33 UPC 065030857932 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > External Drive Enclosures Category Level 1 Data Storage Category Level 2 Drive Docking Stations Category Level 3 HDD Docking Stations - 5Gbps Family Quad Bay SATA Dock 5Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX157X Product Title (Ultra-Short) 4-Bay SATA Dock Product Title (Short) 4-Bay Hard Drive Docking Station, SATA Product Title (Medium) 4-Bay USB 3.0 to SATA Hard Drive Docking Station, 2.5/3.5" SATA III SSD/HDD Dock Product Title (Standard) 4-Bay USB 3.0 to SATA Hard Drive Docking Station, 2.5/3.5" SATA III (6Gbps) SSD/HDD Dock, USB Hard Drive Bay, Top-Loading Product Title (Long) 4-Bay USB 3.0 to SATA Hard Drive Docking Station, USB Hard Drive Dock, External 2.5/3.5" SATA III SSD/HDD Docking Station, Hot-Swap Hard Drive Bay, Top-Loading Product Title (AMZ) 4-Bay USB 3.0 to SATA Hard Drive Docking Station, USB Hard Drive Dock, External 2.5/3.5" SATA III SSD/HDD Docking Station, Hot-Swap Hard Drive Bay, Top-Loading (SDOCK4U33) Title Ingram (Part 1) 4-Bay Hard Drive Dock Title Ingram (Part 2) USB 3.0 to 2.5/3.5" SATA SSD/HDD Website Product Headline External SSD/HDD Docking Station | USB 3.2 Gen 1 (5 Gbps) to SATA I/II/III Bullet 1 HARD DRIVE DOCKING STATION: This 4-bay hard drive dock enables access to up to four 2.5/3.5" SATA hard drives for file backup, imaging or data transfer over USB 3.2 Gen 1 (5 Gbps). Tool-less design enables quick hot-swapping. Bullet 2 DRIVE COMPATIBILITY: Works with 2.5/3.5" SATA HDDS and SSDs of any capacity | 4Kn Compatible | OS Independent | Backwards compatible w/ SATA I/II | Includes 3ft-A USB cables and Universal Power Adapter | IDE adapter (SAT2IDEADP) sold separately Bullet 3 PERFORMANCE: Independently-powered SATA controllers enable drive hot swapping without interrupting other drive bays that are in use. Dual 40mm fans maintain optimal drive temperature for reliability and performance. Bullet 4 SPECS: 4-Bay Hard Drive Dock | SATA III (6 Gbps) w/ TRIM | USB 3.2 Gen 1 (5 Gbps) Host Connection | Dual 40mm Fans | Tool-less/Tray-less Design | Hot-Swappable Drive Bays | Top-Loading/Toaster-Style with Eject Buttons | LED Activity Lights Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this Quad-Bay Hard Drive Dock is backed for 2 years, including free lifetime 24/5 multilingual technical assistance Bullets (Compact) Quad-bay hard drive dock for 2.5" / 3.5" SATA drives; SATA III (6.0 Gbps); USB 3.2 Gen 1 (5 Gbps) Host Connection; Dual 40mm Fans; Top-Loading w/ Drive Doors and Eject Buttons; 4Kn Compatible; LED Status Lights; No software or drivers required Bullets (Consolidated) Quad-bay hard drive docking station delivers full, instant access to up to four 2.5/3.5" SATA drives without having to mount or install the drive in an external enclosure - Hot-swappable bays work with 2.5" / 3.5" SATA drives. Tool-less design and top slot loading with easy eject buttons - SATA III (6.0 Gbps) w/ TRIM | USB 3.2 Gen 1 (5 Gbps) | No Capacity Limit | 4Kn Compatible | Dual 40mm Fans | OS Independent - Includes USB cable and universal power adapter Marketing Copy Marketing Copy (No HTML) Applications - System builders and I.T. specialists who need quick access to drives for imaging
- Backup data quickly to an external drive for archiving
- Transferring data from one hard drive to another
- Technicians who test or benchmark multiple hard drives
- Backup important data and easily take the drive to an offsite location for safekeeping
Website Search Keyword - hdd dock
- ssd dock
- hard drive dock
- uasp
- 4 drive dock
- 2.5 hdd
- 3.5 hdd
- ssd
- usb 3.0 dock
- UASP
- SATDOCK4U3
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Accessory Products - SAT2IDEADP
- HDDSLEV25
- HDDSLEV35
- HDDCASE25BK
- ECUSB3S2
- PEXUSB3S2
- PEXUSB3S4V
- MPEXUSB3S22B
- PEXUSB3S22
- MPEXUSB3S2
- PEXUSB3S11
- PEXUSB3S4
- PEXUSB3S400
- SVA12DN4NEUA
Related Products - SATADOCK22UE
- SATDOCKU3S
- SATDOCKU3SEF
- SATDOCK4U3E
- UNIDOCK3U
- SDOCKU33BV
- SATDOCKU3E
- SDOCK2U33
- SDOCK2U33EB
- SDOCK2U33HFB
- SDOCK2U33HFW
- SDOCKU33HB
- SATDOCK4U3RE
- SATDOCK22RE
- SATDOCK25U
- SATADOCKU2
- SATADOCKU2E
- SDOCKU33HW
- SATDOCK22U3S
- SATDOCK4U3

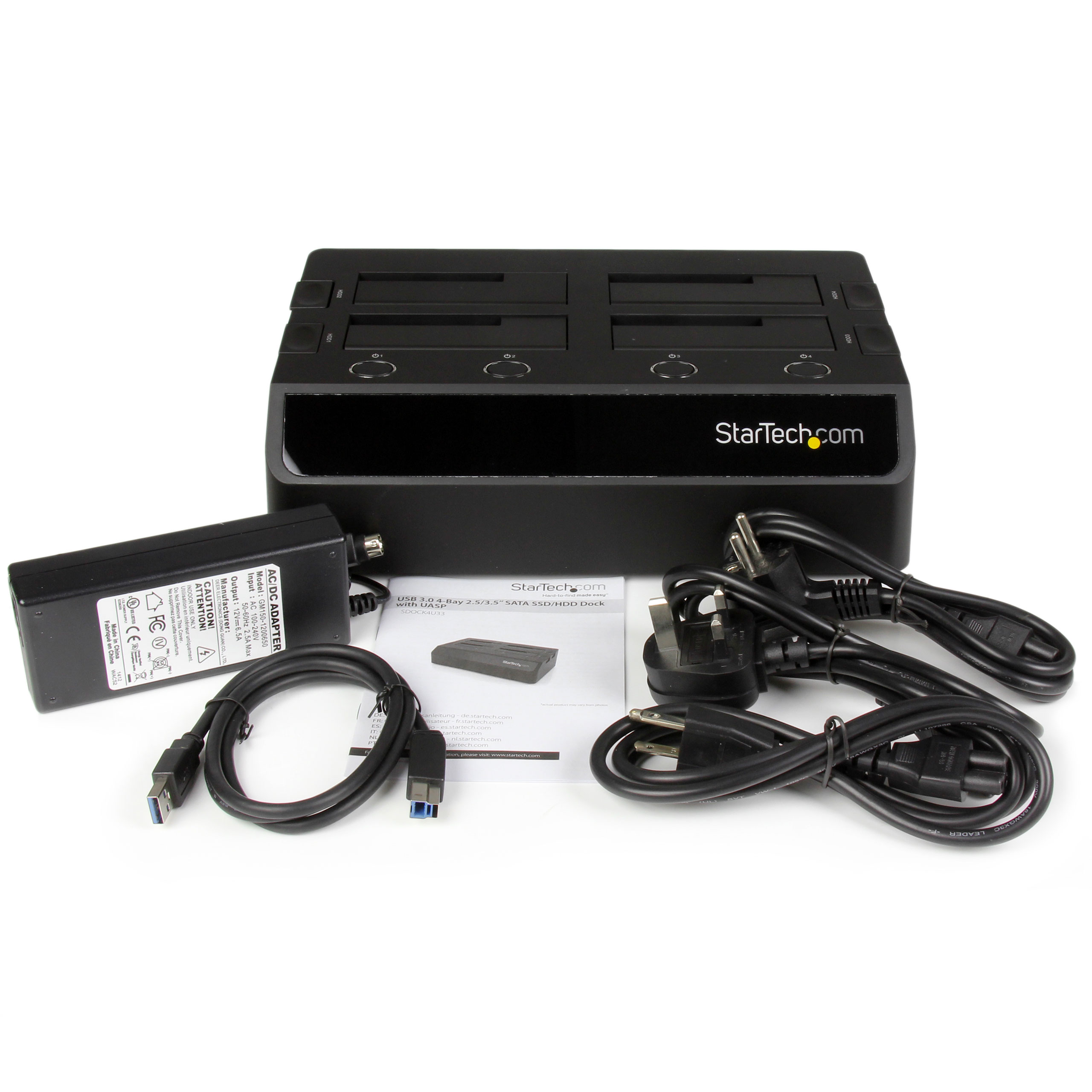

Input Current 2.5A Input Voltage 100 - 240 AC Output Current 6.5 A Output Voltage (V) 12V DC Power Consumption (In Watts) 78 Power Source AC Adapter Included Cable Length (mm) 914 Color Black Humidity 20%RH ~ 80%RH Material Plastic Operating Temperature 5°C to 35°C (41°F to 95°F) Primary Material Plastic Product Length (mm) 290 Product Width (mm) 170 Product Height (mm) 88 Product Weight (g) 1000 Storage Temperature -20°C to 50°C (-4°F to 122°F) TAA Compliant No 4Kn Support Yes Hot Swap Capability Yes Insertion Rating 15,000 Cycles Max Drive Capacity Currently tested with up to 4TB 7200 RPM 3.5" hard drives per bay (8TB total) and 2TB 5900 RPM 2.5" hard drives (2TB total) Maximum Data Transfer Rate 5 Gbps OS Compatibility OS Independent SATA Type and Rate SATA III (6 Gbps) TRIM Support Yes UASP Support Yes Chipset ID Compatible Drive Types SATA Fans 2 - 40 mm Fans Included? Yes/No Yes Interface/Bridge USB 3.2 Gen 1 (5Gbps) LED Indicators 4 - Drive power/activity LED Number of Drives 4 Carton Depth (mm) 369 Carton Height (mm) 480 Carton Quantity 4 Carton Weight Gross (g) 10436 Included in Package - 1 - USB 3.0 4-Bay 2.5/3.5" SATA SSD/HDD Dock
- 1 - Universal power adapter (NA/EU/UK/AUS)
- 1 - Instruction manual
- 1 - 3ft/0.9m USB 3.2 Gen 1 Cable
Package Depth (mm) 344 Package Height (mm) 177 Package Width (mm) 230 Package Quantity 1 Package Weight (g) 2356 Packaging Description 4-Bay USB 3.0 to SATA Hard Drive Docking Station, 2.5/3.5" SSD/HDD Packaging Description India 4-Bay USB 3.0 to SATA Hard Drive Docking Station, 2.5/3.5" SSD/HDD Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 4 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-05-07 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,JP,MX,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream Vending Machine Not Compatible with Vending Machine
