SDOCK4U33E

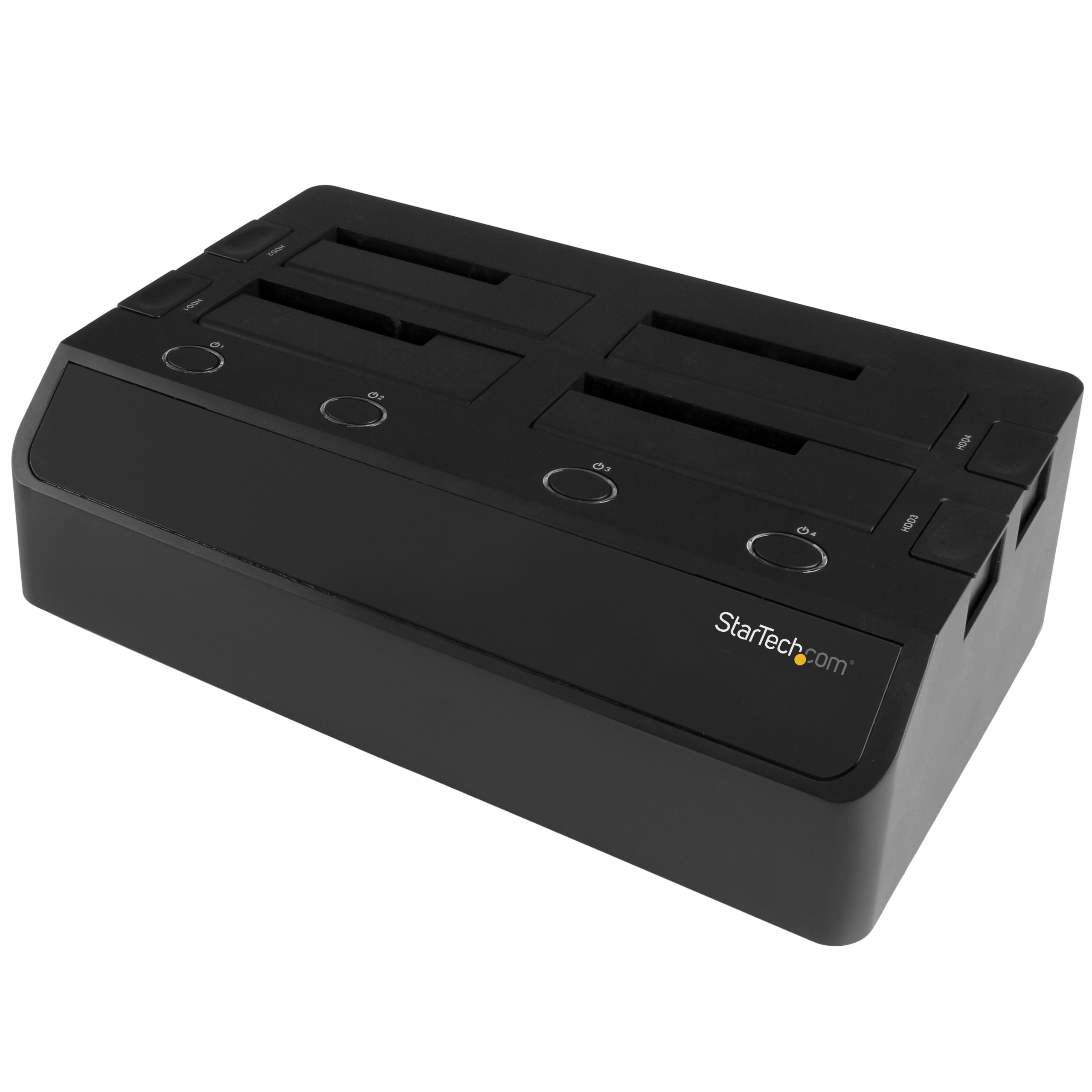

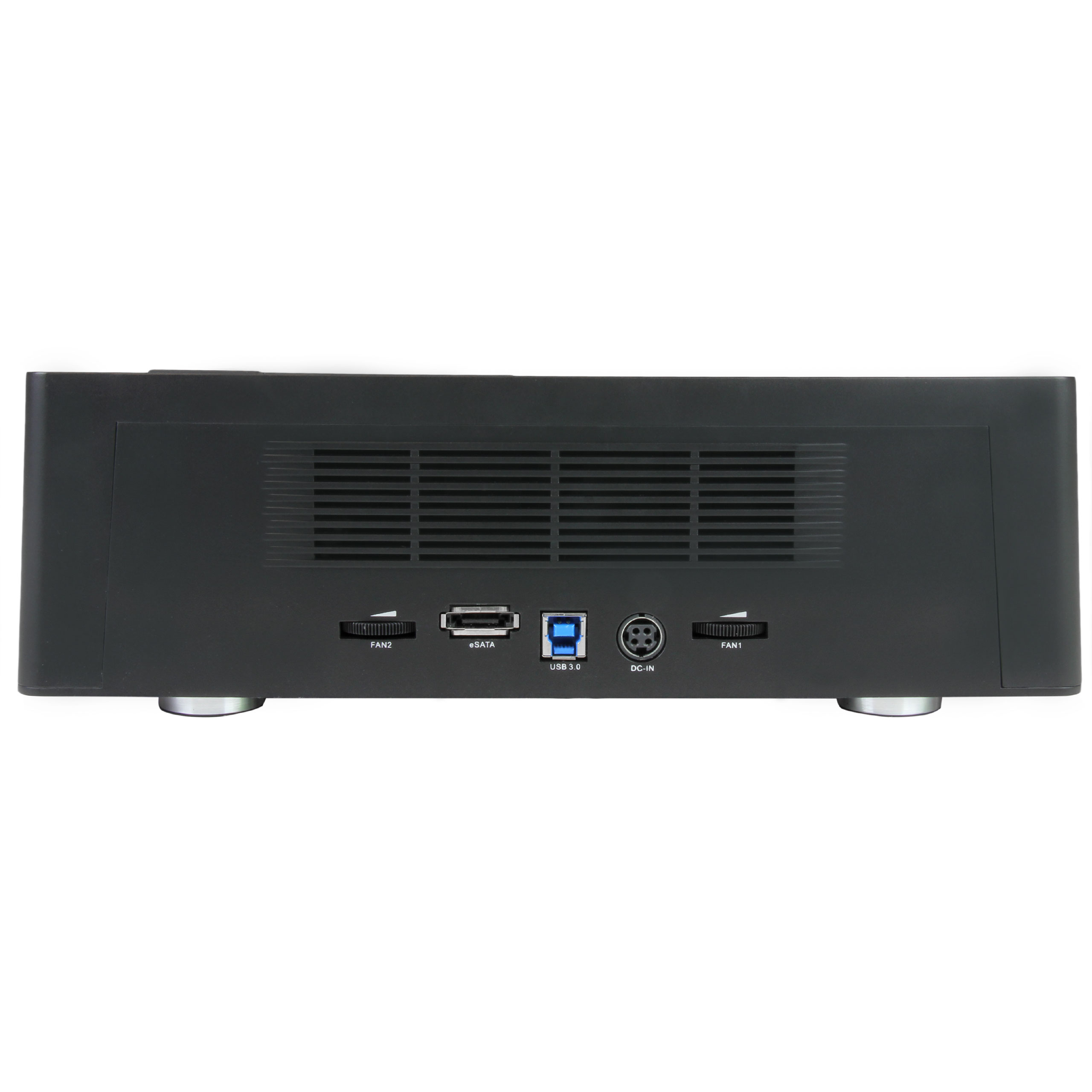

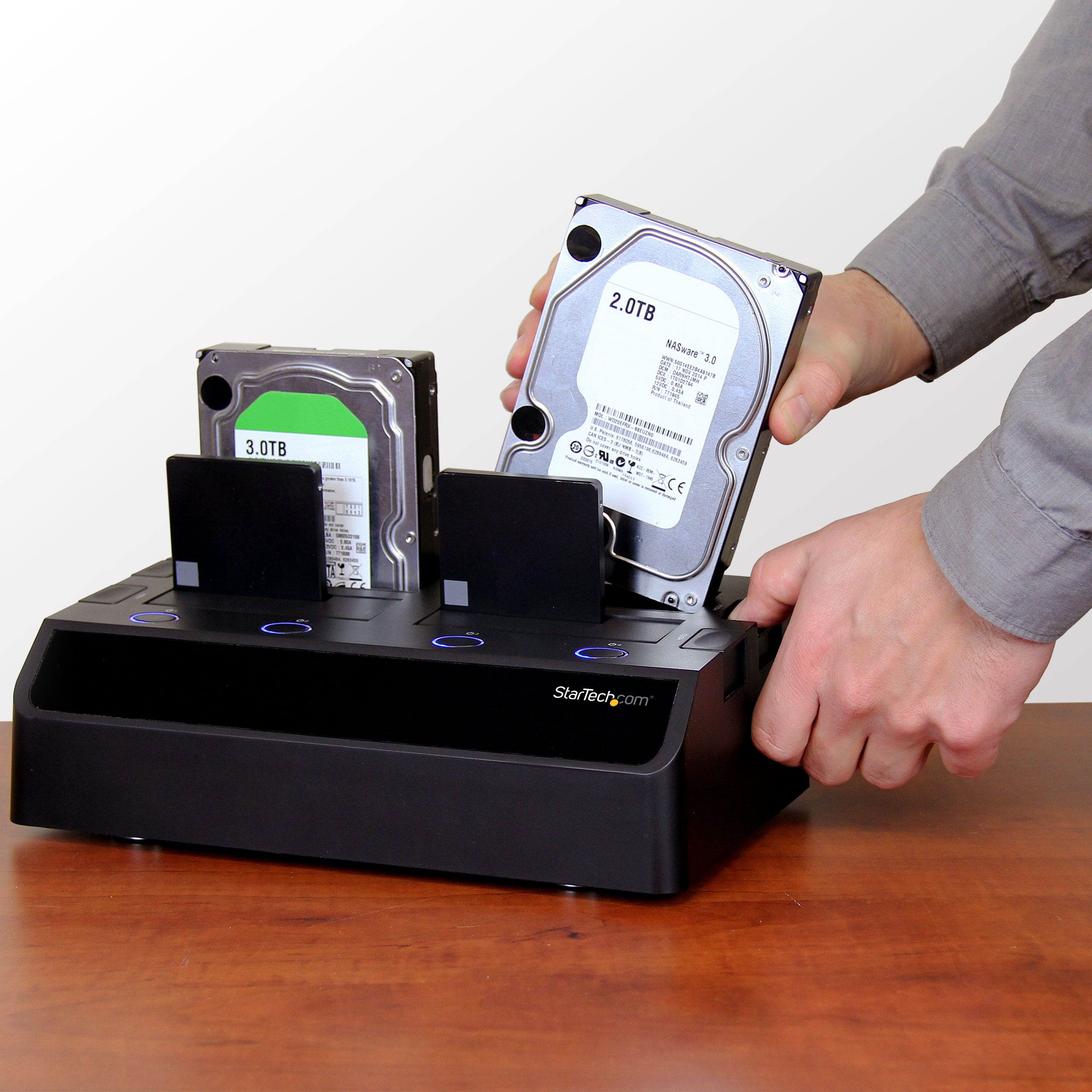

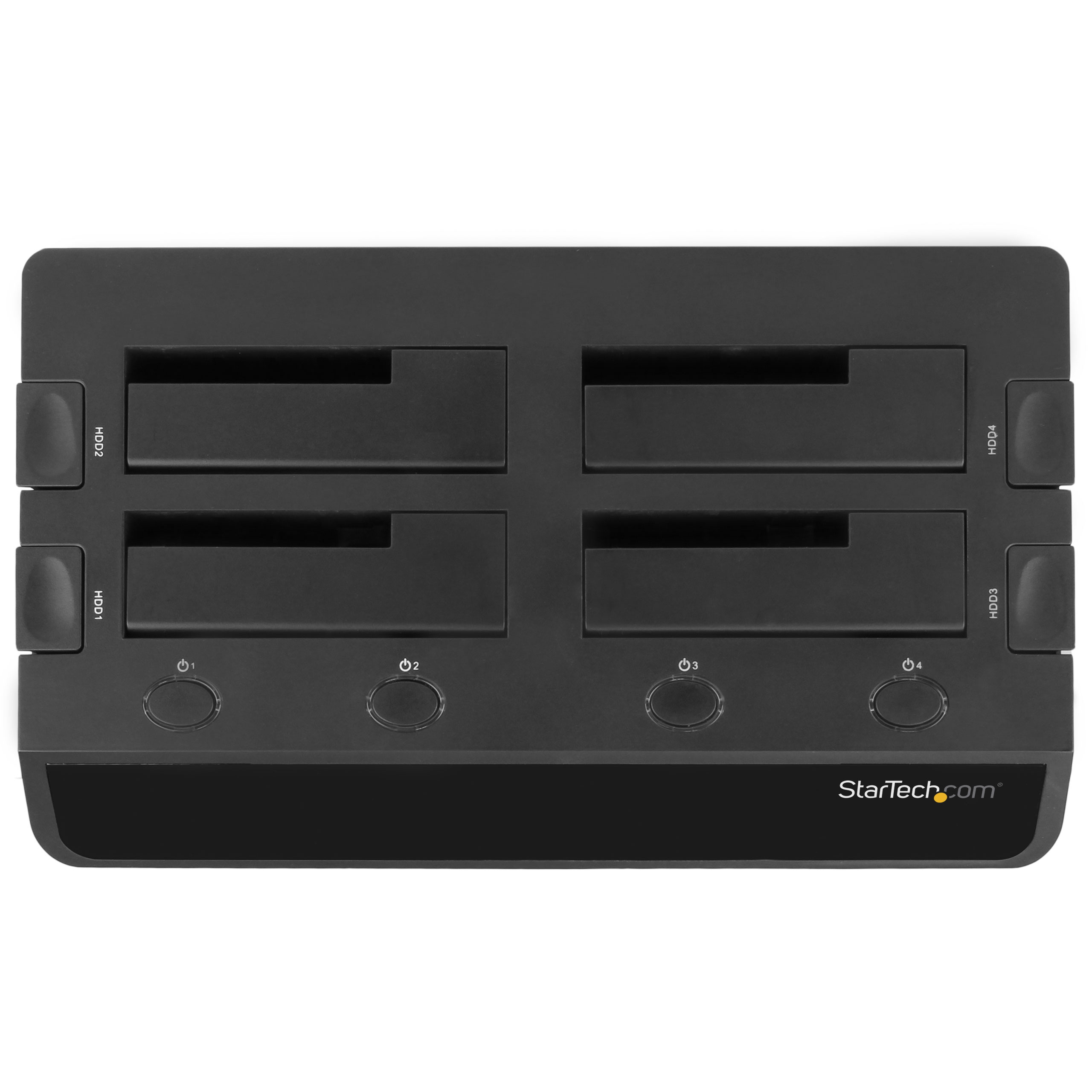

4-Bay HDD Docking Station - eSATA/USB 3.0 to SATA
Get fast access to four 2.5”/3.5” SATA drives over USB 3.0 with UASP or eSATA
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 4-Bay HDD Docking Station - eSATA/USB 3.0 to SATA Product Number SDOCK4U33E UPC 065030863841 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Drive Docking Stations Category Level 3 HDD Docking Stations - 5Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX073X Product Title (Ultra-Short) 4-Bay SSD/HDD Dock Product Title (Short) 4-Bay Dock for 2.5”/3.5” SSDs and HDDs Product Title (Medium) 4-Bay Docking Station for 2.5”/3.5” SSDs & HDDs - eSATA/USB 3.0 to SATA (6Gbps) Product Title (Standard) 4-Bay Hard Drive Docking Station for 2.5in / 3.5in SSDs and HDDs - eSATA/USB 3.0 to SATA (6Gbps) Product Title (Long) 4-Bay Hard Drive Docking Station for 2.5”/3.5” SSDs and HDDs - eSATA/USB 3.0 to SATA (6Gbps) Product Title (AMZ) 4-Bay Hard Drive Docking Station for 2.5”/3.5” SSDs and HDDs - eSATA/USB 3.0 to SATA (6Gbps) - Quad Bay Drive Dock (SDOCK4U33E) Title Ingram (Part 1) 4-Bay SSD/HDD Docking Station - Title Ingram (Part 2) eSATA/USB 3.0 to SATA (6Gbps) Website Product Headline Get fast access to four 2.5”/3.5” SATA drives over USB 3.0 with UASP or eSATA Bullet 1 Access up to four SATA drives simultaneously, in a single docking station Bullet 2 Supports both 2.5" and 3.5" HDDs and SSDs Bullet 3 USB 3.0 or high-speed eSATA host connection with port multiplier Bullet 4 Supports SATA I, II and III (up to 6Gbps) Bullet 5 Top-loading design with drive doors and drive ejection buttons Bullets (Compact) Get fast access to four 2.5”/3.5” SATA drives over USB 3.0 with UASP or eSATA - 4-bay hard drive docking station for 2.5”/3.5” SSDs and HDDs - Supports SATA 1/11/111 (up to 6Gbps) - Top loading quad bay drive dock - Hot-swappable - Dual cooling fans Bullets (Consolidated) Get fast access to four 2.5"/3.5" SATA drives over USB 3.0 with UASP or eSATA - 4-bay hard drive docking station for 2.5in/3.5in SSD and HDD - Supports SATA 1/11/111 (up to 6Gbps) - Quad bay drive dock - Top loading four drive dock with drive doors and drive ejection buttons - Plug-and-play and hot-swap compatible - Dual 60mm cooling fans - UASP support for enhanced performance - Backward compatible with USB 2.0 and 1.x Marketing Copy Marketing Copy (No HTML) Applications - System builders and IT specialists can gain quick access to drives for imaging
- Back up data quickly to an external drive for archiving
- Transfer data from one drive to another
- Technicians can test or benchmark multiple drives with ease
- Backup important data and easily take the drive to an offsite location for safekeeping
Website Search Keyword - 4 bay dock
- dock
- HDD docking station
- 4 bay HDD docking station
- four bay HDD docking station
- quad bay HDD docking station
- quad bay docking station
- quad bay dock
- drive dock
- 4 drive docking station
- four drive docking station
- 4-bay dock
- 4-bay docking station
- 2.5" drive dock
- 3.5" drive dock
- 2.5"/ 3.5" drive docking station
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Accessory Products - SAT2IDEADP
- HDDSLEV25
- HDDSLEV35
- HDDCASE25BK
- HDDCASE25BL
- HDDCASE25GN
- HDDCASE25OR
- HDDCASE25WH
- HDDCASE25YW
- PEXUSB3S11
- ECUSB3S2
- PEXESATA1
- ECESATA1
- ECESATA22
- ECESATA254
- USB3SAB3BK
- USB3SAB10BK
- ESATA3
- ESATA6
- ESATAPLATE1
- ESATAPLT1LP
Related Products - SATDOCK4U3E
- SATDOCK4U3
- SDOCK2U33EB
- SATDOCK22RE
- SATDOCK22R
- SATADOCK22UE
- SATDOCKU3S
- SATDOCKU3SE
- SATDOCKU3SP
- SATADOCKU2E
- SDOCK4U33
- SATDOCK4U3RE
- SATDOCK5U3ER
- SDOCK2U313R
- SDOCK2U313
- SDOCK2U33
- UNIDOCKU33
- SDOCK2U33RE
- SATDOCK2REU3
- SDOCK1EU3P
Replacement Product SDOCK4U33 Input Current 2.0A Input Voltage 100 - 240 AC Output Current 6500mA Output Voltage (V) 12V DC Power Consumption (In Watts) 78 Power Source AC Adapter Included Plug Type 4-pin DIN Color Black Humidity 20% ~ 80% RH Material Plastic Operating Temperature 5°C to 35°C (41°F to 95°F) Product Length (mm) 285.000 Product Width (mm) 172.000 Product Height (mm) 87.300 Product Weight (g) 1007.000 Storage Temperature -20°C to 50°C (-4°F to 122°F) TAA Compliant No Hot Swap Capability Yes Max Drive Capacity Currently tested with up to 6TB Maximum Data Transfer Rate 5Gbps MTBF (hours) 30000 OS Compatibility OS Independent Port Multiplier Yes SATA Type and Rate SATA III (6 Gbps) UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Chipset ID Compatible Drive Types SATA Fan Bearing Type Sleeve Bearing Fans 2 - 60 mm Fans Included? Yes/No Yes Interface/Bridge USB 3.0 & eSATA LED Indicators - 4 - Power
- 4 - Activity

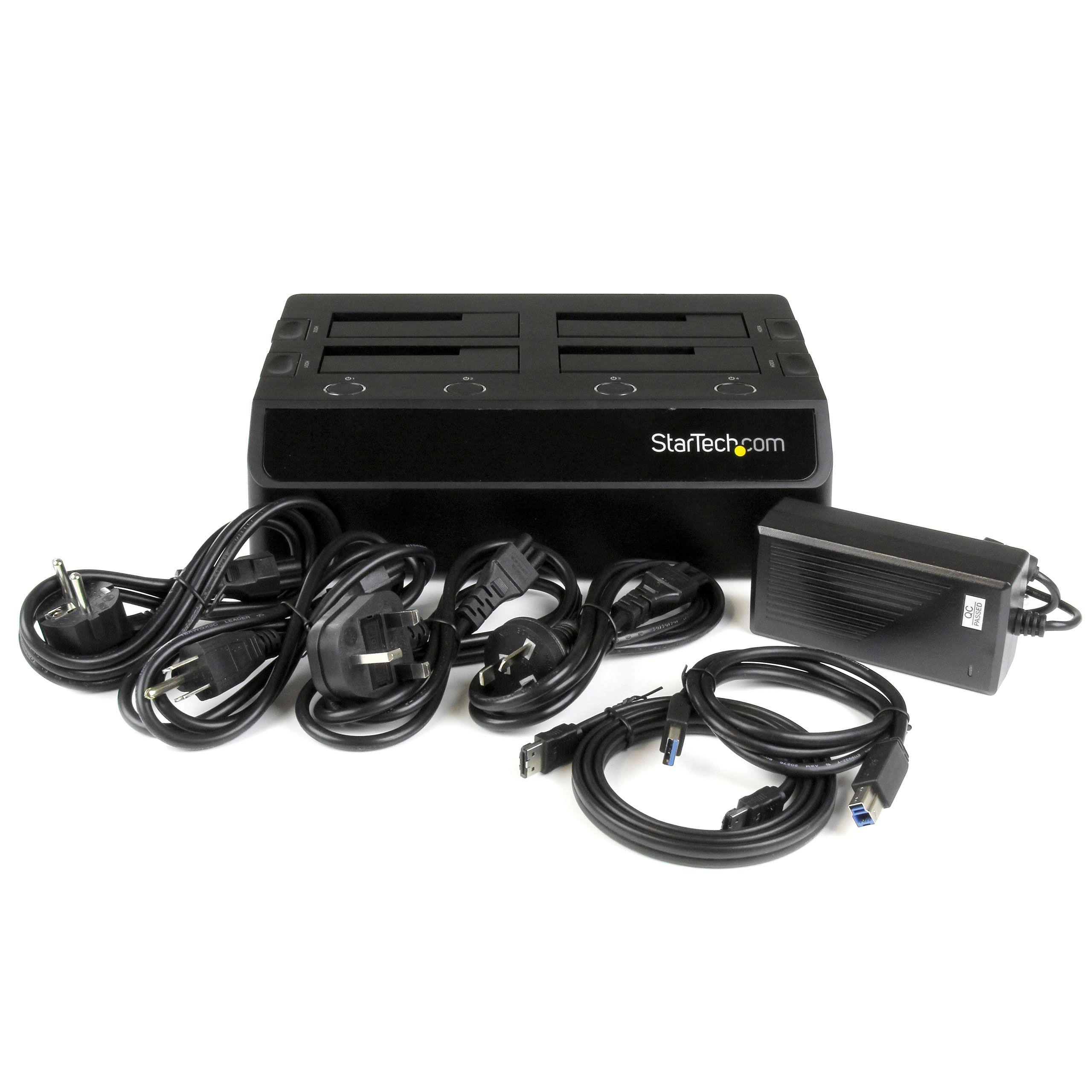

Number of Drives 4 Carton Depth (mm) 365 Carton Height (mm) 361 Carton Quantity 4 Carton Weight Gross (g) 10850 Included in Package - 1 - 4-bay hard drive docking station
- 1 - universal power adapter
- 1 - USB A to B cable
- 1 - eSATA cable
- 1 - quick install guide
- 4 - power cords (NA/UK/EU/AU)
Package Depth (mm) 215 Package Height (mm) 170 Package Width (mm) 343 Package Quantity 1 Package Weight (g) 2399 Packaging Description 4-Bay Docking Station - eSATA USB 3.0 to SATA Packaging Description India 4-Bay Docking Station - eSATA USB 3.0 to SATA Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 4 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Host Connector 2 eSATA (7-Pin) Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FR,HK,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2015-09-25 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
