Main Image
SDOCKU313
USB 3 1 Single Bay HDD SSD Drive Docking Station
External SSD/HDD Docking Station | USB 3.2 Gen 2 (10 Gbps) to SATA
Main Image
Product Images
Product Images
BOM Image
Product Name USB 3 1 Single Bay HDD SSD Drive Docking Station Product Number SDOCKU313 UPC 065030861656 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > External Drive Enclosures Category Level 1 Data Storage Category Level 2 Drive Docking Stations Category Level 3 HDD Docking Stations - 10Gbps Family Single Bay SATA Dock 10Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX157X Product Title (Ultra-Short) SATA Hard Drive Dock Product Title (Short) USB 3.1 SATA Hard Drive Docking Station Product Title (Medium) Single Bay USB 3.1 to SATA Hard Drive Docking Station, 2.5/3.5" SATA III SSD/HDD Product Title (Standard) Single Bay USB 3.1 to SATA Hard Drive Docking Station, USB 3.1 (10 Gbps) Hard Drive Dock, External 2.5/3.5" SATA HDD/SSD Dock Product Title (Long) Single Bay USB 3.1 to SATA Hard Drive Docking Station, USB 3.1 (10 Gbps) Hard Drive Dock, External 2.5/3.5" SATA III HDD/SSD Docking Station, Top-Loading Hard Drive Bay Product Title (AMZ) Single Bay USB 3.1 to SATA Hard Drive Docking Station, USB 3.1 (10 Gbps) Hard Drive Dock, External 2.5/3.5" SATA III HDD/SSD Docking Station, Top-Loading Hard Drive Bay (SDOCKU313) Title Ingram (Part 1) Single Bay Hard Drive Dock - Title Ingram (Part 2) USB 3.1 to 2.5/3.5" SATA SSD/HDD Website Product Headline External SSD/HDD Docking Station | USB 3.2 Gen 2 (10 Gbps) to SATA Bullet 1 HARD DRIVE DOCKING STATION: This single-bay hard drive docking station enables access to a 2.5/3.5" SATA drive for file backup, imaging, and data transfer over USB 3.2 Gen 2 (10 Gbps); Toolless design enables hot-swapping of idle drives Bullet 2 DRIVE COMPATIBILITY: Supports a 2.5/3.5" SATA HDD/SSD of any capacity; 4Kn Compatible; OS Independent; IDE (SAT2IDEADP), mSATA (SAT2MSAT25), & M.2 SATA (SAT32M225) adapters sold separately Bullet 3 PERFORMANCE: Get maximum performance from your SATA III drive over a 10 Gbps USB 3.2 host connection; Built-in SATA controller with upgradeable firmware; Backwards compatible with previous SATA & USB versions; No software / drivers required Bullet 4 SPECS: Single-Bay Hard Drive Dock; SATA I/II/III with TRIM; USB 3.2 Gen 2 (10 Gbps) Host Connection; Toolless Design; Top-Loading Drive Bay with Eject Button; Power and Activity LEDs; Includes 3ft (1m) USB-A Cable and Universal Power Adapter Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this Single-Bay Hard Drive Dock is backed for 2 years, including free lifetime 24/5 multilingual technical assistance Bullets (Compact) Single-bay Hard Drive Docking Station; 2.5/3.5in SATA I/II/III; USB 3.2 Gen 2 (10 Gbps) Host Connection; 4Kn; No Capacity Limit; Toolless Top-Loading Design; LED Indicators; No Software or Drivers Required; Includes 3ft USB cable Bullets (Consolidated) Single-bay hard drive docking station enables access to a 2.5/3.5" SATA drive for backup or data transfer over USB 3.2 (10 Gbps) - Supports 2.5/3.5" SATA HDDs and SSDs of any capacity | 4Kn compatible | No software or drivers required - 10 Gbps USB 3.2 Gen 2 host connection delivers full SATA III (6Gbps) drive performance | Built-in SATA controller with upgradeable firmware - Top-Loading with Eject Button | LED Indicators | Includes 3ft USB-A Cable and Universal Power Adapter Marketing Copy Marketing Copy (No HTML) Unleash the power of USB 3.1 Gen 2 (10 Gbps) with this single-drive hard drive dock for 2.5"/3.5" SATA SSD/HDD. It supports both 2.5" and 3.5" form factors for solid-state and hard drives, with a high drive capacity of 6TB. The external single-drive docking station gives you greater bandwidth and speed with file transfer rates of up to 10 Gbps - twice the speed of USB 3.0 (USB 3.1 Gen 1) technology. The USB 3.1 (10Gbps) hard drive dock lets you leverage the high performance of the latest SSDs and hard drives, while alleviating bottlenecks in your data transfers. It's never been easier to dock and swap drives from your desktop computer or laptop. Simply insert your drives into the top loading slot fo the USB 3.1 single-bay dock, with no tools or trays required. The HDD ejection button allows fast and simple drive removal. The SATA SSD/HDD dock comes with a USB Type-A to B cable, providing backward compatibility with your existing USB 3.0, 2.0 and 1.x devices. The hard drive dock for 2.5"/3.5" SATA SSD/HDD also supports UASP for enhanced performance. The external single-drive docking station is backed by a StarTech.com 2-year warranty and free lifetime technical support. Applications - Perfect for system builders and IT professionals who need quick access to drives for imaging
- Back up data quickly to an external drive for archiving
- Transfer data from one hard drive to another
- Easily take backup data to an offsite location for safekeeping
Website Search Keyword - USB 3.1 Gen 2 Hard Drive Dock
- HDD Dock
- SDD Dock
- SATA HDD & SSD Dock
- USB Hard Drive Dock
- SATA 2.5 or 3.5 HDD & SSD Dock
- External Hard Drive Docking Station
- USB 3.1 Gen 2 (10 Gbps) Dock with UASP
- One-bay docking station with SATA I, II, III
- 2.5/3.5 SATA dock
- 1-drive docking station
- 1-bay dock
- dock
- docking station
- U439-001-CG2
- U339000
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes Windows 7 and earlier Windows versions do not support TRIM with USB to SATA devices. Accessory Products - USB3CAB1M
- USB3SAB1
- USB3SAB3
- HDDSLEV35
- HDDSLEV25
- HDDCASE25BK
- SAT2IDEADP
- SAT32MSAT257
- SAT32M225
Related Products - SDOCKU33HB
- SATDOCKU3SEF
- USB3S2SATA
- UNIDOCK3U
- SATDOCK22U3S
- SDOCK2U33HFB
- SDOCK2U33HFW
- SATDOCKU3S
- SDOCKU33HW
- SDOCKU33BV
- SDOCK2U33
- SDOCK2U33RE
- SDOCK2U313
- S251BMU313
- S351BU313
- USB312SAT3CB
- S251BPU313

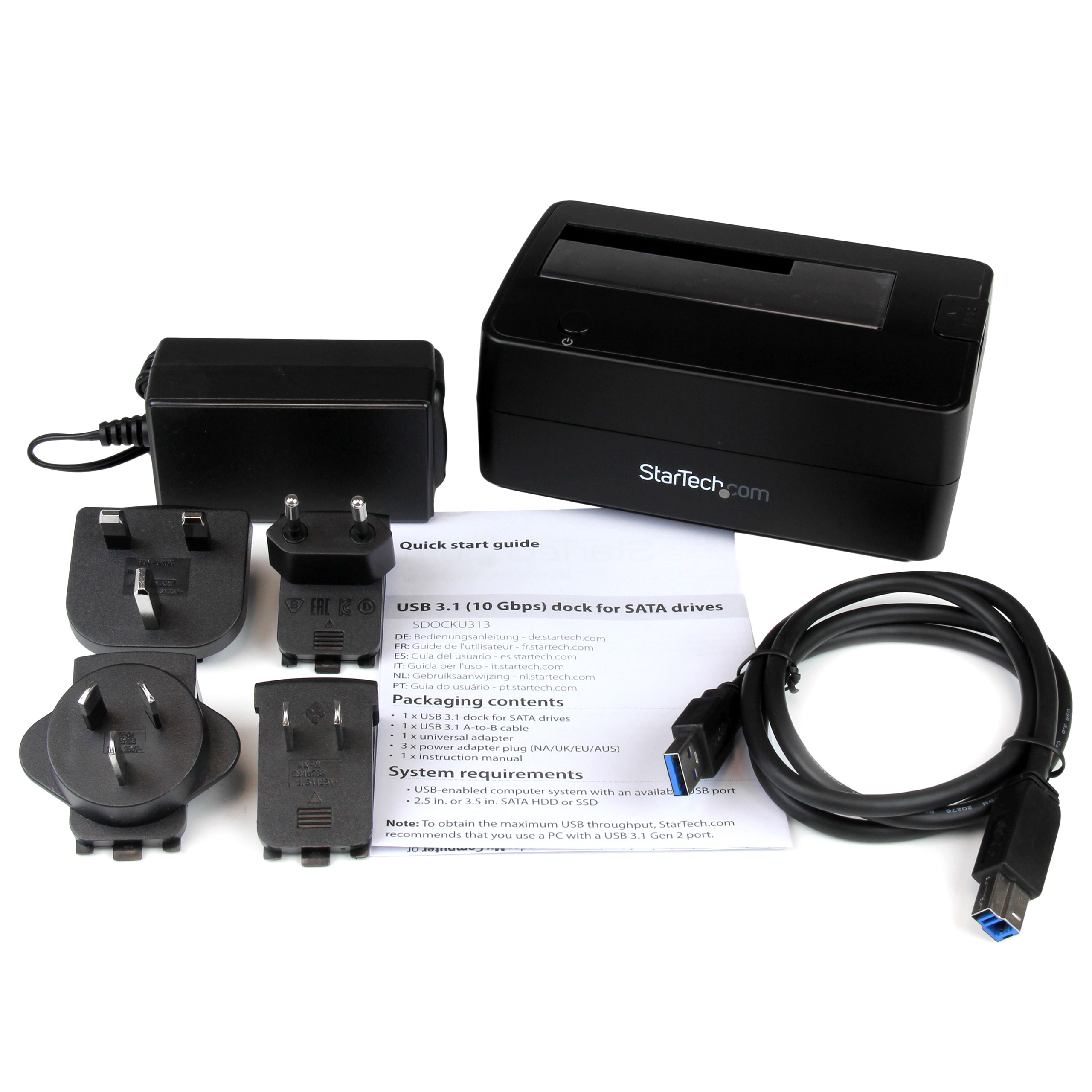

Constrained SKU Alternatives (Limited Stock) SDOCKU313E Input Current 0.6 Input Voltage 100 - 240 AC Output Current 2A Output Voltage (V) 12V DC Power Consumption (In Watts) 24 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 20% ~ 80% RH Material Plastic Operating Temperature 5°C to 35°C (35°F to 95°F) Primary Material Plastic Product Length (mm) 144.8 Product Width (mm) 92.67 Product Height (mm) 63.63 Product Weight (g) 392 Storage Temperature -20°C to 50°C (-4°F to 122°F) TAA Compliant No 4Kn Support Yes Max Drive Capacity Currently tested with hard drives up to 16TB at 7200 RPM Maximum Data Transfer Rate 10 Gbps OS Compatibility OS Independent SATA Type and Rate SATA III (6 Gbps) TRIM Support Yes UASP Support Yes USB Type and Rate USB 10Gbps Bus Type USB 3.2 Gen 2 Chipset ID ASMedia - ASM235CM Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 3.2 Gen 2 LED Indicators 1 - Power & Activity Number of Drives 1 Carton Depth (mm) 192 Carton Height (mm) 382 Carton Quantity 10 Carton Weight Gross (g) 7740 Included in Package - 1 - USB 3.1 HDD Dock
- 1 - USB 3.1 A to B cable - 40.5 inches
- 1 - Universal Power Adapter - 50 inches (cable)
- 4 - Power Adapter Plugs (NA,EU,UK,ANZ)
- 1 - Quick Install Guide
Package Depth (mm) 91 Package Height (mm) 172 Package Width (mm) 162 Package Quantity 1 Package Weight (g) 722 Packaging Description USB 3.1 (10Gbps) dock for SATA drives Packaging Description India USB 3.1 (10Gbps) dock for SATA drives Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB-B (10Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2015-05-21 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IT,JP,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2015-04-17 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
