Main Image
SDOCKU313E
1 Bay USB 3 1 Gen2 eSATA dock 2 5 3 5 SATA Drive
External SSD/HDD Docking Station | USB 3.2 Gen 2 (10 Gbps) / eSATA to SATA
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 1 Bay USB 3 1 Gen2 eSATA dock 2 5 3 5 SATA Drive Product Number SDOCKU313E UPC 065030863544 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > External Drive Enclosures Category Level 1 Data Storage Category Level 2 Drive Docking Stations Category Level 3 HDD Docking Stations - 10Gbps Family Single Bay SATA Dock 10Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX157X Product Title (Ultra-Short) SATA Hard Drive Dock Product Title (Short) USB 3.1 / eSATA to SATA Hard Drive Dock Product Title (Medium) Single Bay USB 3.1/eSATA to SATA Hard Drive Docking Station, 2.5/3.5" SSD/HDD Product Title (Standard) Single Bay USB 3.1 / eSATA to SATA Hard Drive Docking Station, USB 3.1 (10 Gbps)/eSATA Hard Drive Dock, 2.5/3.5" SATA HDD/SSD Product Title (Long) Single Bay USB 3.1 / eSATA to SATA Hard Drive Docking Station, USB 3.1 (10 Gbps) Hard Drive Dock, External 2.5/3.5" SATA III HDD/SSD Docking Station, Top-Loading Hard Drive Bay Product Title (AMZ) Single Bay USB 3.1 / eSATA to SATA Hard Drive Docking Station, USB 3.1 (10 Gbps) Hard Drive Dock, External 2.5/3.5" SATA III HDD/SSD Top-Loading Hard Drive Bay (SDOCKU313E) Title Ingram (Part 1) Single Bay Hard Drive Dock - Title Ingram (Part 2) USB 3.1 / eSATA to SATA SSD/HDD Website Product Headline External SSD/HDD Docking Station | USB 3.2 Gen 2 (10 Gbps) / eSATA to SATA Bullet 1 HARD DRIVE DOCKING STATION: This single-bay hard drive docking station enables access to a 2.5/3.5" SATA drive for file backup, imaging, and data transfer over USB 3.2 Gen 2 (10 Gbps) or eSATA Bullet 2 DRIVE COMPATIBILITY: Supports a 2.5/3.5" SATA HDD/SSD of any capacity; 4Kn Compatible; OS Independent; IDE (SAT2IDEADP), mSATA (SAT2MSAT25), & M.2 SATA (SAT32M225) adapters sold separately; Includes 3.3ft (1m) eSATA, USB-A and C cables Bullet 3 PERFORMANCE: Get maximum performance from your SATA III drive with a 10 Gbps USB 3.2 or 6 Gbps eSATA host connection. Built-in SATA controller with upgradeable firmware; Backwards compatible with prior SATA & USB versions; No software / drivers required Bullet 4 SPECS: Single-Bay Hard Drive Dock; SATA I/II/III with TRIM; eSATA (6 Gbps) or USB 3.2 Gen 2 (10 Gbps) Host Connection; Toolless Design; Top-Loading Drive Bay with Eject Button; Power and Activity LEDs; Includes 3.3ft (1m) eSATA, USB-A and C cables Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this Single-Bay Hard Drive Dock is backed for 2 years, including free lifetime 24/5 multilingual technical assistance Bullets (Compact) Single-bay Hard Drive Docking Station; 2.5/3.5in SATA I/II/III; USB 3.2 Gen 2 (10 Gbps) or eSATA Host Connection; 4Kn; Toolless Top-Loading Design; LED Indicators; No Software or Drivers Required; Includes 3ft eSATA and USB-A/C cables Bullets (Consolidated) Single-bay hard drive docking station enables access to a 2.5/3.5" SATA drive for backup or data transfer over USB 3.2 (10 Gbps) or eSATA - Supports 2.5/3.5" SATA HDDs and SSDs of any capacity | 4Kn compatible | No software or drivers required - 10 Gbps USB 3.2 Gen 2 host connection delivers full eSATA and SATA III (6Gbps) drive performance | Built-in SATA controller with upgradeable firmware - Top-Loading with Eject Button | LED Indicators | Includes 3ft eSATA and USB-A/C cables Marketing Copy Marketing Copy (No HTML) Connect and access any 2.5" or 3.5" SATA hard drive or SSD using this single-drive hard drive docking station, over a USB 3.1 Gen 2 (up to 10Gbps) or eSATA connection. Ideal for IT professionals, the docking station lets you access a SATA solid-state drive or hard drive quickly, for drive imaging, data recovery, and backups. You can connect through either USB 3.1 Gen 2 or eSATA and take advantage of the high performance of the latest SSDs and HDD dock's vertical drive insertion makes it easy to dock and swap drives from your desktop computer or laptop. You simply insert your SSD or HDD into the drive slot at the top of the external hard drive dock, with no tools or trays required. The HDD ejection button allows fast and simple drive removal. The single-bay USB 3.1 hard drive dock comes with a USB Type-A to Type-C cable, for connecting to newer USB-C enabled devices. It also comes with a USB Type-A to Type-B cable, providing backward compatibility with your existing USB 3.0, 2.0 and 1.x devices. An eSATA cable is also included with the HDD/SSD dock. The single-drive hard drive docking station is also UASP compatible, for enhanced performance. The single-drive external hard drive dock is backed by a StarTech.com 2-year warranty and free lifetime technical support. Applications - Get quick access to drives, ideal for system builders and IT professionals
- Back up data quickly to an archive drive
- Easily take backup data to an offsite location for safekeeping
Website Search Keyword - usb 3.1 gen 2 esata hard drive dock
- usb 3.1 gen 2 hard drive dock
- usb 3.1 gen 2 hard drive docking station
- usb 3.1 gen 2 hdd dock
- usb 3.1 gen 2 ssd and hdd dock
- usb 3.1 gen 2 ssd dock
- single bay usb 3.1 gen 2 hard drive dock
- ssd docking station
- esata hard drive dock
- esata hard drive docking station
- esata hdd dock
- esata ssd and hdd dock
- esata ssd dock
- hdd docking station
- 10gbps docking station
- 10gbps hard drive dock
- U339000
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes Windows 7 and earlier Windows versions do not support TRIM with USB to SATA devices. Accessory Products - USB3CAB1M
- USB3SAB1
- USB3SAB3
- HDDSLEV35
- HDDSLEV25
- HDDCASE25BK
- SAT2IDEADP
- SAT32MSAT257
- SAT32M225
- ESATAPLT18IN
- ESATAPLT1LP
- ESATAPLATE2
- ESATA6
- ESATAPLT2LP
- ESATAPLATE1
- ESATA3
Related Products - SDOCK2U313
- SDOCKU33HB
- S351BU313
- S251BMU313
- S251BPU313
- USB312SAT3CB
- SATDOCKU3SEF
- USB3S2SATA
- UNIDOCK3U
- SATDOCK22U3S
- SDOCK2U33HFB
- SDOCK2U33HFW
- SATDOCKU3S
- SDOCKU33HW
- SDOCKU33BV
- SDOCK2U33
- SDOCK2U33RE
- SDOCKU313
Constrained SKU Alternatives (Limited Stock) SDOCKU313 Input Current 0.6 A Input Voltage 100 - 240 AC Output Current 2.0 A Output Voltage (V) 12V DC Power Consumption (In Watts) 24 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 20% ~ 80% RH Material Plastic Operating Temperature 5°C to 35°C (41°F to 95°F) Primary Material Plastic Product Length (mm) 145 Product Width (mm) 93 Product Height (mm) 63.4 Product Weight (g) 410 Storage Temperature -20°C to 50°C (-4°F to 122°F) TAA Compliant No 4Kn Support Yes Hot Swap Capability Yes Max Drive Capacity Currently tested with hard drives up to 16TB at 7200 RPM OS Compatibility OS Independent SATA Type and Rate SATA III (6 Gbps) TRIM Support Yes UASP Support Yes USB Type and Rate USB 10Gbps Bus Type USB 3.2 Gen 2 & eSATA Chipset ID ASMedia - ASM235CM Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge - USB 3.2 Gen 2
- eSATA

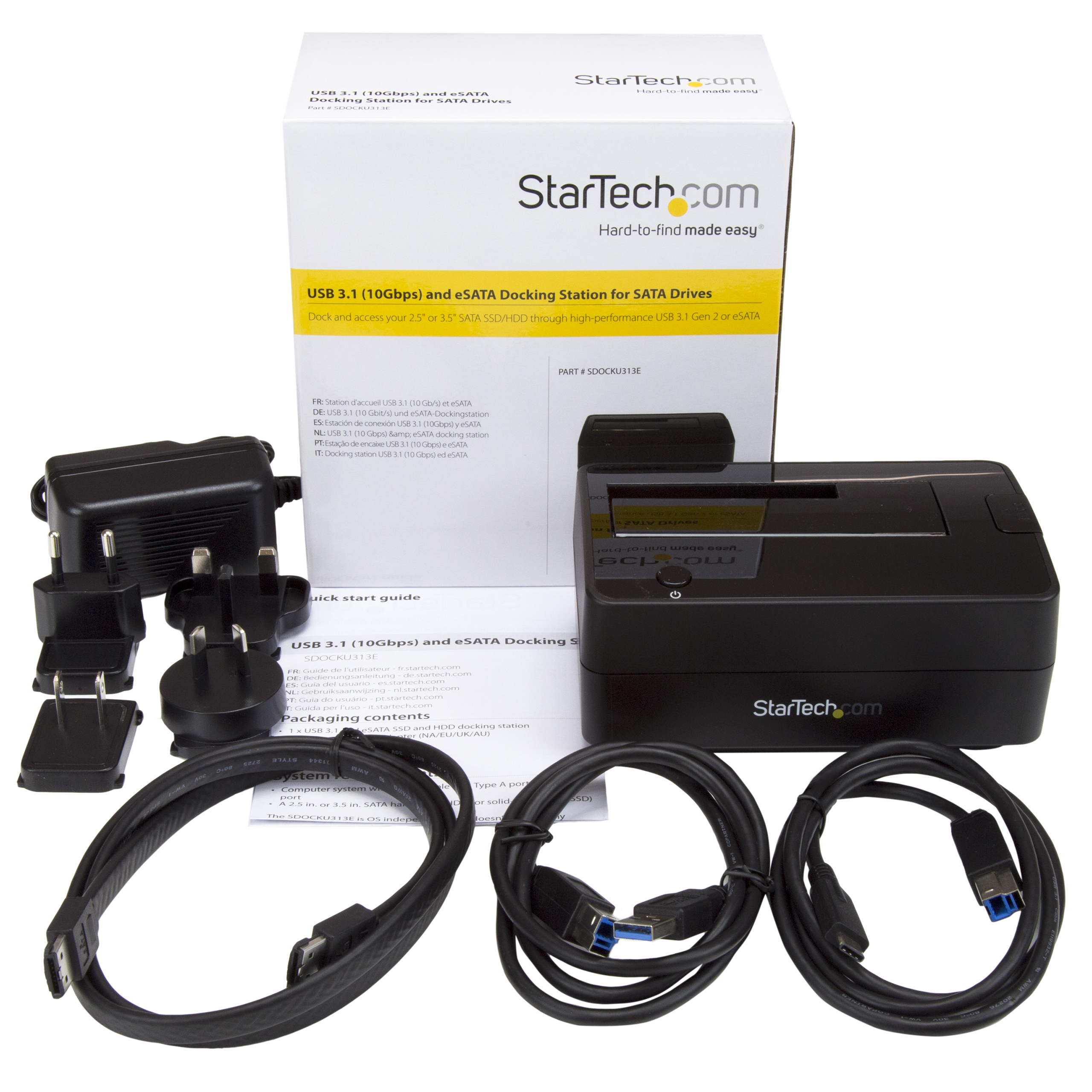

LED Indicators 1 - Power & Activity Number of Drives 1 Carton Depth (mm) 190 Carton Height (mm) 380 Carton Quantity 10 Carton Weight Gross (g) 8732 Included in Package - 1 - USB 3.1 & eSATA HDD/SSD docking station
- 1 - universal power adapter (NA/JP, EU, UK, ANZ)
- 1 - 3.3 ft. [1 m] USB-A to USB-B cable
- 1 - 3.3 ft. [1 m] eSATA cable
- 1 - quick-start guide
- 1 - 3.3 ft. [1 m] USB-C to USB-B cable
Included In Package for Label - 1 - USB 3.1 & eSATA HDD/SSD docking station
- 1 - universal power adapter (NA/JP, EU, UK, ANZ)
- 1 - USB-A to USB-B cable
- 1 - USB-C to USB-B cable
- 1 - eSATA cable
- 1 - quick-start guide
Package Depth (mm) 98 Package Height (mm) 172 Package Width (mm) 162 Package Quantity 1 Package Weight (g) 810 Packaging Description USB 3.1 (10Gbps) & eSATA Docking Station Packaging Description India USB 3.1 (10Gbps) & eSATA Docking Station Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB-B (10Gbps, 4.5W) Host Connector 1 (Quantity) 1 Host Connector 2 eSATA (7-Pin) Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2016-05-31 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Digital Content Due Date 2016-09-09 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IT,JP,MX,NL,NZ,PE,SE,UK,US Primary Technology USB-C Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2016-06-24 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
