SDOCKU33EBV
eSATA USB 3 0 SATA HDD SSD Dock with UASP
USB 3.0 / eSATA to SATA Hard Drive Docking Station, USB 3.0 (5 Gbps)
Main Image
Product Images
BOM Image
Product Name eSATA USB 3 0 SATA HDD SSD Dock with UASP Product Number SDOCKU33EBV UPC 065030859493 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Drive Docking Stations Category Level 3 HDD Docking Stations - 5Gbps Family Single Drive Dock DESIGN A (SATA eSATA) Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX073X Product Title (Ultra-Short) SATA Hard Drive Dock Product Title (Short) USB 3.0 / eSATA SATA Hard Drive Dock Product Title (Medium) Single Bay USB 3.0 / eSATA to SATA Hard Drive Docking Station, USB 3.0 (5 Gbps) Product Title (Standard) Single Bay USB 3.0 / eSATA to SATA Hard Drive Docking Station, USB 3.0 (5 Gbps) Hard Drive Dock, 2.5/3.5" SATA HDD/SSD Product Title (Long) Single Bay USB 3.0 / eSATA to SATA Hard Drive Docking Station, USB 3.0 (5 Gbps) Hard Drive Dock, External 2.5/3.5" SATA I/II/III HDD/SSD Docking Station, Top-Loading Hard Drive Bay Product Title (AMZ) Single Bay USB 3.0 / eSATA to SATA Hard Drive Docking Station, USB 3.0 (5 Gbps) Hard Drive Dock, External 2.5/3.5" SATA I/II/III HDD/SSD Docking Station, Top-Loading (SDOCKU33EBV) Title Ingram (Part 1) Single Bay Hard Drive Dock - Title Ingram (Part 2) USB 3.0 / eSATA to SATA SSD/HDD Website Product Headline USB 3.0 / eSATA to SATA Hard Drive Docking Station, USB 3.0 (5 Gbps) Bullet 1 DRIVE COMPATIBILITY: Supports 2.5/3.5" SATA HDDs and SSDs up to 6TB; OS Independent; IDE (SAT2IDEADP), mSATA (SAT2MSAT25), & M.2 SATA (SAT32M225) adapters sold separately Bullet 2 PERFORMANCE: Toolless Top-loading design enables quick hot-swapping of idle drives; Host connection over eSATA delivers full SATA III (6 Gbps) drive performance; Backwards compatible with previous SATA & USB versions; No software / drivers required Bullet 3 SPECS: Single-Bay Hard Drive Dock; SATA I/II/III; eSATA or USB 3.2 Gen 1 (5 Gbps) Host Connection; Toolless Design; Top-Loading Drive Bay; Power and Activity LED Indicators; Includes 3ft (1m) USB 3.2 (5 Gbps) Type-A Cable and Universal Power Adapter Bullet 4 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this Single-Bay Hard Drive Dock is backed for 2 years, including free lifetime 24/5 multilingual technical assistance Bullet 5 HARD DRIVE DOCKING STATION: This single-bay hard drive docking station enables access to a 2.5/3.5" SATA drive for file backup, imaging, and data transfer over USB 3.2 Gen 1 (5 Gbps) or eSATA Bullets (Compact) Single-bay Hard Drive Docking Station; 2.5/3.5in SATA I/II/III; eSATA (6 Gbps) or USB 3.2 Gen 1 (5 Gbps) Host Connection; Toolless Top-Loading Design; LED Indicators; No Software or Drivers Required; Includes 3ft eSATA and USB cables Bullets (Consolidated) Single-bay hard drive docking station enables access to a 2.5/3.5" SATA drive for backup or data transfer over eSATA (6 Gbps) or USB 3.2 Gen 1 (5 Gbps) - Supports 2.5/3.5" SATA HDDs and SSDs of any capacity | No software or drivers required - Host connection over eSATA delivers full SATA III (6 Gbps) drive performance - Toolless top-loading design | LED Indicators | Includes 3ft eSATA and USB-A Cables and Universal Power Adapter Marketing Copy Marketing Copy (No HTML) The versatile eSATA/USB 3.0 hard drive docking station makes it easy for you to connect and swap 2.5in or 3.5in SATA III hard drives (HDD) and solid-state drives (SSD), with the option to connect through either USB or eSATA. For convenient compatibility and time-saving performance, the 2.5"/3.5" SATA SSD/HDD docking station can be connected through USB 3.0, with support for full USB 3.0 bandwidth (5 Gbps) as well as UASP, which delivers performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller. For fast performance and efficient data transfers, the SATA III SSD/HDD docking station also supports the full SATA III bandwidth of 6 Gbps when connected through eSATA. With support for large capacity SATA I/II/III drives (tested up to 6TB), as well as 2.5in or 3.5in drives, this HDD/SSD docking station makes it easy to maximize the storage/backup capabilities of your computer using virtually any SATA drive. Extend the value of this hot swap docking station further with the addition of our SATA to IDE Hard Drive Adapter (SAT2IDEADP), allowing easy insertion of any 2.5 or 3.5in IDE hard drive into a SATA hard drive dock. The UASP docking station supports all the leading operating systems, including Microsoft Windows (8/7/Vista/XP/Server 2008/Server 2003), Apple OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS. The eSATA/USB 3.0 hard drive docking station is backed by a 2-year StarTech.com warranty and free lifetime technical support. Applications - Add quick access to drives for data recovery or retrieval
- Backup data quickly to an external data archiving
- Test or benchmark different hard drives and swap between them
- Quickly access drives for imaging
Website Search Keyword - USB docking station
- UASP
- esata docking station
- esata dock
- usb dock
- sata hard drive docking station
- 2.5 hard drive
- 3.5 hard drive
- hdd dock
- ssd dock
- hard drivedocking station
- hard drive dock
- ssd docking station
- hdd docking station
- UASP docking station
- UAS
- sata iii
- SATA 3
- SATA 6
- 6 Gbps
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Accessory Products - SAT2IDEADP
- HDDSLEV25
- HDDCASE25WH
- HDDCASE25YW
- PEXUSB3S2
- ECUSB3S2
- PEXUSB3S11
- HDDCASE25BK
- HDDSLEV35
- HDDCASE25BL
- USB3SAB3
- USB3SAB6
- USB3SAB10
- HDDCASE25GN
- HDDCASE25OR
- PEXUSB3S4V
- PEXUSB3S400
- MPEXUSB3S22B
- PEXUSB3S22
- MPEXUSB3S2
- PEXUSB3S4
- ESATA6
- ESATAPLT1LPL
- ESATAPLT2M
- ECESATA254F
- PEXESATA2
- ESATAPLT2LP
- ESATAPLT2LPM
- ECESATA22
- ECESATA254
- PEXESATA1
- ECESATA1
- SVA12M2NEUA
- SVA12M5NA
Related Products - SDOCKU33HB
- SATDOCKU3SEF
- USB3S2SATA
- UNIDOCK3U
- SATDOCK22U3S
- SDOCK2U33HFB
- SDOCK2U33HFW
- SATDOCKU3S
- SDOCKU33HW
- SDOCKU33BV

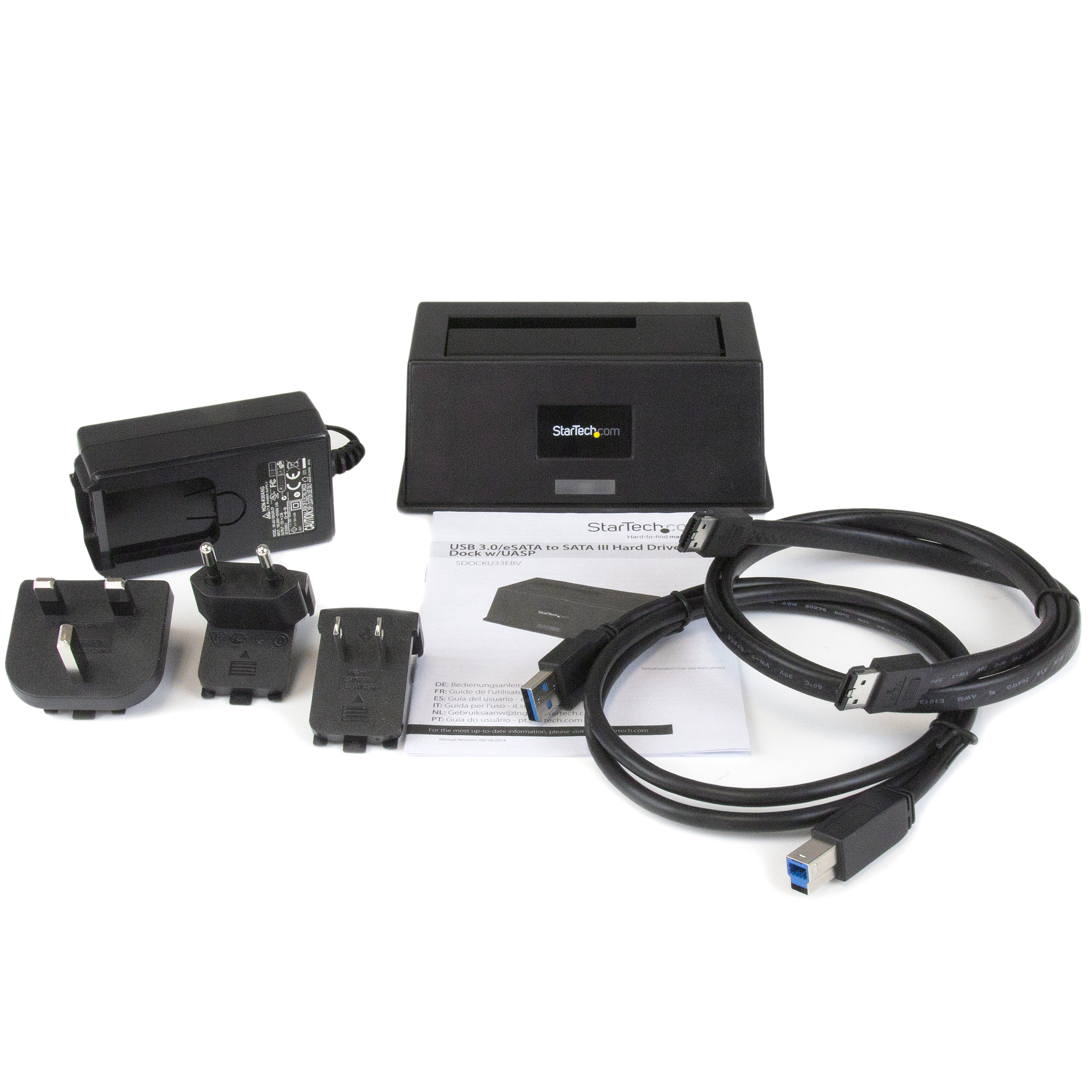

Replacement Product SDOCKU33BV Input Current 0.8 A Input Voltage 100 - 240 AC Output Current 2.0 A Output Voltage (V) 12V DC Power Consumption (In Watts) 24 Power Source AC Adapter Included Plug Type M Color Black Humidity 20%RH ~ 80%RH Operating Temperature 5°C to 35°C (41°F to 95°F) Primary Material Plastic Product Length (mm) 139.000 Product Width (mm) 92.000 Product Height (mm) 53.000 Product Weight (g) 325.000 Storage Temperature -20°C to 50°C (-4°F to 122°F) TAA Compliant No 4Kn Support Yes Hot Swap Capability Yes Max Drive Capacity Currently tested with hard drives up to 6TB 7200 RPM Maximum Data Transfer Rate OS Compatibility OS Independent SATA Type and Rate SATA III (6 Gbps) UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Bus Type USB 3.0 & eSATA Chipset ID JMicron - JMS561 Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 3.0 & eSATA LED Indicators 1 - Power/Activity Number of Drives 1 Carton Depth (mm) 188 Carton Height (mm) 382 Carton Quantity 10 Carton Weight Gross (g) 7718 Included in Package - 1 - USB 3.0/eSATA to SATA III Hard Drive Dock w/UASP
- 1 - USB 3.0 Cable
- 1 - eSATA Cable
- 1 - Universal Power Adapter (NA / EU / UK / AU)
- 1 - Instruction Manual
Package Depth (mm) 96 Package Height (mm) 172 Package Width (mm) 162 Package Quantity 1 Package Weight (g) 734 Packaging Description USB 3.0/eSATA to SATA III Hard Drive Dock w/UASP Packaging Description India USB 3.0/eSATA to SATA III Hard Drive Dock w/UASP Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Host Connector 2 eSATA (7-Pin) Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-08-26 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IT,JP,MX,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle None
