SDOCKU33EF
Docking station for SATA HDD eSATA USB w fan
Easily connect and swap hard drives and solid-state drives to and from your computer system, with the added benefit of a built-in cooling fan
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name Docking station for SATA HDD eSATA USB w fan Product Number SDOCKU33EF UPC 065030860420 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Cards & Adapters > External Drive Enclosures Category Level 1 Data Storage Category Level 2 Drive Docking Stations Category Level 3 HDD Docking Stations - 5Gbps Family Single Bay SATA Dock 5Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX073X Product Title (Ultra-Short) Hard drive dock Product Title (Short) eSATA or USB 3.0 hard drive dock w/ UASP Product Title (Medium) External docking station for 2.5/3.5in SATA HDD – eSATA or USB 3.0 w/ UASP & fan Product Title (Standard) External docking station for 2.5in or 3.5in SATA III hard drives – eSATA or USB 3.0 with UASP Product Title (Long) External Docking Station for 2.5in or 3.5in SATA III 6Gbps Hard Drives - eSATA or USB 3.0 with UASP Product Title (AMZ) Hot-Swap Hard Drive Docking Station for 2.5"/3.5" SATA III Hard Drives - External eSATA/USB 3.0 Hard Drive Dock w/ UASP (SDOCKU33EF) Title Ingram (Part 1) Docking station for 2.5/3.5in Title Ingram (Part 2) SATA HDD - eSATA & USB 3.0 w/ fan Website Product Headline Easily connect and swap hard drives and solid-state drives to and from your computer system, with the added benefit of a built-in cooling fan Bullet 1 Optimal performance with SATA 6 Gbps and USB 3.0 with UASP Bullet 2 Maximum compatibility with eSATA or USB 3.0 interface options Bullet 3 Keep your drives running cool using the built-in fan with variable speed control Bullet 4 Supports 2.5in and 3.5in form factor SATA hard drives (HDD) and solid state drives (SSD) Bullet 5 Compatible with USB 3.0/2.0/1.1 (5 Gbps / 480 Mbps / 1.5 Mbps) Bullets (Consolidated) Replacement for SATDOCKU3SEF - Easily connect and swap hard drives and solid-state drives to and from your computer system, with the added benefit of a built-in 80mm fan - Works with eSATA or USB 3.0 computer systems such as MacBook Pro and 2.5" and 3.5" SATA hard drives and solid-state drives - eSATA SSD Dock/SATA 6Gbps transfer speeds - Replacement for SATDOCKU3SEF and SATDOCKU3FEU and SATDOCKU3FGB Marketing Copy Marketing Copy (No HTML) This docking station for 2.5"/3.5" SATA III hard drives makes it easy for you to connect and swap your 2.5in or 3.5in SATA hard drives (HDD) and solid-state drives (SSD). The eSATA/USB 3.0 hard drive docking station also has a built-in fan that keeps your drives running at an optimal temperature for peak performance and longer drive lifespan. With support for either USB 3.0 or eSATA host connections, this external hard drive docking station gives you the freedom to connect to your computer through either port. Plus, the added benefit of eSATA ensures you can achieve SATA 6 Gpbs performance on computers with an available eSATA port. To ensure all your drives are supported, the SATA HDD/SSD docking station features a sleek slot-loading design that supports both 2.5in and 3.5in drives. The UASP docking station has also been rigorously tested for support with large capacity drives (tested up to 6TB).You can extend the compatibility of this dock even further by adding IDE support using our SATA to IDE Hard Drive Adapter (SAT2IDEADP).The docking station for 2.5"/3.5" SATA III hard drives will also power down your SATA drives after a period of inactivity (USB mode only) to help reduce power consumption and noise when not being accessed. This eSATA/USB 3.0 hard drive docking station supports full SATA III bandwidth of 6 Gbps when connected through eSATA, ensuring you can get the most out of your solid-state drives. The external hard drive docking station is backed by a 2-year StarTech.com warranty and free lifetime technical support. Applications - Quickly access drives for data recovery or retrieval
- Backup data to an external drive for data archiving
- Test or benchmark different hard drives while easily swapping between them
- Quickly access drives for imaging
Website Search Keyword - usb 3.0
- UASP
- hard drive dock
- hard drive docking station
- esata dock
- sata 3
- sata 3 hard drive
- SATA HDD dock
- SATA SSD dock
- UASP dock
- dock with fan
- fan
- SATDOCKU3SEF
- SATDOCKU3FEU
- SATDOCKU3FGB
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Accessory Products - SAT2IDEADP
- HDDSLEV25
- HDDSLEV35
- HDDCASE25BK
- HDDCASE25BL
- HDDCASE25GN
- HDDCASE25OR
- HDDCASE25WH
- HDDCASE25YW
- USB3SAB3BK
- USB3SAB6BK
- USB3SAB10BK
- USB3CAB2M
- USB3CAB1M
- USB3SAB1
- USB3SAB3
- USB3SAB6
- USB3SAB10
- USB3SAB1MRA
- USB3SAB2MRA
- USB3SAB3MRA
- ESATA3
- ESATA6
- ESATAPLT18IN
- ESATAPLATE1
- ESATAPLATE2
- ESATAPLT1LP
- ESATAPLT1LPL
- ESATAPLT2LP
- ESATAPLT2LPM
- SVA12M2NEUA
- SVA12M5NA
Related Products - SDOCK2U33EB
- SATDOCK4U3E
- SATDOCKU3SEF
- SATDOCKU3E
- SDOCKU33EBV
- SDOCKU33HB
- SDOCKU33HW
- SDOCK2U33
- SDOCK4U33
- SDOCK2U33HFB
- SDOCK2U33HFW
- UNIDOCKU33
Constrained SKU Alternatives (Limited Stock) SDOCKU33EBV Input Current 0.8 A Input Voltage 100 - 240 AC Output Current 2 A Output Voltage (V) 12V DC Power Consumption (In Watts) 24 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 8~90% RH Material Plastic Operating Temperature 5°C to 80°C (41°F to 176°F) Primary Material Plastic Product Length (mm) 126.000 Product Width (mm) 95.000 Product Height (mm) 134.000 Product Weight (g) 470.000 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant No 4Kn Support Yes Hot Swap Capability Yes Max Drive Capacity Currently tested with up to 6TB 7200 RPM 3.5" hard drives and 2TB 7200 RPM 2.5" hard drives Maximum Data Transfer Rate OS Compatibility OS Independent SATA Type and Rate SATA III (6 Gbps) UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Bus Type USB 3.0 & eSATA Chipset ID JMicron - JMS561 Compatible Drive Types SATA Fans 1 - 80 mm Fans Included? Yes/No Yes Interface/Bridge USB 3.0 & eSATA LED Indicators - 1 - Drive Power/Activity
- 1 - Power

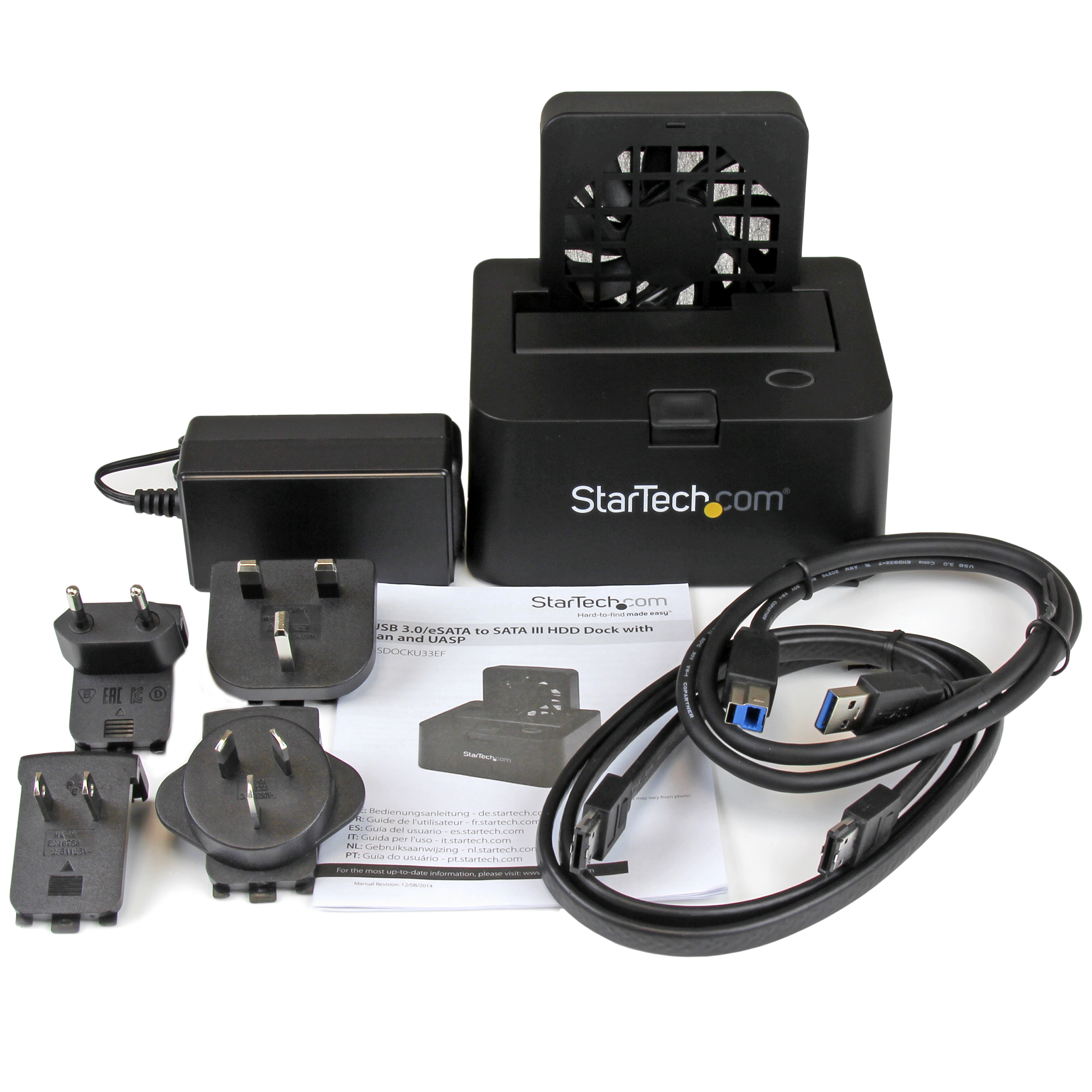

Number of Drives 1 Carton Depth (mm) 464 Carton Height (mm) 208 Carton Quantity 10 Carton Weight Gross (g) 10270 Included in Package - 1 - eSATA / USB 3.0 SATA HDD DOCK
- 1 - 1m USB 3.0 Cable
- 1 - 1m eSATA Cable
- 1 - Universal Power Adapter (NA/UK/EU/AUS)
- 1 - Instruction Manual
Package Depth (mm) 187 Package Height (mm) 211 Package Width (mm) 121 Package Quantity 1 Package Weight (g) 957 Packaging Description USB 3.0/eSATA to SATA III HDD Dock w/Fan & UASP Packaging Description India USB 3.0/eSATA to SATA III HDD Dock w/Fan & UASP Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 1 Connector 3 eSATA (7-Pin) Connector 3 (Quantity) 1 Connector 4 SATA (7-Pin + 15-Pin) Connector 4 (Quantity) 1 Host Connector 1 eSATA (7-Pin) Host Connector 1 (Quantity) 1 Host Connector 2 USB-B (5Gbps, 4.5W) Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-11-18 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IT,JP,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2014-11-28 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle None
