SDOCKU33HB

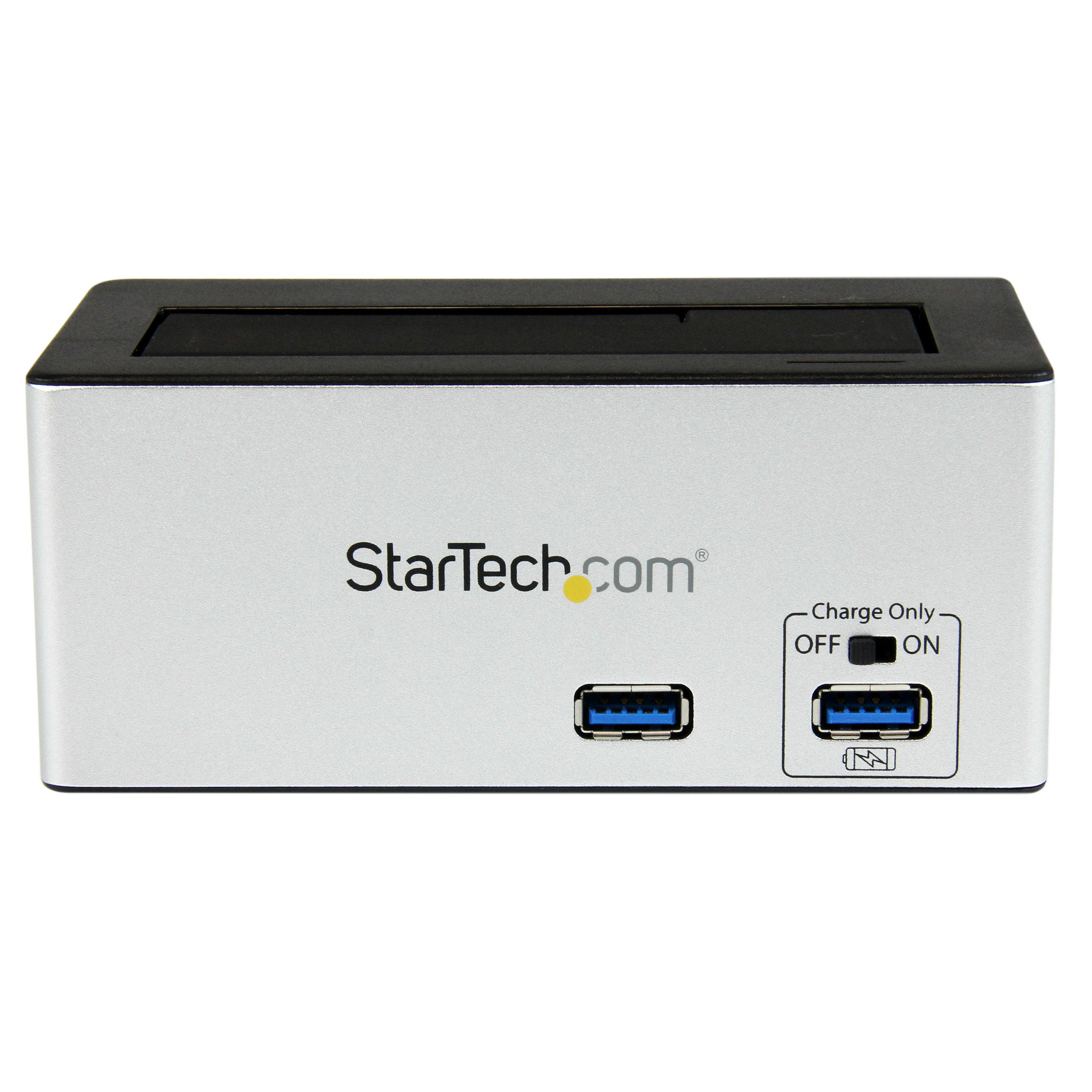

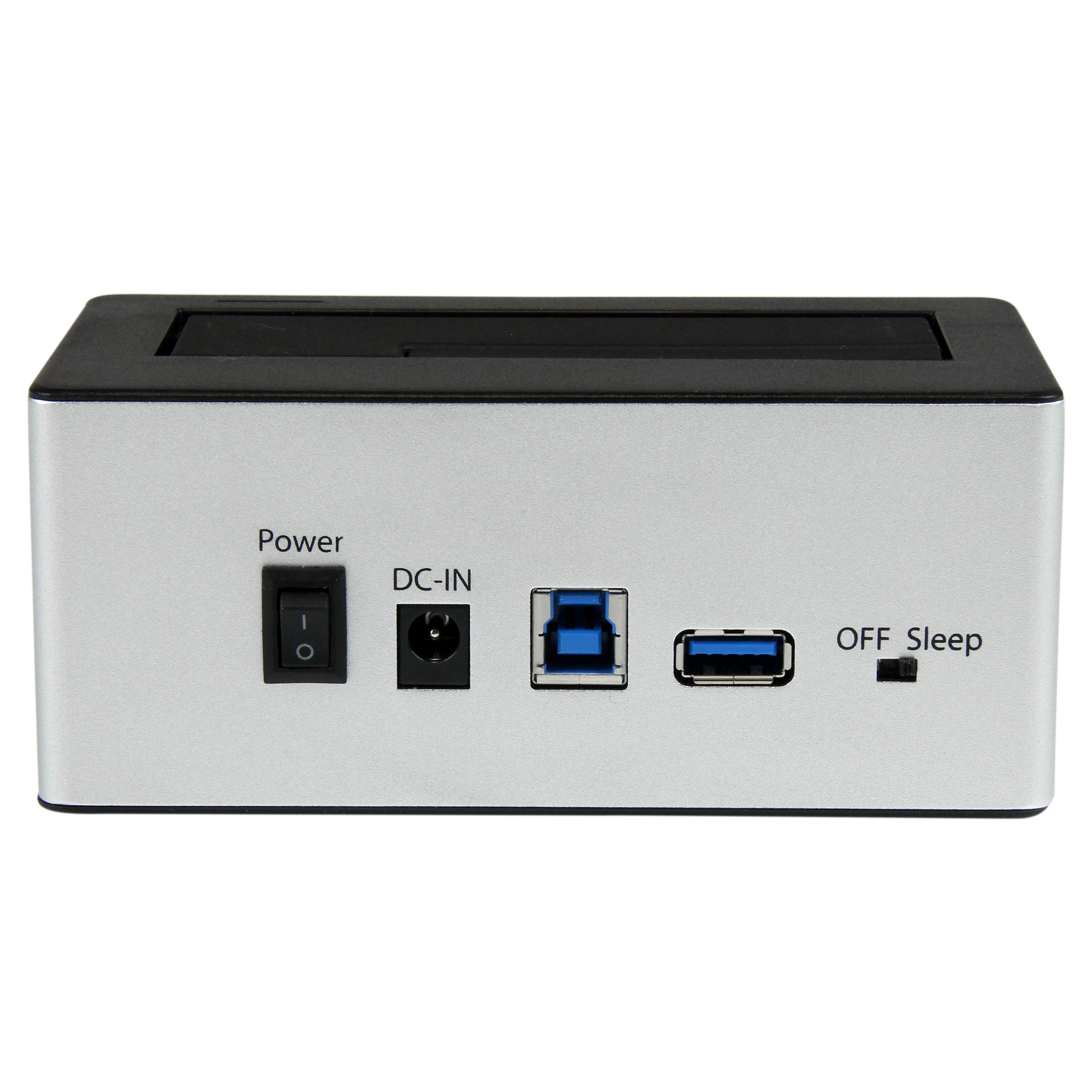

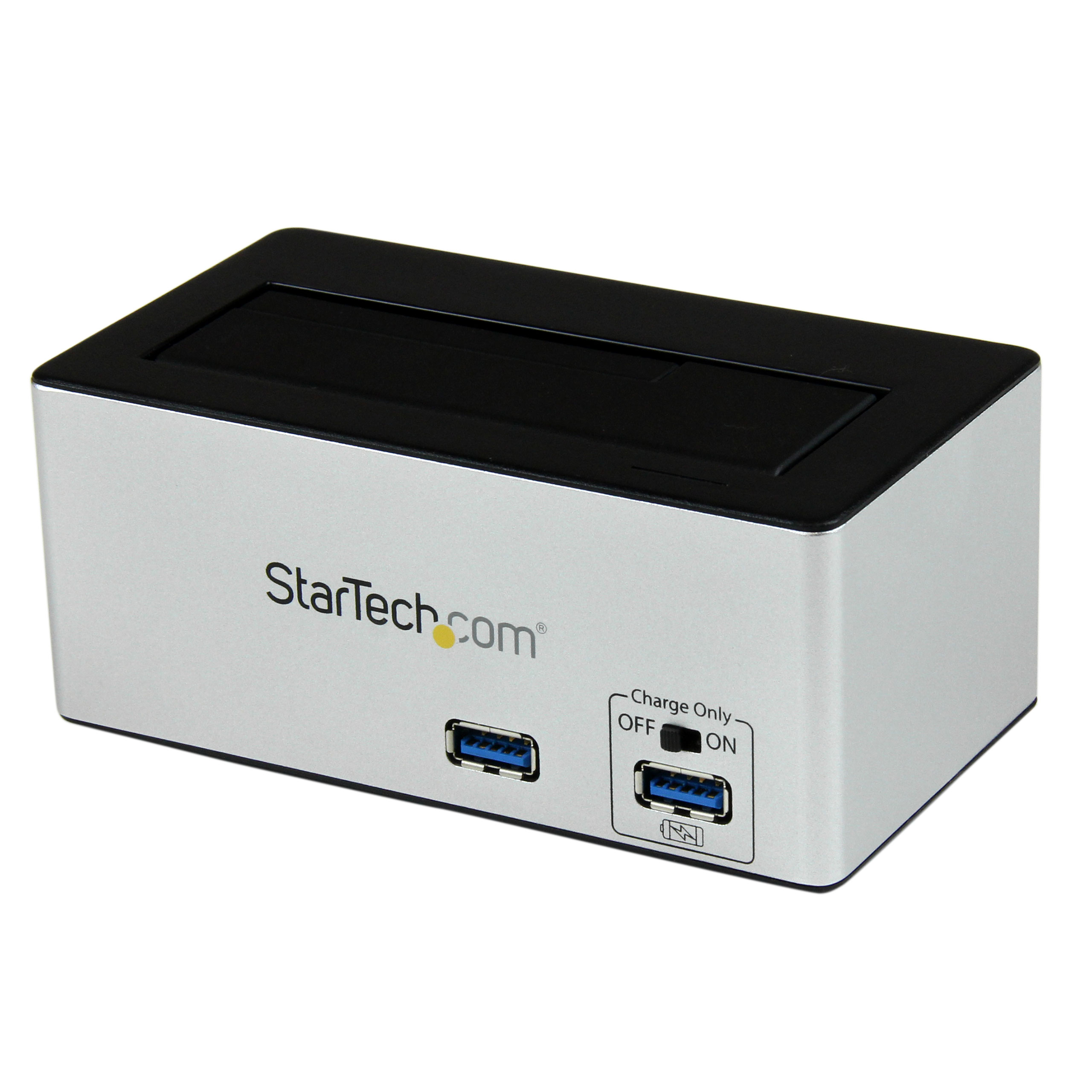

USB 3 SATA HDD SSD Dock w/ Fast Charge Hub / UASP
Dock your 2.5” or 3.5” SATA SSDs/HDDs and add USB Fast Charge Capacity in a stylish black docking station
Main Image
Product Images
Product Images
BOM Image
Product Name USB 3 SATA HDD SSD Dock w/ Fast Charge Hub / UASP Product Number SDOCKU33HB UPC 065030852692 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Drive Docking Stations Category Level 3 HDD Docking Stations - 5Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX073X Product Title (Ultra-Short) USB 3.0 HDD Dock Product Title (Short) USB 3.0 SATA HDD Dock w/ Fast Charge Hub Product Title (Standard) USB 3.0 SATA III Hard Drive Docking Station SSD / HDD with integrated Fast Charge USB Hub and UASP support for SATA 6 Gbps - Black Product Title (Long) USB 3.0 SATA III Hard Drive Docking Station SSD / HDD with integrated Fast Charge USB Hub and UASP support for SATA 6 Gbps - Black Product Title (AMZ) USB 3.0 SATA Hard Drive Docking Station with Fast Charge USB Hub and UASP for SATA 6Gbps - 2.5/3.5" HDD / SSD Dock - Black (SDOCKU33HB) Title Ingram (Part 1) USB 3.0 SATA HDD / SSD Dock w/ Title Ingram (Part 2) Fast Charge Hub & UASP - Black Website Product Headline Dock your 2.5” or 3.5” SATA SSDs/HDDs and add USB Fast Charge Capacity in a stylish black docking station Bullet 1 Supports 2.5in and 3.5in form factor SATA hard drives (HDD) and solid state drives (SSD) Bullet 2 Stylish full black design with silver trim Bullet 3 Built-in USB 3.0 Hub with Fast Charging Port Bullet 4 Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) drives Bullet 5 SuperSpeed USB 3.0 compliant host interface, with up to 5 Gbps of data bandwidth Bullets (Consolidated) Dock your 2.5" or 3.5" SATA SSDs/HDDs and add USB Fast Charge Capacity in a stylish black docking station - Compatible with USB 3.0 enabled computer systems such as Acer Chromebook C720 and 2.5in or 3.5in SATA solid-state drives and hard drives - HDD Dock/SSD Dock/USB Hard Drive Dock/eSATA Hard Drive Dock/External Hard Drive Docking Staiton/SATA HDD and SSD Dock - Save time while backing up data to an external drive for archiving Marketing Copy Applications - Data recovery specialists who need quick access to drives to recover/retrieve data
- Technicians who regularly test or benchmark different hard drives and need to swap between them
- Backup data quickly to an external data archiving
- IT professional that need to charge tablets and Smart phone devices
- System administrators who need quick access to drives for imaging
Microsoft WHQL Certified Yes Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes Note: Certain devices may not support charging and syncing simultaneously. In these instances disconnect the device, and set the charge only switch to “on”, then reconnect the device. Accessory Products - HDDSLEV25
- HDDCASE25WH
- HDDCASE25YW
- PEXUSB3S2
- ECUSB3S2
- PEXUSB3S11
- HDDCASE25BK
- HDDSLEV35
- HDDCASE25GN
- HDDCASE25OR
- HDDCASE25BL
- USB3SAB3
- USB3SAB10
- USB3SAB6
- SAT2IDEADP
- SVA12M5NA
Related Products - SATDOCKU3SEF
- SATDOCKU3S
- USB3S2SATA
- UNIDOCK3U
- SATDOCK22U3S
- SDOCKU33HW
- SDOCK2U33HFB
- SDOCK2U33HFW
- PEXUSB3S4V
- PEXUSB3S4
- PEXUSB3S400
- MPEXUSB3S22B
- PEXUSB3S22
- MPEXUSB3S2

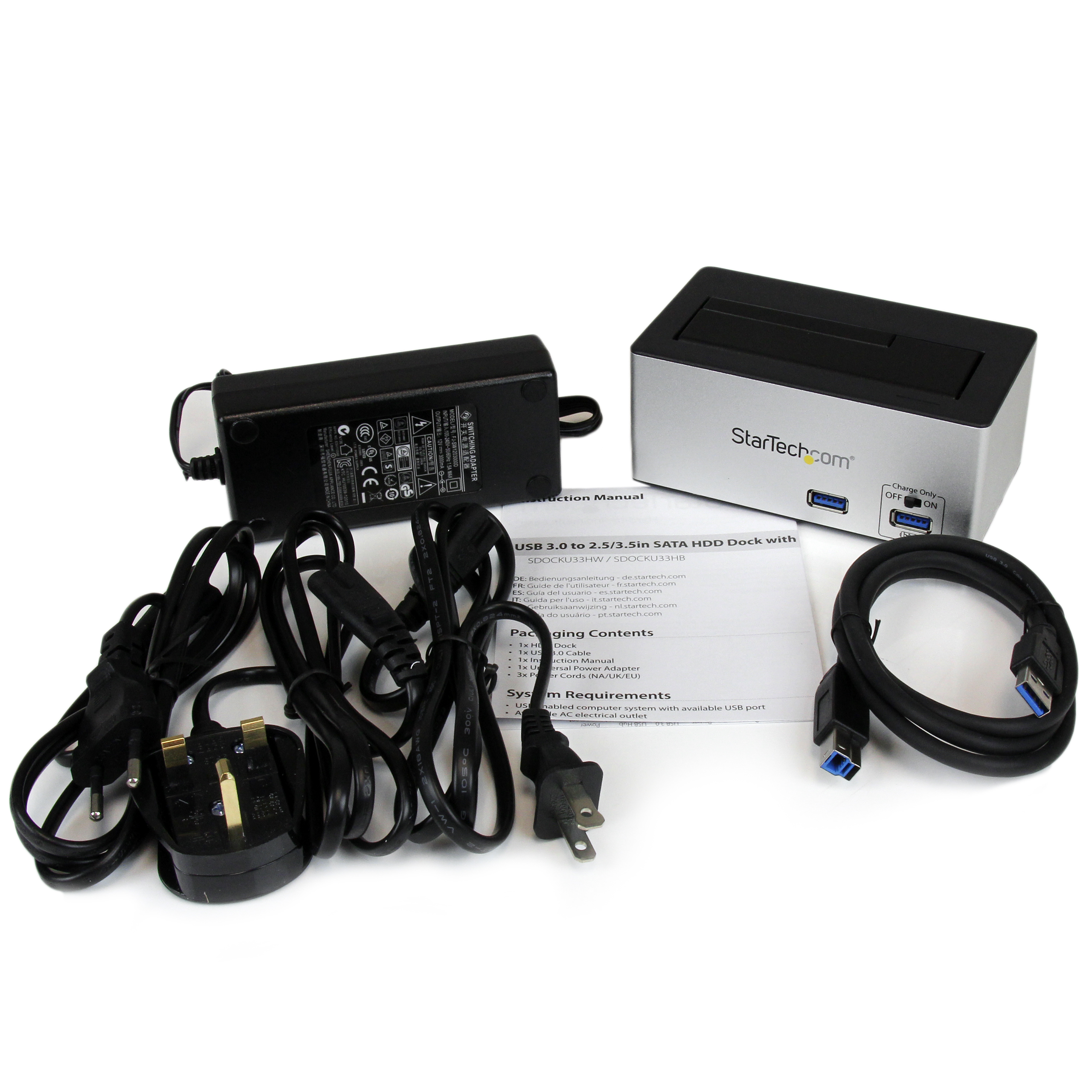

Replacement Product SDOCKU33BV Input Current 1A Input Voltage 100 - 240 AC Output Current 3A Output Voltage (V) 12V DC Power Consumption (In Watts) 36 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 20%RH ~ 80%RH Material Aluminum and Plastic Operating Temperature 5°C to 35°C (41°F to 95°F) Product Length (mm) 130 Product Width (mm) 72 Product Height (mm) 55 Product Weight (g) 866.133 Storage Temperature -20°C to 50°C (-4°F to 122°F) TAA Compliant No Max Drive Capacity Currently tested with up to 4TB 7200 RPM 3.5" hard drives and 1TB 7200 RPM 2.5" hard drives OS Compatibility OS Independent SATA Type and Rate SATA III (6 Gbps) UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Chipset ID Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 3.2 Gen 1 (5Gbps) LED Indicators 1 - Power/Activity Number of Drives 1 Carton Depth (mm) 187 Carton Height (mm) 378 Carton Quantity 10 Carton Weight Gross (g) 10330 Included in Package - 1 - Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand
- 1 - HDD Dock
- 1 - USB 3.0 Cable (1m)
- 1 - Instruction Manual
Package Depth (mm) 92 Package Height (mm) 173 Package Width (mm) 163 Package Quantity 1 Package Weight (g) 962.749 Packaging Description USB 3.0 to 2.5/3.5in SATA HDD Dock w/ USB Hub Packaging Description India USB 3.0 to 2.5/3.5in SATA HDD Dock w/ USB Hub Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 2 Connector 2 USB-A (7.5W Power Only) Connector 2 (Quantity) 1 Connector 3 SATA (7-Pin + 15-Pin) Connector 3 (Quantity) 1 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-08-05 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy
