SDOCKU33HW

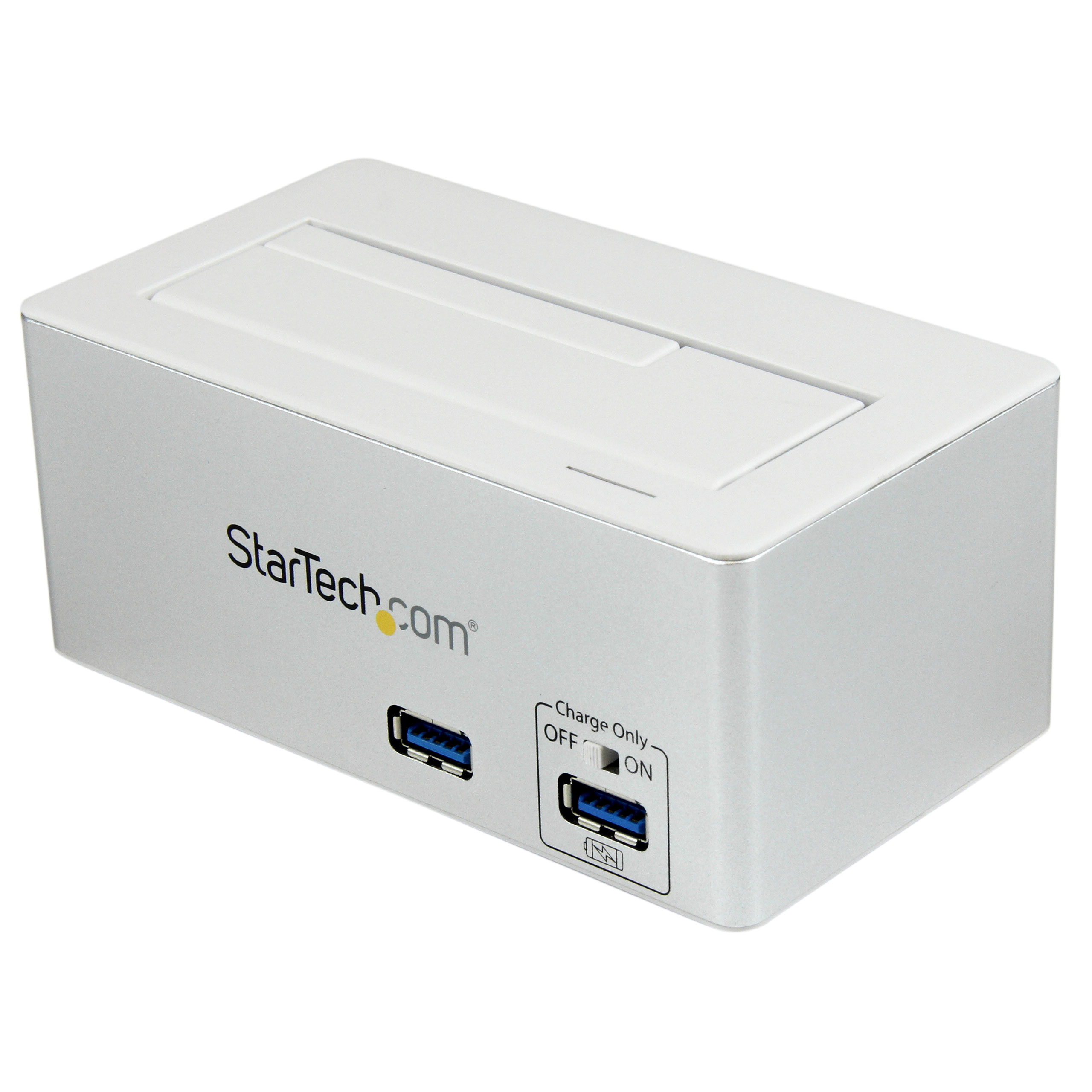

USB 3 SATA HDD SSD Dock w/ Fast Charge Hub / UASP
Dock your 2.5” or 3.5” SATA SSDs/HDDs and add USB Fast Charge Capacity in a stylish white docking station
Main Image
Product Images
Product Images
BOM Image
Product Name USB 3 SATA HDD SSD Dock w/ Fast Charge Hub / UASP Product Number SDOCKU33HW UPC 065030852685 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Drive Docking Stations Category Level 3 HDD Docking Stations - 5Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX073X Product Title (Ultra-Short) USB 3.0 HDD Dock Product Title (Short) USB 3.0 SATA HDD Dock w/ Fast Charge Hub Product Title (Standard) USB 3.0 SATA Hard Drive Docking Station SSD / HDD with integrated Fast Charge USB Hub and UASP For SATA 6 Gbps - White Product Title (Long) USB 3.0 SATA Hard Drive Docking Station SSD / HDD with integrated Fast Charge USB Hub and UASP For SATA 6 Gbps - White Product Title (AMZ) USB 3.0 SATA Hard Drive Docking Station with Fast Charge USB Hub and UASP for SATA 6 Gbps - USB SATA HDD / SSD Dock - White (SDOCKU33HW) Title Ingram (Part 1) USB 3.0 SATA HDD SSD Dock w/ Title Ingram (Part 2) Fast Charge Hub & UASP - White Website Product Headline Dock your 2.5” or 3.5” SATA SSDs/HDDs and add USB Fast Charge Capacity in a stylish white docking station Bullet 1 Supports 2.5in and 3.5in form factor SATA hard drives (HDD) and solid state drives (SSD) Bullet 2 UASP Compliant Bullet 3 Built-in USB 3.0 Hub with Fast Charging Port Bullet 4 SuperSpeed USB 3.0 compliant host interface, with up to 5 Gbps of data bandwidth Bullet 5 Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) drives Bullets (Consolidated) Dock your 2.5" or 3.5" SATA SSDs/HDDs and add USB Fast Charge Capacity in a stylish Black docking station - SATA Hard Drive Docking Station - HDD Docking Station - USB 3.0 Hard Drive Docking Station - USB SATA HDD Dock - UASP Support - SATA 6 Gbps Marketing Copy Marketing Copy (No HTML) Dock your 2.5" or 3.5" SATA SSDs/HDDs and add USB Fast Charge Capacity in a stylish white docking station - The SDOCKU33HW USB 3.0 Dock with Fast Charge USB hub lets you easily connect and swap 2.5in or 3.5in SATA III hard drives (HDD) and solid state drives (SSD) through an available USB port. The enclosure supports UASP and delivers optimal performance with a USB 3.0 connection, but is also backward compatible with USB 2.0/1.1 host connections. The Hard Drive Dock features a built-in 3-port USB 3.0 Hub that enables you to connect up to 3 additional USB 3.0 devices to your computer through the same USB host connection. One of the ports on the hub also has Fast Charging capabilities, that charges iPad's and other mobile devices as effectively as through a wall plug. This Fast Charge Port has been specially designed for compatibility with a wide range of tablets and smartphones. With support for UASP, the dock performs up to 70% faster than conventional USB 3.0, when paired with a UASP-enabled host controller to utilize the full potential of your SATA III hard drives. With support for SATA I/II/III, large capacity drives (tested up to 4TB), and 2.5in or 3.5in hard drives this HDD/SSD docking station is compatible with virtually any SATA hard drive, and greatly increases the storage/backup capabilities of your computer. Plus, the dock features configurable power management, which reduces energy consumption and helps extend the life of your drives by avoiding unnecessary access. Extend the value of this hard drive docking station further with the addition of our SATA to IDE Hard Drive Adapter (SAT2IDEADP), allowing easy insertion of any 2.5 or 3.5in. IDE hard drive into a SATA hard drive dock. With uniform white design and sleek silver trim, the SDOCKU33HW will look great with your Apple Mac , and is backed by a 2-year StarTech.com warranty and free lifetime technical support. Compatible with: SATA, OS independent; No software or drivers required Applications - Data recovery specialists who need quick access to drives to recover/retrieve data
- Backup data quickly to an external data archiving
- Technicians who regularly test or benchmark different hard drives and need to swap between them
- System administrators who need quick access to drives for imaging
- IT professional that need to charge tablets and Smart phone devices
Microsoft WHQL Certified Yes Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes Note: Certain devices may not support charging and syncing simultaneously. In these instances disconnect the device, and set the charge only switch to “on”, then reconnect the device. Accessory Products - SAT2IDEADP
- HDDSLEV25
- HDDCASE25WH
- HDDCASE25YW
- PEXUSB3S2
- ECUSB3S2
- PEXUSB3S11
- HDDCASE25BK
- HDDSLEV35
- HDDCASE25BL
- USB3SAB3
- USB3SAB6
- USB3SAB10
- HDDCASE25GN
- HDDCASE25OR
- SVA12M5NA
Related Products - SDOCKU33HB
- SATDOCKU3SEF
- USB3S2SATA
- UNIDOCK3U
- SATDOCK22U3S
- SDOCK2U33HFB
- SDOCK2U33HFW
- SATDOCKU3S
- PEXUSB3S4V
- PEXUSB3S400
- MPEXUSB3S22B
- PEXUSB3S22
- PEXUSB3S4
- MPEXUSB3S2

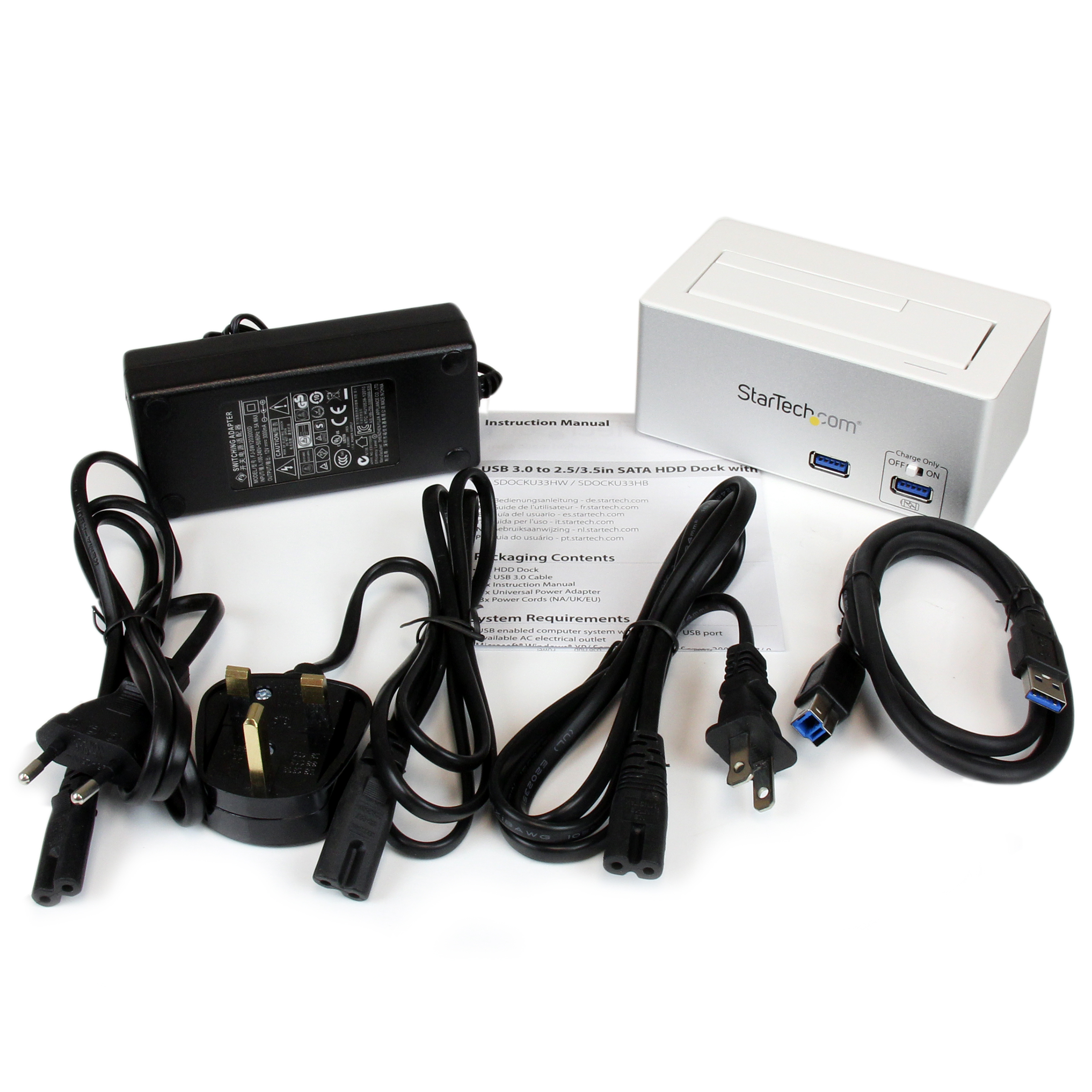

Replacement Product SDOCKU33BV Input Current 1A Input Voltage 110V-240V AC Output Current 3A Output Voltage (V) 12V DC Power Consumption (In Watts) 36 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color White & Silver Humidity 20%RH ~ 80%RH Material Aluminum and Plastic Operating Temperature 5°C to 35°C (41°F to 95°F) Product Length (mm) 130.000 Product Width (mm) 72.000 Product Height (mm) 55.000 Product Weight (g) 350.000 Storage Temperature -20°C to 50°C (-4°F to 122°F) TAA Compliant No Max Drive Capacity Currently tested with up to 4TB 7200 RPM 3.5" hard drives and 1TB 7200 RPM 2.5" hard drives OS Compatibility OS Independent SATA Type and Rate SATA III (6 Gbps) UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Chipset ID Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 3.2 Gen 1 (5Gbps) LED Indicators 1 - Power/Activity Number of Drives 1 Carton Depth (mm) 155 Carton Height (mm) 325 Carton Quantity 10 Carton Weight Gross (g) 9700 Included in Package - 1 - Universal Power Adapter
- 1 - HDD Dock
- 1 - USB 3.0 Cable (1m)
- 1 - Instruction Manual
- 1 - Power Cords (NA/UK/EU)
Package Depth (mm) 90 Package Height (mm) 143 Package Width (mm) 140 Package Quantity 1 Package Weight (g) 640 Packaging Description USB 3.0 to 2.5/3.5in SATA HDD Dock w/ USB Hub Packaging Description India USB 3.0 to 2.5/3.5in SATA HDD Dock w/ USB Hub Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Host Connector 2 USB-A (5Gbps, 4.5W) Host Connector 2 (Quantity) 2 Host Connector 3 USB-A (7.5W Power Only) Host Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-08-05 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle None
