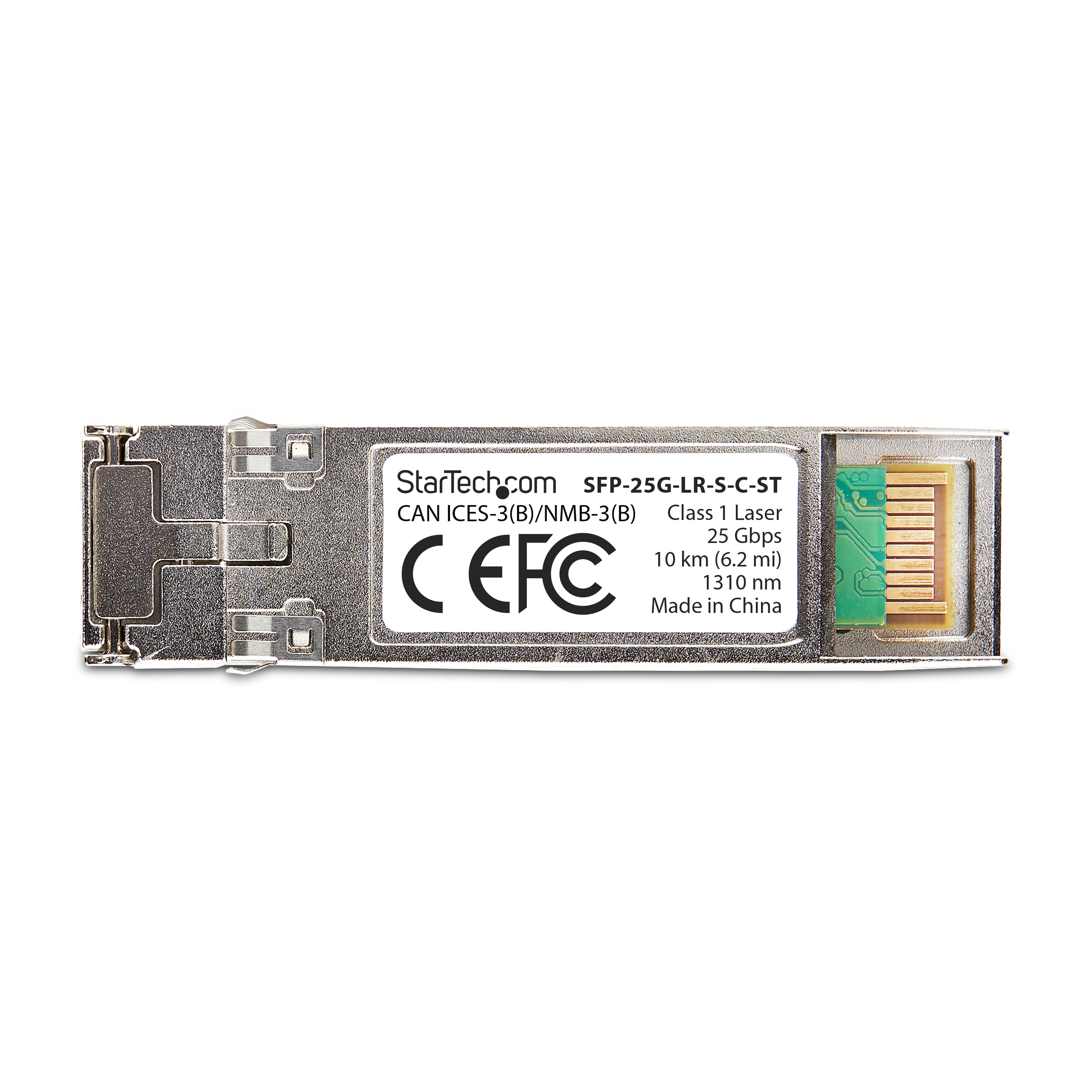

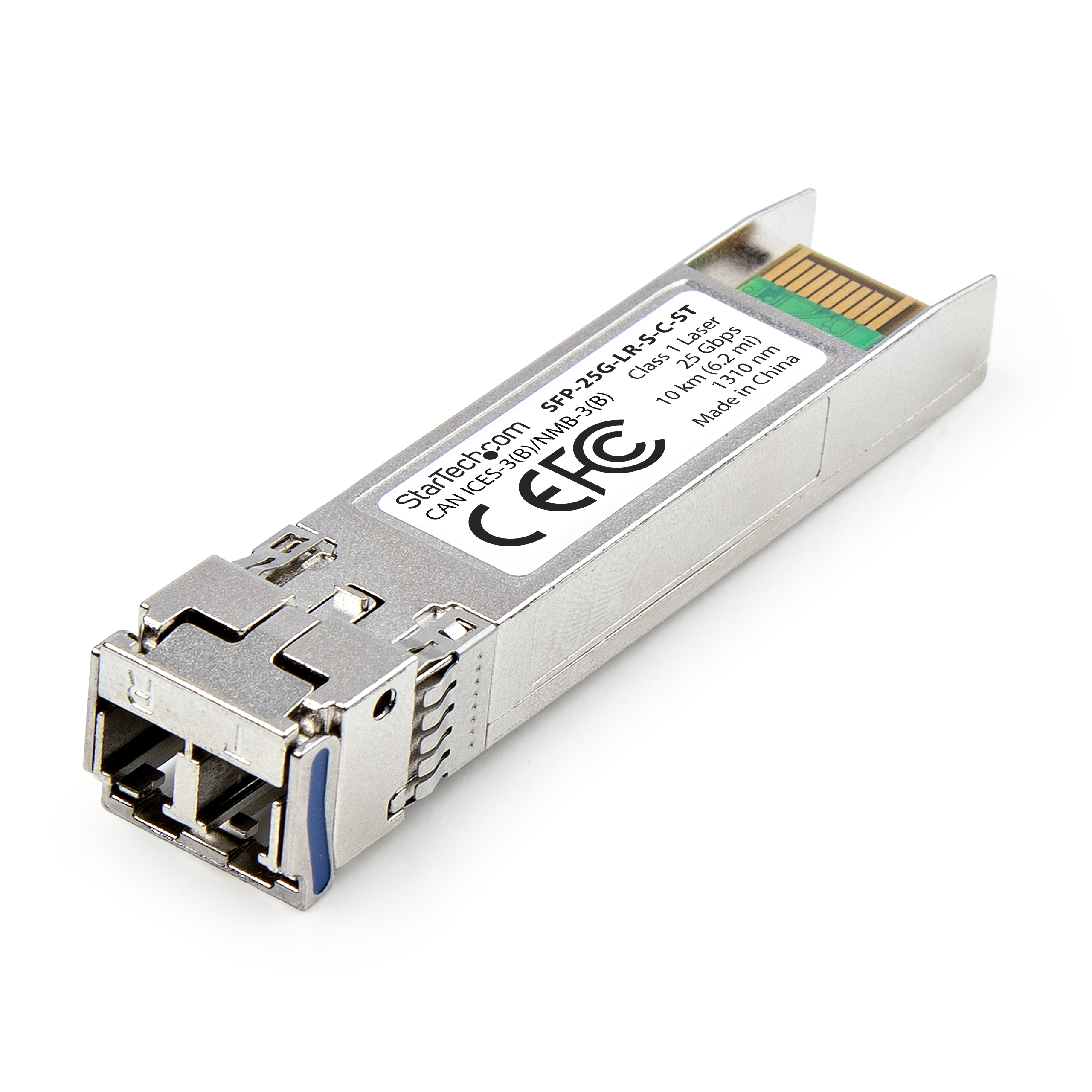

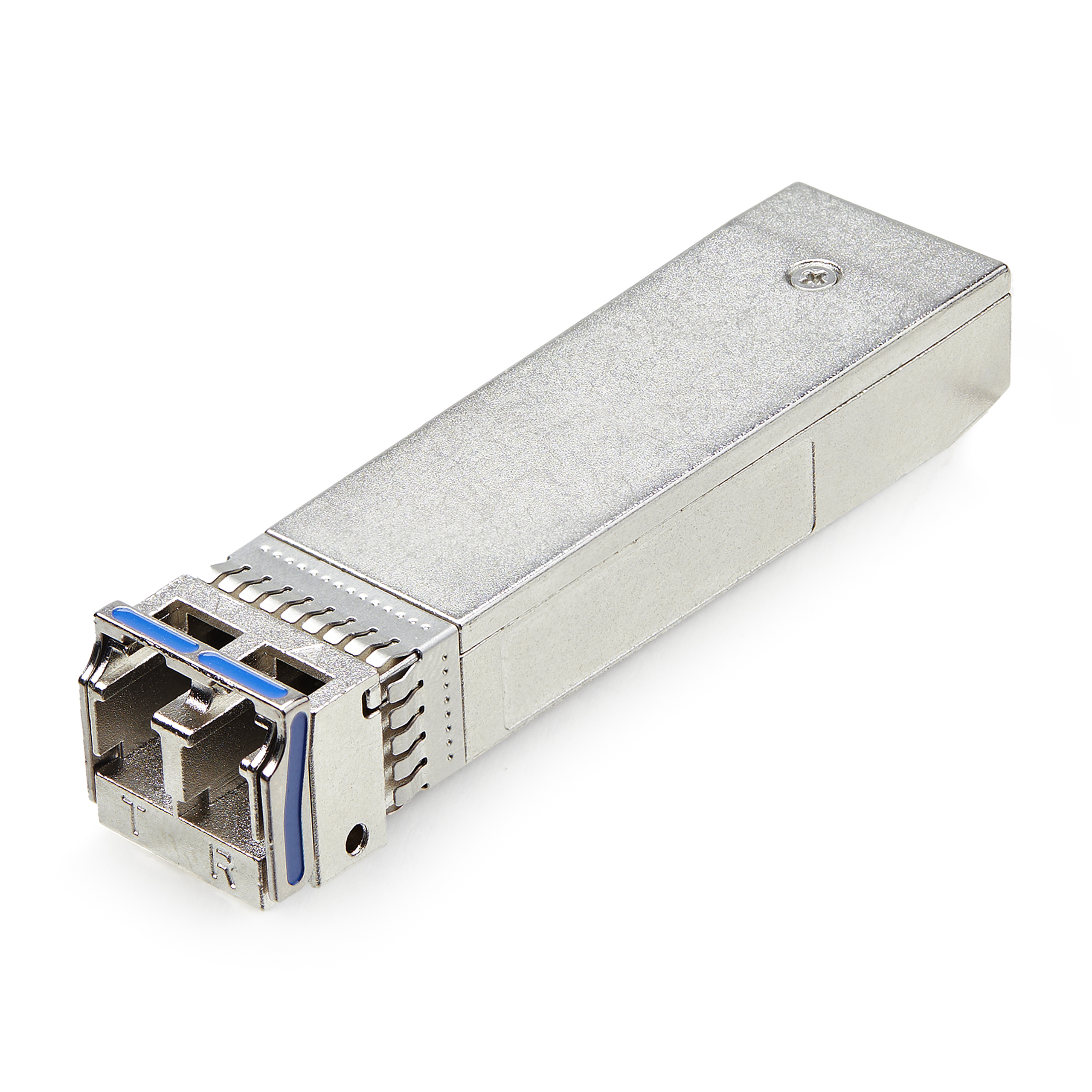

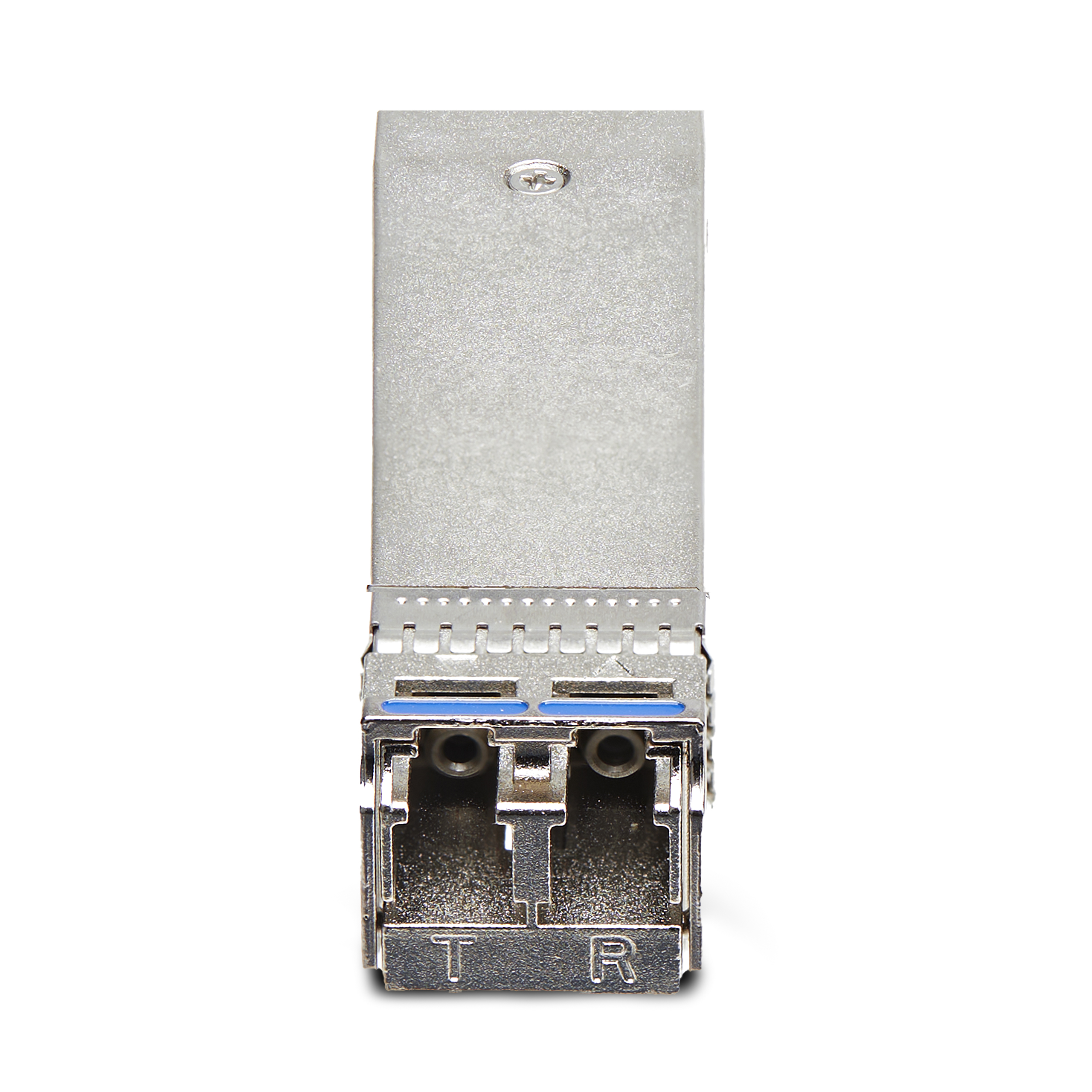

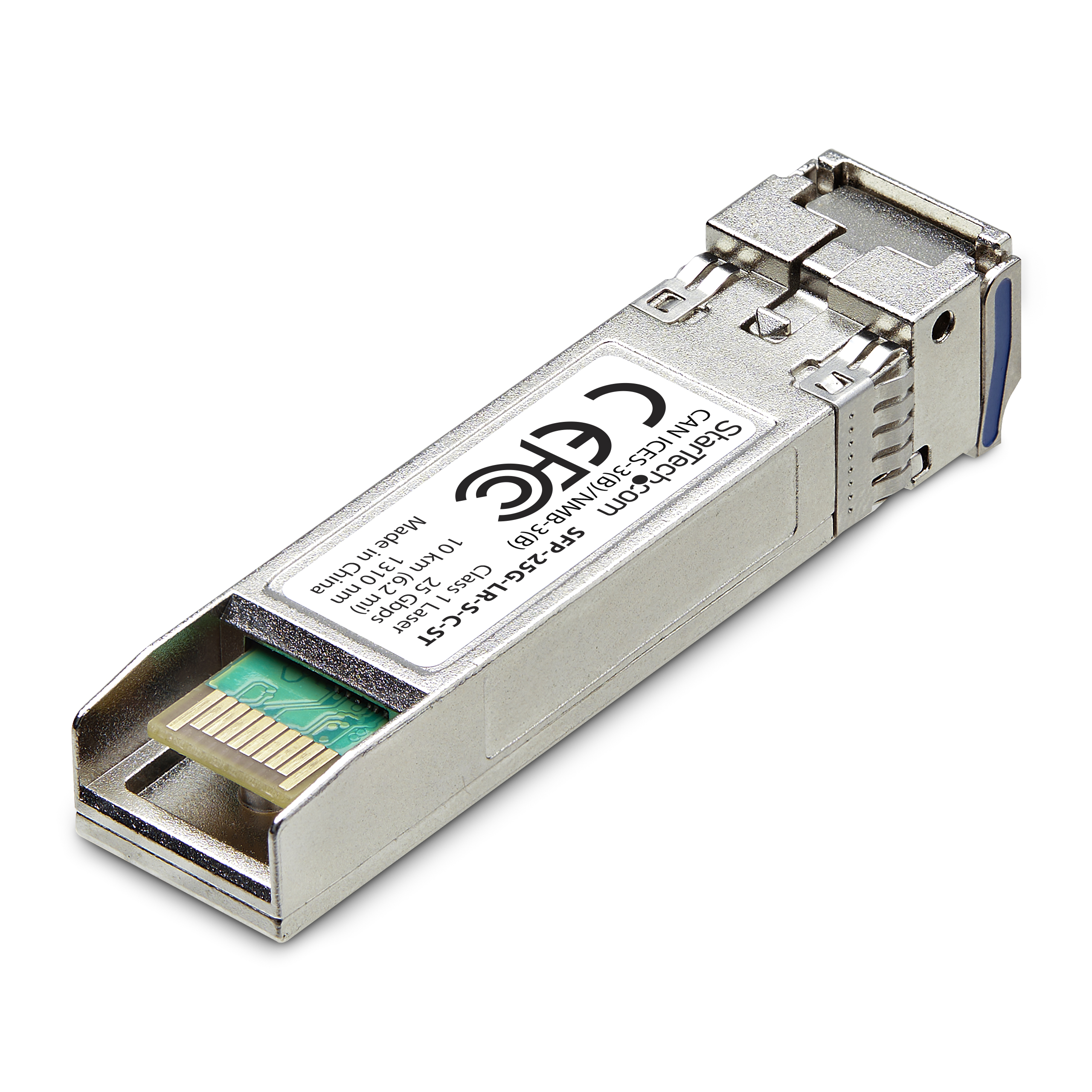

SFP-25G-LR-S-C-ST
Enhance the networking infrastructure with this Cisco®-compatible 25GBASE-LR optical transceiver, ensuring reliable performance and seamless connectivity at distances of up to 10km
| Product Name | Cisco SFP-25G-LR-S Compatible 25GBASE-LR SFP28 1310nm 10km D |
|---|---|
| Product Number | SFP-25G-LR-S-C-ST |
| UPC | 065030905336 |
| Lifecycle status | Active |
| Warranty | Lifetime |
| Taxonomy | Product > Networking > SFP Transceivers |
| Category Level 1 | Networking |
| Category Level 2 | SFP Transceivers |
| Category Level 3 | Cisco Compatible |
| Country of Origin Europe & Japan | China |
| Country of Origin North America | China |
| Country of Origin History (1) | China |
| Country of Origin Revision (1) | XXXXXX091X |
| Product Title (Ultra-Short) | SFP-25G-LR-S Comp. |
|---|---|
| Product Title (Short) | Cisco Comp. SFP-25G-LR-S, 25Gb, SFP28 |
| Product Title (Medium) | StarTech.com Cisco SFP-25G-LR-S Compatible SFP28, 25GbE, SMF, 10km, 1310nm, LC |
| Product Title (Standard) | Cisco SFP-25G-LR-S Compatible SFP28 Module, 25Gb Single Mode Fiber (SMF), 25GBASE-LR LC Transceiver, 10km (6.2mi), DDM/DOM |
| Product Title (Long) | Cisco SFP-25G-LR-S Compatible SFP28 Module, 25Gbps Single Mode Fiber (SMF), 10km (6.2mi), LC Connector, 1310nm, MSA 25 Gigabit Optical Transceiver |
| Product Title (AMZ) | Cisco SFP-25G-LR-S Compatible SFP28 Module, 25Gb Single Mode Fiber (SMF), 25GbE 10km (6.2mi), LC Transceiver |
| Title Ingram (Part 1) | Cisco SFP-25G-LR-S Compatible - |
| Title Ingram (Part 2) | 25G SFP28, 1310nm, 10km, DDM, LC |
| Website Product Headline | Enhance the networking infrastructure with this Cisco®-compatible 25GBASE-LR optical transceiver, ensuring reliable performance and seamless connectivity at distances of up to 10km |
| Bullet 1 | CISCO COMPATIBLE TRANSCEIVER: Equivalent to the Cisco® SFP-25G-LR-S SMF module; Programmed and tested to ensure seamless integration with Cisco switches and routers to deliver reliable 25G connectivity up to 10km (6.2mi) |
| Bullet 2 | MAXIMIZE BANDWIDTH: 25Gb single-mode fiber SFP28 excels at bandwidth-intensive tasks such as data migrations, large-scale transfers, high-performance storage, seamless content streaming, and rapid online content uploads |
| Bullet 3 | TECHNICAL SPECS: 25GBASE-LR SFP28; 25Gbps; Single Mode Fiber (SMF); LC Connector; 1310nm Tx/Rx; Distances up to 10km (6.2mi); Supports Digital Diagnostics Monitoring (DDM/DOM) |
| Bullet 4 | COMPATIBLE WITH MSA COMPLIANT SWITCHES: Fiber optic transceiver is compatible with switch models from Ubiquiti®, D-Link®, Netgear®, Supermicro®, TP-Link®, and other brands that support uncoded modules |
| Bullet 5 | THE IT PRO'S CHOICE: Designed and built for IT Professionals, this 25 Gigabit optical transceiver is backed for life, including free lifetime 24/5 multi-lingual technical assistance |
| Bullets (Compact) | Equivalent to Cisco SFP-25G-LR-S fiber transceiver - 25GbE connectivity up to 10Km - For data migrations, large-scale transfers, high-capacity storage - 25GBASE-LR SFP28, 25Gbps, SMF, LC connector, 1310nm, DDM/DOM, MSA-compliant - Lifetime warranty |
| Bullets (Consolidated) | - Cisco-compatible SFP28 transceiver equivalent to SFP-25G-LR-S SMF module; Tested for seamless integration with Cisco switches for reliable 25Gbps connectivity up to 10km (6.2mi) - Maximize bandwidth for data migrations/high-capacity network storage/Multimedia upload - Technical Specs: 25GBASE-LR SFP28/25GbE/Single Mode Fiber (SMF)/LC Duplex connector/1310nm/DDM/DOM - Works with MSA-compliant switches that accept uncoded fiber modules - This 25 Gigabit optical transceiver is backed for life |
| Marketing Copy | |
| Marketing Copy (No HTML) |
| Required Regulatory Compliance Marks |
|
|---|
| Related Products |
|
|---|
| Power Consumption (In Watts) | <1.2 W |
|---|
| Humidity | 85% RH |
|---|---|
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Primary Material | Steel |
| Product Length (mm) | 56.500 |
| Product Width (mm) | 13.900 |
| Product Height (mm) | 8.500 |
| Product Weight (g) | 200.000 |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| TAA Compliant | No |
| Compatible Networks | 25 Gbps |
|---|---|
| Digital Diagnostics Monitoring Support | Yes |
| Fiber Operating Mode | Full-Duplex |
| Fiber Type | Single Mode |
| Maximum Data Transfer Rate | 25.78 Gbps |
| Max Transfer Distance | 10 km (6.2 mi) |
| MTBF (hours) | 3,292,647 Hours at 55°C (131°F) |
| Wavelength | 1310nm |
| Fiber Connector | LC |
|---|---|
| Industry Standards | IEEE 802.3cc 25GBASE-LR |
| OEM Part Number | SFP-25G-LR-S |
| SFP Compatible Brand | Cisco |
| Carton Depth (mm) | 340 |
|---|---|
| Carton Height (mm) | 350 |
| Carton Quantity | 100 |
| Carton Weight Gross (g) | 5850 |
| Included in Package | 1 - SFP28 Transceiver |
| Package Depth (mm) | 90 |
| Package Height (mm) | 34 |
| Package Width (mm) | 113 |
| Package Weight (g) | 48 |
| Packaging Description | SFP-25G-LR-S Compatible 25GBase-LR SFP28 Transceiver SMF (1310nm, 10km, LC) |
| Packaging Description India | SFP-25G-LR-S Compatible 25GBase-LR SFP28 Transceiver SMF (1310nm, 10km, LC) |
| Sub-Carton Depth (mm) | 0 |
| Sub-Carton Height (mm) | 0 |
| Sub-Carton Width (mm) | 0 |
| Sub-Carton Weight (g) | 0 |
| Connector 1 | SFP Slot |
|---|---|
| Connector 1 (Quantity) | 1 |
| Connector 2 | SFP28 (25Gbps) |
| Connector 2 (Quantity) | 1 |
| Connector 3 | LC Duplex Fiber |
| Connector 3 (Quantity) | 1 |
