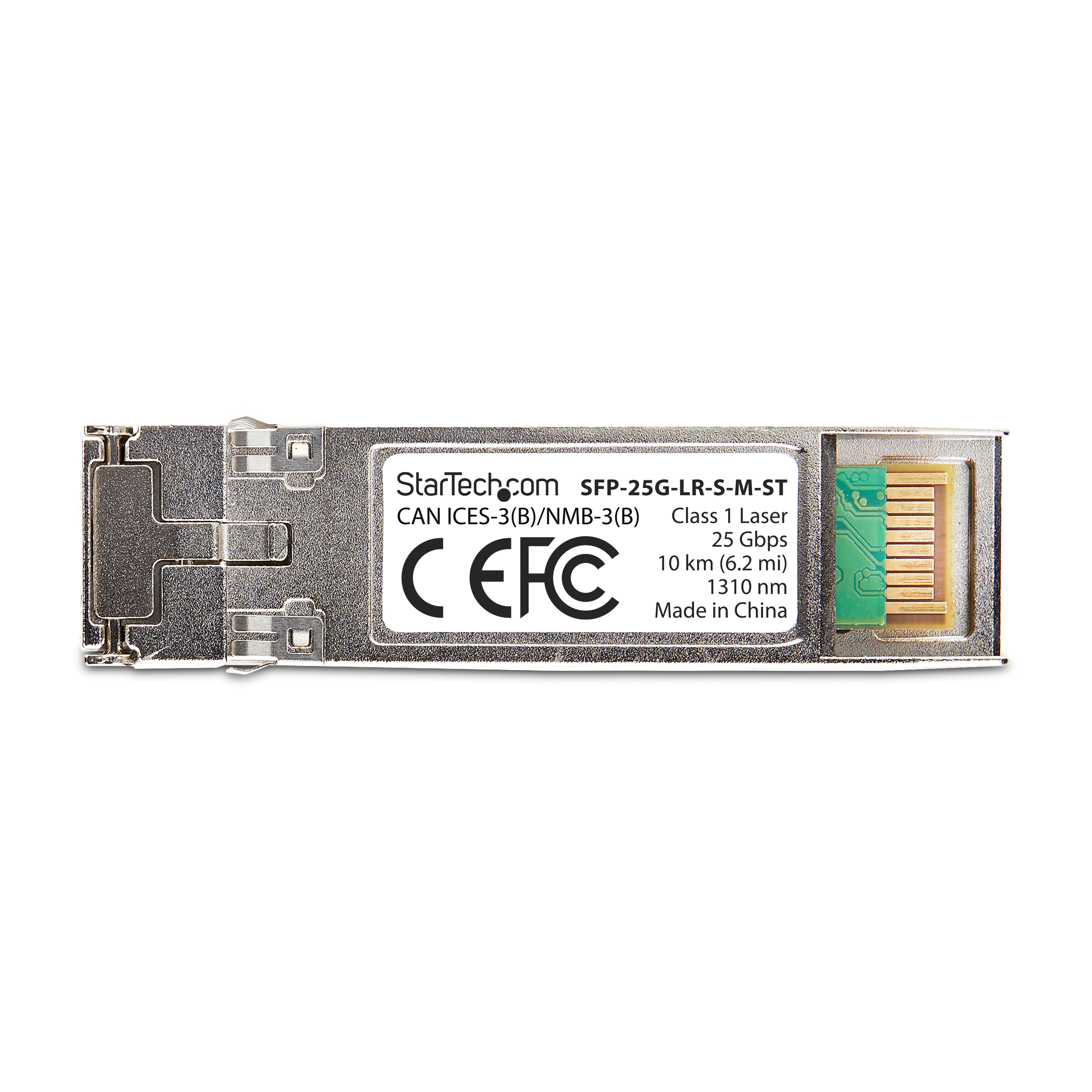

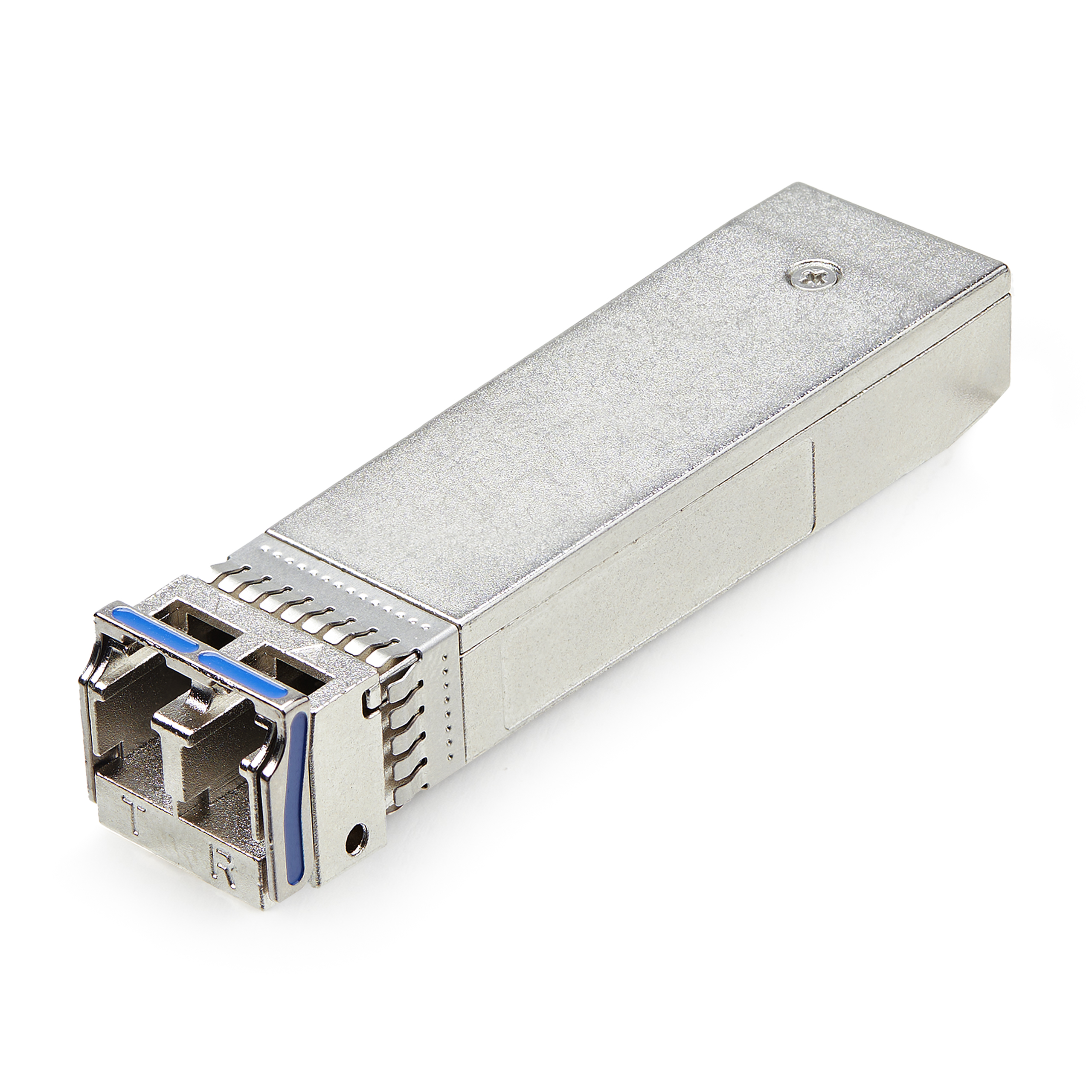

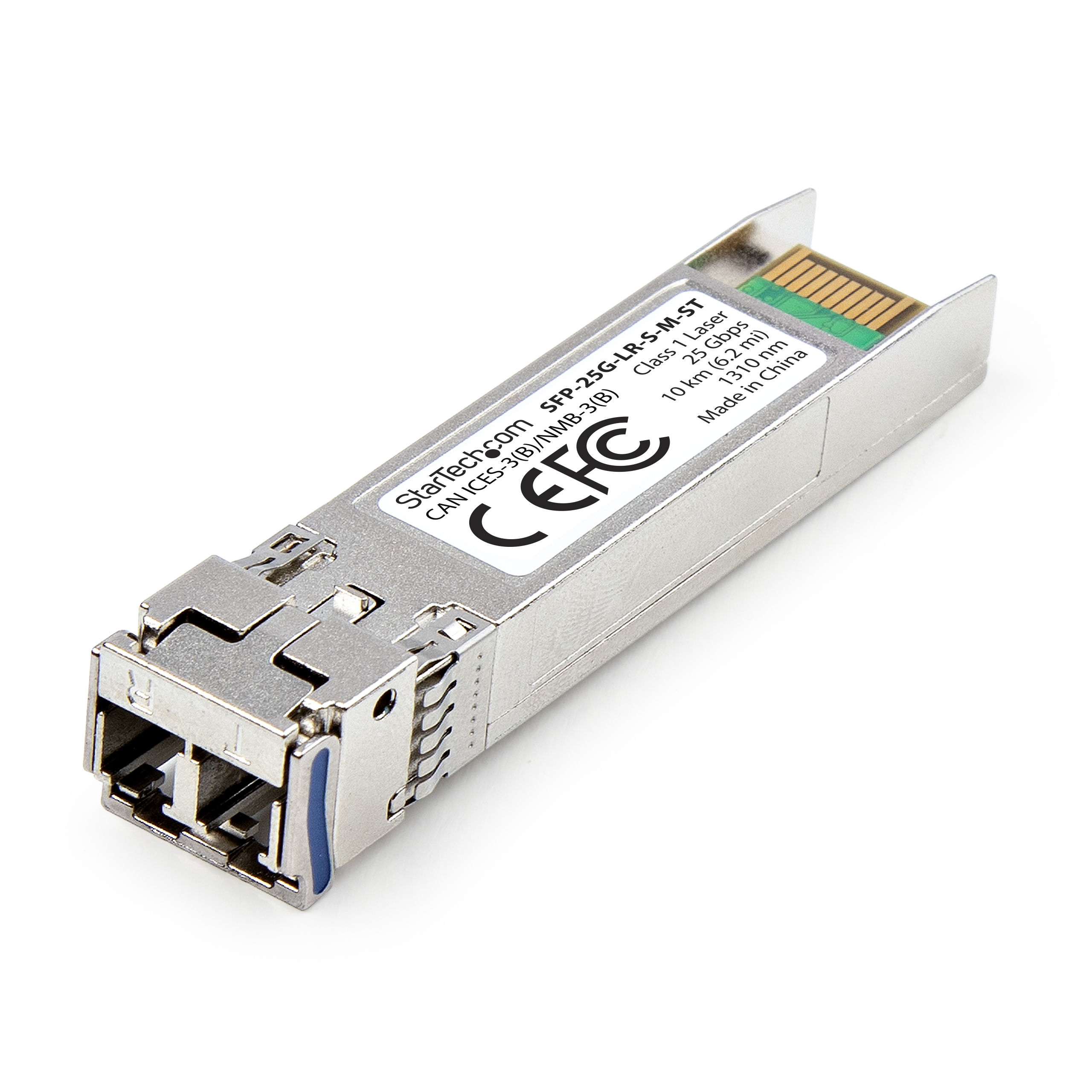

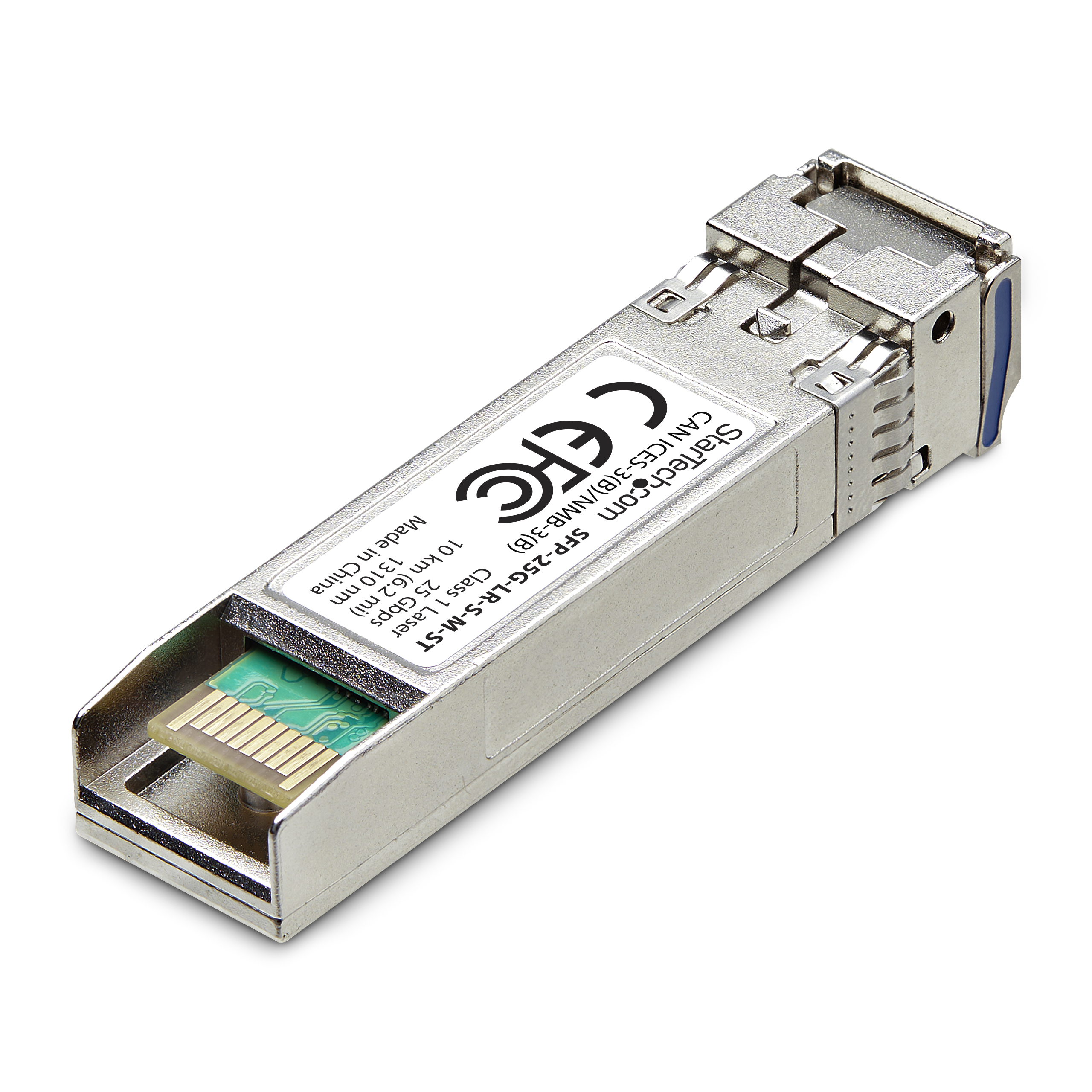

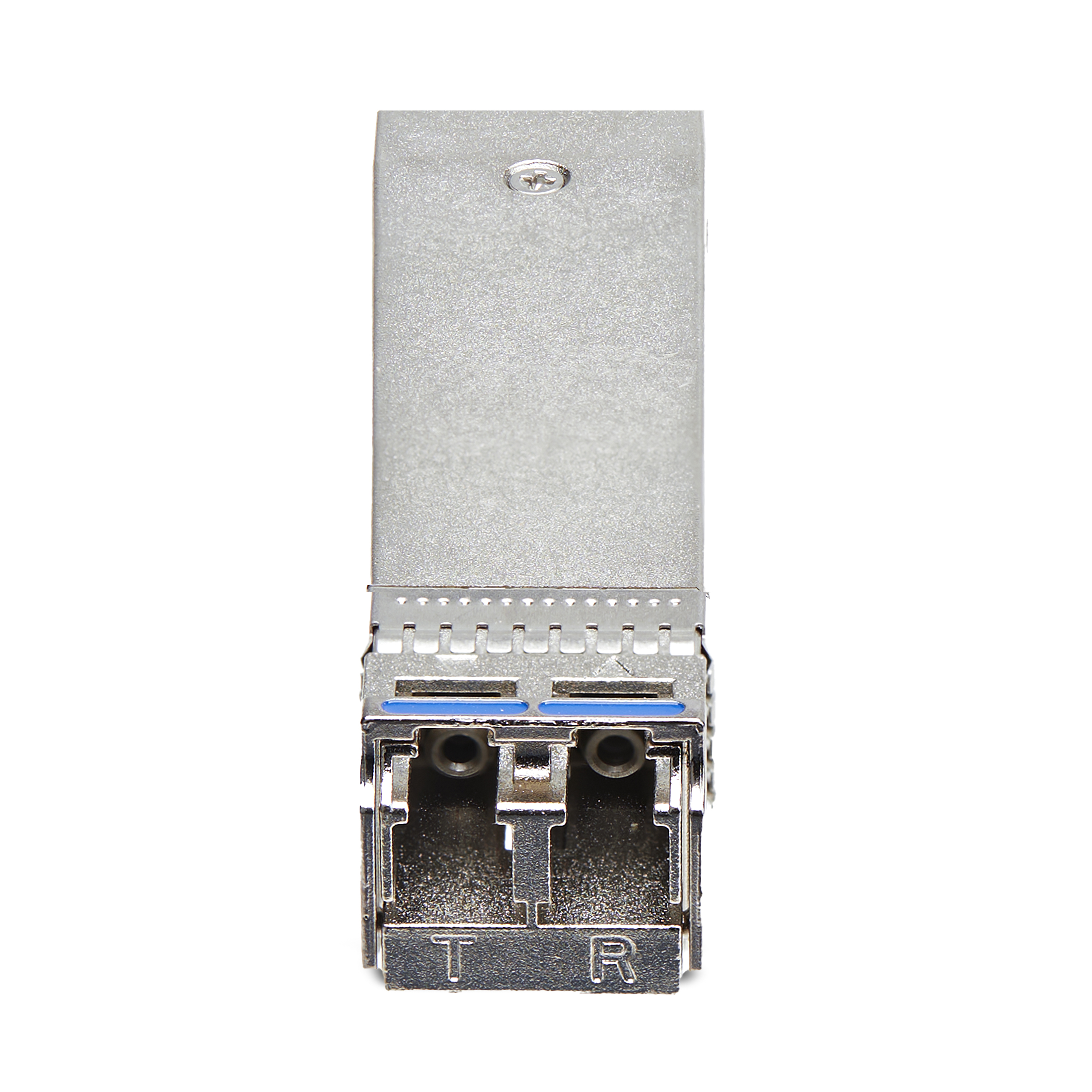

SFP-25G-LR-S-M-ST
Enhance the networking infrastructure with this MSA-compatible 25GBASE-LR optical transceiver, ensuring reliable performance and seamless connectivity at distances of up to 10km
| Product Name | MSA Compliant SFP-25G-LR-S Compatible 25GBASE-LR SFP28 1310n |
|---|---|
| Product Number | SFP-25G-LR-S-M-ST |
| UPC | 065030905312 |
| Lifecycle status | Active |
| Warranty | Lifetime |
| Taxonomy | Product > Networking > SFP Transceivers |
| Category Level 1 | Networking |
| Category Level 2 | SFP Transceivers |
| Category Level 3 | Uncoded SFP Transceivers |
| Country of Origin Europe & Japan | China |
| Country of Origin North America | China |
| Country of Origin History (1) | China |
| Country of Origin Revision (1) | XXXXXX091X |
| Product Title (Ultra-Short) | MSA SFP-25G-LR-S, LC |
|---|---|
| Product Title (Short) | MSA SFP-25G-LR-S, 25Gb, SFP28, 1310nm |
| Product Title (Medium) | StarTech.com MSA-Compliant SFP-25G-LR-S SFP28, 25GbE, SMF, 10km, 1310nm, LC |
| Product Title (Standard) | MSA-Compliant SFP-25G-LR-S SFP28 Module, 25Gb Single Mode Fiber (SMF), 25GBASE-LR LC Transceiver, 1310nm, 10km (6.2mi), DDM |
| Product Title (Long) | MSA-Compliant SFP-25G-LR-S SFP28 Module, 25Gbps Single Mode Fiber (SMF), 10km (6.2mi), LC Connector, 1310nm, MSA 25 Gigabit Optical Transceiver |
| Product Title (AMZ) | MSA-Compliant SFP-25G-LR-S SFP28 Module, 25G Single Mode Fiber (SMF), 25GbE 10km (6.2mi), LC Optical Transceiver |
| Title Ingram (Part 1) | MSA-Compliant SFP-25G-LR-S - |
| Title Ingram (Part 2) | 25G SFP28, 1310nm, 10km, DDM, LC |
| Website Product Headline | Enhance the networking infrastructure with this MSA-compatible 25GBASE-LR optical transceiver, ensuring reliable performance and seamless connectivity at distances of up to 10km |
| Bullet 1 | MSA-COMPATIBLE TRANSCEIVER: This optical transceiver has been programmed and tested to ensure seamless integration with switches and routers to deliver reliable 25G connectivity up to 10km (6.2mi) |
| Bullet 2 | MAXIMIZE BANDWIDTH: 25Gb single-mode fiber SFP28 excels at bandwidth-intensive tasks such as data migrations, large-scale transfers, high-performance storage, seamless content streaming, and rapid online content uploads |
| Bullet 3 | TECHNICAL SPECS: 25GBASE-LR SFP28; 25Gbps; Single Mode Fiber (SMF); LC Connector; 1310nm Tx/Rx; Distances up to 10km (6.2mi); Supports Digital Diagnostics Monitoring (DDM/DOM) |
| Bullet 4 | COMPATIBLE WITH MSA COMPLIANT SWITCHES: Fiber optic transceiver is compatible with switch models from Ubiquiti®, D-Link®, Netgear®, Supermicro®, TP-Link®, and other brands that support uncoded modules |
| Bullet 5 | THE IT PRO'S CHOICE: Designed and built for IT Professionals, this 25 Gigabit optical transceiver is backed for life, including free lifetime 24/5 multi-lingual technical assistance |
| Bullets (Compact) | MSA-Compliant SFP-25G-LR-S fiber transceiver - 25GbE connectivity up to 10Km - For data migrations, large-scale transfers, high-capacity storage - 25GBASE-LR SFP28, 25Gbps, SMF, LC connector, 1310nm, DDM/DOM Support, Uncoded- Lifetime warranty |
| Bullets (Consolidated) | - MSA-compliant SFP28 transceiver, SFP-25G-LR-S SMF module; Tested for seamless integration with MSA-compatible switches/routers for reliable 25Gbps connectivity up to 10km (6.2mi) - Maximize bandwidth for data migrations/high-capacity network storage/Multimedia upload - Technical Specs: 25GBASE-LR SFP28/25GbE/Single Mode Fiber (SMF)/LC Duplex connector/1310nm/DDM/DOM - Works with MSA-compliant switches that accept uncoded fiber modules - This 25 Gigabit optical transceiver is backed for life |
| Marketing Copy | |
| Marketing Copy (No HTML) |
| Required Regulatory Compliance Marks |
|
|---|
| Power Consumption (In Watts) | <1.2 W |
|---|
| Humidity | 85% RH |
|---|---|
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Product Length (mm) | 56.500 |
| Product Width (mm) | 13.900 |
| Product Height (mm) | 8.500 |
| Product Weight (g) | 200.000 |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| TAA Compliant | No |
| Compatible Networks | 25 Gbps |
|---|---|
| Digital Diagnostics Monitoring Support | Yes |
| Fiber Operating Mode | Full-Duplex |
| Fiber Type | Single Mode |
| Maximum Data Transfer Rate | 25.78 Gbps |
| Max Transfer Distance | 10 km (6.2 mi) |
| MTBF (hours) | 3,292,647 Hours at 55°C (131°F) |
| Wavelength | 1310nm |
| Fiber Connector | LC |
|---|---|
| Industry Standards | IEEE 802.3cc 25GBASE-LR |
| SFP Compatible Brand | MSA Compliant |
| Carton Depth (mm) | 340 |
|---|---|
| Carton Height (mm) | 350 |
| Carton Quantity | 100 |
| Carton Weight Gross (g) | 5850 |
| Included in Package | 1 - SFP+ Transceiver |
| Package Depth (mm) | 94 |
| Package Height (mm) | 33 |
| Package Width (mm) | 114 |
| Package Weight (g) | 50 |
| Packaging Description | MSA SFP-25G-LR-S Compatible 25GBase-LR SFP28 Transceiver SMF/1310nm/10km/LC |
| Packaging Description India | MSA SFP-25G-LR-S Compatible 25GBase-LR SFP28 Transceiver SMF/1310nm/10km/LC |
| Sub-Carton Depth (mm) | 0 |
| Sub-Carton Height (mm) | 0 |
| Sub-Carton Width (mm) | 0 |
| Sub-Carton Weight (g) | 0 |
| Connector 1 | SFP Slot |
|---|---|
| Connector 1 (Quantity) | 1 |
| Connector 2 | SFP28 (25Gbps) |
| Connector 2 (Quantity) | 1 |
| Connector 3 | LC Duplex Fiber |
| Connector 3 (Quantity) | 1 |
