SFP1000TXST

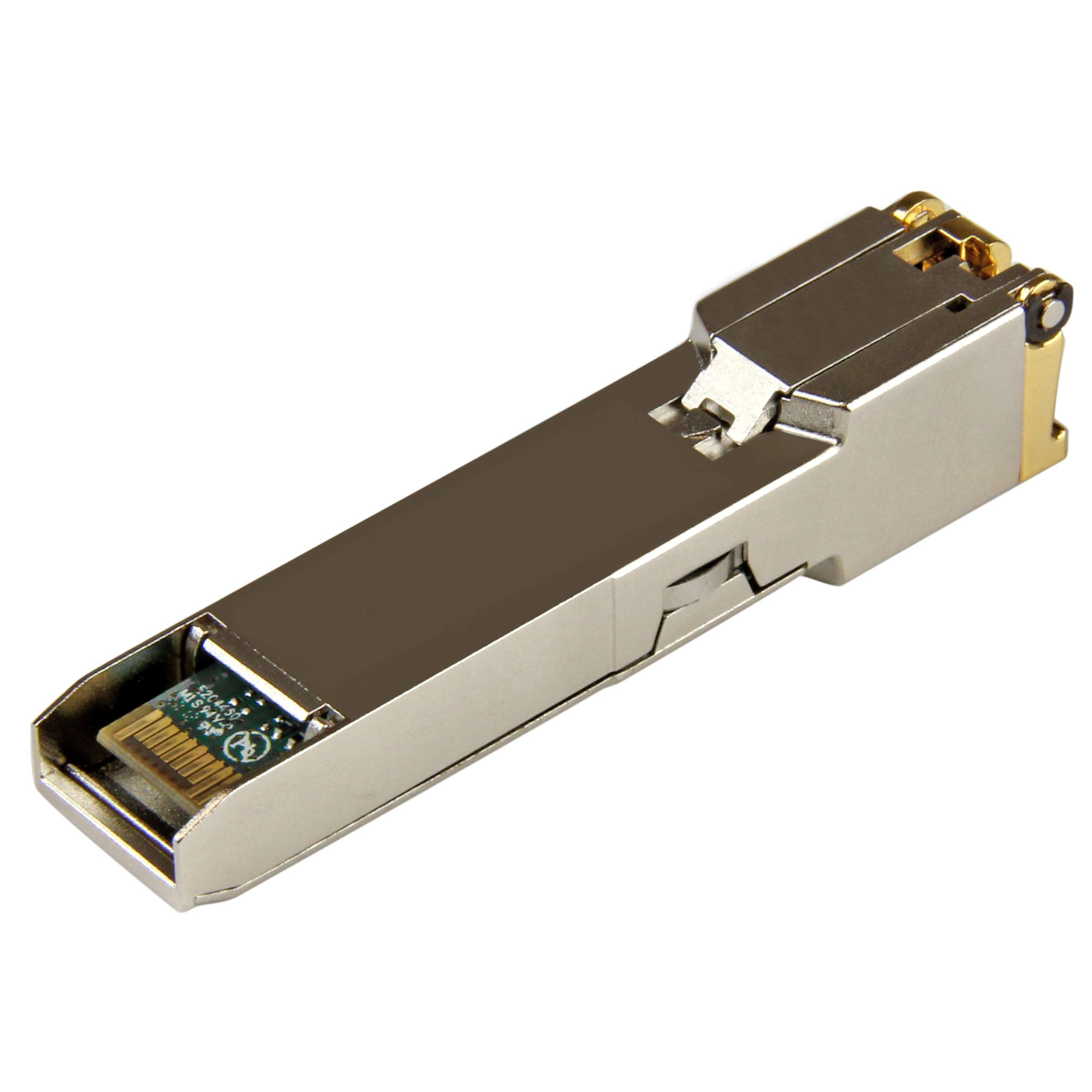

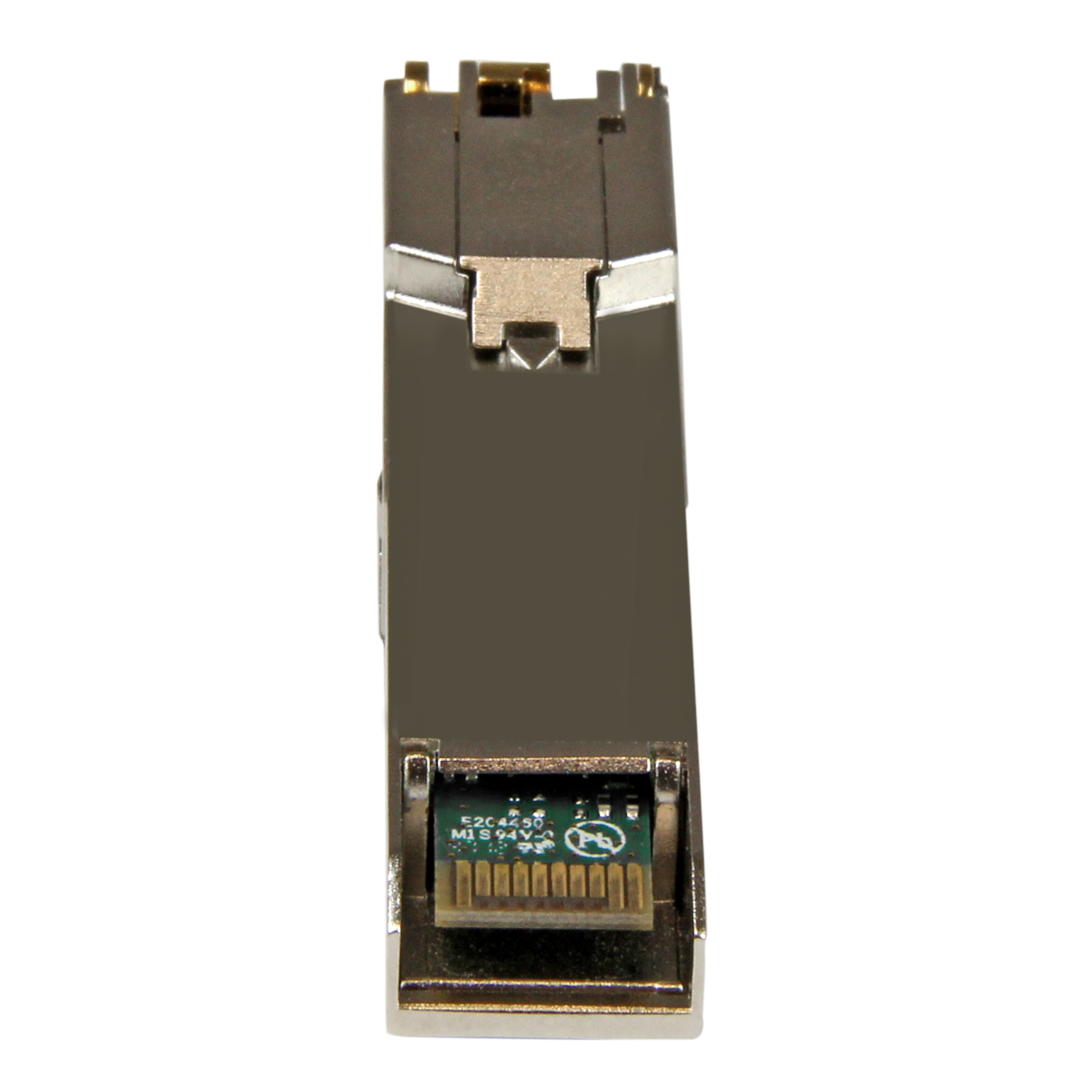

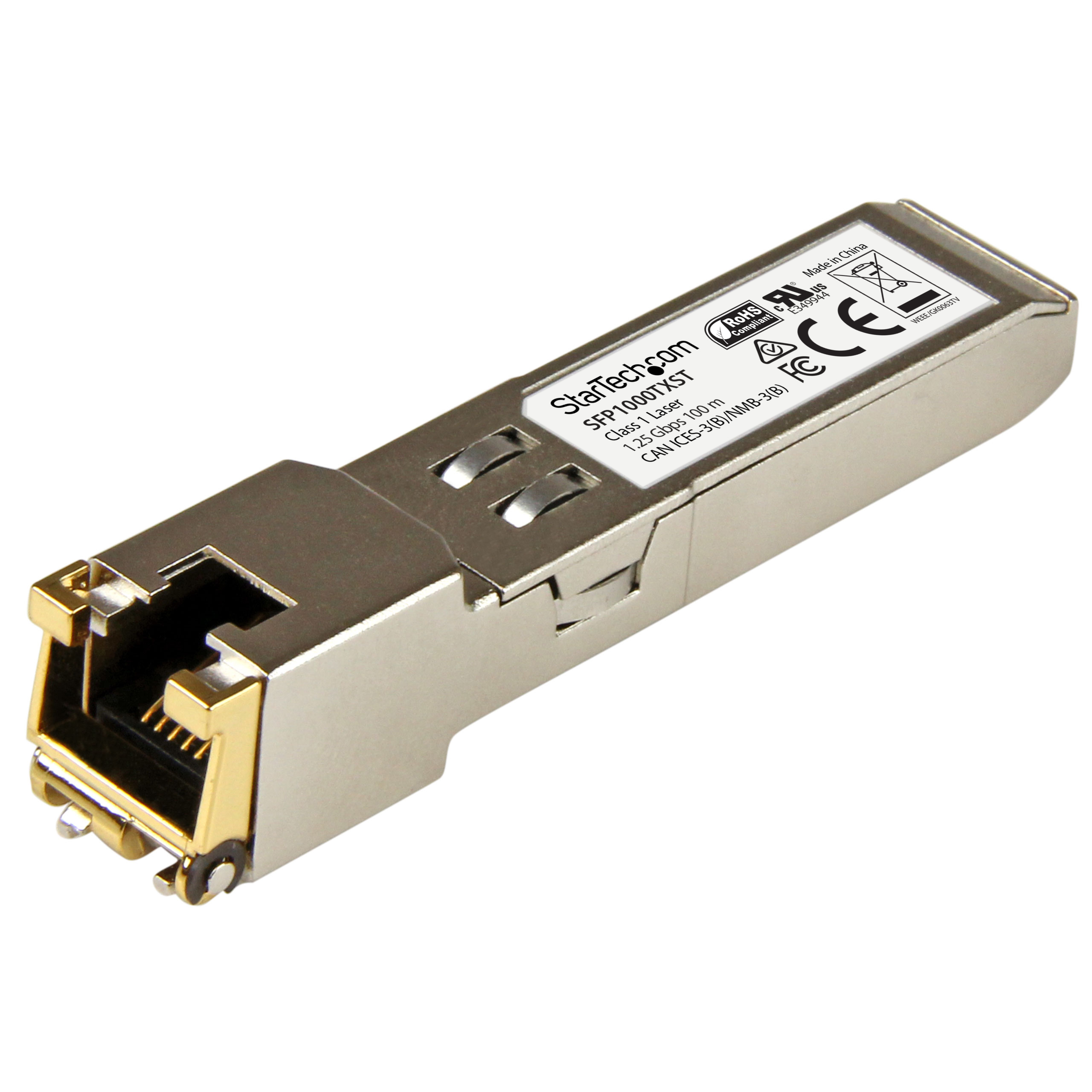

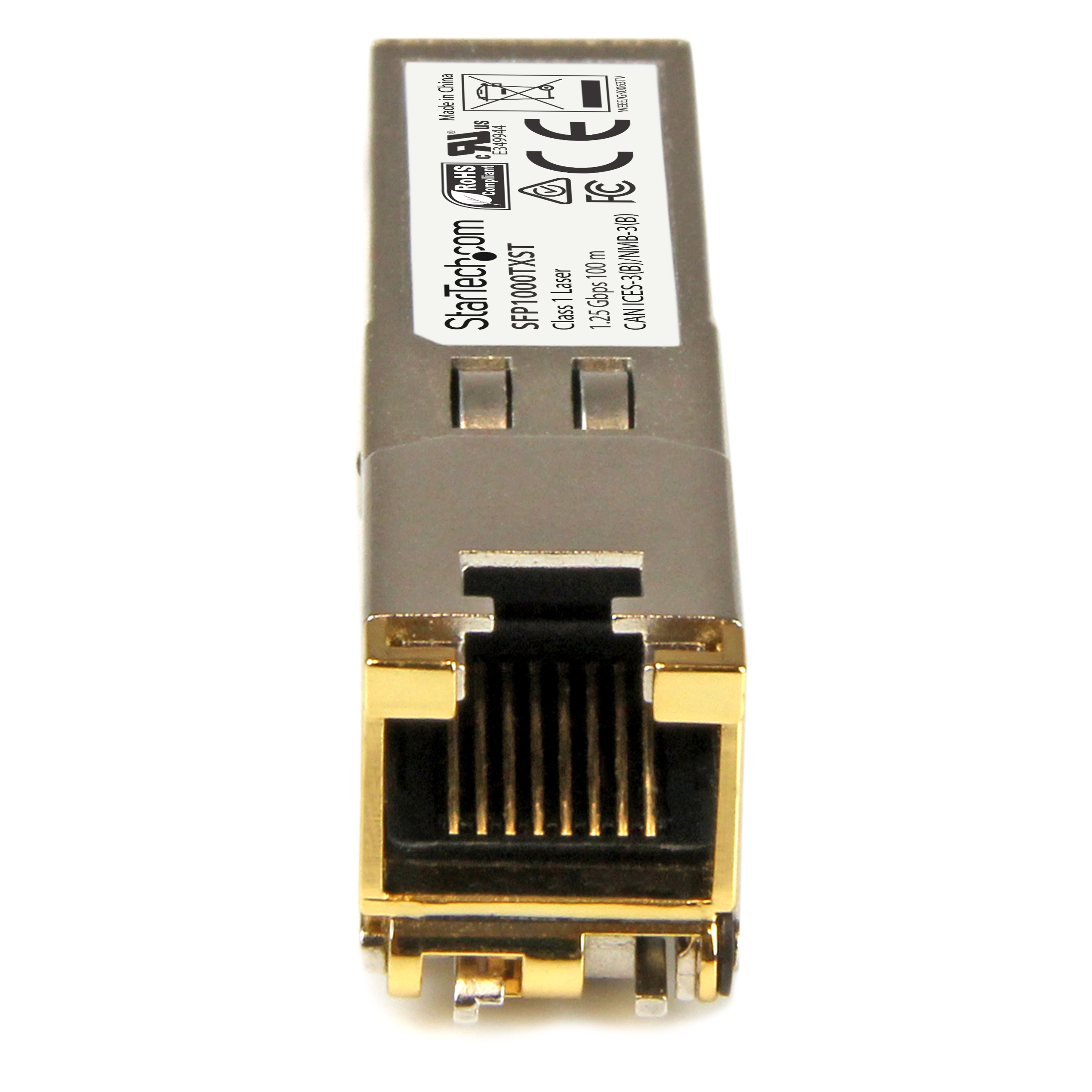

MSA Compliant 1000Base-TX SFP Transceiver Module
1000 Mbps (1 Gbps) | Copper | RJ45 | 100 m (328 ft) | Lifetime Warranty
Main Image
Product Images
Product Images
Product Images
Product Name MSA Compliant 1000Base-TX SFP Transceiver Module Product Number SFP1000TXST UPC 065030873383 Lifecycle status Active Warranty Lifetime Taxonomy Product > Networking > SFP Transceivers Category Level 1 Networking Category Level 2 SFP Transceivers Category Level 3 Uncoded SFP Transceivers Family Uncoded 1G SFP Modules - Copper Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX091X Product Title (Ultra-Short) 1000Base-TX SFP RJ45 Product Title (Short) MSA Uncoded SFP Transceiver - 1GbE Product Title (Medium) 1000BASE-TX MSA Compliant SFP Module - Lifetime Warranty - 1 Gbps - RJ45 SFP Product Title (Standard) MSA Uncoded SFP Module - 1000BASE-TX - 1GE Gigabit Ethernet SFP SFP to RJ45 Cat6/Cat5e Transceiver Module - 100m Product Title (Long) MSA Uncoded SFP Module - 1000BASE-TX - SFP to RJ45 Cat6/Cat5e - 1GE Gigabit Ethernet SFP - RJ-45 100m Product Title (AMZ) MSA Uncoded Compatible SFP Module - 1000BASE-TX - SFP to RJ45 Cat6/Cat5e - 1GE Gigabit Ethernet SFP - RJ-45 100m -(SFP1000TXST) Title Ingram (Part 1) 1000BASE-TX MSA Compliant Title Ingram (Part 2) RJ45 Copper SFP Module Website Product Headline 1000 Mbps (1 Gbps) | Copper | RJ45 | 100 m (328 ft) | Lifetime Warranty Bullet 1 TESTED FOR COMPATIBILITY: Hot-swappable in MSA Compliant routers and switches Bullet 2 WORKS WITH MSA COMPLIANT SWITCHES: Works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules Bullet 3 Uses a cost-effective cabling alternative to fiber-optic set ups Bullet 4 100% MSA UNCODED SFP TRANSCEIVER: Designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver reliable 1GbE connectivity Bullet 5 TECHNICAL SPECS: 1000BASE-TX | 1Gbps | Copper | RJ-45 Connector | | Distances up to 100m (328ft) Bullets (Compact) MSA Uncoded SFP - 1000BASE-TX 1Gbps - 1GbE Module - 1GE Gigabit Ethernet SFP Copper Transceiver - 100m (328ft) - RJ-45 Connector - Hot-Swappable & MSA Compliant - Lifetime Warranty Bullets (Consolidated) MSA Uncoded SFP Module - 1000BASE-TX 1Gbps Gigabit Ethernet - Copper - Up to 100m (328') - RJ-45 Connector - Designed, programmed and tested to work with compatible MSA compliant switches and routers - Hot-Swappable and MSA Compliant - Backed by a StarTech.com lifetime warranty on the module itself not the life of the OEM switch/router and will not void your OEM warranty Marketing Copy Marketing Copy (No HTML) Applications - Replace defective or damaged SFP modules
- Expand your network to remote segments
Website Search Keyword - 1000Base-TX SFP
- Copper SFP
- RJ45 SFP
- SFP Module
- 1G SFP
- Gigabit transceiver
- Gigabit SFP
- MSA Compliant SFP
- sfp transceiver
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- UL Recognized - Safety - Electrical - Canada / United States - cURus Recognised Component Mark
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Special Notes For use in 1 Gigabit networking equipment and media converters System and Cable Requirements MSA compliant SFP port Accessory Products - RJ45PATCH10
- RJ45PATCH100
Constrained SKU Alternatives (Limited Stock) SFPC1110 Power Consumption (In Watts) < 1.3 W Color Silver Humidity 5~95% RH Material Aluminum Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Aluminum Product Length (mm) 58.400 Product Width (mm) 13.900 Product Height (mm) 12.600 Product Weight (g) 25.000 Storage Temperature -40°C to 85°C (-40°F to 185°F) TAA Compliant No Compatible Networks 1000 Mbps (1 Gbps) Digital Diagnostics Monitoring Support No Fiber Operating Mode Full-Duplex Fiber Type Copper Maximum Data Transfer Rate 1000 Mbps Max Transfer Distance 100m [328ft] Fiber Connector RJ-45 Industry Standards IEEE 802.3z 1000BASE-TX SFP Compatible Brand MSA Compliant Carton Depth (mm) 310 Carton Height (mm) 320 Carton Quantity 70 Carton Weight Gross (g) 4372 Included in Package 1 - SFP transceiver Package Depth (mm) 91 Package Height (mm) 33 Package Width (mm) 113 Package Quantity 1 Package Weight (g) 48 Packaging Description MSA Compliant Gb Copper RJ45 SFP Packaging Description India MSA Compliant Gb Copper RJ45 SFP Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 RJ-45 Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2017-05-05 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2017-05-09 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IN,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2017-03-31 Target Production Release 2017-05-05 Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
