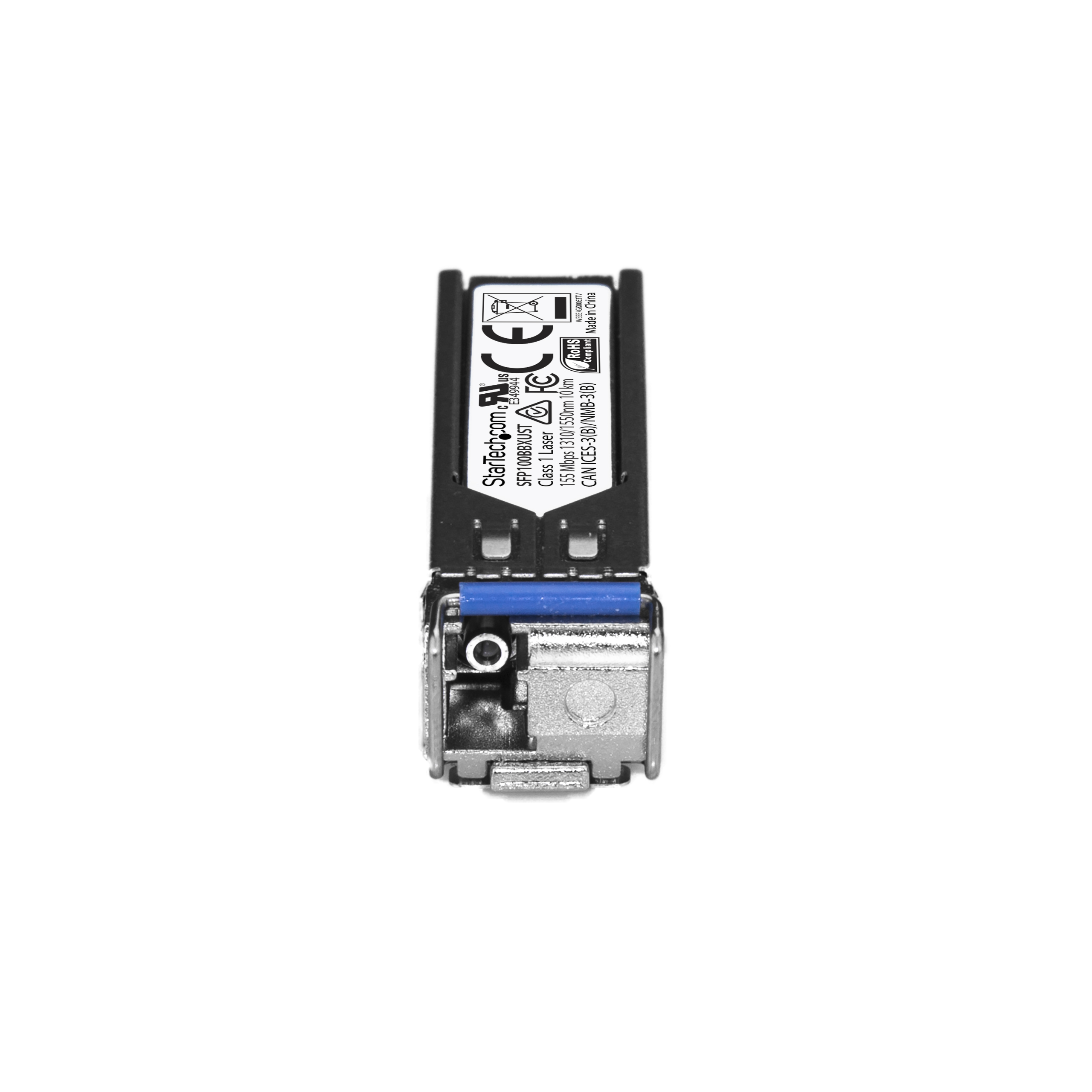

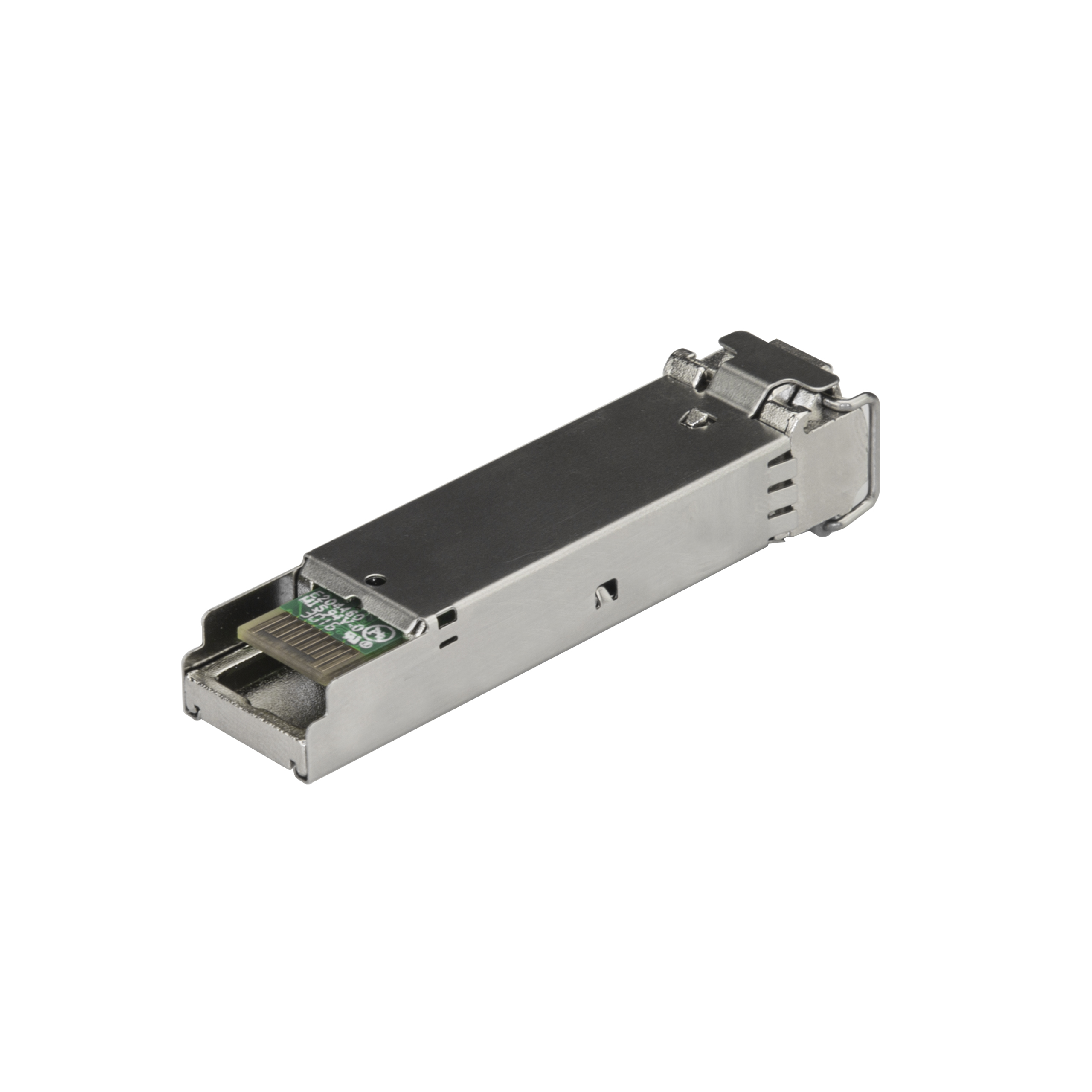

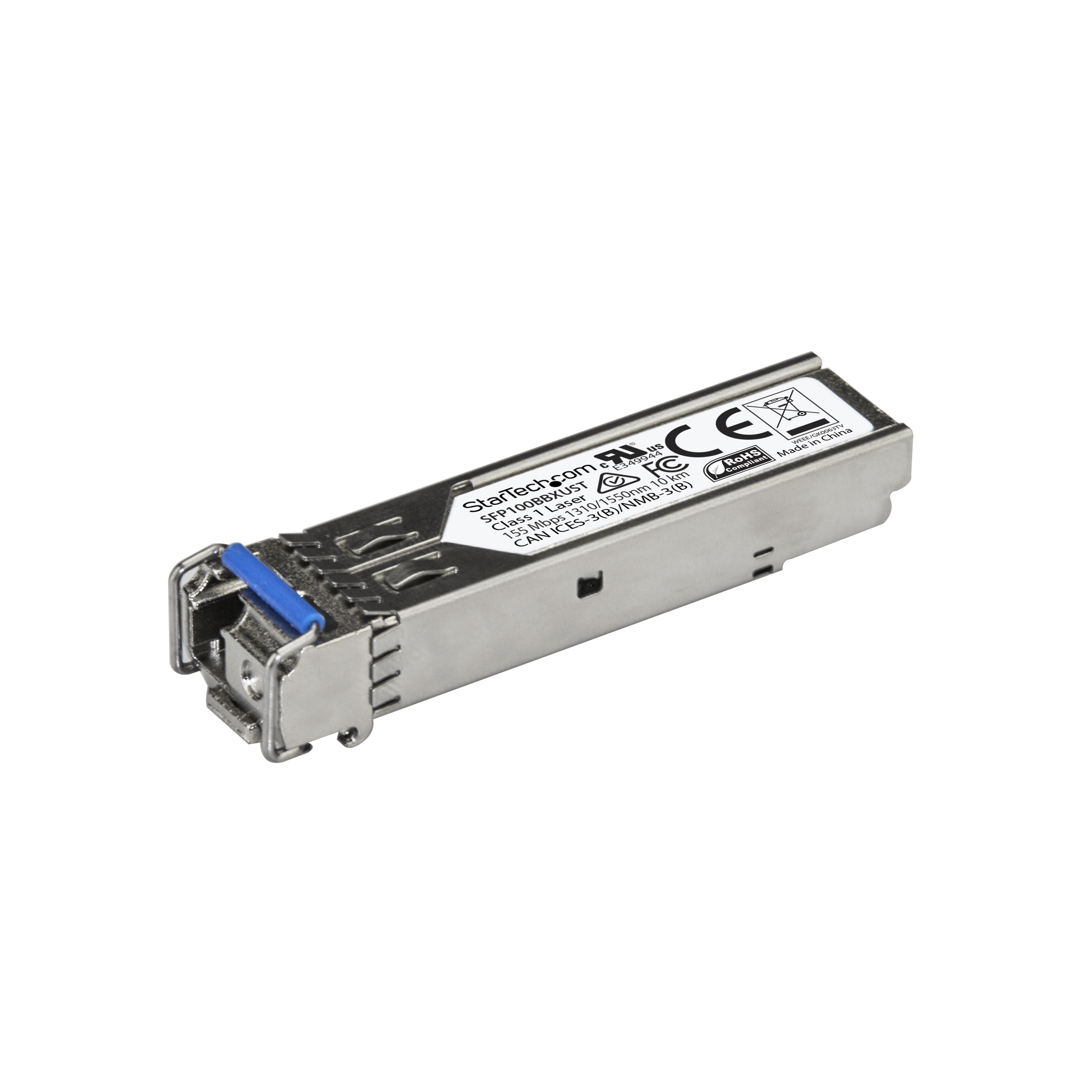

SFP100BBXUST
MSA-Compliant 100Base-BX SFP Transceiver Module
100 Mbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
Main Image
Product Images
Product Images
Product Name MSA-Compliant 100Base-BX SFP Transceiver Module Product Number SFP100BBXUST UPC 065030873512 Lifecycle status Active Warranty Lifetime Taxonomy Product > Networking > SFP Transceivers Category Level 1 Networking Category Level 2 SFP Transceivers Category Level 3 Uncoded SFP Transceivers Family Uncoded 1G SFP Modules - BiDi Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX091X Product Title (Ultra-Short) 100Base-BX SFP - SM Product Title (Short) MSA Uncoded SFP Transceiver Module Product Title (Medium) 100BASE-BX MSA Upstream SFP Module - Lifetime Warranty - 100 Mbps - LC SFP Product Title (Standard) MSA Uncoded SFP Transceiver Module - 100BASE-BX - 100 Mb Ethernet BiDi Fiber (SMF) Product Title (Long) MSA Uncoded SFP Transceiver Module - 100BASE-BX - 100 MbE Ethernet BiDi Fiber (SMF) Product Title (AMZ) MSA Uncoded SFP Module - 100BASE-BX - 100Mb Ethernet BiDi Fiber Single Strand SFP Transceiver - LC 10km - MSA Compliant (SFP100BBXUST) Title Ingram (Part 1) 100BASE-BX MSA Compliant Title Ingram (Part 2) Upstream LC Fiber SFP Module Website Product Headline 100 Mbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty Bullet 1 MSA UNCODED SFP TRANSCEIVER: 100Mb Ethernet BiDi Fiber Single Strand SFP designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver reliable 100MbE connectivity Bullet 2 INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 100 Mb Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two. Bullet 3 TECHNICAL SPECS: 100BASE-BX | 100Mbps | 100Mb Bi-Directional Upstream | Single Mode (SMF) | LC Connector | 1310nmTx/1550nmRx | Digital Diagnostic Monitoring (DDM) | Distances up to 10km (6.2mi). Bullet 4 THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance Bullet 5 WORKS WITH MSA COMPLIANT SWITCHES: Works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules Bullets (Compact) MSA Uncoded Transceiver - 100BASE-BX WDM SFP+ (100 Mbps) - 100 MbE BiDi Module - 1310nmTx/1550nmRx Single Mode (SMF) - 10km (6.2mi) - LC Connector & DDM - Hot-Swappable / MSA Compliant - Lifetime Warranty Bullets (Consolidated) MSA Uncoded SFP 100BASE-BX (100Mbps) - 1310nmTx/1550nmRx Single Mode (SMF) 1Mb BiDi Transceiver - Up to 10km (6.2mi) - 1 Mb Ethernet - Single Strand WDM SFP+ SMF Connector | DDM - Hot-Swappable | MSA Compliant - Backed by StarTech.com lifetime warranty on the module itself - not the life of the OEM switch/router and will not void OEM warranty Marketing Copy Marketing Copy (No HTML) Applications - Replace defective or damaged SFP modules
- Expand your network to remote segments
Website Search Keyword - 100Base-BX SFP
- 100Base-BX SFP Module
- MSA Compliant SFP
- SM SFP
- single-mode SFP
- upstream sfp transceiver
- fiber sfp
- DDM
- DOM
- 100 Mbps sfp
- 100 Mbps sfp module
- 100Base-BX SFP Transceiver Module
- 100Base-BX SFP Upstream
- Upstream SFP
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- UL Recognized - Safety - Electrical - Canada / United States - cURus Recognised Component Mark
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Special Notes For use in 100 Mbps fiber networking equipment and media converters System and Cable Requirements MSA compliant SFP port Accessory Products - SMFIBLCLC1
- SMFIBLCLC4
- SMFIBLCLC7
- SMFIBLCLC10
Power Consumption (In Watts) < 1 W Color Silver Humidity 5~95% RH Material Aluminum Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Aluminum Product Length (mm) 60.000 Product Width (mm) 16.000 Product Height (mm) 11.000 Product Weight (g) 18.000 Storage Temperature -40°C to 85°C (-40°F to 185°F) TAA Compliant No Compatible Networks 100 Mbps Digital Diagnostics Monitoring Support Yes Fiber Operating Mode Half/Full-Duplex Fiber Type Single Mode Maximum Data Transfer Rate 155 Mbps Max Transfer Distance 10 km (6.2 mi) Wavelength 1310nmTx/1550nmRx Fiber Connector LC Industry Standards IEEE 802.3u 100BASE-BX SFP Compatible Brand MSA Compliant Wave Division Multiplexing (WDM) Yes Carton Depth (mm) 193 Carton Height (mm) 162 Carton Quantity 20 Carton Weight Gross (g) 1272 Included in Package 1 - SFP transceiver Package Depth (mm) 94 Package Height (mm) 30 Package Width (mm) 114 Package Quantity 1 Package Weight (g) 48 Packaging Description MSA Compliant 100 Mbps Fiber SFP - 100Base-BX (Upstream) - SM Packaging Description India MSA Compliant 100 Mbps Fiber SFP - 100Base-BX (Upstream) - SM Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 LC Duplex Fiber Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2017-05-05 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2017-05-09 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IN,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2017-04-14 Target Production Release 2017-05-05 Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle None
