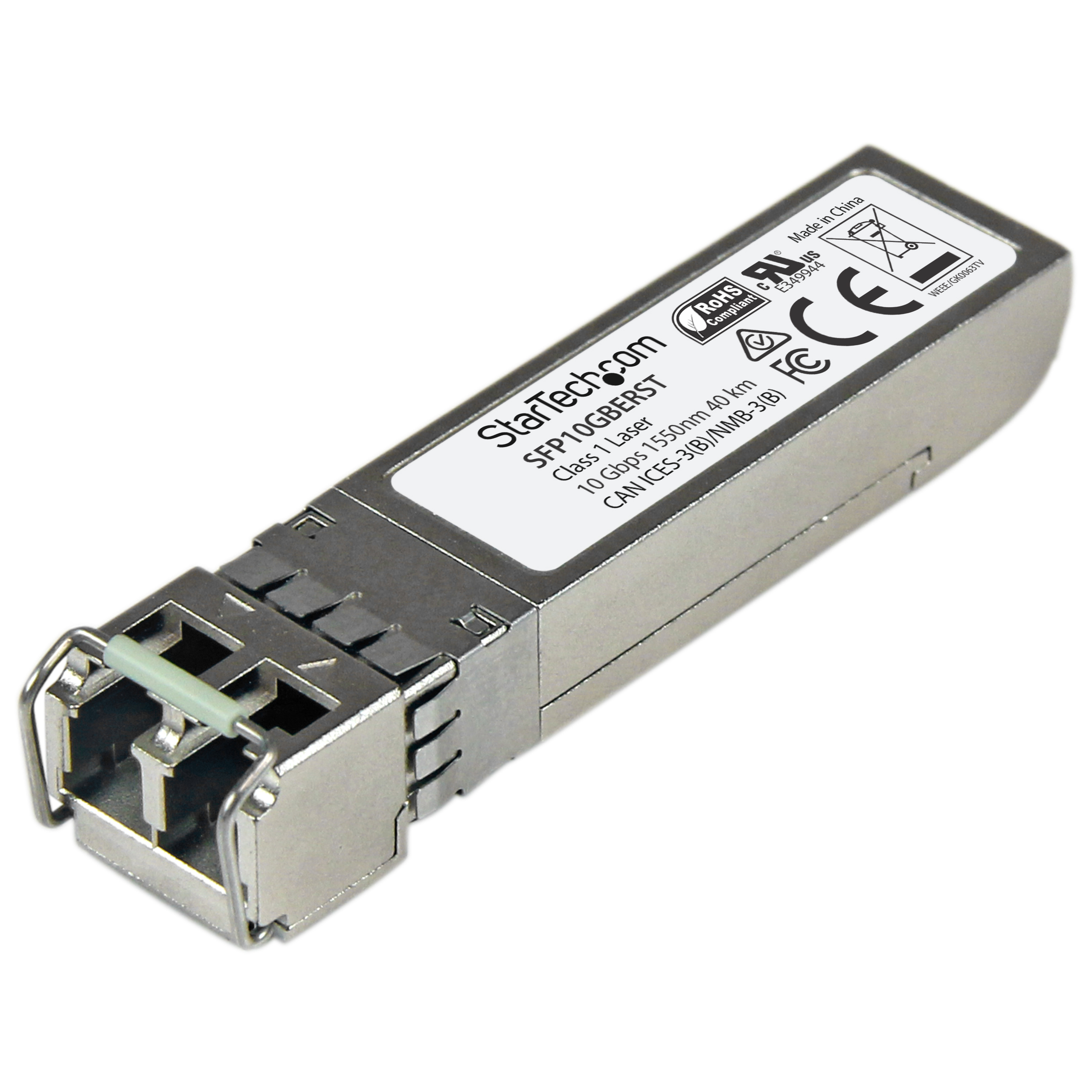

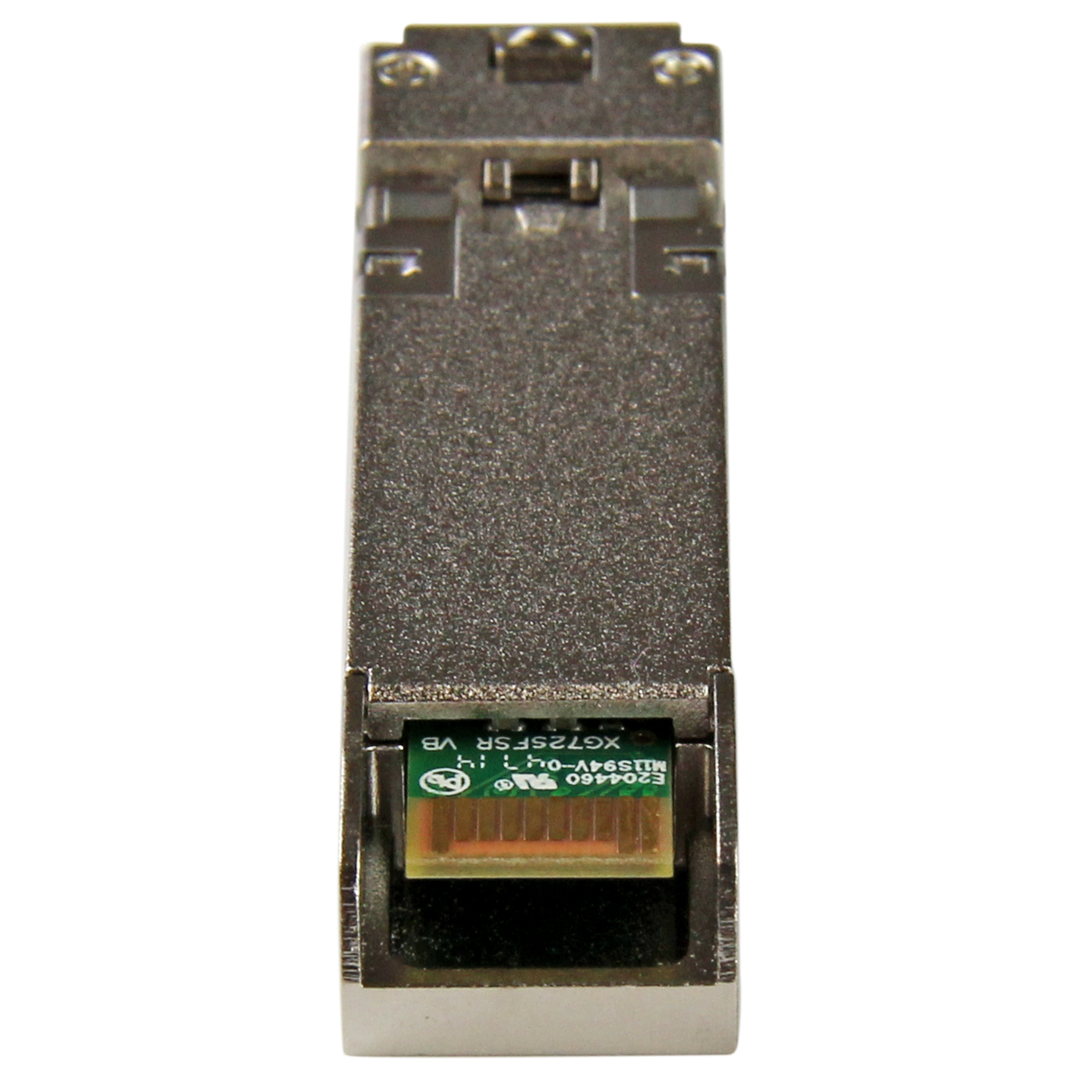

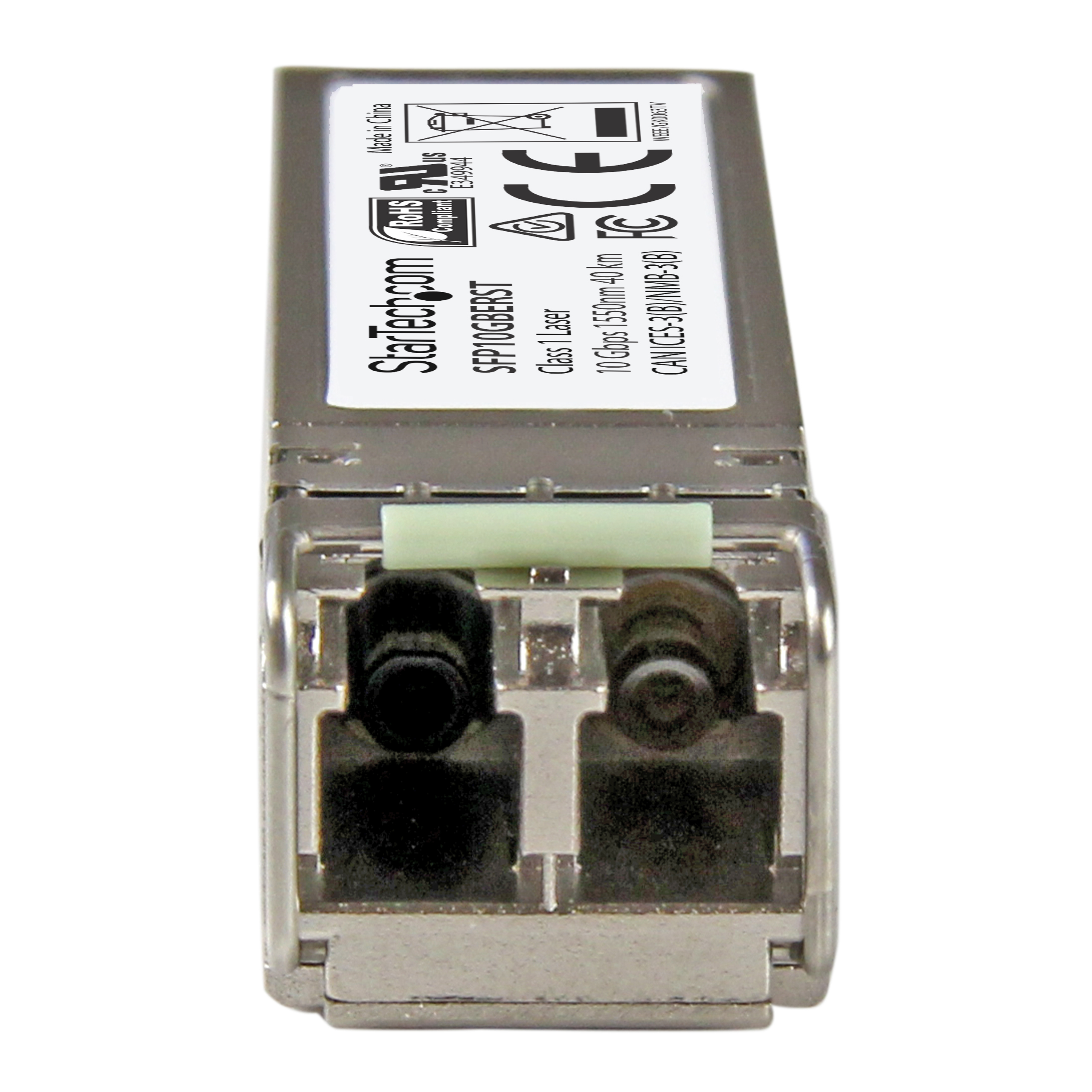

Main Image
SFP10GBERST
MSA Compliant 10GBase ER SFP Transceiver Module
10 Gbps | Single Mode Fiber | LC | 40 km (24.8 mi) | Lifetime Warranty
Main Image
Product Images
Product Images
Product Name MSA Compliant 10GBase ER SFP Transceiver Module Product Number SFP10GBERST UPC 065030873390 Lifecycle status Active Warranty Lifetime Taxonomy Product > Networking > SFP Transceivers Category Level 1 Networking Category Level 2 SFP Transceivers Category Level 3 Uncoded SFP Transceivers Family No Family Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX091X Product Title (Ultra-Short) 10GBase-ER SFP+ - SM Product Title (Short) MSA Uncoded SFP+Transceiver - 10GbE DDM Product Title (Medium) 10GBASE-ER MSA Compliant SFP+ Module - Lifetime Warranty - 10 Gbps - LC SFP+ Product Title (Standard) MSA Uncoded SFP+ Module - 10GBASE-ER - 10GE Gigabit Ethernet SFP+ 10GbE Single Mode Fiber (SMF) Optic Transceiver - 40km DDM Product Title (Long) MSA Uncoded SFP+ Module - 10GBASE-ER - 10GbE Single Mode Fiber (SMF) Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 40km - 1550nm - DDM Product Title (AMZ) MSA Uncoded Compatible SFP+ Module - 10GBASE-ER - 10GbE Single Mode Fiber (SMF) Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 40km - 1550nm - DDM (SFP10GBERST) Title Ingram (Part 1) 10GBASE-ER MSA Compliant Title Ingram (Part 2) LC Fiber SFP+ Module Website Product Headline 10 Gbps | Single Mode Fiber | LC | 40 km (24.8 mi) | Lifetime Warranty Bullet 1 TESTED FOR COMPATIBILITY: Hot-swappable in MSA Compliant routers and switches; DDM support reports the transceiver's status to most SNMP network management tools. Bullet 2 WORKS WITH MSA COMPLIANT SWITCHES: Works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules Bullet 3 100% MSA UNCODED SFP+ TRANSCEIVER: Designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver reliable 10GbE connectivity Bullet 4 TECHNICAL SPECS: 10GBASE-ER | 10Gbps | Single Mode (SMF) | LC Connector | 1550nm | Digital Diagnostic Monitoring (DDM) | Distances up to 40km (24.8mi) Bullet 5 THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) MSA Uncoded SFP+ - 10GBASE-ER 10Gbps - 10GbE Module - 10GE Gigabit Ethernet SFP+ 1550nm Single Mode (SMF) Transceiver - 40km (24.8mi) - LC Connector DDM - Hot-Swappable & MSA Compliant - Lifetime Warranty Bullets (Consolidated) MSA Uncoded SFP+ Module - 10GBASE-ER 10Gbps Gigabit Ethernet - 1550nm Single Mode (SMF) - Up to 40km (24.8mi) - LC Connector DDM - Designed, programmed and tested to work with compatible MSA compliant switches and routers - Hot-Swappable and MSA Compliant - Backed by a StarTech.com lifetime warranty on the module itself not the life of the OEM switch/router and will not void your OEM warranty Marketing Copy Marketing Copy (No HTML) Applications - Replace defective or damaged SFP+ modules
- Expand your network to remote segments
Website Search Keyword - 10GBase-ER SFP+
- 10GBase-ER SFP+ Module
- MSA Compliant SFP+
- 10G SFP+
- SM SFP+
- Single-mode SFP+
- sfp transceiver
- 10 Gigabit SFP+
- fiber sfp+
- 10 Gigabit SFP+ module
- DDM
- DOM
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- UL Recognized - Safety - Electrical - Canada / United States - cURus Recognised Component Mark
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Accessory Products - SMFIBLCLC1
- SMFIBLCLC4
- SMFIBLCLC7
- SMFIBLCLC10
- PEX20000SFPI
- PEX10000SFP
- PEX10000SFPI
- ET10GSFP
Power Consumption (In Watts) < 1.6 W Color Silver Humidity 5~95% RH Material Aluminum Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Aluminum Product Length (mm) 58.400 Product Width (mm) 13.900 Product Height (mm) 12.600 Product Weight (g) 23.000 Storage Temperature -40°C to 85°C (-40°F to 185°F) TAA Compliant No Compatible Networks 10 Gbps Digital Diagnostics Monitoring Support Yes Fiber Operating Mode Full-Duplex Fiber Type Single Mode Maximum Data Transfer Rate 10 Gbps Max Transfer Distance 40 km (24.8 mi) Wavelength 1550nm Fiber Connector LC Industry Standards IEEE 802.3ae 10GBASE-ER Wave Division Multiplexing (WDM) No Carton Depth (mm) 250 Carton Height (mm) 200 Carton Quantity 36 Carton Weight Gross (g) 3500 Included in Package 1 - SFP+ transceiver Package Depth (mm) 94 Package Height (mm) 32 Package Width (mm) 114 Package Quantity 1 Package Weight (g) 50 Packaging Description MSA Compliant 10 Gb Fiber SFP+ - 10GBase-ER - SM Packaging Description India MSA Compliant 10 Gb Fiber SFP+ - 10GBase-ER - SM Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 LC Duplex Fiber Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2017-05-05 Buying Center - AV & Collaboration No Buying Center - Data Center Yes Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2017-05-09 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IN,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2017-03-31 Target Production Release 2017-05-05 Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
