Main Image
SFP1GBX80DES

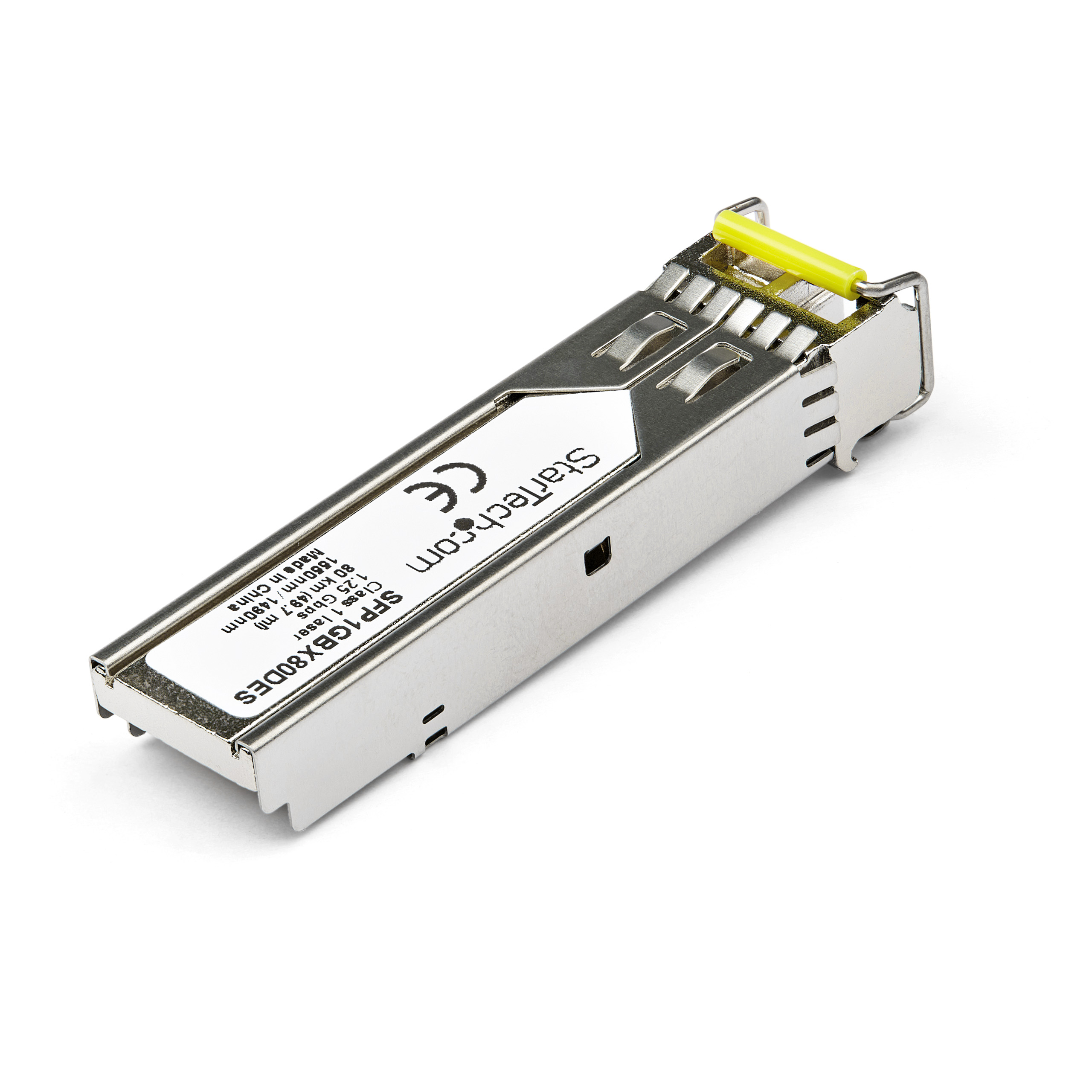

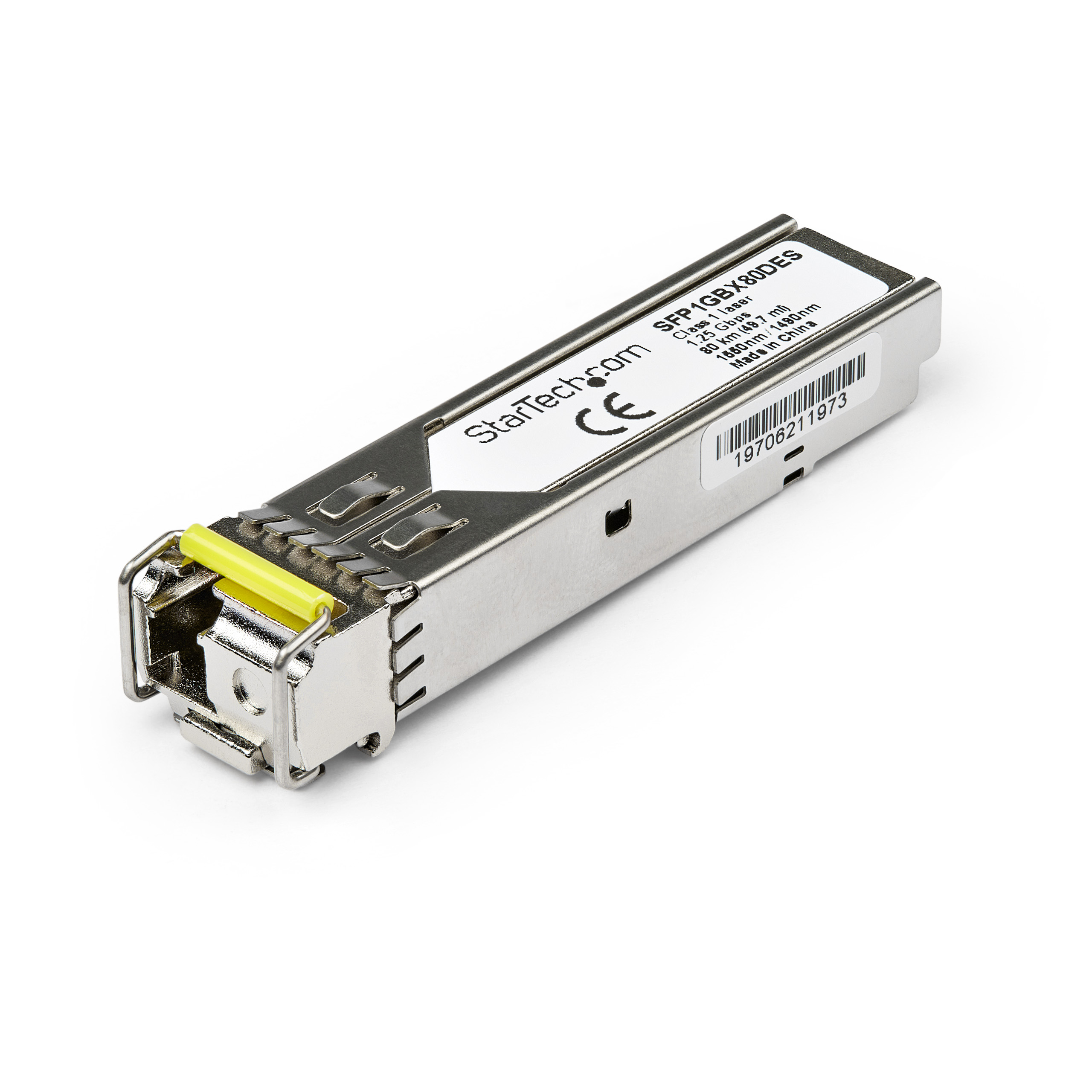

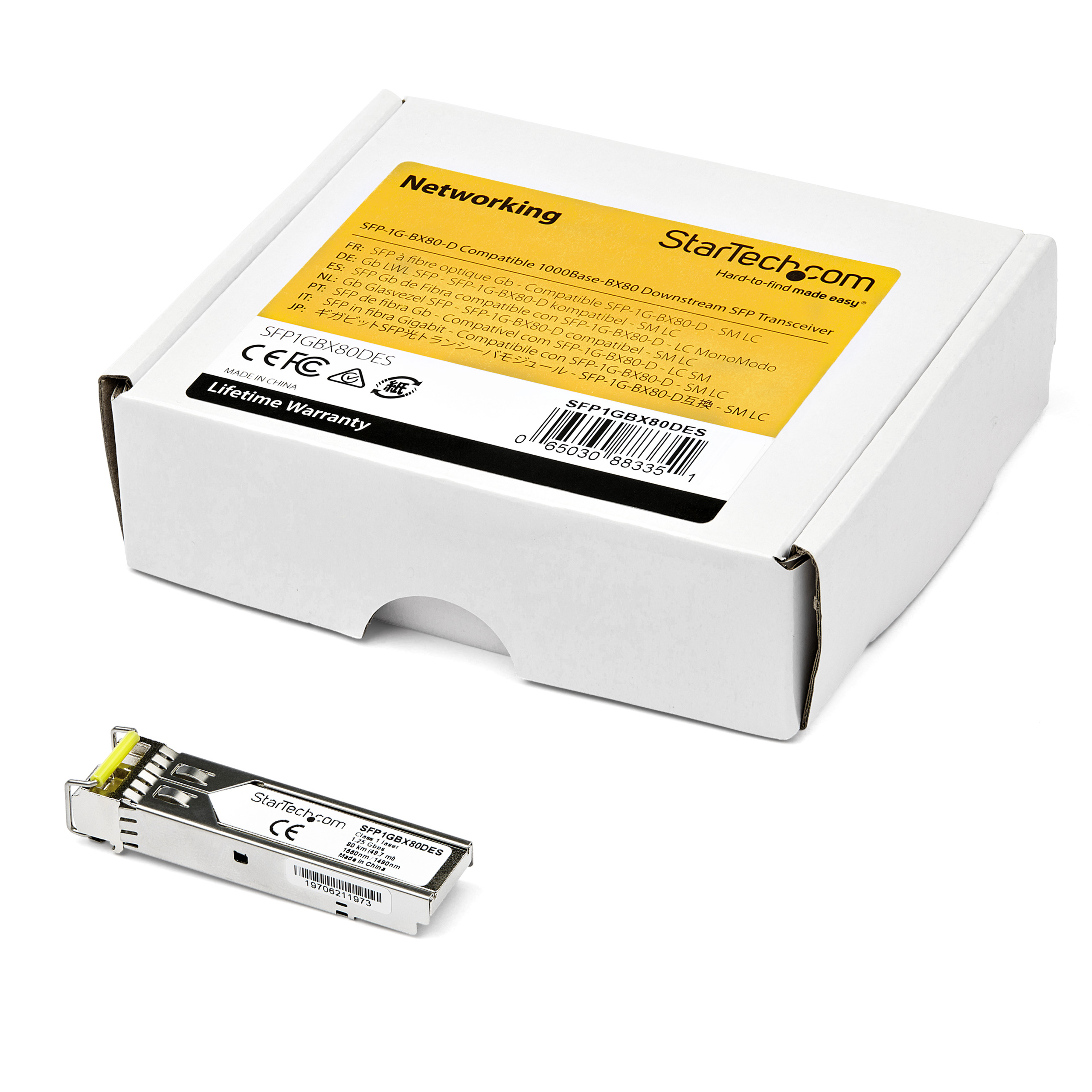

Dell EMC SFP-1G-BX80-D Compatible 1000Base-BX80 Downstream S
1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 80 km (49.7 mi) | Lifetime Warranty
Main Image
Product Images
BOM Image
Product Name Dell EMC SFP-1G-BX80-D Compatible 1000Base-BX80 Downstream S Product Number SFP1GBX80DES UPC 065030883351 Lifecycle status End of Life Warranty Lifetime Taxonomy Product > Networking > SFP Transceivers Category Level 1 Networking Category Level 2 SFP Transceivers Category Level 3 Dell SFP Transceivers Family Dell 1G SFP Modules - BiDi Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX091X Product Title (Ultra-Short) SFP-1G-BX80-D SFP Product Title (Short) Dell EMC SFP-1G-BX80-D Compatible SFP Product Title (Medium) Dell EMC SFP-1G-BX80-D Downstream SFP Module - 1000 Mbps (1 Gbps) LC Product Title (Standard) Dell EMC SFP-1G-BX80-D Compatible SFP Module - 1000BASE-BX-D - 1 GbE Gigabit Ethernet BiDi Fiber (SMF) Product Title (Long) Dell EMC SFP-1G-BX80-D Compatible SFP Module - 1000BASE-BX-D - 1 GbE Gigabit Ethernet BiDi Fiber (SMF) Product Title (AMZ) Dell EMC SFP-1G-BX80-D Compatible SFP Module - 1000BASE-BX-D - 1 Gigabit Ethernet BiDi Fiber Single Strand SFP - LC 80km (SFP1GBX80DES) Title Ingram (Part 1) Dell EMC SFP-1G-BX80-D Comp - Title Ingram (Part 2) Downstream LC Fiber SFP Module Website Product Headline 1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 80 km (49.7 mi) | Lifetime Warranty Bullet 1 100% DELL EMC SFP-1G-BX80-D COMPATIBLE: 1 Gigabit Ethernet BiDi Fiber Single Strand SFP designed, programmed and tested to work with compatible Dell EMC switches and routers to deliver reliable 1GbE connectivity Bullet 2 INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 1 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two Bullet 3 TECHNICAL SPECS: 1000BASE-BX-D | 1Gbps | 1G Bi-Directional Downstream | Single Mode (SMF) | LC Connector | 1550nmTX/1490nmRX | Digital Diagnostic Monitoring (DDM) | Distances up to 80km (49.7mi) Bullet 4 THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance Bullet 5 PROGRAMMED & TESTED FOR COMPATIBILITY: Compatible with Dell EMC routers and switches. MSA Compliant with DDM that reports the transceiver's status to most SNMP network management tools Bullets (Compact) Dell EMC SFP-1G-BX80-D Compatible Transceiver - 1000BASE-BX WDM SFP+ (1 Gbps) - 1 Gigabit BiDi Module - 1550nmTX/1490nmRX Single Mode (SMF) - 80km (49.7mi) - LC Connector & DDM - Hot-Swappable / MSA Compliant - Lifetime Warranty Bullets (Consolidated) Dell EMC SFP-1G-BX80-D Compatible SFP 1000BASE-BX-D (1Gbps) - 1550nmTX/1490nmRX Single Mode (SMF) 1GE BiDi Transceiver - Up to 80km (49.7mi) - 1 Gigabit Ethernet - Single Strand WDM SFP+ SMF Connector | DDM - Hot-Swappable | MSA Compliant - Backed by StarTech.com lifetime warranty on the module itself - not the life of the Dell EMC switch/router and will not void OEM warranty Marketing Copy Marketing Copy (No HTML) Website Search Keyword - 1 gig copper sfp
- 1000base sfp
- 1000base sfp module
- 1000base-bx80 d
- 10GTek SFP
- 1g sfp
- 1g sfp module
- 1g sfp transceiver
- 1g transceiver
- Axiom SFP
- C2G SFP
- cisco sfp rj45
- Copper sfp
- copper sfp module
- Copper Transceiver
- Dell EMC SFP-1G-BX80-D
- dell sfp module
- dell sfp optical transceiver
- Fiber Transceiver
- finisar copper sfp
- gigabit fiber sfp
- Gigabit SFP
- gigabit sfp module
- Gigabit Transceiver
- Mini GBIC
- mini gbic module
- Mini-GBIC Transceiver
- Proline SFP
- rj45 sfp
- rj45 sfp transceiver
- sfp bc
- sfp connector
- sfp mini gbic module
- sfp mini gbic transceiver module
- sfp module
- sfp optical transceiver
- sfp rj45
- sfp to rj45
- SFP Transceiver
- sfp transceiver module
- small form factor pluggable
- Small Form Pluggable
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- UL Recognized - Safety - Electrical - Canada / United States - cURus Recognised Component Mark
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Material Steel Primary Material Steel Product Length (mm) 13.900 Product Width (mm) 58.4 Product Height (mm) 12.6 Product Weight (g) 30 TAA Compliant No Compatible Networks 1000 Mbps (1 Gbps) Digital Diagnostics Monitoring Support Yes Fiber Operating Mode Full-Duplex Fiber Type Single Mode Maximum Data Transfer Rate 1.00 Gbps Max Transfer Distance 80 km (49.7 mi) MTBF (hours) 3,713,222 hours Wavelength 1550nmTX/1490nmRX Fiber Connector LC Industry Standards IEEE 802.3 1000BASE-BX80 OEM Part Number SFP-1G-BX80-D SFP Compatible Brand Dell EMC Carton Depth (mm) 90 Carton Height (mm) 31 Carton Quantity 1 Carton Weight Gross (g) 50 Included in Package 1 - SFP Transceiver Package Depth (mm) 92 Package Height (mm) 32 Package Width (mm) 112 Package Quantity 1 Package Weight (g) 50 Packaging Description Gb Fiber SFP - SFP-1G-BX80-D Compatible - SM LC Packaging Description India Gb Fiber SFP - SFP-1G-BX80-D Compatible - SM LC Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2019-07-12 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2019-07-05 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IN,IT,JP,NL,NZ,PE,SE,SG,UK,US Primary Technology None Priority New Product N/A Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2019-05-05 Target Production Release 2019-07-19 Tech Lead Stefan Tirolese Technical Writer Evan Hanbidge Technology Lifecycle None
