Main Image
SFPCMM3M

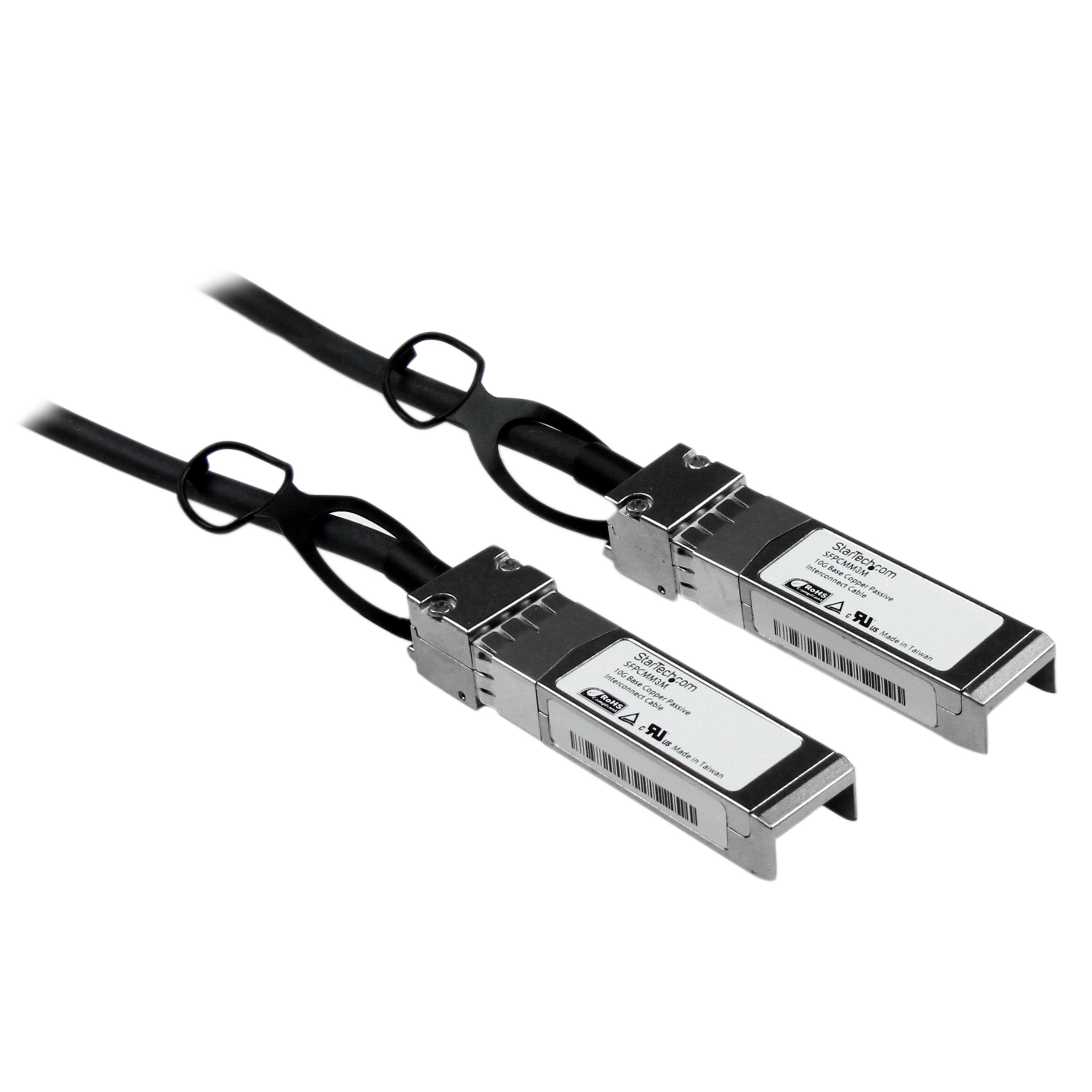

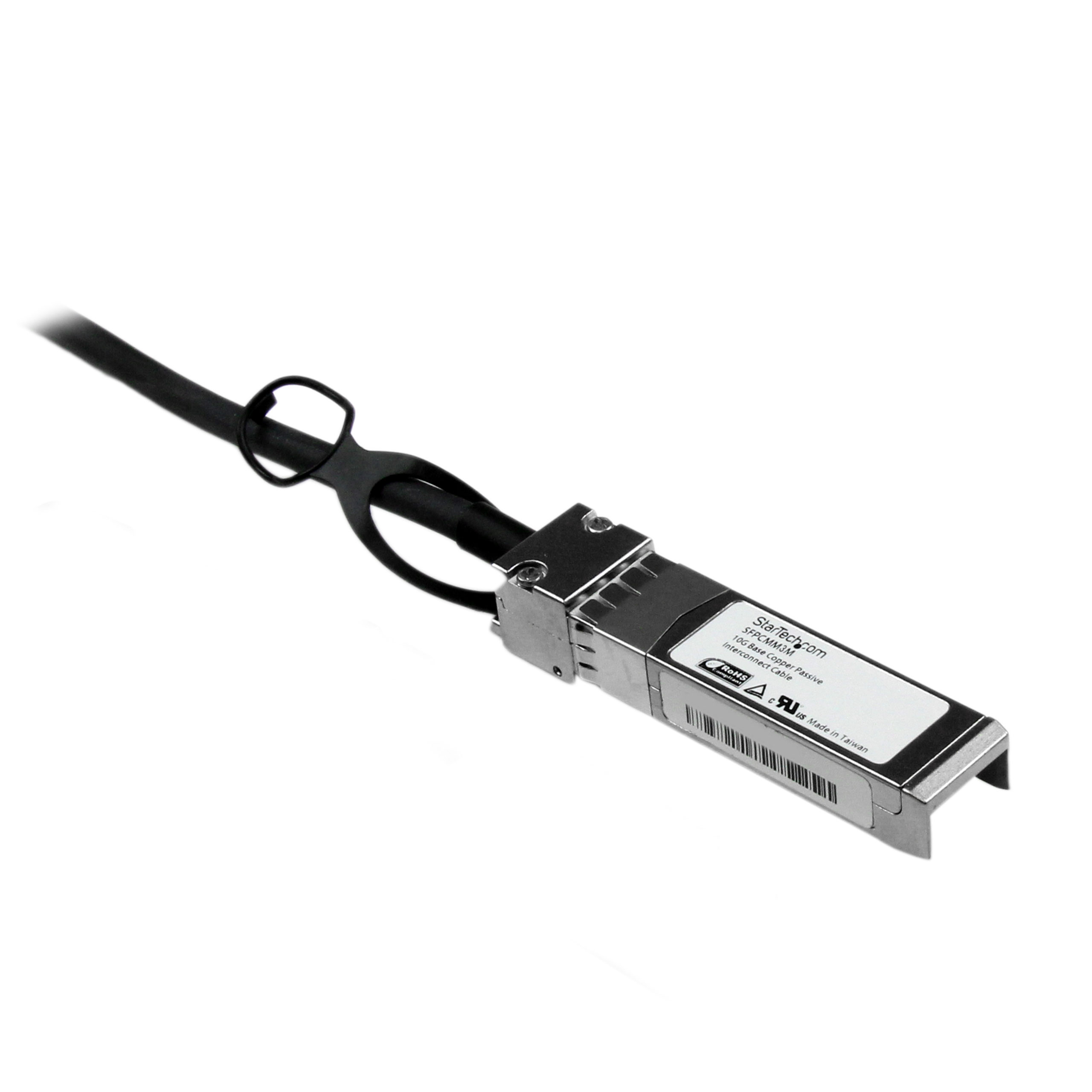

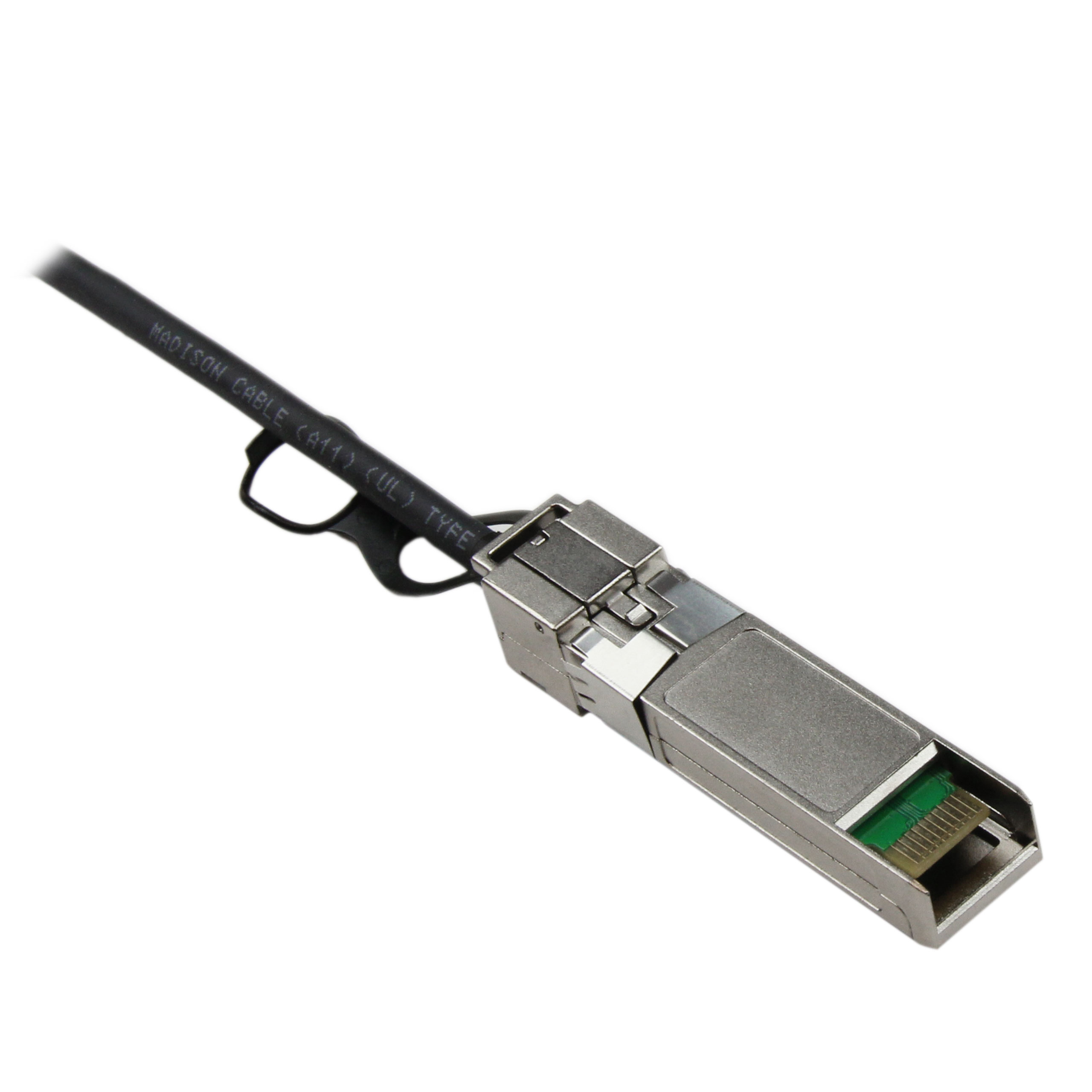

3m SFP 10 Gigabit Ethernet 10GbE Twinax Cable
Copper SFP+ Cable | 10 Gbps | Passive DAC | Lifetime Warranty
Main Image
Product Images
Product Images
Product Name 3m SFP 10 Gigabit Ethernet 10GbE Twinax Cable Product Number SFPCMM3M UPC 065030849593 Lifecycle status Active Warranty Lifetime Taxonomy Product > Networking > SFP Transceivers Category Level 1 Networking Category Level 2 SFP Transceivers Category Level 3 Cisco Compatible Cables Family Cisco Compatible - 10G SFP+ Cables - Twinax Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX169X Country of Origin History (2) China Country of Origin Revision (2) XXXXXX056X Product Title (Ultra-Short) 3m SFP+ 10GbE Cable Product Title (Short) 3m 10G SFP+ DAC SFP-H10GB-CU3M Product Title (Medium) Cisco SFP-H10GB-CU3M Compatible SFP+ DAC Twinax Cable - 3m (9.8ft) - RJ45 Copper Product Title (Standard) 3m 10G SFP+ to SFP+ Direct Attach Cable for Cisco SFP-H10GB-CU3M - 10GbE SFP+ Copper DAC 10Gbps Passive Twinax Product Title (Long) Cisco SFP-H10GB-CU3M Compatible 3m 10G SFP+ to SFP+ Direct Attach Cable Twinax - 10GbE SFP+ Copper DAC 10 Gbps Low Power Passive Mini GBIC/Transceiver Module DAC Firepower ASR920 ASR9000 Product Title (AMZ) Cisco SFP-H10GB-CU3M Compatible 3m 10G SFP+ to SFP+ Direct Attach Cable Twinax - 10GbE SFP+ Copper DAC 10 Gbps Low Power Passive Transceiver Module DAC Firepower ASR920 (SFPCMM3M) Title Ingram (Part 1) Cisco SFP-H10GB-CU3M Comp. SFP+ Title Ingram (Part 2) Twinax Copper DAC - RJ45 Website Product Headline Copper SFP+ Cable | 10 Gbps | Passive DAC | Lifetime Warranty Bullet 1 TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches Bullet 2 OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the cable itself, not your equipment; our cables won't void your OEM support and with access to our Tech Advisors 5/24. Bullet 3 WORKS WITH MSA COMPLIANT SWITCHES: Low power 10GbE DAC also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules and transceivers Bullet 4 TECHNICAL SPECS: 3m (9.8ft) | 10 Gbps | Passive Twinax (Copper) | 2x SFP+ Pluggable Connector | 100 Ohm Impedance | 30 AWG Wire Gauge | PVC Cable Jacket | Hot swappable | MSA Compliant Bullet 5 100% CISCO SFP-H10GB-CU3M COMPATIBLE: Works with Cisco switches like Firepower, ASR920, ASR9000, C9300, C3850 and others Bullets (Compact) 100% Cisco SFP-H10GB-CU3M Compatible 3m 10G direct attach cable - 10 Gbps Passive Twinax Copper Low Power 2x SFP+ Pluggable Connector - 10GbE Mini GBIC/Transceiver DAC for Firepower | ASR920 | ASR9000 - Hot-Swappable MSA Compliant Lifetime Warranty Bullets (Consolidated) 100% Cisco SFP-H10GB-CU3M compatible 10G direct attached cable - 3m/9.8' Cable | 10 Gbps | Passive Twinax (Copper) | 2x SFP+ Pluggable Connector | 100 Ohm Impedance | 30 AWG | PVC Jacket - 10GbE Low Power Mini GBIC/Transceiver Module DAC for edge networks/server rooms/data centers - For Cisco switches Firepower | ASR920 | ASR9000 | C9300 | C3850 | NCS540 | C9500 - Hot-Swappable and MSA Compliant - StarTech.com lifetime warranty and will not void your OEM warranty Marketing Copy Marketing Copy (No HTML) Applications - Use in 10Gb Ethernet and Fiber Channel applications
- Point-to-point in-rack and across rack network switch/server connections (Storage Area Networks (SAN), Network Attached Storage (NAS), Storage Servers, etc.)
Website Search Keyword - sfp+ cable
- 10gbase-cu sfp+
- 10gb sfp+ cable
- sfp+ direct attach cable
- 10gb twinax cable
- N280-03M-BK
Required Regulatory Compliance Marks - RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Related Products - SFPCMM1M
- SFPCMM2M
- SFPCMM5M
Constrained SKU Alternatives (Limited Stock) SFPCMM5M Power Consumption (In Watts) < 0.5 W Cable Length (mm) 3000 Material Steel Operating Temperature 0°C to 70°C Primary Material Steel Product Length (mm) 3000.000 Product Width (mm) 14.000 Product Height (mm) 12.000 Product Weight (g) 120 Storage Temperature -40°C to 80°C TAA Compliant No Wire Gauge 30 AWG Compatible Networks 10 Gbps Impedance (Ohm) 100 Ohm Cable Jacket Material PVC - Polyvinyl Chloride SFP Compatible Brand Cisco Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 264 Carton Height (mm) 306 Carton Quantity 40 Carton Weight Gross (g) 6204 Included in Package 1 - 3m SFP+ 10-Gigabit Ethernet (10GbE) Twinax Cable Number of Sub-Cartons 4 Package Depth (mm) 198 Package Height (mm) 21 Package Width (mm) 181 Package Quantity 1 Package Weight (g) 136 Packaging Description 3m (10ft) 10Gb Passive Twinax Cable - SFP-H10GB-CU3M Compatible SFP+ Packaging Description India 3m (10ft) 10Gb Passive Twinax Cable - SFP-H10GB-CU3M Compatible SFP+ Sub-Carton Depth (mm) 256 Sub-Carton Height (mm) 89 Sub-Carton Width (mm) 263 Sub-Carton Quantity 10 Sub-Carton Weight (g) 1358 Connector 1 SFP+ (10Gbps) Connector 1 (Quantity) 1 Connector 2 SFP+ (10Gbps) Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-02-13 Buying Center - AV & Collaboration No Buying Center - Data Center Yes Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
