Main Image
SFPCMM5M

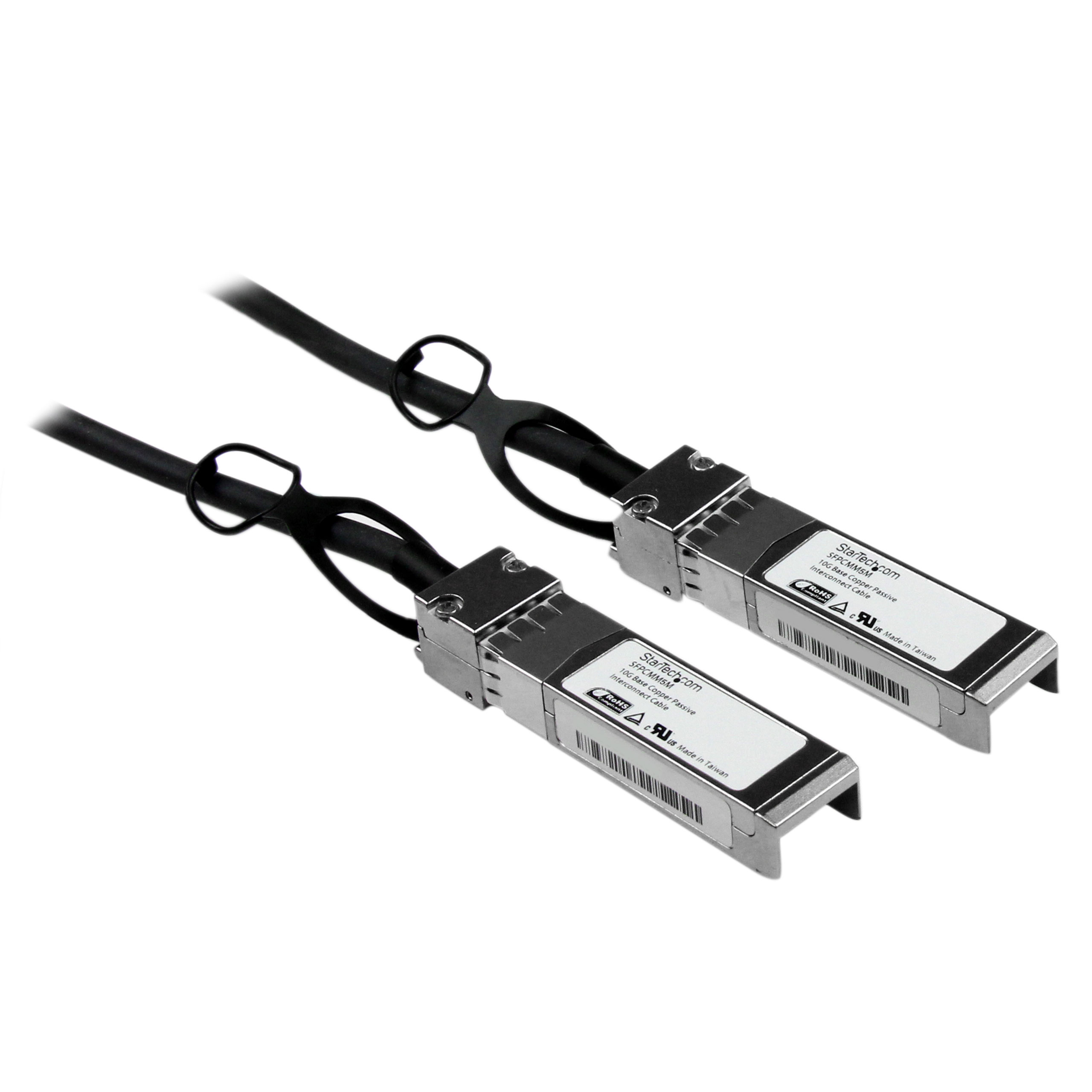

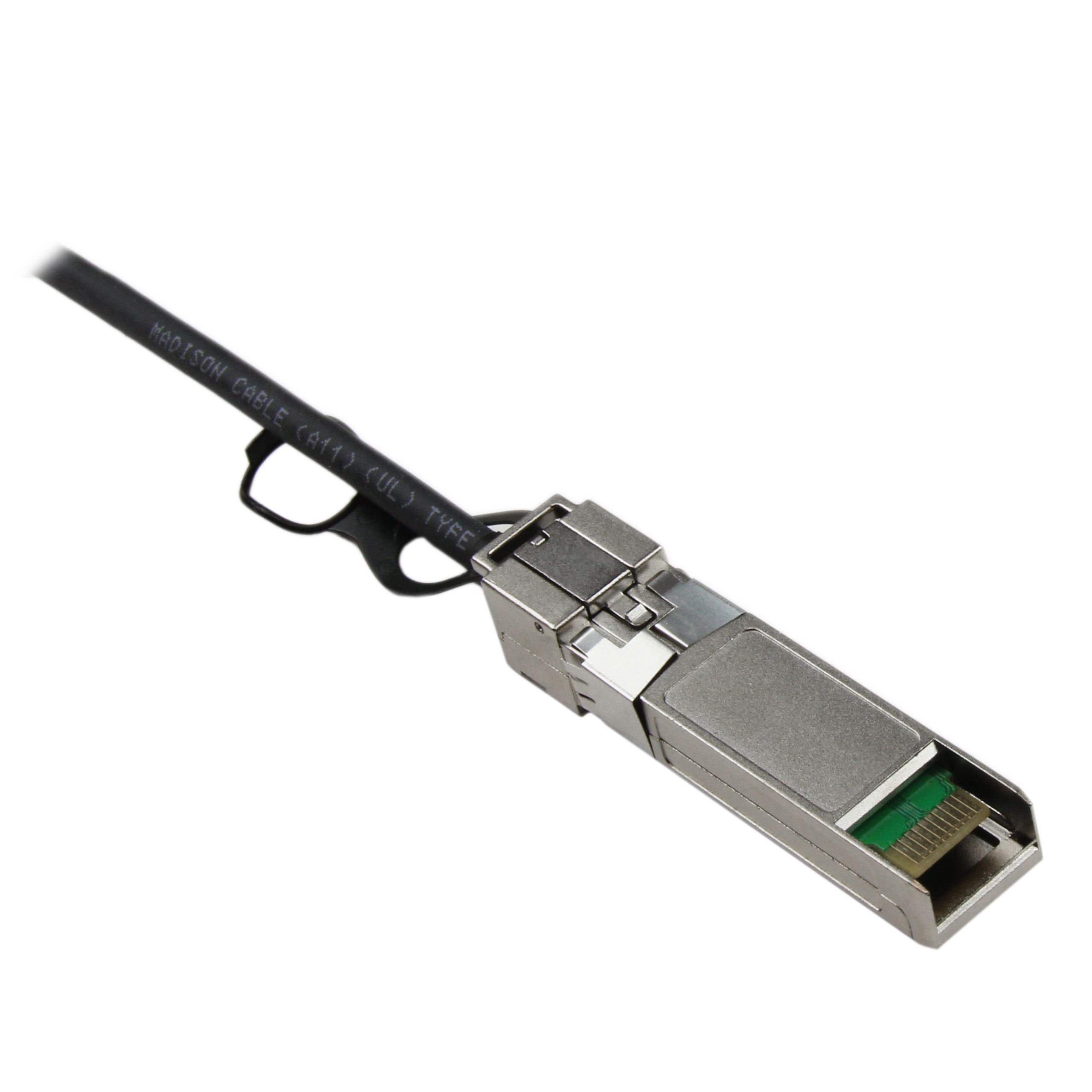

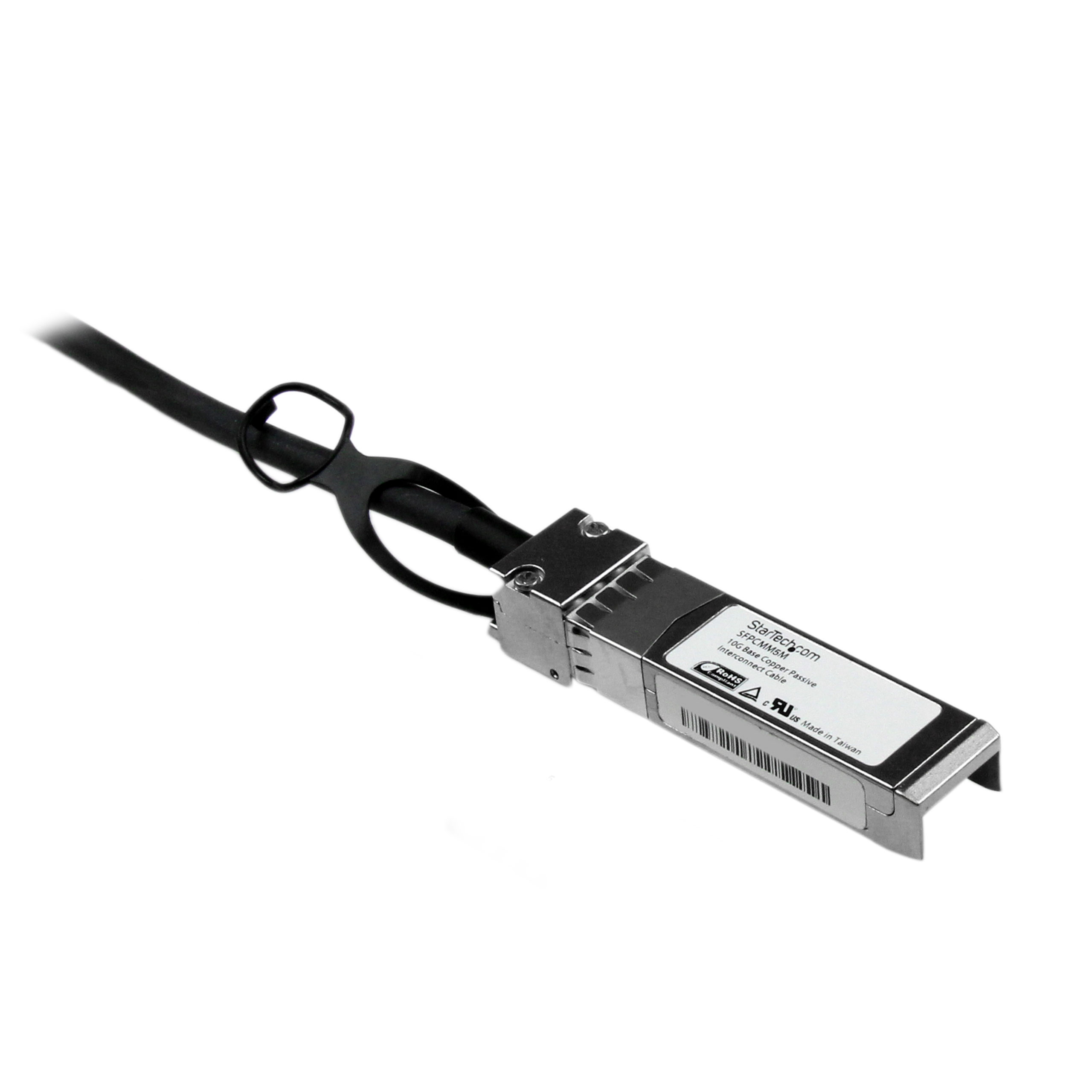

5m SFP 10 Gigabit Ethernet 10GbE Twinax Cable
Copper SFP+ Cable | 10 Gbps | Passive DAC | Lifetime Warranty
Main Image
Product Images
Product Images
Product Name 5m SFP 10 Gigabit Ethernet 10GbE Twinax Cable Product Number SFPCMM5M UPC 065030849586 Lifecycle status Active Warranty Lifetime Taxonomy Product > Networking > SFP Transceivers Category Level 1 Networking Category Level 2 SFP Transceivers Category Level 3 Cisco Compatible Cables Family Cisco Compatible - 10G SFP+ Cables - Twinax Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX169X Country of Origin History (2) China Country of Origin Revision (2) XXXXXX056X Product Title (Ultra-Short) 5m SFP+ 10GbE Cable Product Title (Short) 5m 10G SFP+ DAC SFP-H10GB-CU5M Product Title (Medium) Cisco SFP-H10GB-CU5M Compatible SFP+ DAC Twinax Cable - 5m (16.4ft) - RJ45 Product Title (Standard) 5m 10G SFP+ to SFP+ Direct Attach Cable for Cisco SFP-H10GB-CU5M - 10GbE SFP+ Copper DAC 10 Gbps Passive Twinax Product Title (Long) Cisco SFP-H10GB-CU5M Compatible 5m 10G SFP+ to SFP+ Direct Attach Cable Twinax - 10GbE SFP+ Copper DAC 10 Gbps Low Power Passive Mini GBIC/Transceiver Module DAC Firepower ASR920 ASR9000 Product Title (AMZ) Cisco SFP-H10GB-CU5M Compatible 5m 10G SFP+ to SFP+ Direct Attach Cable Twinax - 10GbE SFP+ Copper DAC 10Gbps Low Power Passive Mini GBIC/Transceiver Module DAC Firepower ASR920(SFPCMM5M) Title Ingram (Part 1) Cisco SFP-H10GB-CU5M Comp. SFP+ Title Ingram (Part 2) Twinax Copper DAC - RJ45 Website Product Headline Copper SFP+ Cable | 10 Gbps | Passive DAC | Lifetime Warranty Bullet 1 100% CISCO SFP-H10GB-CU5M COMPATIBLE: Works with Cisco switches like Firepower, ASR920, ASR9000, C9300, C3850 and others Bullet 2 TECHNICAL SPECS: 5m (16.4ft) | 10 Gbps | Passive Twinax (Copper) | 2x SFP+ Pluggable Connector | 100 Ohm Impedance | 24 AWG Wire Gauge | PVC Cable Jacket | Hot swappable | MSA Compliant Bullet 3 TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches Bullet 4 OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the cable itself, not your equipment; our cables won't void your OEM support and with access to our Tech Advisors 5/24. Bullet 5 WORKS WITH MSA COMPLIANT SWITCHES: Low power 10GbE DAC also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules and transceivers Bullets (Compact) 100% Cisco SFP-H10GB-CU5M Compatible 5m 10G direct attach cable - 10 Gbps Passive Twinax Copper Low Power 2x SFP+ Pluggable Connector - 10GbE Mini GBIC/Transceiver DAC for Firepower | ASR920 | ASR9000 - Hot-Swappable MSA Compliant Lifetime Warranty Bullets (Consolidated) 100% Cisco SFP-H10GB-CU5M compatible 10G direct attached cable - 5m/16.4' Cable | 10 Gbps | Passive Twinax (Copper) | 2x SFP+ Pluggable Connector | 100 Ohm Impedance | 24 AWG | PVC Jacket - 10GbE Low Power Mini GBIC/Transceiver Module DAC for edge networks/server rooms/data centers - For Cisco switches Firepower | ASR920 | ASR9000 | C9300 | C3850 | NCS540 | C9500 - Hot-Swappable and MSA Compliant - StarTech.com lifetime warranty and will not void your OEM warranty Marketing Copy Marketing Copy (No HTML) Applications - Use in 10Gb Ethernet and Fiber Channel applications
- Point-to-point in-rack and across rack network switch/server connections (Storage Area Networks (SAN), Network Attached Storage (NAS), Storage Servers, etc.)
Website Search Keyword - sfp+ cable
- 10gbase-cu sfp+
- 10gb sfp+ cable
- sfp+ direct attach cable
- 10gb twinax cable
- N280-05M-BK
Required Regulatory Compliance Marks - RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Related Products - SFPCMM1M
- SFPCMM2M
- SFPCMM3M
Power Consumption (In Watts) < 0.5 W Cable Length (mm) 5000 Color Silver Material Steel Operating Temperature 0°C to 70°C Primary Material Steel Product Length (mm) 5000.000 Product Width (mm) 14.000 Product Height (mm) 12.000 Product Weight (g) 286 Storage Temperature -40°C to 80°C TAA Compliant No Wire Gauge 24 AWG Compatible Networks 10 Gbps Impedance (Ohm) 100 Ohm Cable Jacket Material PVC - Polyvinyl Chloride SFP Compatible Brand Cisco Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 264 Carton Height (mm) 306 Carton Quantity 10 Carton Weight Gross (g) 3838 Included in Package 1 - 5m SFP+ 10-Gigabit Ethernet (10GbE) Twinax Cable Number of Sub-Cartons 2 Package Depth (mm) 251 Package Height (mm) 33 Package Width (mm) 199 Package Quantity 1 Package Weight (g) 314 Packaging Description 5m(16.4ft) 10Gb Passive Twinax Cable - SFP-H10GB-CU5M Compatible SFP+ Packaging Description India 5m(16.4ft) 10Gb Passive Twinax Cable - SFP-H10GB-CU5M Compatible SFP+ Sub-Carton Depth (mm) 312 Sub-Carton Height (mm) 105 Sub-Carton Width (mm) 267 Sub-Carton Quantity 5 Sub-Carton Weight (g) 1594 Connector 1 SFP+ (10Gbps) Connector 1 (Quantity) 1 Connector 2 SFP+ (10Gbps) Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-02-13 Buying Center - AV & Collaboration No Buying Center - Data Center Yes Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
