SFPF1320C

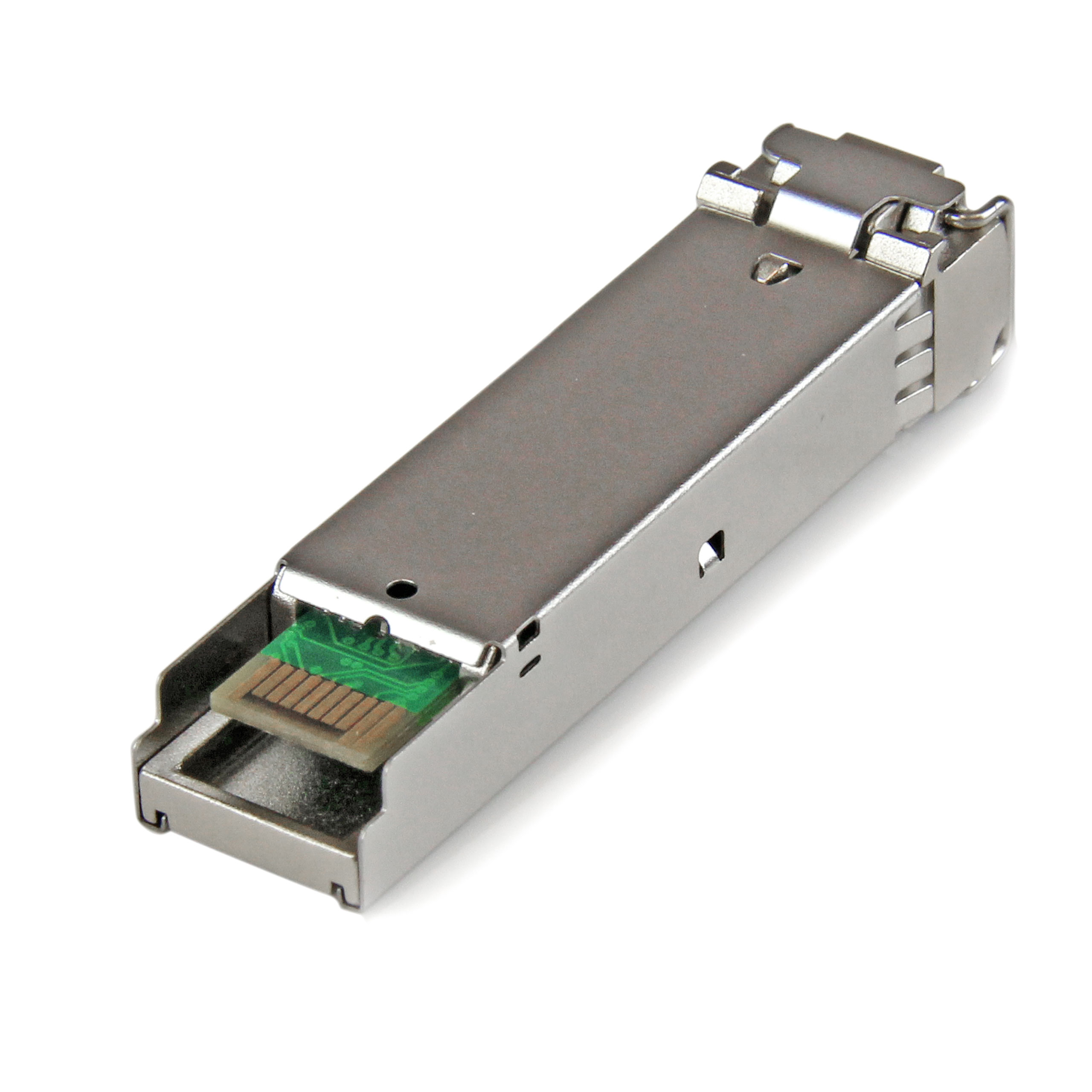

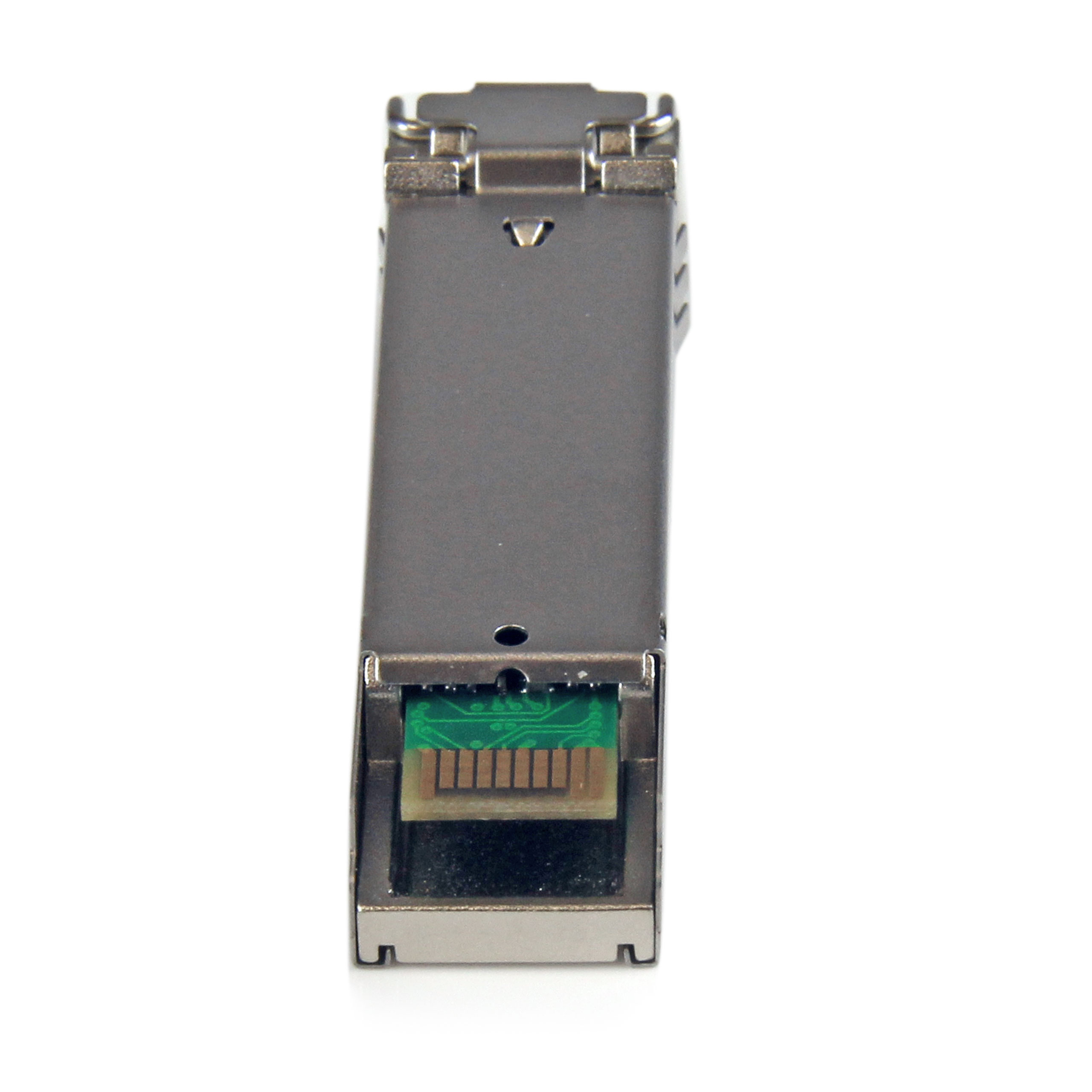

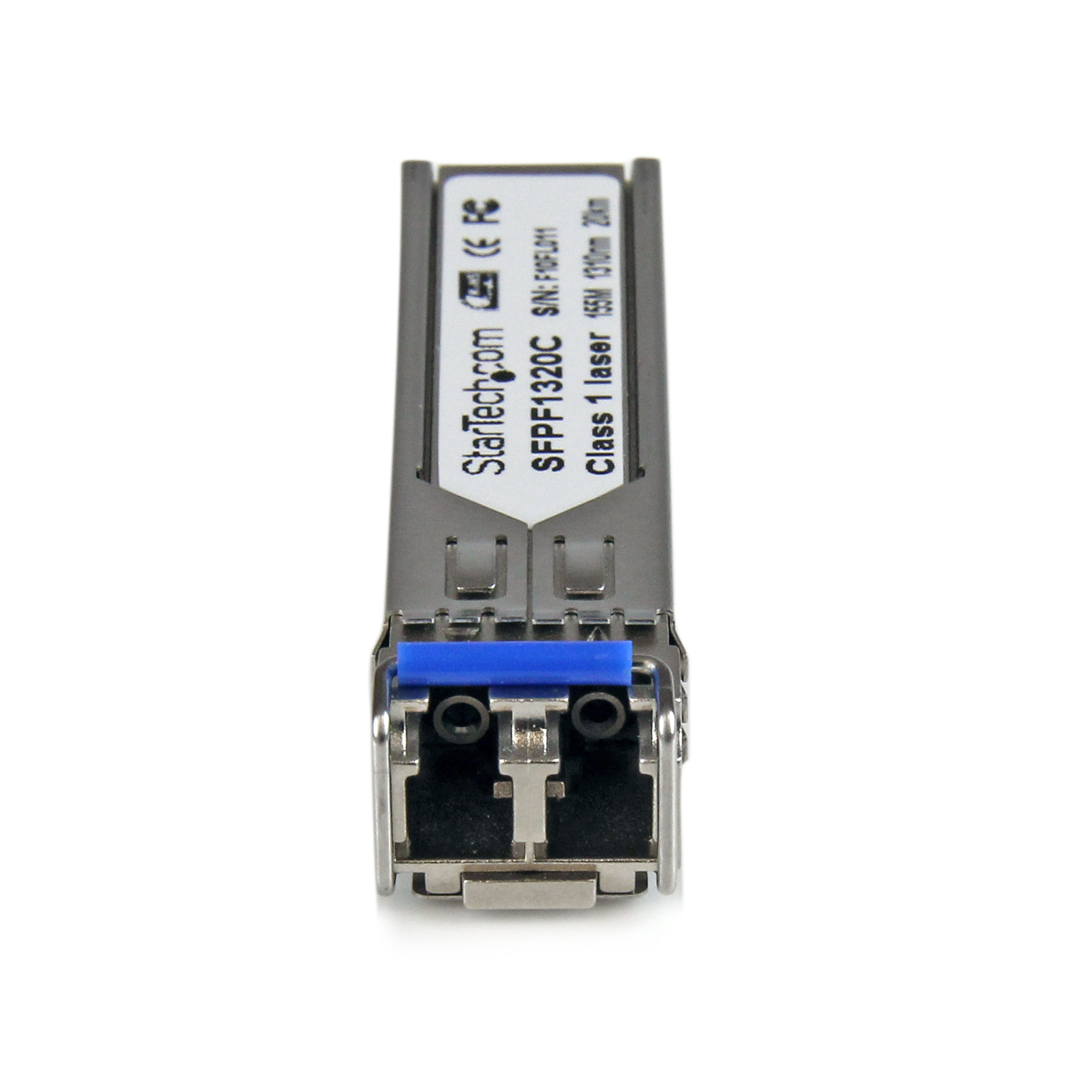

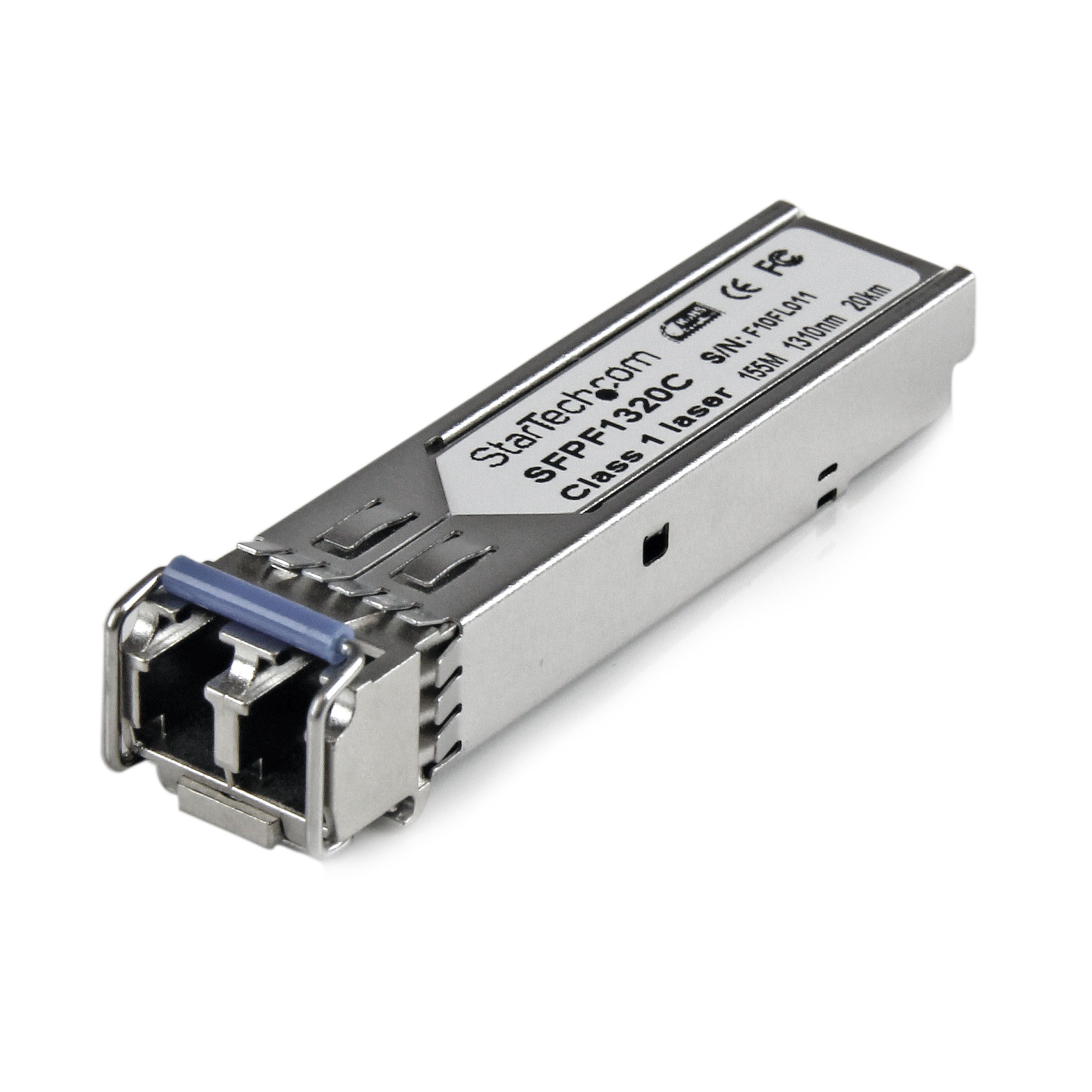

100Base-FX Single Mode SFP Fiber Transceiver LC
100 Mbps | Single Mode Fiber | LC | 20 km (12.4 mi) | Lifetime Warranty
Main Image
Product Images
Product Images
Product Images
Product Name 100Base-FX Single Mode SFP Fiber Transceiver LC Product Number SFPF1320C UPC 065030846653 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX091X Product Title (Short) 100Mbps Fiber SFP Transceiver SM LC 20km Product Title (Standard) Cisco Compatible 100 Mbps Fiber SFP Transceiver Module SM LC w/ DDM - 100Base-FX - 20 km (Mini-GBIC) Product Title (Long) Cisco GLC-FE-100LX Compatible SFP Transceiver Module - 100BASE-LX Product Title (AMZ) Cisco Compatible 100 Mbps Fiber SFP Transceiver Module SM LC w/ DDM – 20km (Mini-GBIC) - 1310nm 100Base-FX Single Mode SFP LC (SFPF1320C) Title Ingram (Part 1) 1310nm 100Base-FX Single Mode S Title Ingram (Part 2) FP Fiber Transceiver Module LC Website Product Headline 100 Mbps | Single Mode Fiber | LC | 20 km (12.4 mi) | Lifetime Warranty Bullet 1 Complies with SFP Multi-Source Agreements standards (MSA) Bullet 2 Supports data rates up to 155 Mbps Bullet 3 LC Fiber connector Bullet 4 Fully Hot Pluggable installation/connection Bullet 5 Compatible with Cisco equipment Bullets (Consolidated) Add - replace or upgrade SFP modules on 100 Mbps fiber equipment - Fiber SFP Module - 1310nm SFP - GLC-FE-100LX/GLC FE 100LX - Single Mode SFP - 100base-LX SFP - LC SFP Transceiver - 100 Mbps Fiber Transceiver Module - Up to 20km (12.4mi) - Mini-GBIC - Plug-in Module Marketing Copy Applications - Replacing defective or damaged SFPs/Mini GBICs in MSA or Cisco compliant equipment
- Expand your network to remote segments
Website Search Keyword - SFP Module
- GBIC Module
- mini GBIC
- MSA
- Cisco
- Fiber transceiver
- fiber optic transceiver
- fiber optical transceiver
- Fibre transceiver
- fibre optic transceiver
- fibre optical transceiver
- fiber sfp
- fibre sfp
- lc sfp
- Single Mode sfp
- GLC-FE-100LX
- Cisco GLC-FE-100LX
Special Notes For use in 100 Mbps fiber networking equipment and media converters System and Cable Requirements MSA or Cisco compliant SFP port Accessory Products - SMFIBLCLC1
- SMFIBLCLC4
- SMFIBLCLC7
- SMFIBLCLC10
Related Products - SFPSXMM
- SFPLHSM
- SFPF1340C
- SFPG1320C
- SFPG1340C
- SFPG1580C
- SFPF1302C
Humidity 30~70% RH Operating Temperature 0°C to 70°C (32°F to 158°F) Product Length (mm) 65.000 Product Width (mm) 9.000 Product Height (mm) 14.000 Product Weight (g) 25.000 Storage Temperature -40°C to 85°C (-40°F to 85°F) TAA Compliant No Compatible Networks 100 Mbps Digital Diagnostics Monitoring Support Yes Fiber Operating Mode Half/Full-Duplex Fiber Type Single Mode Maximum Data Transfer Rate 155 Mbps Max Transfer Distance 20 km (12.4 mi) MTBF (hours) 3,092,408 hours Wavelength 1310nm Fiber Connector LC Industry Standards IEEE 802.3u 100BASE-LX SFP Compatible Brand Cisco Wave Division Multiplexing (WDM) No Carton Depth (mm) 200 Carton Height (mm) 120 Carton Quantity 100 Carton Weight Gross (g) 2700 Included in Package 1 - 155 Mbps Single Mode LC SFP Package Depth (mm) 45 Package Height (mm) 20 Package Width (mm) 100 Package Weight (g) 30 Packaging Description 155 Mbps 1310nm LC Single Mode Fiber SFP 20km Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 LC Duplex Fiber Host Connector 1 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
