SFPG1320C

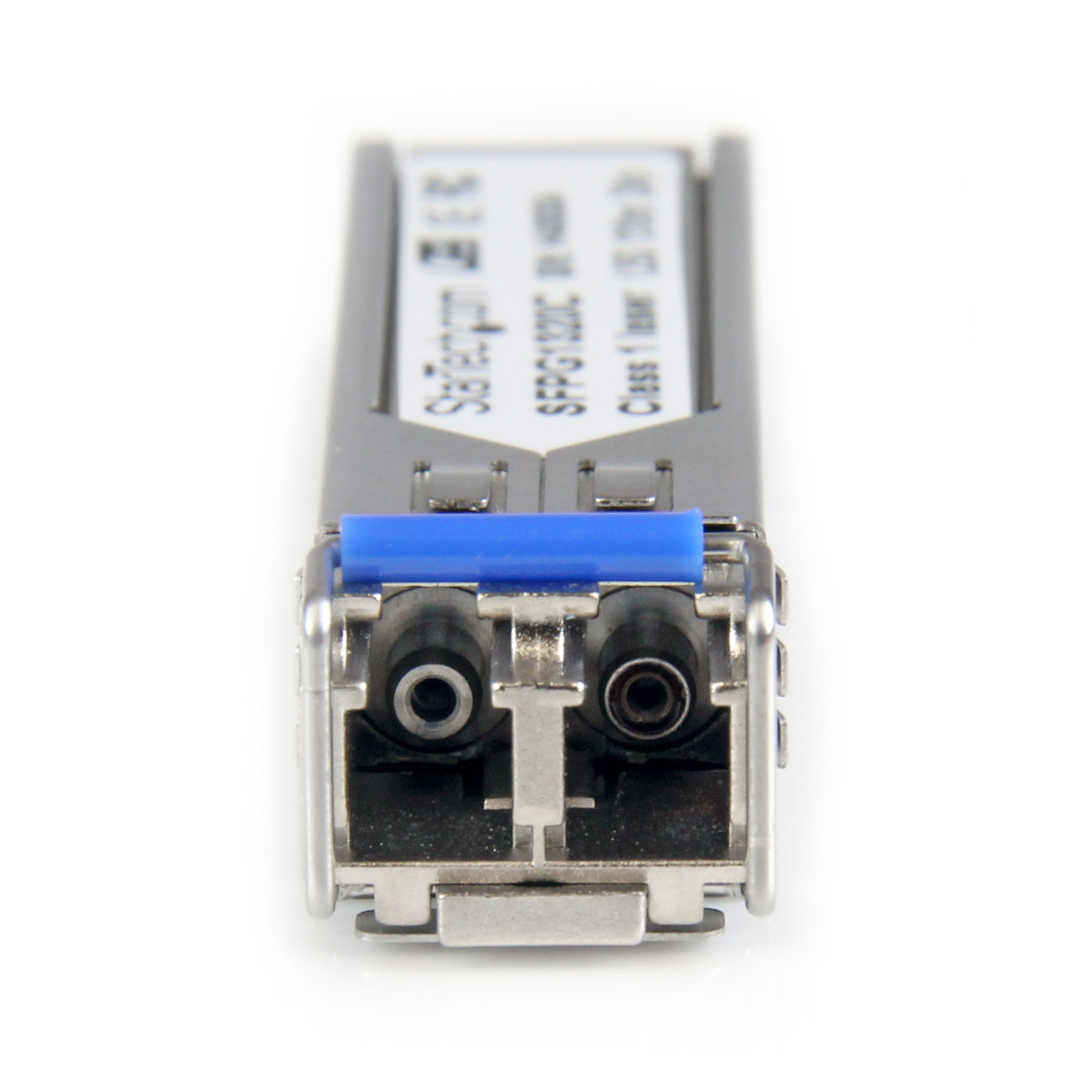

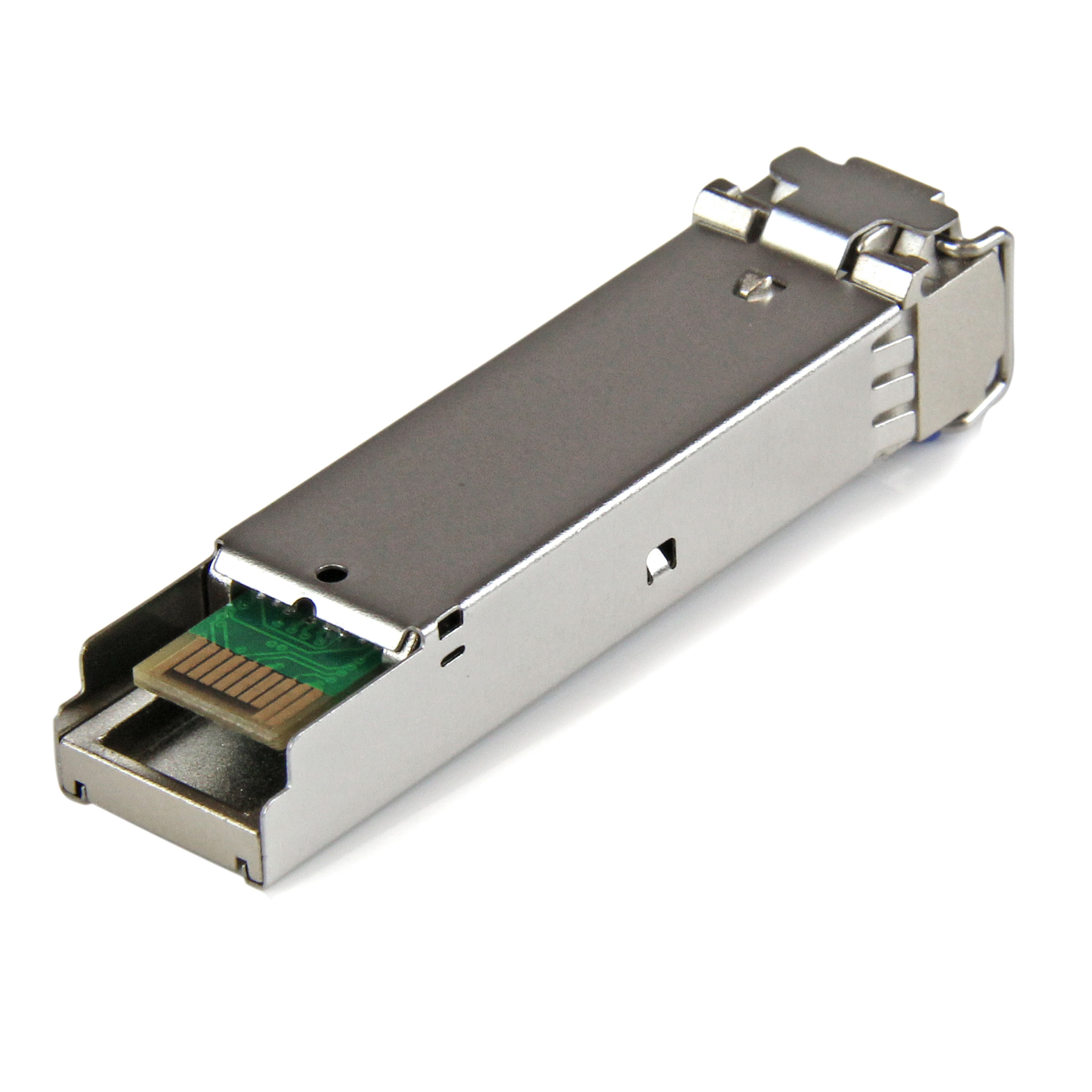

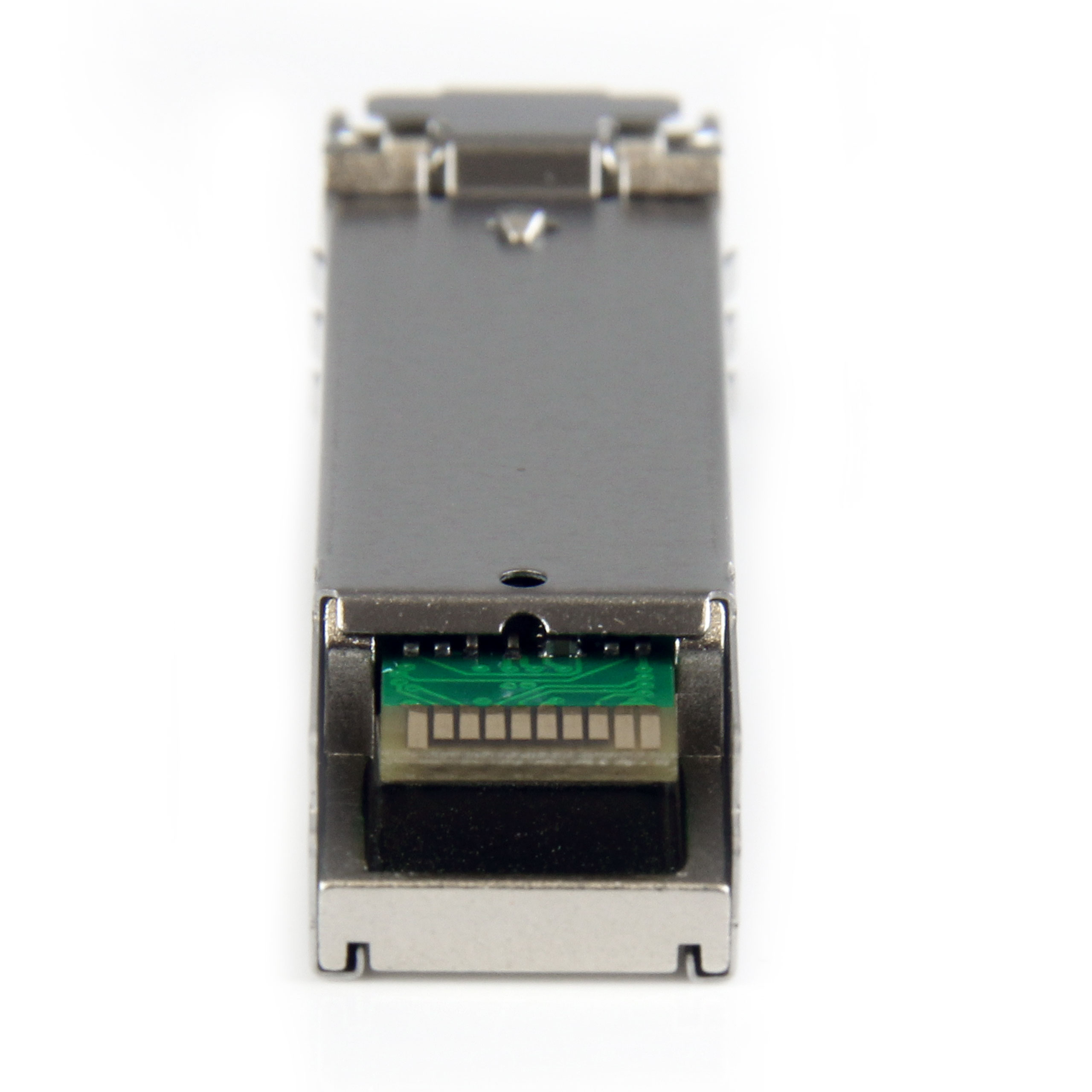

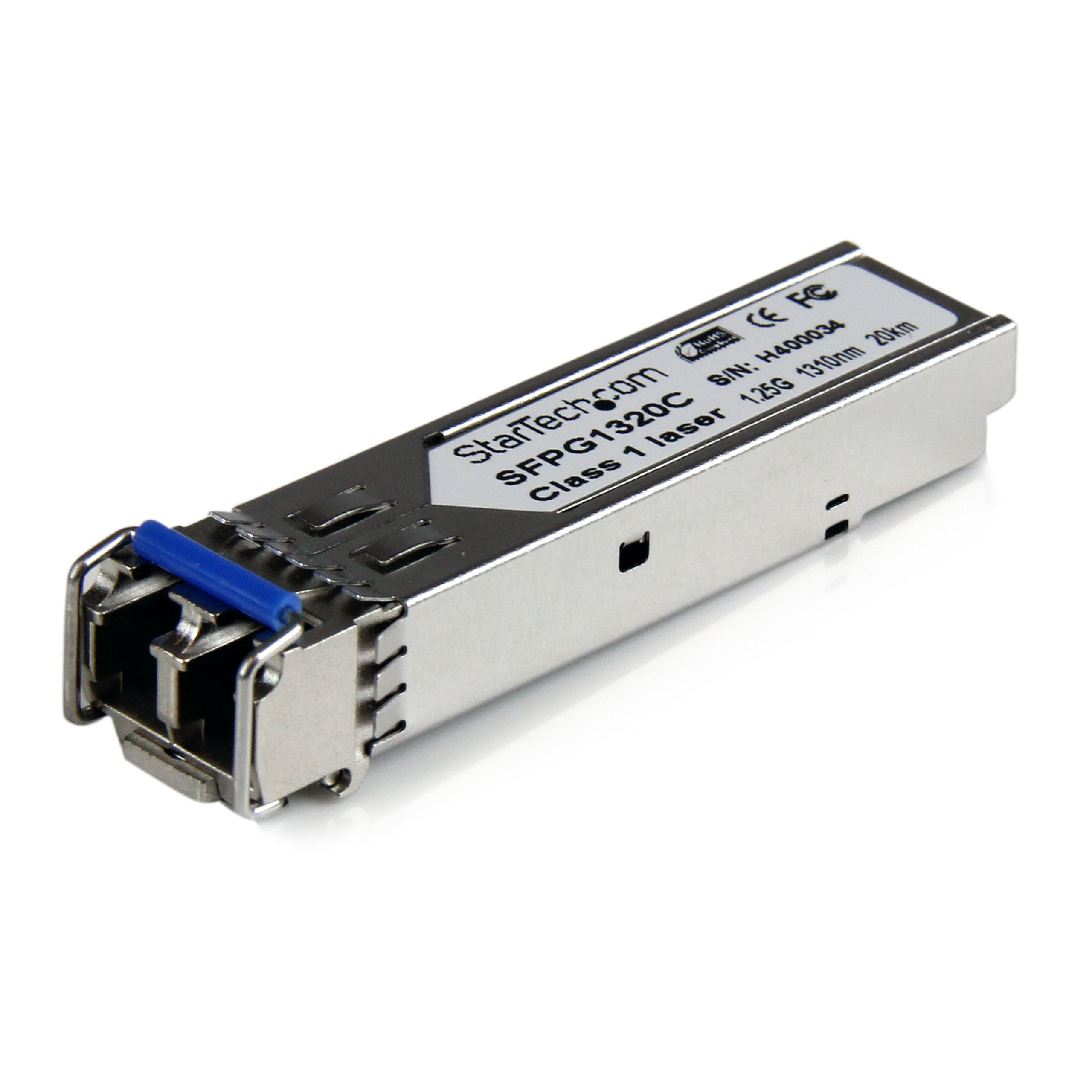

1000Base-LH Single Mode SFP Fiber Transceiver LC
1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 20 km (12.4 mi) | Lifetime Warranty
Main Image
Product Images
Product Images
Product Images
Product Name 1000Base-LH Single Mode SFP Fiber Transceiver LC Product Number SFPG1320C UPC 065030846677 Lifecycle status Active Warranty Lifetime Taxonomy Product > Networking > SFP Transceivers Category Level 1 Networking Category Level 2 SFP Transceivers Category Level 3 Cisco Compatible Family Cisco Compatible - 1G SFP Modules Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX091X Product Title (Ultra-Short) Gb Fiber SFP SM LC Product Title (Short) Cisco GLC-LH-SMD Comp. SFP - 1GbE DDM Product Title (Medium) Cisco GLC-LH-SMD Compatible SFP Fiber Module - 1000BASE-LH - Lifetime Warranty Product Title (Standard) Cisco GLC-LH-SMD Compatible SFP Module - 1000BASE-LH - 1GE Gigabit Ethernet SFP 1GbE Single Mode Fiber SMF Optic Transceiver Product Title (Long) Cisco GLC-LH-SMD Compatible SFP Module - 1000BASE-LH - 1GbE Single Mode Fiber SMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 20km - 1310nm - DDM Cisco Firepower, IE2000, IE4000 Product Title (AMZ) Cisco GLC-LH-SMD Compatible SFP Module - 1000BASE-LH - 1GbE Single Mode Fiber SMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 20km - 1310nm - DDM Cisco Firepower (SFPG1320C) Title Ingram (Part 1) Cisco GLC-LH-SMD Compatible - Title Ingram (Part 2) SFP Module - Fiber Transceiver Website Product Headline 1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 20 km (12.4 mi) | Lifetime Warranty Bullet 1 100% CISCO GLC-LH-SMD COMPATIBLE: Works with Cisco switches like Firepower, IE2000, IE4000, C9300, IE3000 and others Bullet 2 TECHNICAL SPECS: 1000BASE-LH | 1 Gbps | Single Mode (SMF) | LC Connector | 1310nm | Digital Diagnostic Monitoring (DDM) | Distances up to 20km (12.4mi) Bullet 3 TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches; DDM support reports the transceiver's status to most SNMP network management tools Bullet 4 THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance. Bullet 5 WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules Bullets (Compact) Cisco GLC-LH-SMD Compatible SFP - 1000BASE-LH 1 Gbps - 1GbE Module - 1GE Gigabit Ethernet SFP 1310nm - Single Mode (SMF) Transceiver - 20km (12.4mi) - LC Connector DDM - Hot-Swappable & MSA Compliant - Lifetime Warranty Bullets (Consolidated) Cisco GLC-LH-SMD Compatible SFP 1000BASE-LH (1 Gbps) Gigabit Ethernet - 1310nm | Single Mode (SMF) - Up to 20km (12.4mi) - LC Connector DDM - For Cisco switches like: Firepower IE2000 IE4000 C9300 IE3000 ME3400 IR1101 ISR1100 - Hot-Swappable and MSA Compliant - Backed by a StarTech.com lifetime warranty on the module itself not the life of the OEM switch/router and will not void your OEM warranty Marketing Copy Marketing Copy (No HTML) Applications - Replacing defective or damaged SFP modules in Cisco switches and routers
- Expand your network to remote segments
Website Search Keyword - SFP Module
- GBIC Module
- mini GBIC
- MSA
- Cisco
- Fiber transceiver
- fiber optic transceiver
- fiber optical transceiver
- Fibre transceiver
- fibre optic transceiver
- fibre optical transceiver
- fiber sfp
- fibre sfp
- lc sfp
- Single Mode sfp
- Gigabit SFP
- Gigabit Fiber
- 1 Gbps SFP
- Cisco SFP
- N286-10GLR-SLC
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Special Notes For use in Gigabit fiber networking equipment and media converters System and Cable Requirements MSA or Cisco compliant SFP port Accessory Products - SMFIBLCLC1
- SMFIBLCLC4
- SMFIBLCLC7
- SMFIBLCLC10
- PEX1000SFP2
- IES101002SFP
- IES101GP2SFW
- IES101G2SFPW
- MCM1110SFP
Related Products - SFPSXMM
- SFPLHSM
- SFPF1340C
- SFPG1340C
- SFPG1580C
- SFPF1302C
- SFPF1320C
Output Voltage (V) 3.3V DC Power Consumption (In Watts) < 1 W Color Silver Humidity 30~70% RH Material Steel Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Steel Product Length (mm) 60.000 Product Width (mm) 12.000 Product Height (mm) 10.000 Product Weight (g) 20.000 Storage Temperature -40°C to 85°C (-40°F to 185°F) TAA Compliant No Compatible Networks 1000 Mbps (1 Gbps) Digital Diagnostics Monitoring Support Yes Fiber Operating Mode Half/Full-Duplex Fiber Type Single Mode Maximum Data Transfer Rate 1.25 Gbps Max Transfer Distance 20 km (12.4 mi) MTBF (hours) 2,722,277 hours Wavelength 1310nm Fiber Connector LC Industry Standards IEEE 802.3z 1000BASE-LH OEM Part Number GLC-LH-SMD SFP Compatible Brand Cisco Wave Division Multiplexing (WDM) No Carton Depth (mm) 254 Carton Height (mm) 201 Carton Quantity 36 Carton Weight Gross (g) 1990 Included in Package 1 - 1.25 Gbps Single Mode LC SFP Package Depth (mm) 91 Package Height (mm) 33 Package Width (mm) 113 Package Quantity 1 Package Weight (g) 42 Packaging Description 1.25 Gbps 1310nm LC Single Mode Fiber SFP 20km Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 LC Duplex Fiber Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CO,DE,DK,ES,EU,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
