SFPG1340C

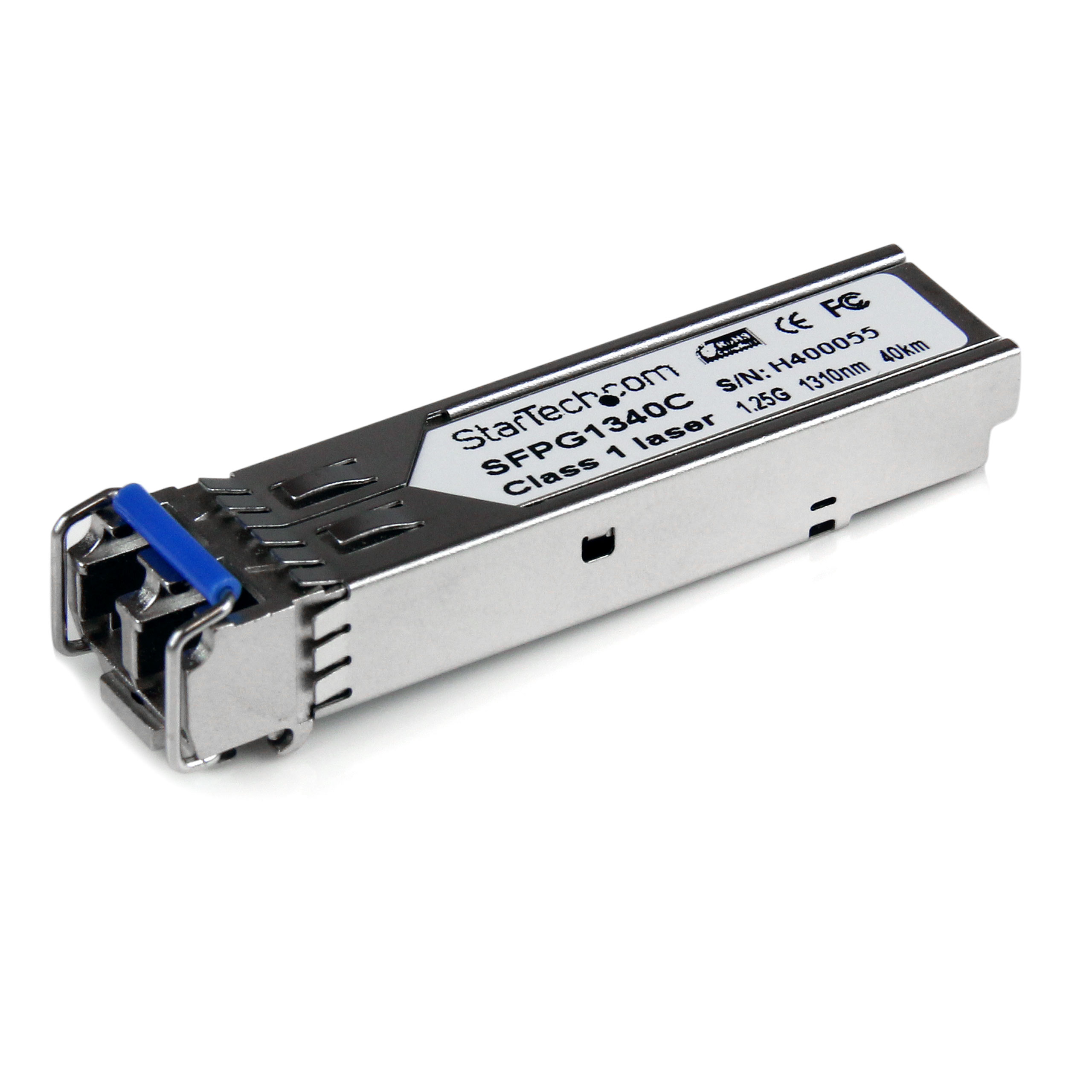

1000Base-LX Single Mode SFP Fiber Transceiver LC
Add, replace or upgrade SFP modules on Gigabit fiber equipment
Main Image
Product Images
Product Images
Product Images
Product Name 1000Base-LX Single Mode SFP Fiber Transceiver LC Product Number SFPG1340C UPC 065030846684 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX091X Product Title (Short) Gigabit Fiber SFP Transceiver SM LC 40km Product Title (Standard) Cisco Compatible Gigabit Fiber SFP Transceiver Module SM LC w/ DDM – 40 km (Mini-GBIC) Product Title (Long) Cisco Compatible Gigabit Fiber SFP Transceiver Module SM LC w/ DDM – 40 km (Mini-GBIC) Product Title (AMZ) Cisco Compatible Gigabit Fiber SFP Transceiver Module SM LC w/ DDM – 40km (Mini-GBIC) - 1310nm 1000Base-LX Single Mode SFP LC (SFPG1340C) Title Ingram (Part 1) 1310nm 1000Base-LX Single Mode Title Ingram (Part 2) SFP Fiber Transceiver Module LC Website Product Headline Add, replace or upgrade SFP modules on Gigabit fiber equipment Bullet 1 Complies with SFP Multi-Source Agreements standards (MSA) Bullet 2 Data rates up to 1.25 Gbps Bullet 3 LC Fiber connector Bullet 4 Fully Hot Pluggable Bullet 5 Compatible with Cisco equipment Marketing Copy Applications - Replacing defective or damaged SFPs/Mini GBICs in MSA or Cisco compliant equipment
- Expand your Gigabit network to remote segments
Website Search Keyword - SFP Module
- GBIC Module
- mini GBIC
- MSA
- Cisco
- Fiber transceiver
- fiber optic transceiver
- fiber optical transceiver
- Fibre transceiver
- fibre optic transceiver
- fibre optical transceiver
- fiber sfp
- fibre sfp
- lc sfp
- Single Mode sfp
- Gigabit Fiber transceiver
- Gigabit SFP
- GB SFP
- 1 GB SFP
- 1GBPS SFP
- GLC-EX-SMD
- Cisco GLC-EX-SMD
Special Notes For use in Gigabit fiber networking equipment and media converters System and Cable Requirements MSA or Cisco compliant SFP port Accessory Products SMFIBLCSC1 Related Products - SFPSXMM
- SFPLHSM
- SFPF1320C
- SFPG1320C
- SFPF1340C
- SFPG1580C
- SFPF1302C
Humidity 30~70% RH Operating Temperature 0°C to 70°C (32°F to 158°F) Product Length (mm) 60.000 Product Width (mm) 12.000 Product Height (mm) 10.000 Product Weight (g) 17.000 Storage Temperature -40°C to 85°C (-40°F to 185°F) TAA Compliant No Compatible Networks 1000 Mbps (1 Gbps) Digital Diagnostics Monitoring Support Yes Fiber Operating Mode Half/Full-Duplex Fiber Type Single Mode Maximum Data Transfer Rate 1.25 Gbps Max Transfer Distance 40 km (24.8 mi) Wavelength 1310nm Fiber Connector LC Industry Standards IEEE 802.3z 1000BASE-EX Wave Division Multiplexing (WDM) No Carton Depth (mm) 200 Carton Height (mm) 120 Carton Quantity 100 Carton Weight Gross (g) 2700 Included in Package 1 - 1.25 Gbps Single Mode LC SFP Package Depth (mm) 90 Package Height (mm) 30 Package Width (mm) 115 Package Weight (g) 49 Packaging Description 1.25 Gbps 1310nm LC Single Mode Fiber SFP 40km Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 LC Duplex Fiber Host Connector 1 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
