Main Image
SFPGLCSXMMST

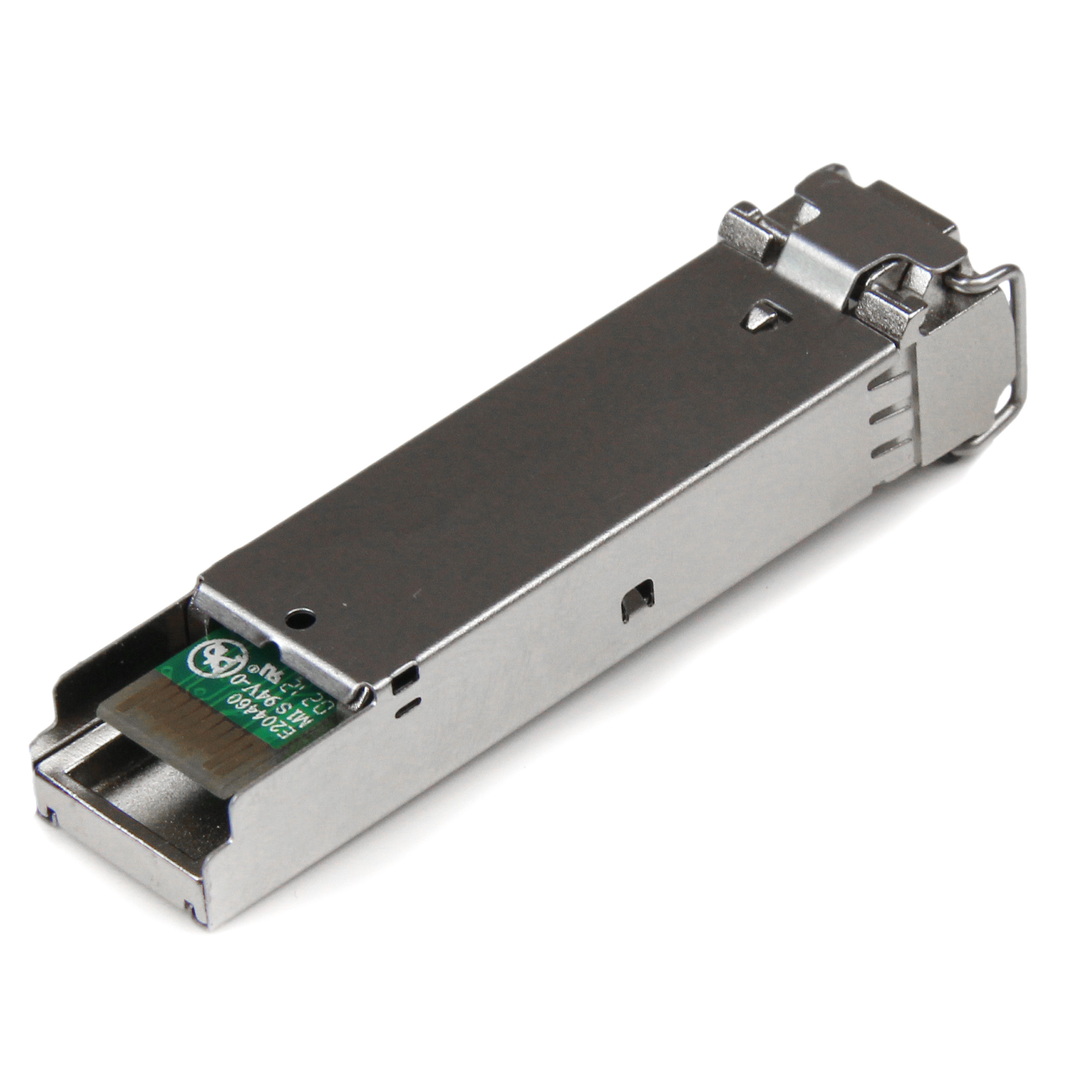

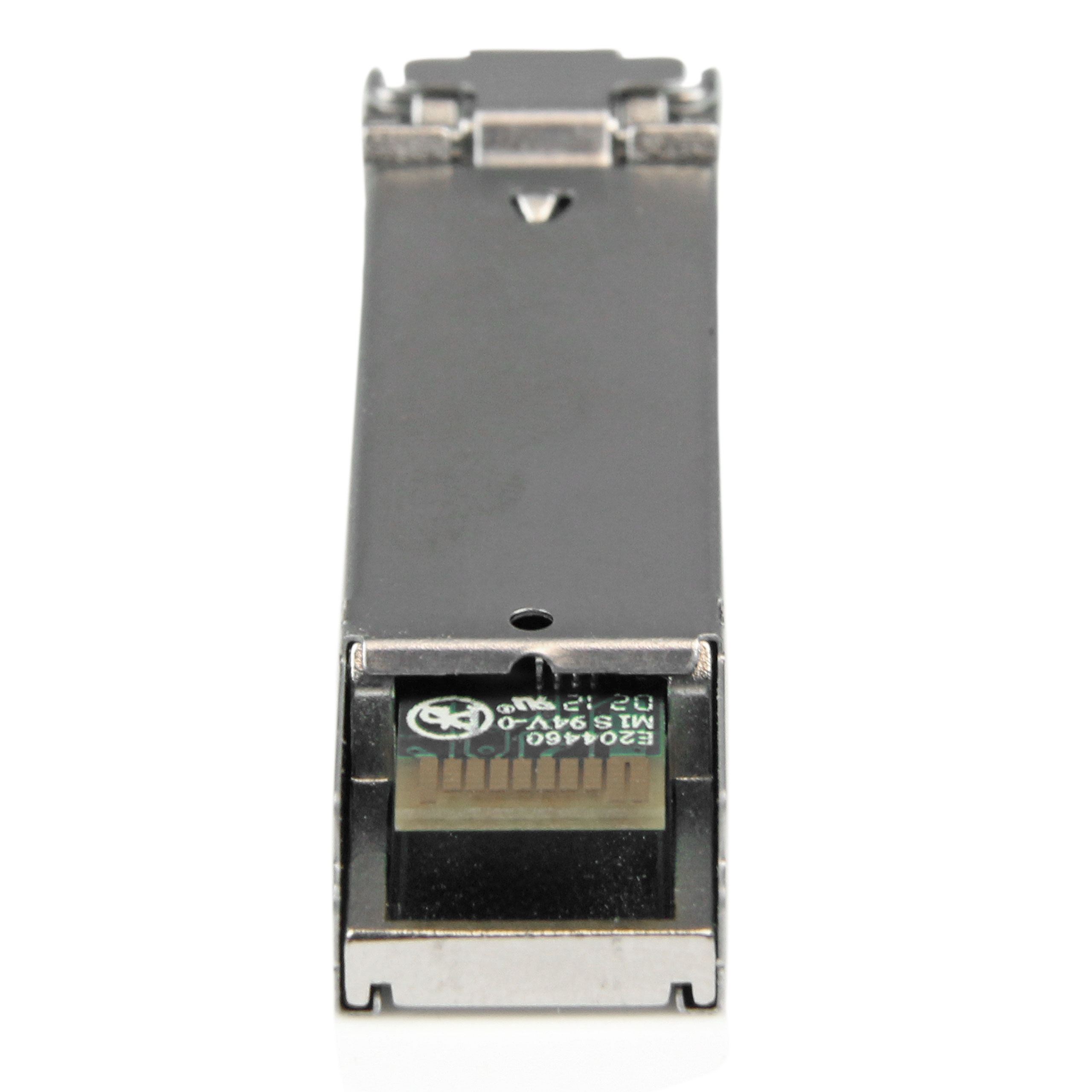

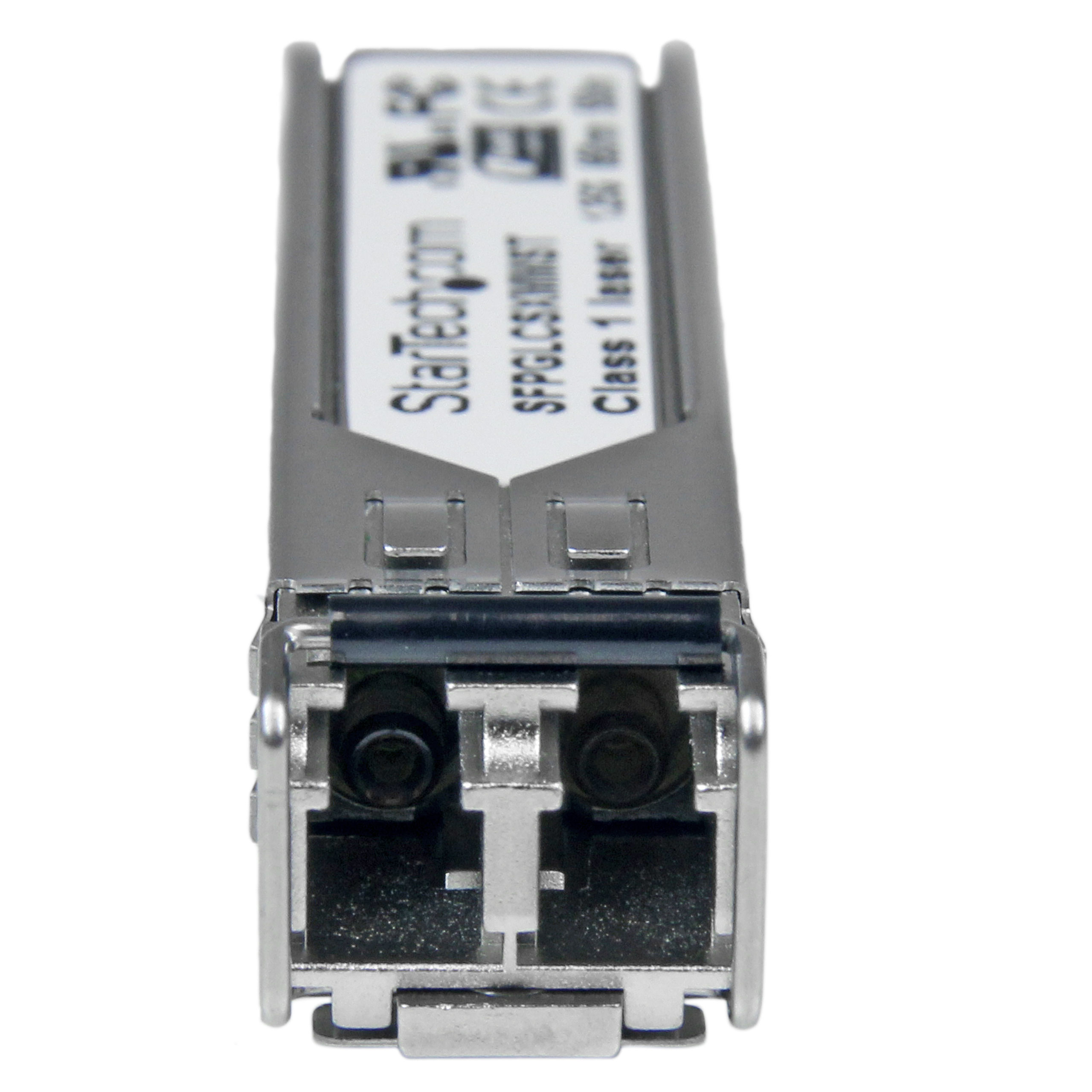

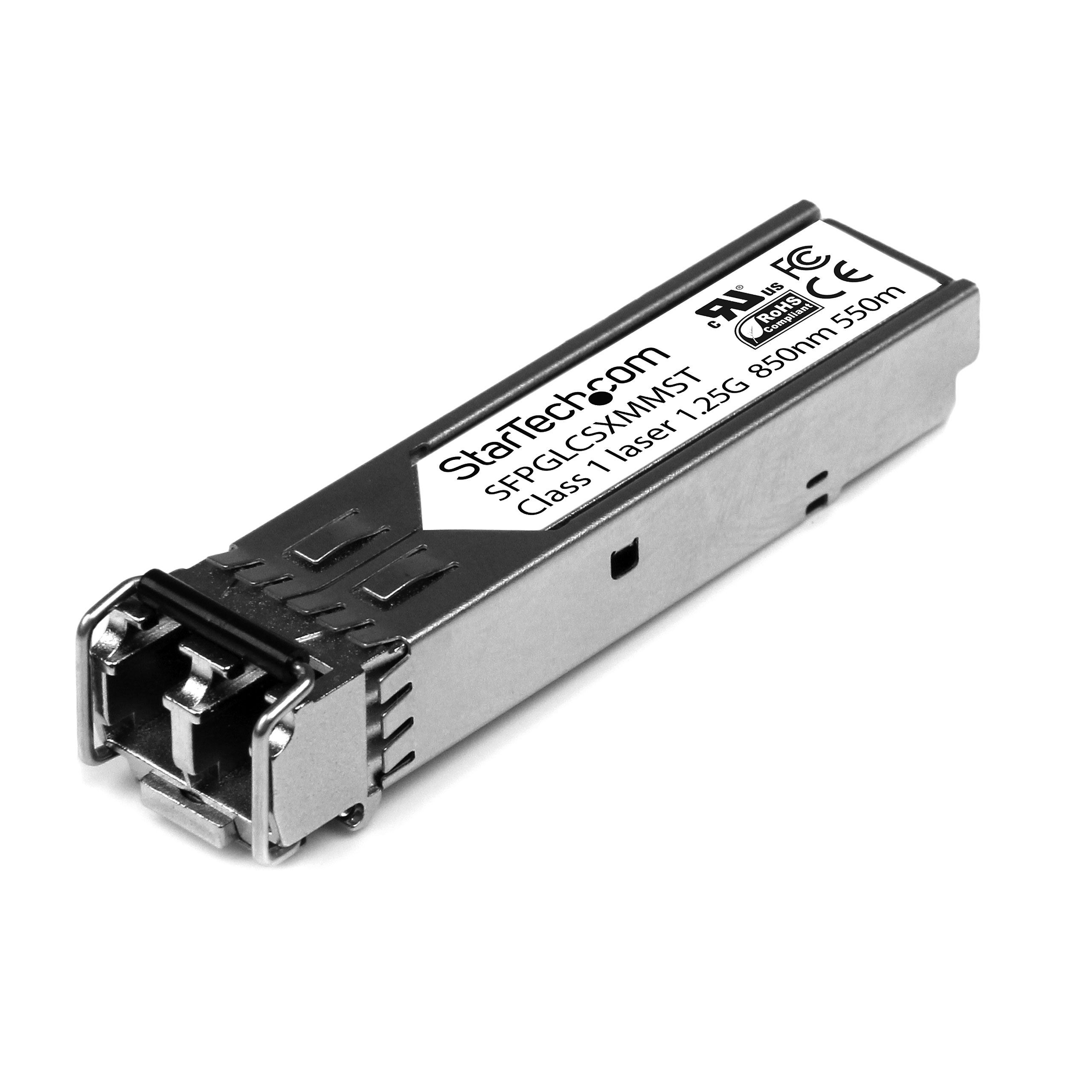

1000Base-SX Multimode SFP Fiber Transceiver LC
1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime Warranty
Main Image
Product Images
Product Images
Product Images
Product Name 1000Base-SX Multimode SFP Fiber Transceiver LC Product Number SFPGLCSXMMST UPC 065030849692 Lifecycle status Active Warranty Lifetime Taxonomy Product > Networking > SFP Transceivers Category Level 1 Networking Category Level 2 SFP Transceivers Category Level 3 Cisco Compatible Family Cisco Compatible - 1G SFP Modules Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX091X Product Title (Short) Cisco GLC-SX-MM Comp. SFP - 1GbE Product Title (Medium) Cisco GLC-SX-MM Compatible SFP Fiber Module - 1000BASE-SX - Lifetime Warranty Product Title (Standard) Cisco GLC-SX-MM Compatible SFP Module - 1000BASE-SX - 1GE Gigabit Ethernet SFP 1GbE Multimode Fiber MMF Optic Transceiver Product Title (Long) Cisco GLC-SX-MM Compatible SFP Module - 1000BASE-SX - 1GbE Multimode Fiber MMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 550m - 850nm - Cisco IE3400, IE3300, IE3200 Product Title (AMZ) Cisco GLC-SX-MM Compatible SFP Module - 1000BASE-SX - 1GbE Multimode Fiber MMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 550m - 850nm - Cisco IE3400, IE3300, IE3200 (SFPGLCSXMMST) Title Ingram (Part 1) Cisco GLC-SX-MM Compatible - Title Ingram (Part 2) SFP Module - Fiber Transceiver Website Product Headline 1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime Warranty Bullet 1 TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches Bullet 2 THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance. Bullet 3 WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules Bullet 4 100% CISCO GLC-SX-MM COMPATIBLE: Works with Cisco switches like IE3400, IE3300, IE3200, ME1200, ME2400 and others Bullet 5 TECHNICAL SPECS: 1000BASE-SX | 1 Gbps | Multi Mode (MMF) | LC Connector | 850nm | Distances up to 550m (1804ft) Bullets (Compact) Cisco GLC-SX-MM Compatible SFP - 1000BASE-SX 1 Gbps - 1GbE Module - 1GE Gigabit Ethernet SFP 850nm - Multi Mode (MMF) Transceiver - 550m (1804ft) - LC Connector - Hot-Swappable & MSA Compliant - Lifetime Warranty Bullets (Consolidated) Cisco GLC-SX-MM Compatible SFP 1000BASE-SX (1 Gbps) Gigabit Ethernet - 850nm | Multi Mode (MMF) - Up to 550m (1804') - LC Connector - For Cisco switches like: IE3400 IE3300 IE3200 ME1200 ME2400 N9300 N9500 N9200 - Hot-Swappable and MSA Compliant - Backed by a StarTech.com lifetime warranty on the module itself not the life of the OEM switch/router and will not void your OEM warranty Marketing Copy Marketing Copy (No HTML) Applications - Replacing defective or damaged SFP modules in Cisco switches and routers
- Expand your network to remote segments
Website Search Keyword - SFP Module
- GBIC Module
- mini GBIC
- MSA
- Cisco
- Fiber transceiver
- fiber optic transceiver
- fiber optical transceiver
- Fibre transceiver
- fibre optic transceiver
- fibre optical transceiver
- fiber sfp
- fibre sfp
- lc sfp
- Multi Mode sfp
- Gigabit SFP
- Gigabit Fiber
- 1 Gbps SFP
- Cisco SFP
- GLC-SX-MM
- Cisco GLC-SX-MM
- N286-01GSX-MDLC
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UL - Safety - Electrical - Canada / United States - Enhanced UL Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Special Notes For use in Gigabit fiber networking equipment and media converters System and Cable Requirements MSA or Cisco compliant SFP port Accessory Products - 50FIBLCLC1
- 50FIBLCLC2
- 50FIBLCLC3
- 50FIBLCLC5
- 50FIBLCLC10
- PEX1000SFP2
- IES101002SFP
- IES101GP2SFW
- IES101G2SFPW
- MCM1110SFP
Related Products - SFPSXMM
- SFPLHSM
- SFPF1340C
- SFPG1320C
- SFPG1580C
- SFPF1302C
- SFPF1320C
- SFPG1340C
- SFPGESST
- PEX1000SFP
- ET1110PSE
Output Voltage (V) 3.3V DC Power Consumption (In Watts) < 1 W Color Silver Humidity 30~70% RH Material Steel Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Steel Product Length (mm) 60.000 Product Width (mm) 12.000 Product Height (mm) 10.000 Product Weight (g) 16.000 Storage Temperature -40°C to 85°C (-40°F to 85°F) TAA Compliant No Compatible Networks 1000 Mbps (1 Gbps) Digital Diagnostics Monitoring Support No Fiber Operating Mode Half/Full-Duplex Fiber Type Multi Mode Maximum Data Transfer Rate 1.25 Gbps Max Transfer Distance 550m [1804ft] MTBF (hours) 3,381,761 hours Wavelength 850nm Fiber Connector LC Industry Standards IEEE 802.3z 1000BASE-SX OEM Part Number GLC-SX-MM SFP Compatible Brand Cisco Wave Division Multiplexing (WDM) No Carton Depth (mm) 344 Carton Height (mm) 354 Carton Quantity 108 Carton Weight Gross (g) 5864 Included in Package 1 - 1.25 Gbps Multimode LC SFP Package Depth (mm) 90 Package Height (mm) 33 Package Width (mm) 112 Package Quantity 1 Package Weight (g) 48 Packaging Description 1.25 Gbps 850nm MM LC Fiber SFP 550m Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 LC Duplex Fiber Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-02-22 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
