Main Image
SFPH10GBC05M

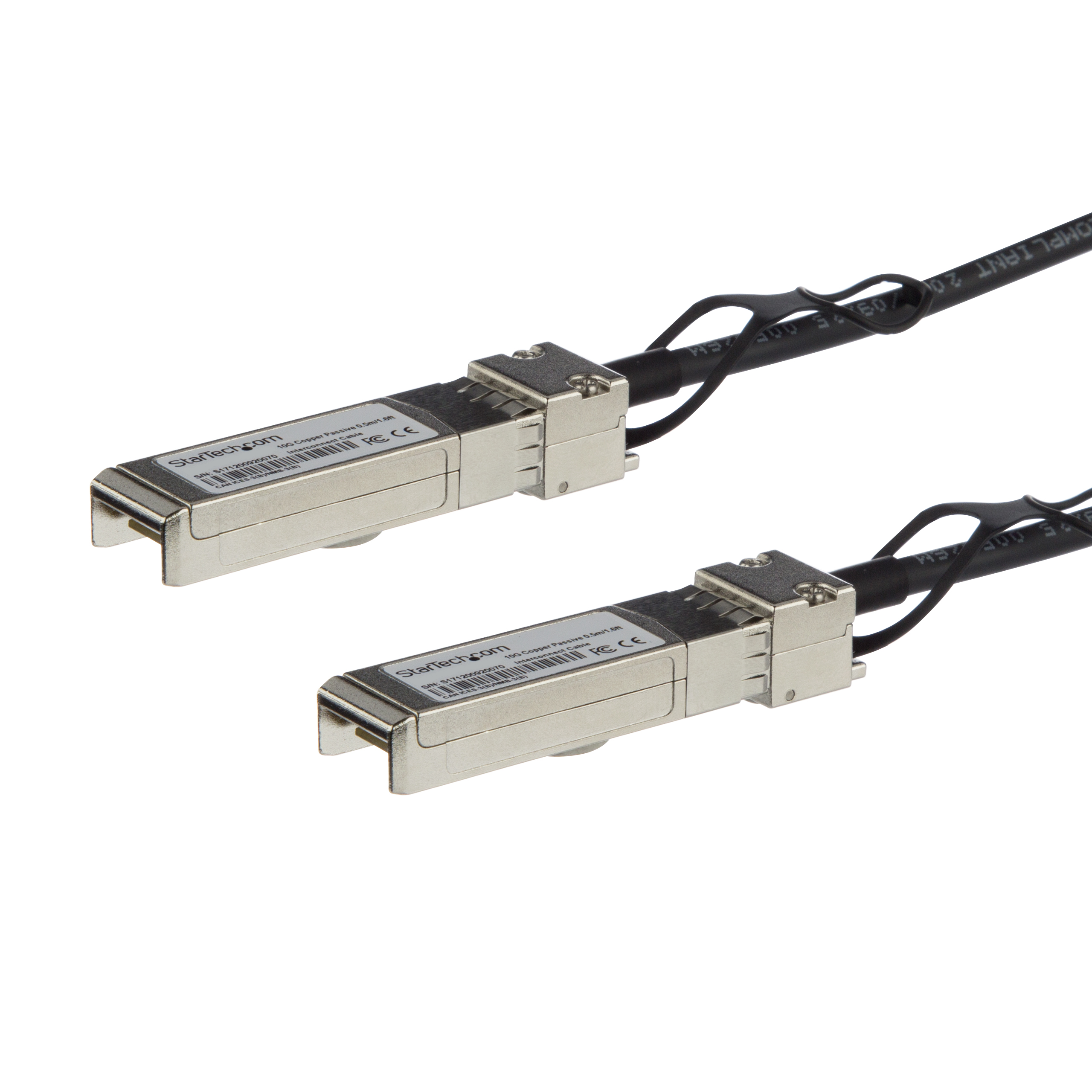

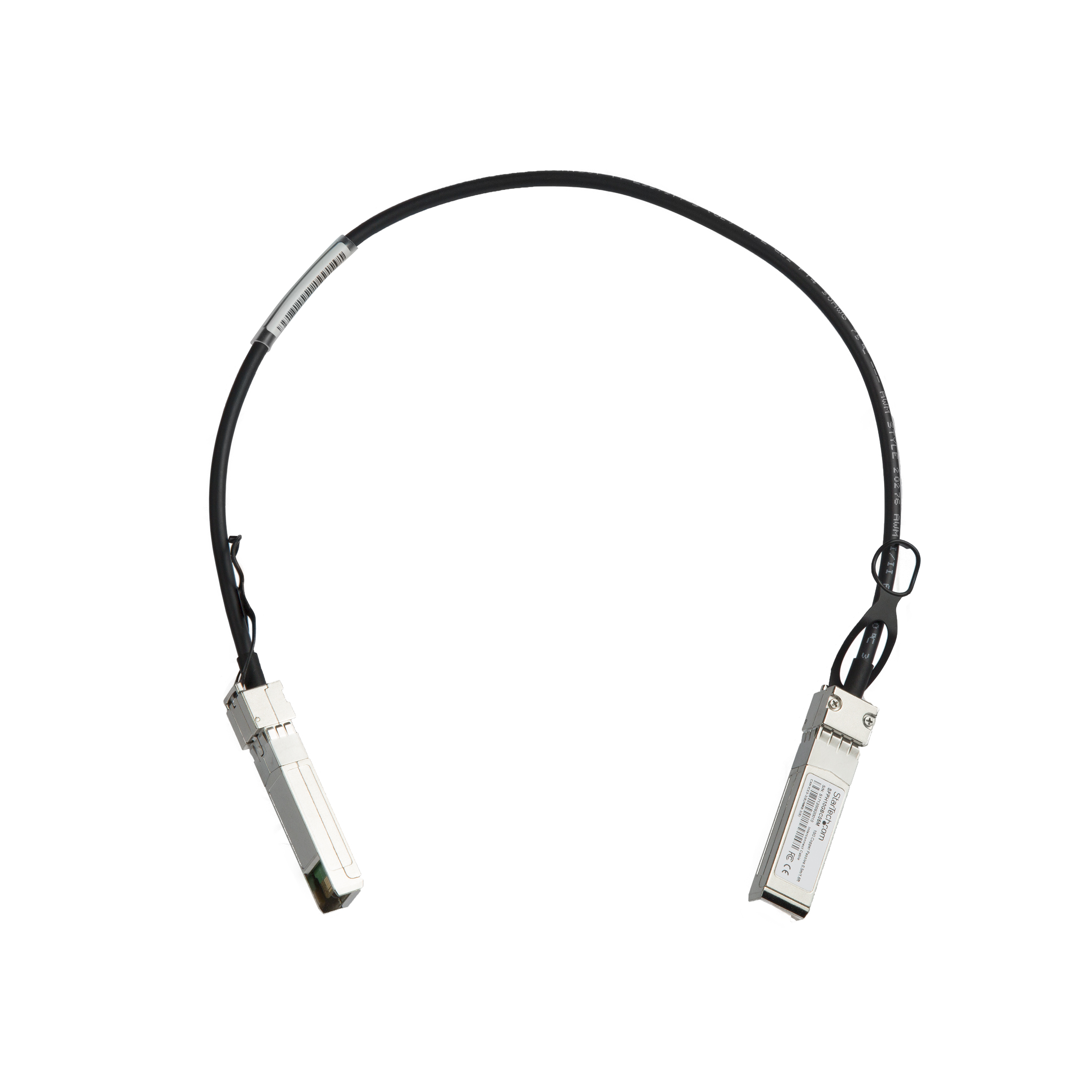

1 6ft SFP Direct Attach Cable Cisco Compatible
Copper SFP+ Cable | 10 Gbps | Passive DAC | Lifetime Warranty
Main Image
Product Images
Product Name 1 6ft SFP Direct Attach Cable Cisco Compatible Product Number SFPH10GBC05M UPC 065030875530 Lifecycle status Active Warranty Lifetime Taxonomy Product > Networking > SFP Transceivers Category Level 1 Networking Category Level 2 SFP Transceivers Category Level 3 Cisco Compatible Cables Family Cisco Compatible - 10G SFP+ Cables - Twinax Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX169X Country of Origin History (2) China Country of Origin Revision (2) XXXXXX056X Product Title (Ultra-Short) 0.5m SFP+ DAC Cable Product Title (Short) 0.5m SFP+ DAC SFP-H10GB-CU0-5M Product Title (Medium) Cisco SFP-H10GB-CU1M Comp SFP+ DAC Twinax Cable - 0.5 m (1.6 ft) - RJ45 Copper Product Title (Standard) 0.5m 10G SFP+ to SFP+ Direct Attach Cable for Cisco SFP-H10GB-CU0-5M 10GbE SFP+ Copper DAC 10Gbps Passive Twinax Product Title (Long) Cisco SFP-H10GB-CU0-5M Compatible 0.5m 10G SFP+ to SFP+ Direct Attach Cable Twinax - 10GbE SFP+ Copper DAC 10 Gbps Low Power Passive Mini GBIC/Transceiver Module DAC Firepower ASR9000 ASR1000 Product Title (AMZ) Cisco SFP-H10GB-CU0-5M Compatible 0.5m 10G SFP+ to SFP+ Direct Attach Cable Twinax - 10GbE SFP+ Copper DAC 10Gbps Low Power Passive Transceiver Module DAC Firepower ASR9000 (SFPH10GBC05M) Title Ingram (Part 1) Cisco SFP-H10GB-CU50CM Comp Title Ingram (Part 2) SFP+ Twinax Copper Cable - RJ45 Website Product Headline Copper SFP+ Cable | 10 Gbps | Passive DAC | Lifetime Warranty Bullet 1 TECHNICAL SPECS: 0.5m (1.6ft) | 10 Gbps | Passive Twinax (Copper) | 2x SFP+ Pluggable Connector | 100 Ohm Impedance | 30 AWG Wire Gauge | PVC Cable Jacket | Hot swappable | MSA Compliant Bullet 2 TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches Bullet 3 OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the cable itself, not your equipment; our cables won't void your OEM support and with access to our Tech Advisors 5/24. Bullet 4 WORKS WITH MSA COMPLIANT SWITCHES: Low power 10GbE DAC also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules and transceivers Bullet 5 Hot-swappable Bullets (Compact) 100% Cisco SFP-H10GB-CU0-5M Compatible 0.5m 10G direct attach cable - 10 Gbps Passive Twinax Copper Low Power 2x SFP+ Pluggable Connector 10GbE Mini GBIC/Transceiver DAC for Firepower | ASR9000 | ASR1000 Hot-Swappable MSA Compliant Lifetime Warranty Bullets (Consolidated) 100% Cisco SFP-H10GB-CU0-5M compatible 10G direct attached cable - 0.5m/1.6' Cable | 10 Gbps | Passive Twinax (Copper) | 2x SFP+ Pluggable Connector | 100 Ohm Impedance | 30 AWG | PVC Jacket - 10GbE Low Power Mini GBIC/Transceiver Module DAC for edge networks/server rooms/data centers - For Cisco switches Firepower | ASR9000 | ASR1000 | C9300 | C3850 | NCS540 | C9500 - Hot-Swappable and MSA Compliant - StarTech.com lifetime warranty and will not void your OEM warranty Marketing Copy Marketing Copy (No HTML) Applications - Use in 10Gb Ethernet network applications
- Point-to-point in-rack server or network switch connections
Website Search Keyword - 0.5M SFP+ Cable
- 10G Cisco Compatible Cable
- 10G DAC Cable
- 10g sfp+ cable
- 10g sfp+ dac cable
- 10gb sfp+ cable
- 10gb twinax cable
- 10gbe cable
- Cisco DAC Cable
- cisco passive twinax cable
- cisco sfp cable
- Cisco SFP-H10GB-CU1M
- Cisco twinax cable
- DAC Cable
- direct attach cable
- Passive sfp+ cable
- passive twinax cable
- sfp cable
- sfp+ cable
- SFP+ DAC Cable
- sfp+ direct attach cable
- SFP+ Passive Cable
- SFP+ Passive twinax Cable
- sfp+ to sfp+
- SFP+ twinax cable
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Related Products - SFPH10GBCU15
- SFPH10GBCU25
- SFPH10GBCU6M
Power Consumption (In Watts) < 0.5 W (per end) Cable Length (mm) 500 Color Black Material Steel Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Steel Product Length (mm) 500.000 Product Width (mm) 14.000 Product Height (mm) 12.000 Product Weight (g) 57.000 Storage Temperature -40°C to 80°C (-40°F to 158°F) TAA Compliant No Wire Gauge 30 AWG Compatible Networks 10 Gbps Impedance (Ohm) 100 Ohm Maximum Data Transfer Rate 10Gbps Cable Jacket Material PVC - Polyvinyl Chloride Cable Type Passive Copper Cable SFP Compatible Brand Cisco Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 255 Carton Height (mm) 295 Carton Quantity 10 Carton Weight Gross (g) 3621 Included in Package 1 - SFP+ cable Number of Sub-Cartons 1 Package Depth (mm) 198 Package Height (mm) 19 Package Width (mm) 193 Package Quantity 1 Package Weight (g) 74 Packaging Description 0.5m (1.6ft) 10Gb Passive Twinax Cable - SFP-H10GB-CU0-5M Compatible SFP+ Packaging Description India 0.5m (1.6ft) 10Gb Passive Twinax Cable - SFP-H10GB-CU0-5M Compatible SFP+ Sub-Carton Depth (mm) 248 Sub-Carton Height (mm) 77 Sub-Carton Width (mm) 257 Sub-Carton Quantity 10 Sub-Carton Weight (g) 686 Connector 1 SFP+ (10Gbps) Connector 1 (Quantity) 1 Connector 2 SFP+ (10Gbps) Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2017-09-01 Buying Center - AV & Collaboration No Buying Center - Data Center Yes Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2017-11-24 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FI,FR,IE,IN,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2017-10-13 Target Production Release 2017-11-24 Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle None
