SLMPT2HD

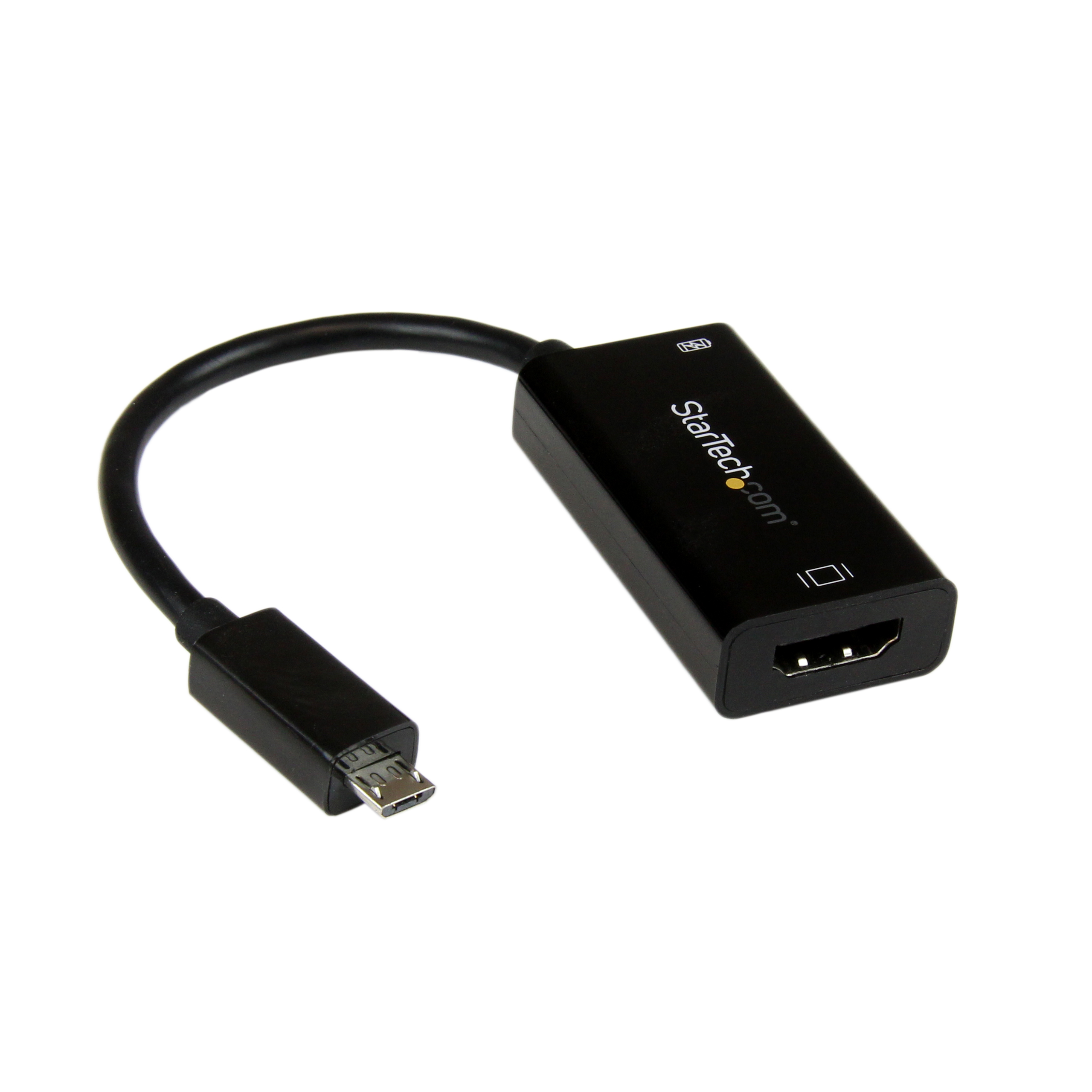

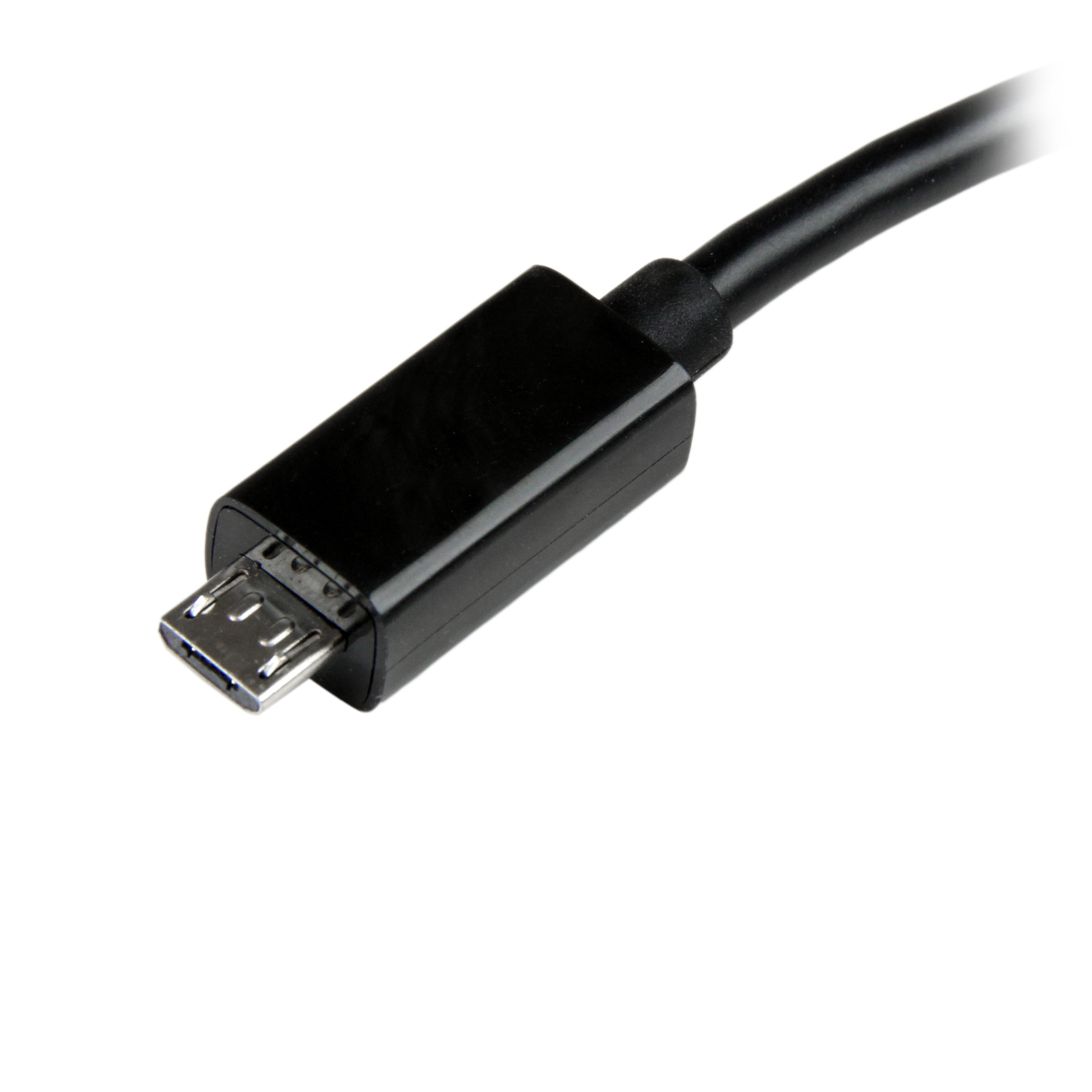

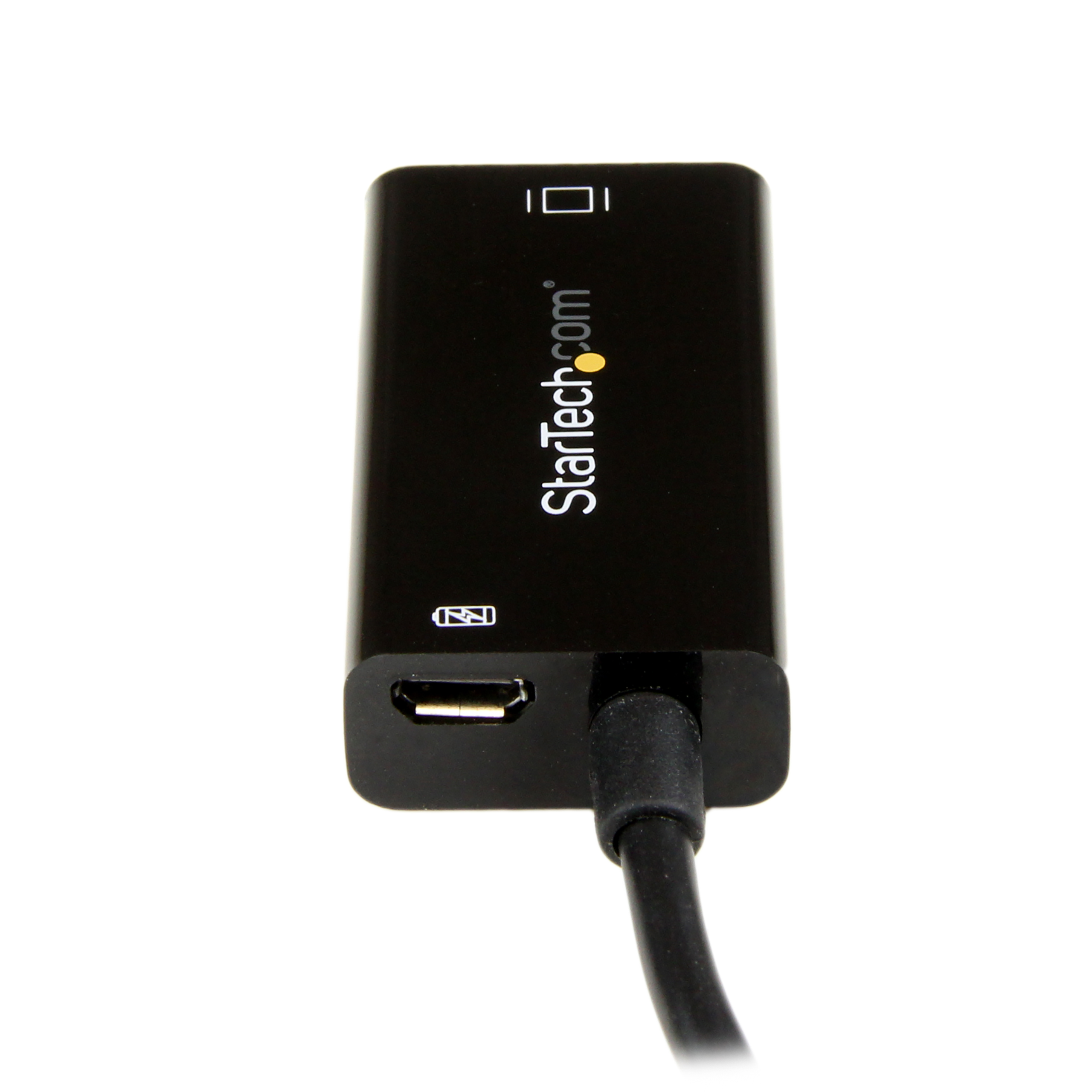

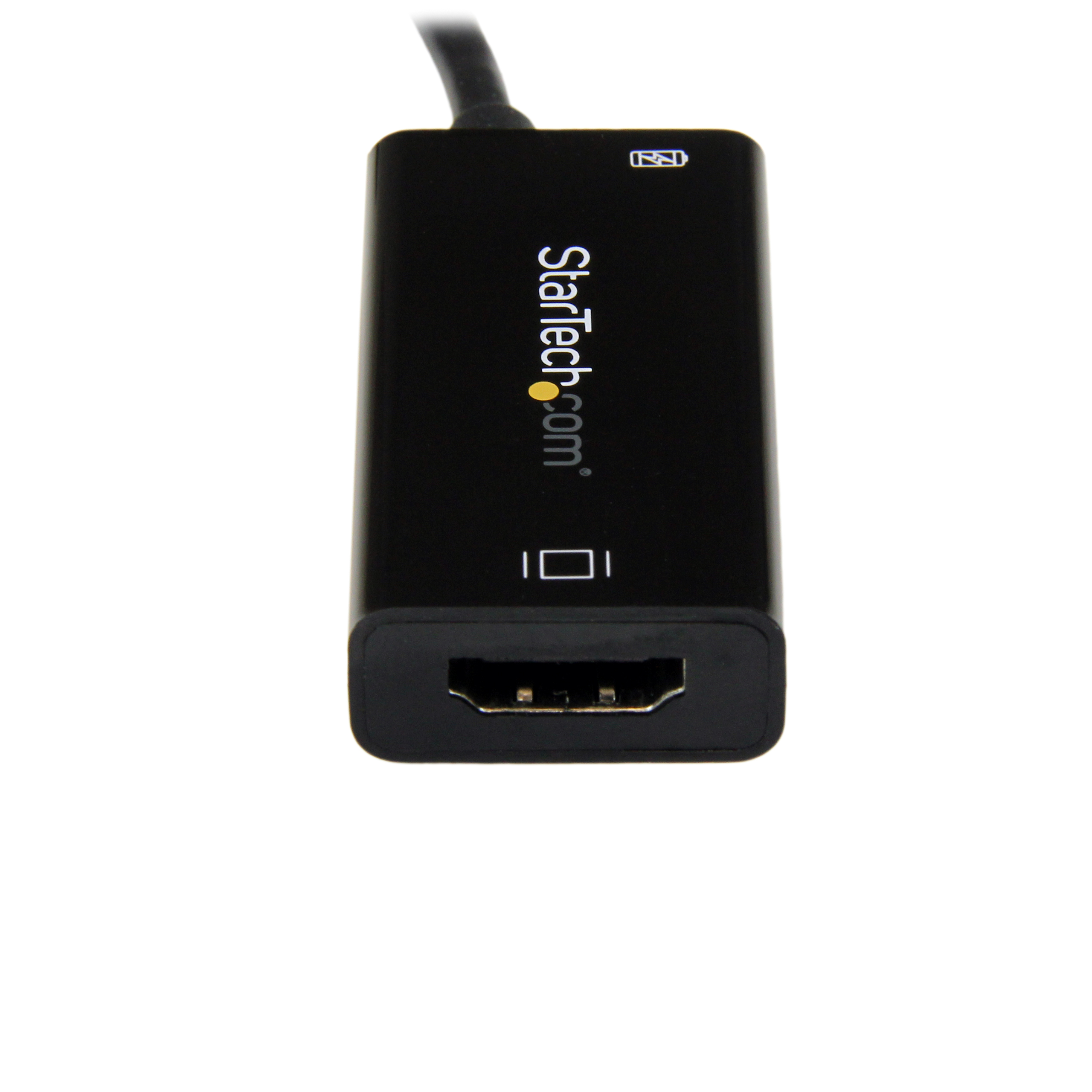

SlimPort MyDP to HDMI Converter - SlimPort Adapter
Connect your SlimPort or MyDP enabled mobile device to an HDTV, monitor or projector using HDMI
Main Image
Product Images
Product Images
Product Images
Product Name SlimPort MyDP to HDMI Converter - SlimPort Adapter Product Number SLMPT2HD UPC 065030851367 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Display and Video Adapters Category Level 2 DP and MDP Display Adapters Category Level 3 Slimport Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX012X Product Title (Ultra-Short) SlimPort to HDMI Product Title (Short) SlimPort (MyDP) to HDMI Adapter Product Title (Medium) x Product Title (Standard) SlimPort / MyDP to HDMI Video Adapter Converter – 1080p Product Title (Long) SlimPort / MyDP to HDMI Video Adapter Converter – 1080p Product Title (AMZ) SlimPort / MyDP to HDMI Video Adapter Converter – SlimPort to HDMI Adapter - MyDP SlimPort Adapter - 1080p - Black (SLMPT2HD) Title Ingram (Part 1) SlimPort / MyDP to HDMI Adapter Title Ingram (Part 2) Converter – SlimPort Adapter Website Product Headline Connect your SlimPort or MyDP enabled mobile device to an HDTV, monitor or projector using HDMI Bullet 1 1080p HD video output Bullet 2 Supports simultaneous charging when a Micro USB charge cable is attached to the mobile device Bullet 3 Digital audio supported Bullet 4 TV remote control on your mobile device with CEC supporting HDTVs Bullets (Consolidated) Connect your SlimPort or MyDP enabled mobile device to an HDTV, monitor or projector using HDMI - SlimPort Adapter - Compatible with SlimPort-enabled mobile devices such as the Google Nexus 5/7 HDMI-enabled displays - MyDP SlimPort/MyDP adapter/Bus Powered MyDP/SlimPort to HDMI Adapter Converter/Connect your mobile device to an HDMI display Marketing Copy Applications - Connect a Slimport or MyDP enabled device such as a Nexus 4 or Nexus 7 to a television, monitor or projector through HDMI
- Display video with supporting audio, or share pictures on a full-sized HDMI-capable display
Website Search Keyword - SlimPort Adapter
- Android Video adapter
- smart phone video Adapter
- Micro USB to HDMI
- SLMPT2HDN7
- GN5SLMPT2HD
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Accessory Products - HDMM6
- HDMM10
- HDMM15
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- UUSBHAUB3
- UUSBHAUB6
- UUSBHAUB10
Cable Length (mm) 100.00 Color Black Humidity 20%-80% Material Plastic Operating Temperature 5°C to 95°C (41°F to 113°F) Product Length (mm) 124.000 Product Width (mm) 26.000 Product Height (mm) 12.000 Product Weight (g) 20.000 Storage Temperature 0°C to 70°C (32°F to 158°F) TAA Compliant No Audio Specifications HDMI - 7.1 Channel Audio HDR Support No Maximum Cable Distance To Display 15200 Maximum Cable Length (mm) 15245 Maximum Digital Resolutions 1080p Maximum Supported Resolution 1080p OS Compatibility Android Video Output Port HDMI Wide Screen Supported Yes Active or Passive Adapter Active Audio Yes AV Input Micro USB (Slimport/MyDP) AV Output HDMI - 1.4 Chipset ID Analogix - ANX7730 Converter Type Mobile Converters Number of Displays 1 Carton Depth (mm) 332 Carton Height (mm) 210 Carton Quantity 200 Carton Weight Gross (g) 6100 Included in Package 1 - SlimPort®/MyDP to HDMI® Adapter Number of Sub-Cartons 20 Package Depth (mm) 125 Package Height (mm) 13 Package Width (mm) 225 Package Quantity 1 Package Weight (g) 22 Packaging Description SlimPort/MyDP Adapter – Micro USB to HDMI Packaging Description India SlimPort/MyDP Adapter – Micro USB to HDMI Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Quantity 10 Sub-Carton Weight (g) 286 Connector 1 USB Micro-B (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 USB Micro-B (Slimport/MyDP) Connector 2 (Quantity) 1 Connector 3 HDMI Connector 3 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2013-04-22 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AU,BE,CA,DE,DK,ES,EU,FR,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Brian Linseman Technical Writer Andrew Richardson
