SLSATAF12

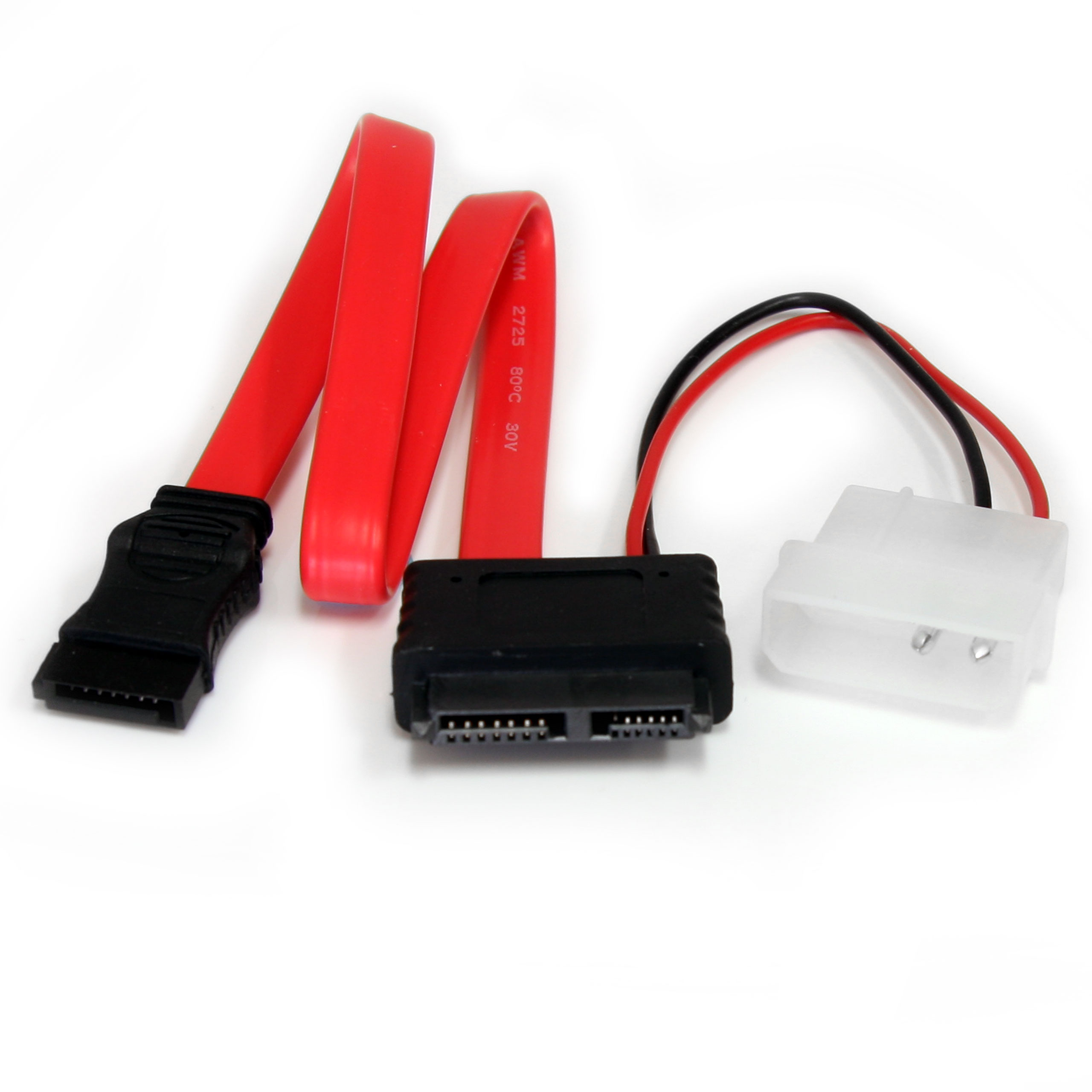

12in Slimline SATA to SATA Cable Adapter
Connect a slimline SATA drive to a standard SATA motherboard connector
Main Image
Product Images
Product Images
Product Images
Product Name 12in Slimline SATA to SATA Cable Adapter Product Number SLSATAF12 UPC 065030843294 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cables > Internal Data & Power Category Level 1 Cables - Other Category Level 2 Drive Cables Category Level 3 SATA Cables Family Slimline SATA to SATA with LP4 Power Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX087X Product Title (Ultra-Short) 12in Slimline SATA Product Title (Short) 12in Slimline SATA to SATA Cable Product Title (Medium) . Product Title (Standard) 12in Slimline SATA to SATA w/ LP4 Adapter Product Title (Long) 12in Slimline SATA to SATA with LP4 Power Cable Adapter Product Title (AMZ) 12in Slimline SATA to SATA with LP4 Power Cable Adapter (SLSATAF12) Title Ingram (Part 1) 12in Slimline SATA to SATA w/ LP Title Ingram (Part 2) 4 Power Cable Adapter Website Product Headline Connect a slimline SATA drive to a standard SATA motherboard connector Bullet 1 1x SATA connector Bullet 2 Compatible with Slimline SATA optical drives Bullet 3 1x LP4 power connector Bullet 4 1x Slimline SATA connector Bullet 5 Supports full SATA 3.0 6Gbps bandwidth Bullets (Consolidated) SATA cable - Serial ATA 150/300/600 - Slimline SATA (F) to SATA - 4 pin internal power (12V) - 1 ft - red Marketing Copy Applications Add a Slimline optical drive to a desktop PC Website Search Keyword 12in Slimline SATA to SATA LP4 Power Cable Adapter serial ata port connector Required Regulatory Compliance Marks - CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- TSCA - Environmental - United States - EPA TSCA Title VI Compliant
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- Triman/Info-Tri - Packaging - Waste - European Union - Plastic Bag
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene
Related Products - SLSATAADAP
- SLSATA20EXT
- SLSATAF20
- SLSATAF20RA
- SLSATAF36
- SLSATAM20
Cable Length (mm) 304.8 Color Red Connector Style Straight Humidity 40% - 60% Operating Temperature 20°C ~ 80°C (68°F ~ 176°F) Primary Material Plastic Product Length (mm) 304.800 Product Width (mm) 7.800 Product Height (mm) 915.000 Product Weight (g) 32.000 Storage Temperature 23°C ~ 25°C (73°F ~ 77°F) TAA Compliant No Wire Gauge 26 AWG (0.404 mm) SATA Type and Rate SATA III (6 Gbps) Cable Jacket Material PVC - Polyvinyl Chloride Carton Depth (mm) 338 Carton Height (mm) 218 Carton Quantity 200 Carton Weight Gross (g) 5300 Included in Package 1 - 12in Slim SATA to SATA & LP4 cable Included In Package for Label 1 - 12In Slim SATA To SATA & LP4 Cable Number of Sub-Cartons 20 Package Depth (mm) 69 Package Height (mm) 19 Package Width (mm) 168 Package Quantity 1 Package Weight (g) 22 Packaging Description Slimline SATA to SATA with LP4 Power Cable Packaging Description India Slimline SATA to SATA with LP4 DC Cable Sub-Carton Depth (mm) 142 Sub-Carton Height (mm) 50 Sub-Carton Width (mm) 235 Sub-Carton Quantity 10 Sub-Carton Weight (g) 246 Connector 1 Slimline SATA (13-Pin) Connector 1 (Quantity) 1 Connector 2 SATA (7-Pin) Connector 2 (Quantity) 1 Connector 3 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IN,IT,JP,NL,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Ray Aoki Product Photographer Caleigh Le Grand Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
