SM21BMU31CI3
USB 3 1 Gen 2 to M 2 NGFF SATA Enclosure with Integrated Typ
Portable M.2 SATA to USB Adapter | Attached USB-C Cable
Main Image
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name USB 3 1 Gen 2 to M 2 NGFF SATA Enclosure with Integrated Typ Product Number SM21BMU31CI3 UPC 065030883047 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > External Drive Enclosures Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 M.2 SATA Enclosures - USB-C 10Gbps Family M.2 SATA Enclosures - USB-C 10Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX157X Product Title (Ultra-Short) M.2 SATA Enclosure Product Title (Short) Enclosure - M.2 SATA SSD, USB 3.1, USB-C Product Title (Medium) M.2 SSD Enclosure for M.2 SATA Drives - USB 3.1 - USB C M.2 External Enclosure Product Title (Standard) M.2 SSD Enclosure for M.2 SATA Drives - USB 3.1 Gen 2 - M.2 External Enclosure for USB-C Laptop - M.2 SATA USB Adapter Product Title (Long) M.2 SSD Enclosure for M.2 SATA Drives - USB 3.1 (10Gbps) - USB-C Product Title (AMZ) M.2 SSD Enclosure for M.2 SATA Drives - USB 3.1 G - USB-C - Portable M.2 External Enclosure (SM21BMU31CI3) Title Ingram (Part 1) M.2 SSD Enclosure for M.2 SATA Title Ingram (Part 2) Drives - USB 3.1 Gen 2 - USB-C Website Product Headline Portable M.2 SATA to USB Adapter | Attached USB-C Cable Bullet 1 ADD EXTERNAL STORAGE TO YOUR USB-C LAPTOP: Turn your M.2 NGFF SATA drive into high performance external storage with this M.2 SSD enclosure; Connect it to your MacBook, Dell XPS or other USB Type-C device. Compatible with Thunderbolt 3 USB-C ports Bullet 2 CONNECT TO YOUR M.2 SATA SSD OVER USB 3.2 GEN 2: Experience full SATA III performance from your M.2 SATA SSD over a USB 3.2 Gen 2 (10 Gbps) host connection; Backward compatible with SATA I/II and USB 3.0; Includes mounting screws and screwdriver Bullet 3 TRULY PORTABLE: The compact design (4x2x1.5in/ 11x5x1.4 cm) makes this M.2 SATA hard drive enclosure easily portable; The integrated USB-C cable (6in/15.2cm), means you're always ready to plug it in, without having to remember to bring along a cable Bullet 4 DURABLE ALUMINUM: With this robust SATA M.2 external enclosure, your drive is encased in an aluminum and plastic housing; The built-in ventilation holes aid in heat dissipation to provide an optimum operating temperature for your drive Bullet 5 BROAD M.2 SATA SSD COMPATIBILITY: The M.2 SATA NGFF SSD enclosure supports common M.2 SATA SSDs (B Key / B+M Key) and multiple drive lengths including: 42 mm (2242), 60 mm (2260), and 80 mm (2280); NOTE: Not compatible with M.2 NVMe or AHCI PCI Express SSDs Bullets (Compact) Turn your M.2 NGFF SATA drive into high performance external storage for your USB Type-C laptop - M.2 SSD enclosure for M.2 SATA drives - Fast data transfer with USB 3.1 Gen 2 - Portable M.2 SATA to USB adapter - Integrated USB-C cable - Aluminum Bullets (Consolidated) Turn your M.2 NGFF SATA drive into high performance external storage for your USB Type-C laptop or tablet or desktop computer - USB-C M.2 SSD enclosure for M.2 SATA drives - Portable M.2 SATA to USB adapter provides fast connection to your M.2 SATA SSD over USB 3.1 Gen 2 - USBC M.2 enclosure with attached USB C cable - Compact aluminum SATA M.2 hard drive enclosure (4x2x1.5"/11x5x1.4 cm) with ventilation - SATA M.2 external enclosure works with M.2 SATA SSDs (2242/2260/2280) Marketing Copy Marketing Copy (No HTML) Applications - Ideal for mobile workers needing high-speed access to external data
- Repurpose an M.2 SATA SSD as a USB 3.1 Gen 2 external drive
- Transfer files faster by using a SATA M.2 SSD as your external drive
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes Windows 7 and earlier Windows versions do not support TRIM with USB to SATA devices. Related Products - SAT2510B12U3
- S251BMU313
- S251BPU313
- SAT2510BU3
- SAT3510BU3
- SAT3510U3V
- SM2NGFFMBU33
- SAT32MSATPEX
- 35S24M2NGFF
- SAT2M2NGFF25
- S32M2NGFFPEX
- S2510BMU33CB
- S2510BMU33
- S2510BPU33
- SM21BMU31C3
- M2E1BMU31C
- SM22BU31C3R
Input Voltage 5V DC Output Voltage (V) 5 DC Power Source USB-Powered Cable Length (mm) 160 Color Black Humidity 20% ~ 80% RH Material Aluminum Operating Temperature 5°C to 35°C (41°F to 95°F) Primary Material Aluminum Product Length (mm) 270 Product Width (mm) 50.000 Product Height (mm) 13.000 Product Weight (g) 114 Storage Temperature -20°C to 50°C (-4°F to 122°F) TAA Compliant No General Specifications Not compatible with M.2 NVMe or AHCI PCI-Express SSDs Maximum Data Transfer Rate 6 Gbps MTBF (hours) 50,000 hours OS Compatibility OS Independent SATA Type and Rate SATA III (6 Gbps) TRIM Support Yes UASP Support Yes USB Type and Rate USB 10Gbps Bus Type USB 3.2 Gen 2 Chipset ID JMicron - JMS580 Compatible Drive Types - M.2 (SATA, B-Key, NGFF)
- M.2 (SATA, B+M-Key, NGFF)
Interface/Bridge USB 3.2 Gen 2 LED Indicators 1 - Power & Activity Number of Drives 1 Supported Drive Height(s) - 2242
- 2260
- 2280

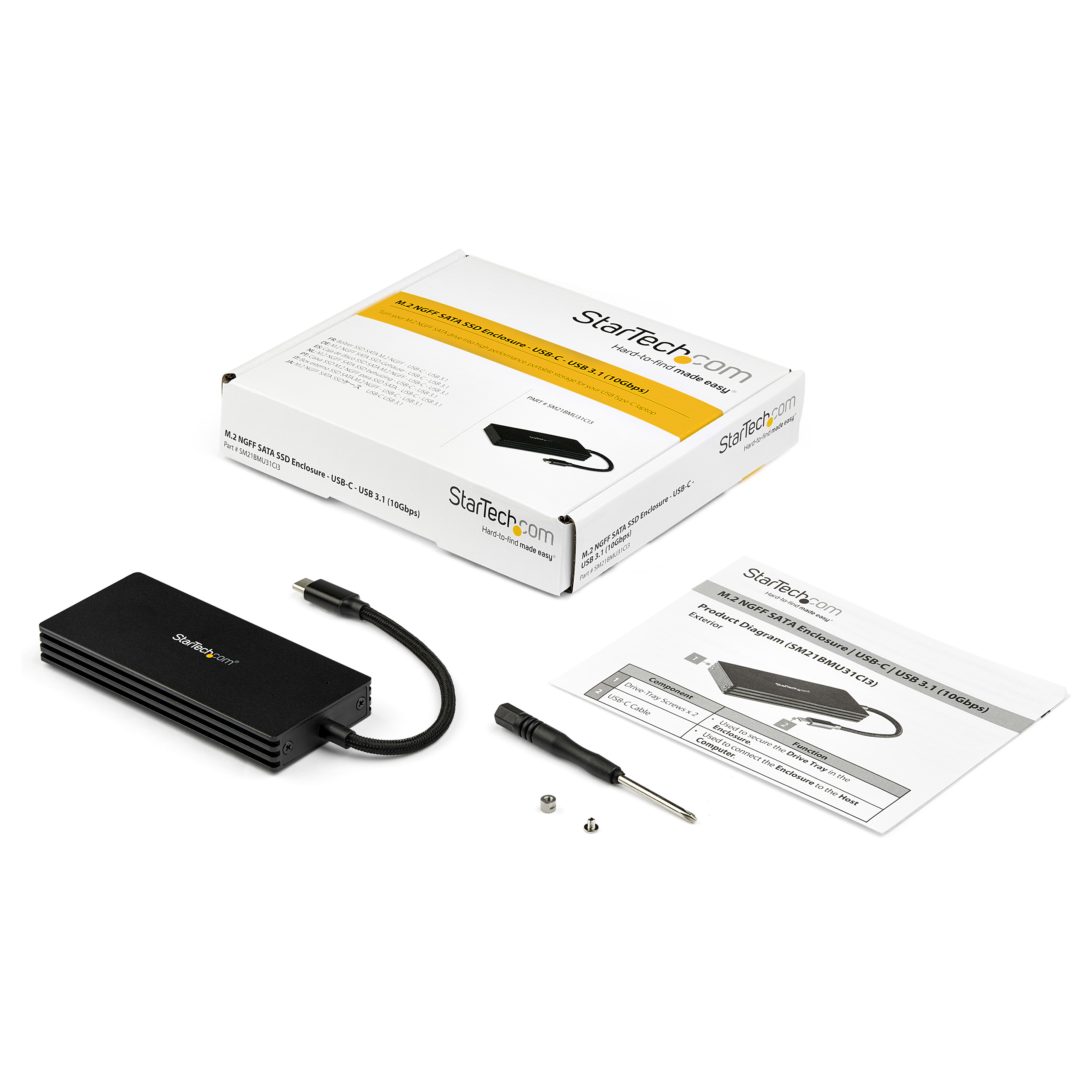

Carton Depth (mm) 335 Carton Height (mm) 320 Carton Quantity 40 Carton Weight Gross (g) 8600 Included in Package - 1 - M.2 SATA Enclosure with Integrated USB-C Cable
- 1 - Screwdriver
- 4 - Assembly Screws
- 1 - Set of Drive-Mounting Hardware
- 1 - Quick-Start Guide
Number of Sub-Cartons 40 Package Depth (mm) 142 Package Height (mm) 30 Package Width (mm) 170 Package Quantity 1 Package Weight (g) 198 Packaging Description M.2 NGFF SATA SSD Enclosure - USB-C - USB 3.1 Packaging Description India M.2 NGFF SATA SSD Enclosure - USB-C - USB 3.1 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Quantity 1 Sub-Carton Weight (g) 0 Connector 1 M.2 B-Key (SATA, AHCI) Connector 1 (Quantity) 1 Host Connector 1 USB-C (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2019-05-10 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2019-05-24 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,IE,IT,JP,MX,NL,NZ,SE,SG,UK,US Primary Technology USB-C Priority New Product N/A Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2019-05-03 Target Production Release 2019-05-17 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
