Main Image
SM22BU31C3R
Dual M 2 SATA Enclosure RAID USB 3 1 Gen 2
Turn two M.2 SATA drives into ultra-fast, portable storage with RAID for increased performance or redundancy
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name Dual M 2 SATA Enclosure RAID USB 3 1 Gen 2 Product Number SM22BU31C3R UPC 065030870757 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > External Drive Enclosures Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 M.2 SATA Enclosures - USB-C 10Gbps Family M.2 SATA Enclosures - USB-C 10Gbps Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX039X Product Title (Ultra-Short) Dual M.2 Enclosure Product Title (Short) Enclosure, Dual M.2 - USB 3.1 - RAID Product Title (Medium) Dual M.2 Enclosure - RAID - M.2 SATA SSD Enclosure - USB 3.1 Gen 2 USB C & USB-A Product Title (Standard) Dual M.2 Enclosure, RAID, M.2 SATA SSD Enclosure, USB 3.1 (10 Gbps), USB-C & USB-A External Enclosure, Aluminum, TAA Product Title (Long) Dual-Slot Drive Enclosure for M.2 SATA SSDs - USB 3.1 (10Gbps) - RAID - TAA Product Title (AMZ) Dual-Slot Hard Drive Enclosure for M.2 SATA SSDs - USB 3.1 (10Gbps) - Aluminum - M.2 to SATA - Raid Drive Enclosure , TAA (SM22BU31C3R) Title Ingram (Part 1) Dual Drive M.2 SATA Enclosure - Title Ingram (Part 2) RAID - USB 3.1 Gen 2 USB C / USB A Website Product Headline Turn two M.2 SATA drives into ultra-fast, portable storage with RAID for increased performance or redundancy Bullet 1 ADD EXTERNAL STORAGE: This laptop hard drive enclosure supports all common M.2 SATA SSDs (solid state drives), and enables you to mount multiple drive sizes: 2230, 2242, 2260, 2280; NOTE: Not compatible with M.2 NVMe or AHCI PCI Express SSDs Bullet 2 ENHANCED PERFORMANCE: This dual M.2 SATA RAID enclosure ensures easy access to your files for data migration and backup; Select from RAID 0, RAID 1, SPAN (BIG), and JBOD to configure your backup mode; SSD TRIM to prolong drive lifespan and performance Bullet 3 DURABLE ALUMINUM: With this robust SATA M.2 external enclosure, your drive is encased in a durable and robust aluminum and plastic housing; Independent activity & status LEDs for each drive Bullet 4 THE IT PRO’S CHOICE: Designed and built for IT Professionals, this TAA compliant dual-slot M.2 SATA RAID enclosure is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance Bullet 5 MAXIMUM COMPATIBILITY: Includes 18.5in (47cm) USB Type-C host cable for newer USB-C enabled devices; Also includes 18.5in (47cm) USB Type-A host cable to ensure backward compatibility with USB 3.0/2.0 devices; Mounting screws and screwdriver included Bullets (Compact) Turn two M.2 SATA drives into ultra-fast portable storage with RAID for increased performance or redundancy - Dual M.2 SATA SSD Enclosure - USB 3.1 Gen 2 (10 Gbps) - For USB-C enabled host incl MacBook, Chromebook Pixel or Dell XPS or USB-A device Bullets (Consolidated) Turn two M.2 SATA drives into ultra-fast portable storage with RAID for increased performance or redundancy - Dual Drive M.2 SATA SSD enclosure for USB-C or USB-A laptop/tablet/smartphone - USB 3.1 Gen 2 (10Gbps) - Works with USB C enabled host incl MacBook or Dell XPS - Supports common M.2 SATA SSDs (Not compatible with M.2 NVMe or AHCI PCI-Express SSDs) - RAID 0/RAID 1/JBOD/BIG - TRIM support - Aluminum - SATA I/II/III - USB Type-C enclosure/USB 3.1 USBC dual M.2 SATA enclosure Marketing Copy Marketing Copy (No HTML) Applications - Professionals in a wide range of industries, from corporate to medical fields, can take advantage of high-speed data access for their USB-C or USB-A enabled laptop, tablet, smartphone or desktop computer
- Mobile professionals can utilize two M.2 (NGFF) SATA SSDs to access, transfer and backup files with faster speeds over USB 3.1 Gen 2 (10Gbps)
- Re-use or re-purpose M.2 SATA drives to expand PC storage or to back up data
- Ideal for protecting drives against dust and other potential hazards
- Access drives for data recovery, backup, or repair
Website Search Keyword - Dual Drive M.2 SATA SSD Enclosure
- Dual Slot M.2 SATA SSD Enclosure
- Dual M.2 SATA SSD Enclosure
- Dual M.2 SATA Enclosure
- Dual M.2 SATA RAID Enclosure
- M.2 SATA RAID Enclosure
- USB 3.1 Gen 2 Dual M.2 SATA SSD Enclosure
- USB C Dual Drive M.2 SATA SSD Enclosure
- USB 3.1 M.2 SSD Enclosure
- m.2 enclosure
- USB 3.1 m.2 enclosure
- Type C enclosure
- USB-C enclosure
- usbc enclosure
- usbc
- USB-C
- M.2 NGFF SATA Enclosure
- M.2 SATA Enclosure
- M.2 SSD Enclosure
- Thunderbolt 3 enclosure
- Thunderbolt 3
- m2
- M2 SSD enclosure
- M.2 data storage
- M2 drive enclosure
- M.2 drive enclosure
- M.2 NGFF SATA Enclosure with USB-C
- USB-C m.2 enclosure
- USB 3.1 M2 enclosure
- U457-2M2-SATAG2
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Special Notes Windows 7 and earlier Windows versions do not support TRIM with USB to SATA devices. Accessory Products - USB3SAUB1
- USB3SAUB3BK
- USB3SAUB3
- USB31CUB1M
Related Products - SMS1BMU313
- SM21BMU31C3
- SM2NGFFMBU33
- S252BU313R
- S251BMU313
- S251BPU31C3
- S251BU31C3CB
- S251BPU313
- S351BU313

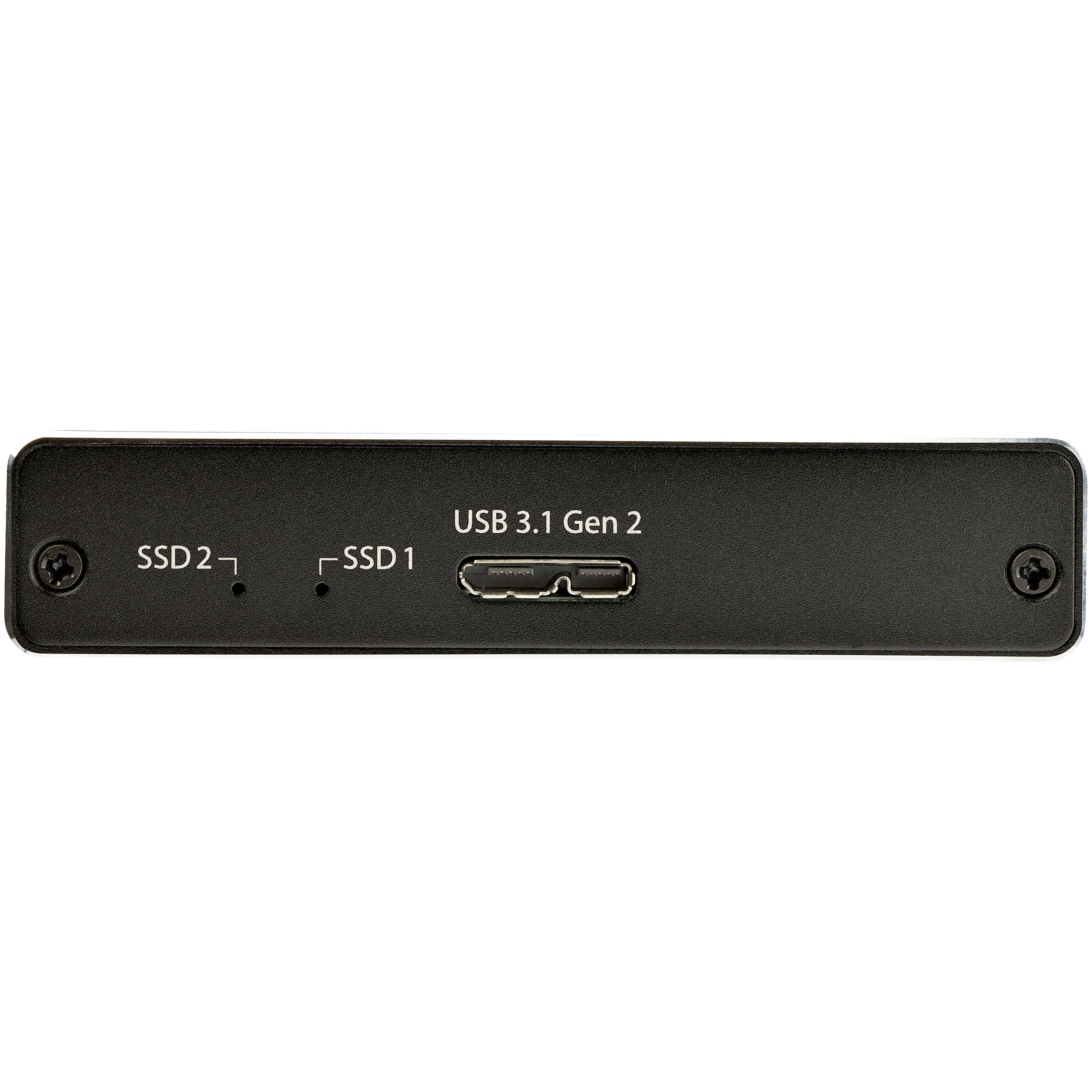

Power Source USB-Powered Color Black Humidity 0% ~ 90% RH Material Aluminum Max Drive Height (mm) 80 Operating Temperature 0°C to 60°C (32°F to 140°F) Primary Material Aluminum Product Length (mm) 100.000 Product Width (mm) 80.000 Product Height (mm) 15.000 Product Weight (g) 96.000 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant Yes 4Kn Support Yes General Specifications Not compatible with M.2 NVMe or AHCI PCI-Express SSDs Max Drive Capacity 2 TB Maximum Data Transfer Rate 10 Gbps MTBF (hours) 35,000 OS Compatibility OS Independent Port Multiplier Yes RAID Yes SATA Type and Rate SATA III (6 Gbps) TRIM Support Yes UASP Support Yes USB Type and Rate USB 10Gbps Bus Type USB 3.2 Gen 2 Chipset ID ASMedia - ASM1352R Compatible Drive Types M.2 (SATA, B-Key, NGFF) Fans Included? Yes/No No Interface/Bridge USB 3.2 Gen 2 LED Indicators - 2 - Read / Write (green)
- 2 - Error / Rebuilt (red)
Number of Drives 2 Supported Drive Height(s) - 2230
- 2242
- 2260
- 2280

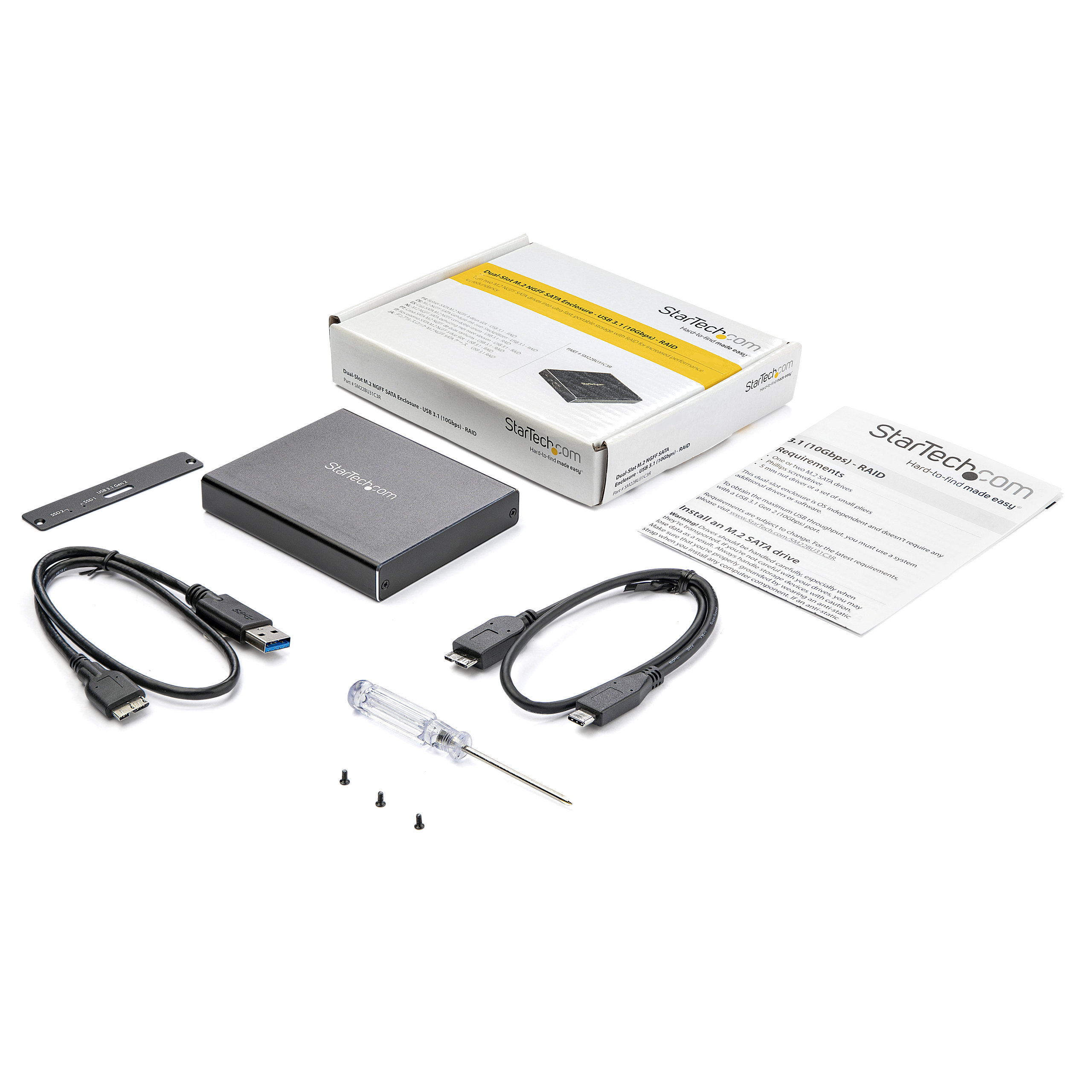

Carton Depth (mm) 487 Carton Height (mm) 337 Carton Quantity 100 Carton Weight Gross (g) 20730 Included in Package - 1 - M.2 SATA enclosure
- 1 - USB-A to Micro-B cable - 18.5 inches
- 1 - USB-C to Micro-B cable - 18.5 inches
- 2 - housing assembly screws
- 2 - sets of M.2 mounting hardware
- 1 - screwdriver
- 1 - quick-start guide
Package Depth (mm) 131 Package Height (mm) 32 Package Width (mm) 162 Package Quantity 1 Package Weight (g) 206 Packaging Description Dual-Slot M.2 NGFF SATA Enclosure - USB 3.1 - RAID Packaging Description India Dual-Slot M.2 NGFF SATA Enclosure - USB 3.1 - RAID Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 M.2 B-Key (SATA, AHCI) Connector 1 (Quantity) 2 Host Connector 1 USB Micro-B (10Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2017-01-06 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2017-01-31 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CO,DE,DK,ES,EU,FR,IE,IT,JP,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2016-12-06 Target Production Release 2017-01-13 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
