SM2NGFFMBU33

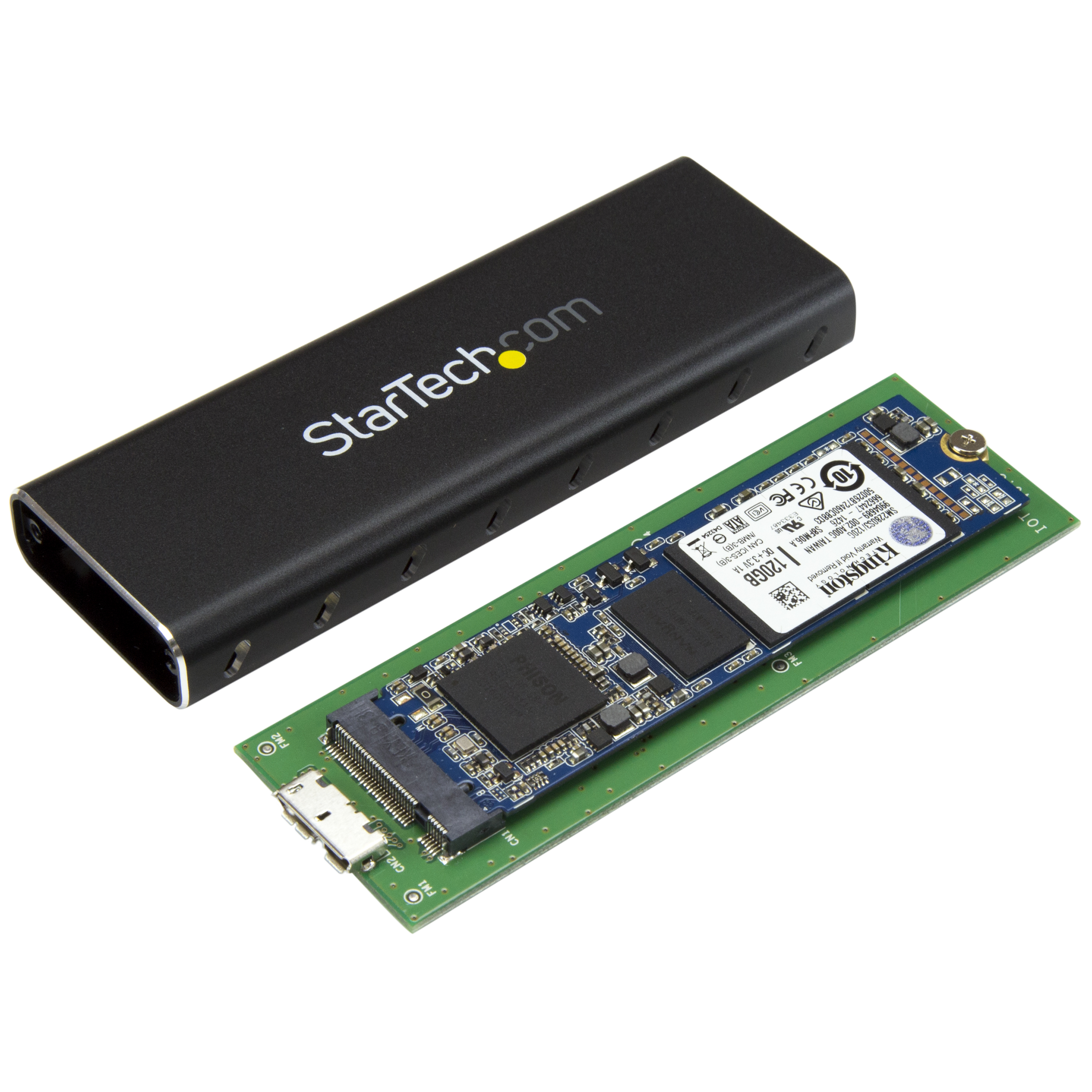

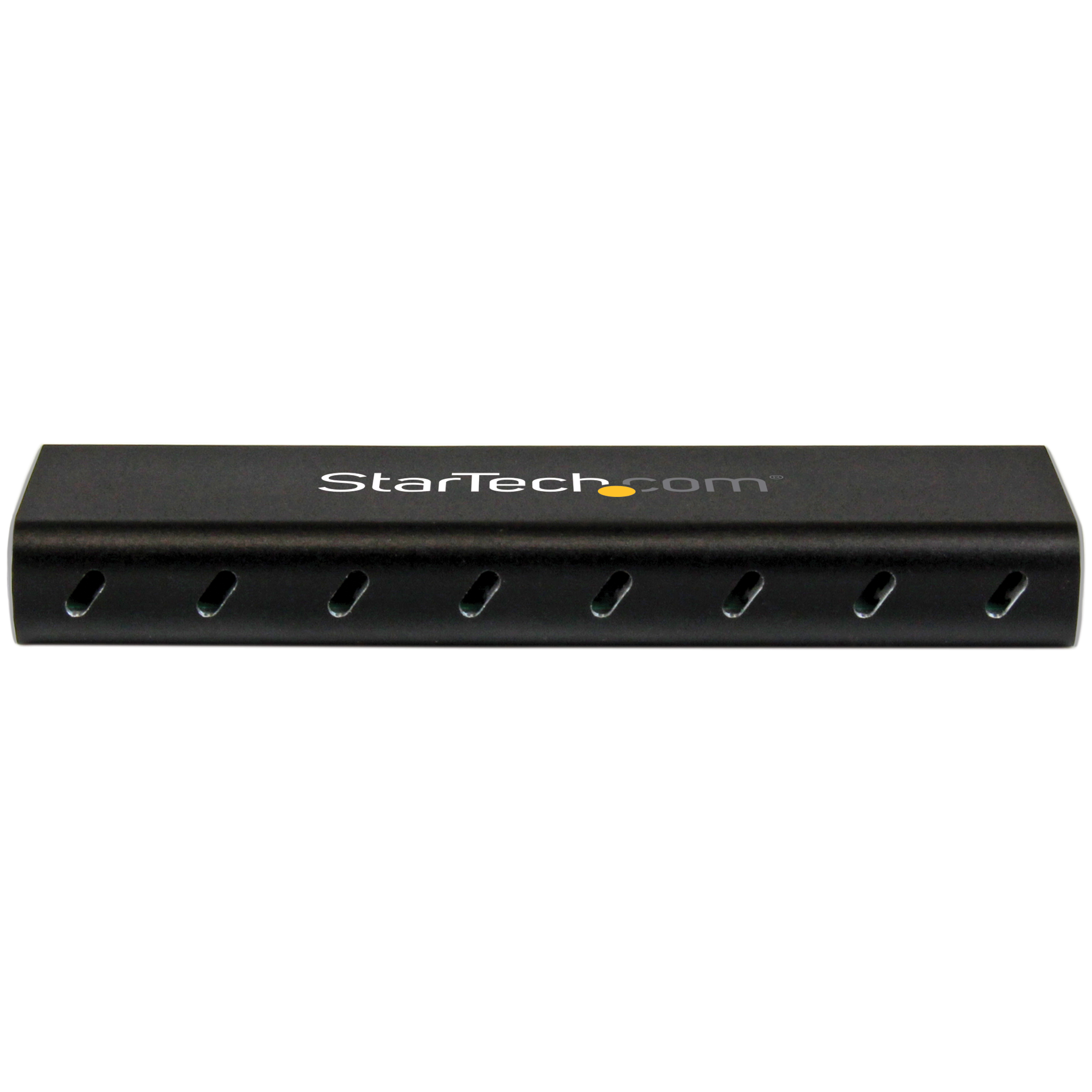

USB 3 0 SATA M 2 External SSD Enclosure with UASP

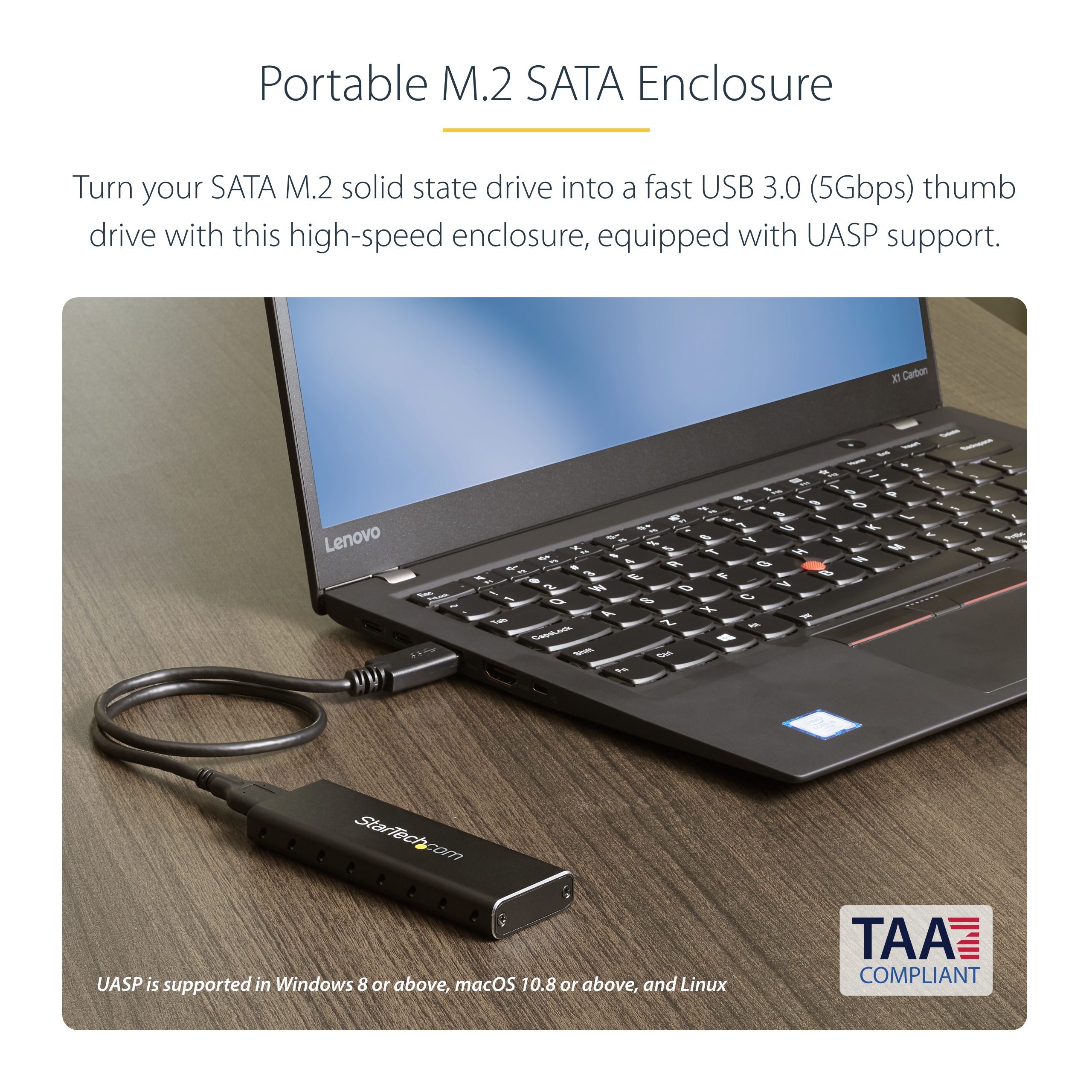

Turn your solid state drive into an ultra-portable pocket drive
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name USB 3 0 SATA M 2 External SSD Enclosure with UASP Product Number SM2NGFFMBU33 UPC 065030859684 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > External Drive Enclosures Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 M.2 SATA Enclosures - USB-A 5Gbps Family M.2 SATA Enclosures - USB-A 5Gbps Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX039X Product Title (Ultra-Short) USB 3.0 to M.2 Product Title (Short) M.2 SSD Enclosure for SATA SSD - USB 3.0 Product Title (Medium) M.2 SSD Enclosure for M.2 SATA SSDs - USB 3.0 (5Gbps) with UASP Product Title (Standard) M.2 SSD Enclosure for M.2 SATA SSDs, USB 3.0 (5Gbps) with UASP, External M.2 SSD Enclosure, Aluminum, TAA Product Title (Long) M.2 SSD Enclosure for M.2 SATA SSDs - USB 3.0 (5Gbps) with UASP - TAA Product Title (AMZ) M.2 SSD Aluminum Enclosure to USB 3.0 (5Gbps) with UASP - Black - M.2 NGFF SATA with B Key & B+M Key - External M.2 Portable Enclosure - Not Compatible with NVMe / AHCI , TAA Title Ingram (Part 1) USB 3.0 to M.2 SATA External Title Ingram (Part 2) SSD Enclosure w/ UASP Website Product Headline Turn your solid state drive into an ultra-portable pocket drive Bullet 1 BROAD COMPATIBILITY: The enclosure supports most common SATA M.2 SSDs including 30mm, 42mm, 60mm and 80mm and is also compatible with SATA revisions I/II/III (1.5 / 3.0 / 6.0 Gbps). Bullet 2 PORTABLE & NO DRIVER INSTALLATION: This black lightweight M.2 SATA SSD enclosure offers perfect portability; It supports any operating system with no additional software or drivers required Bullet 3 INCREASED PERFORMANCE: Boost external performance with this M.2 SDD enclosure by turning your SATA M.2 solid state drive into a high speed USB 3.0 thumb drive; The enclosure also supports UASP Bullet 4 BUILT TO LAST: This portable hard drive enclosure protects your drive from damage; The M.2 NGFF features specially engineered ventilation holes which help maintain a cooler operating environment Bullet 5 NOTE: Not compatible with M.2 NVMe or AHCI PCI-Express SSDs. Please confirm you have a SATA M.2 drive before purchasing by referring to your M.2 drive specifications, or contact the drive manufacturer to confirm Bullets (Compact) Turn your M.2 SATA drive into an ultra-portable pocket drive w/ this M.2 external SSD enclosure - Works w/ USB 3.0 computers such as HP Probook & M.2 SSDs - USB 3.0 hard drive enclosure - M.2 SSD Enclosure - USB 3.0 Enclosure for M2 SATA SSD Bullets (Consolidated) Turn your M.2 SATA drive into an ultra-portable pocket drive w/this M.2 SSD Enclosure for M.2 SATA SSDs - Compatible w/ USB 3.0 computers such as HP Probook and Samsung Chromebook and M.2 SATA solid state drives - M.2 SSD enclosure - Aluminum - Broad compatibility w/ support for the most common M.2 SATA SSDs(Not compatible w/ M.2 NVMe or AHCI PCI-Express SSDs) - USB 3.0 SSD enclosure supports SATA I/II/III - OS independent M.2 SSD enclosure - Re-purpose an M.2 SSD as a USB 3.0 external drive Marketing Copy Marketing Copy (No HTML) Applications - Re-purpose an M.2 SATA SSD as a USB 3.0 external drive
- Carry with your laptop for a highly portable external storage solution
- Transfer files to or from your external drive faster, by using a high performance SATA M.2 SSD as your external drive
Website Search Keyword - M.2 SSD
- M.2
- NGFF
- USB 3.0 to M.2
- usb to M.2
- USB to NGFF
- SATA 6 Gbps SSD enclosure
- SATA 6 Gbps M.2 enclosure
- external M.2
- U457-1M2-SATAG2
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Special Notes Windows 7 and earlier Windows versions do not support TRIM with USB to SATA devices. Accessory Products - ECUSB3S2
- PEXUSB3S2
- ECUSB3S254F
- ECUSB3S1
- PEXUSB3S11
- USB3SAUB1
- USB3SAUB3
- USB3SAUB3BK
- USB3AUB50CMB
- USB3AUB15CMS
- USB3AUB1MS
- USB3AUB2MS
- USB3AUB50CMS
- USB3AUB3MS
Related Products - SAT32MSATPEX
- 35S24M2NGFF
- SAT2M2NGFF25
- S32M2NGFFPEX
- S251SMU33EP
- S2510BMU33CB
- S2510BMU33
- S2510BPU33

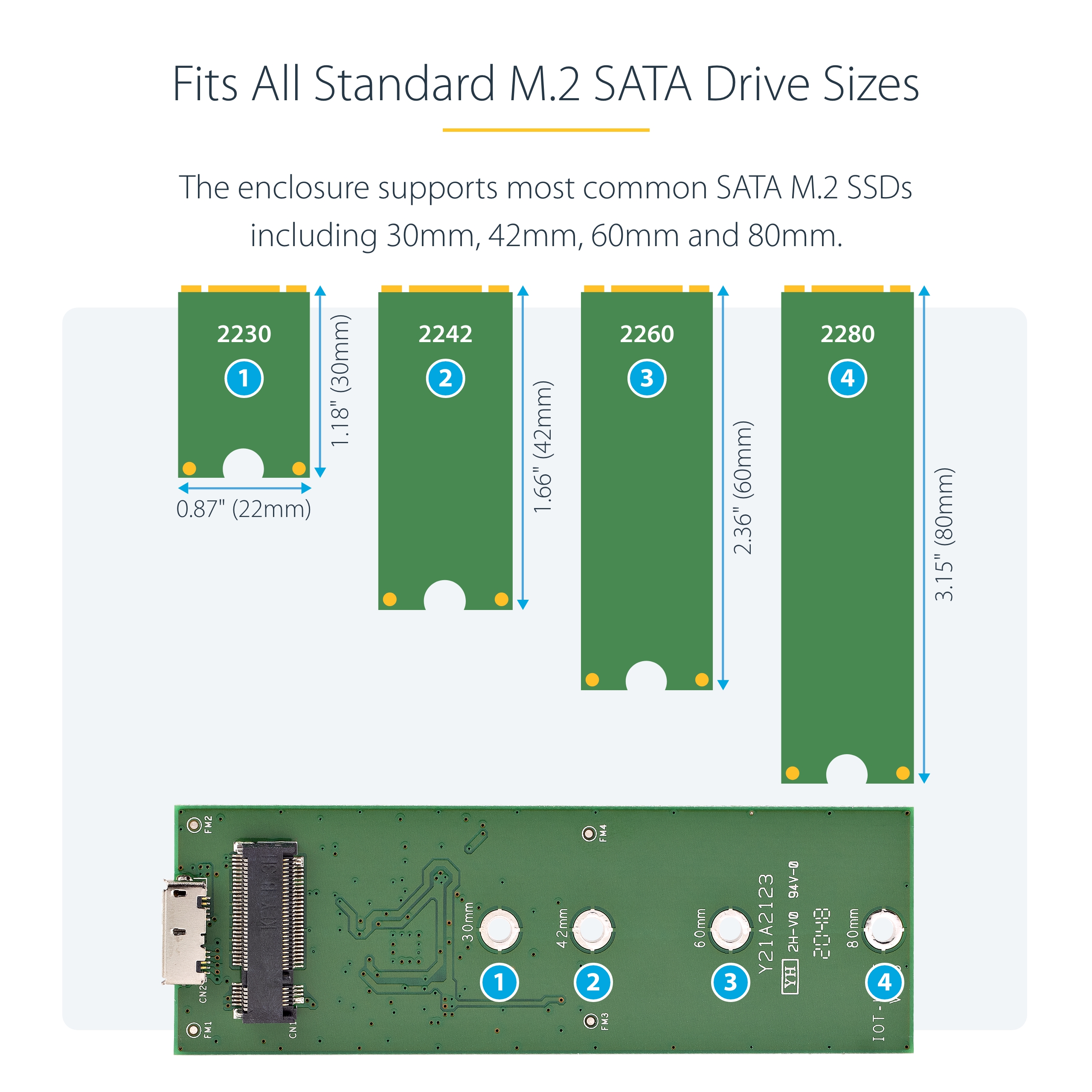

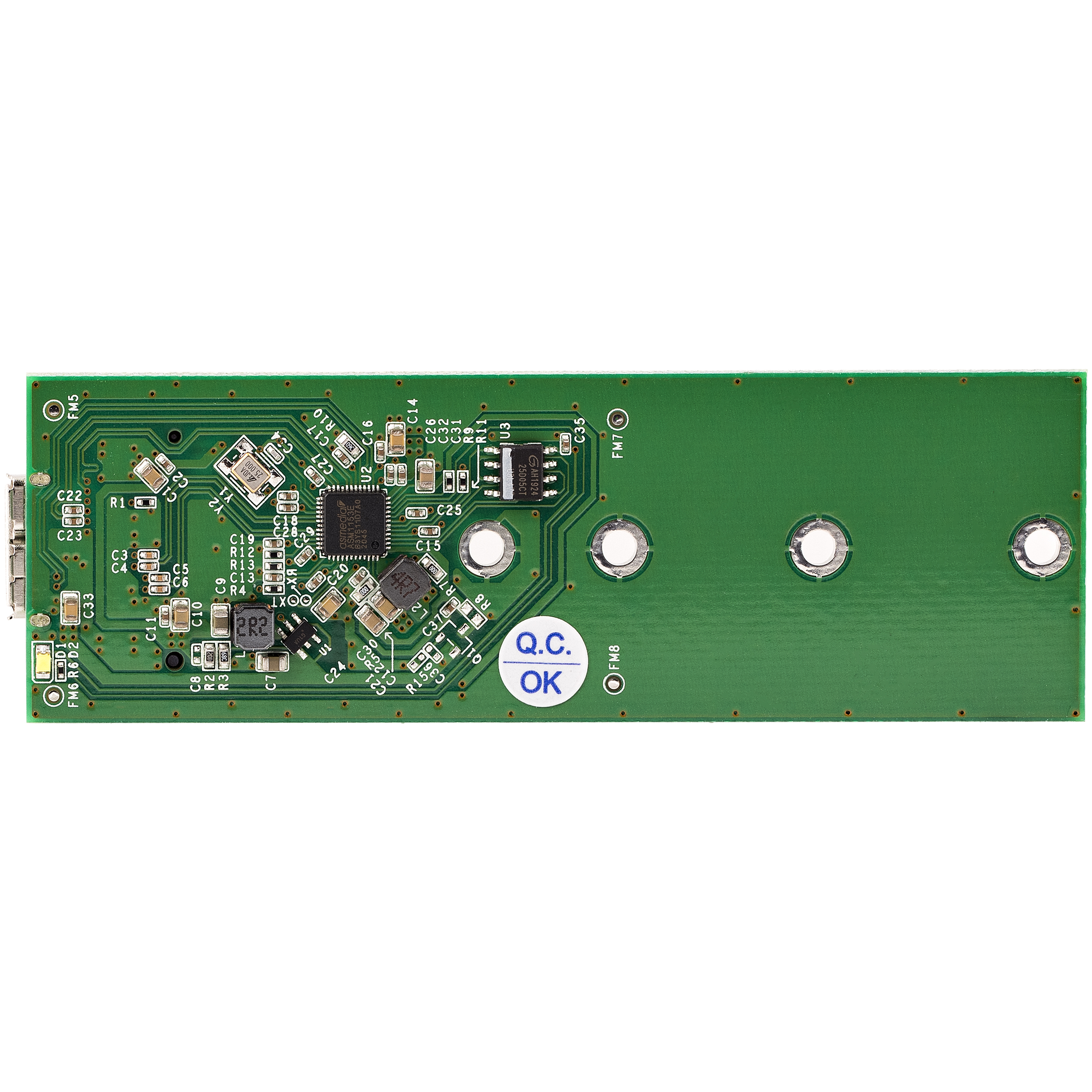

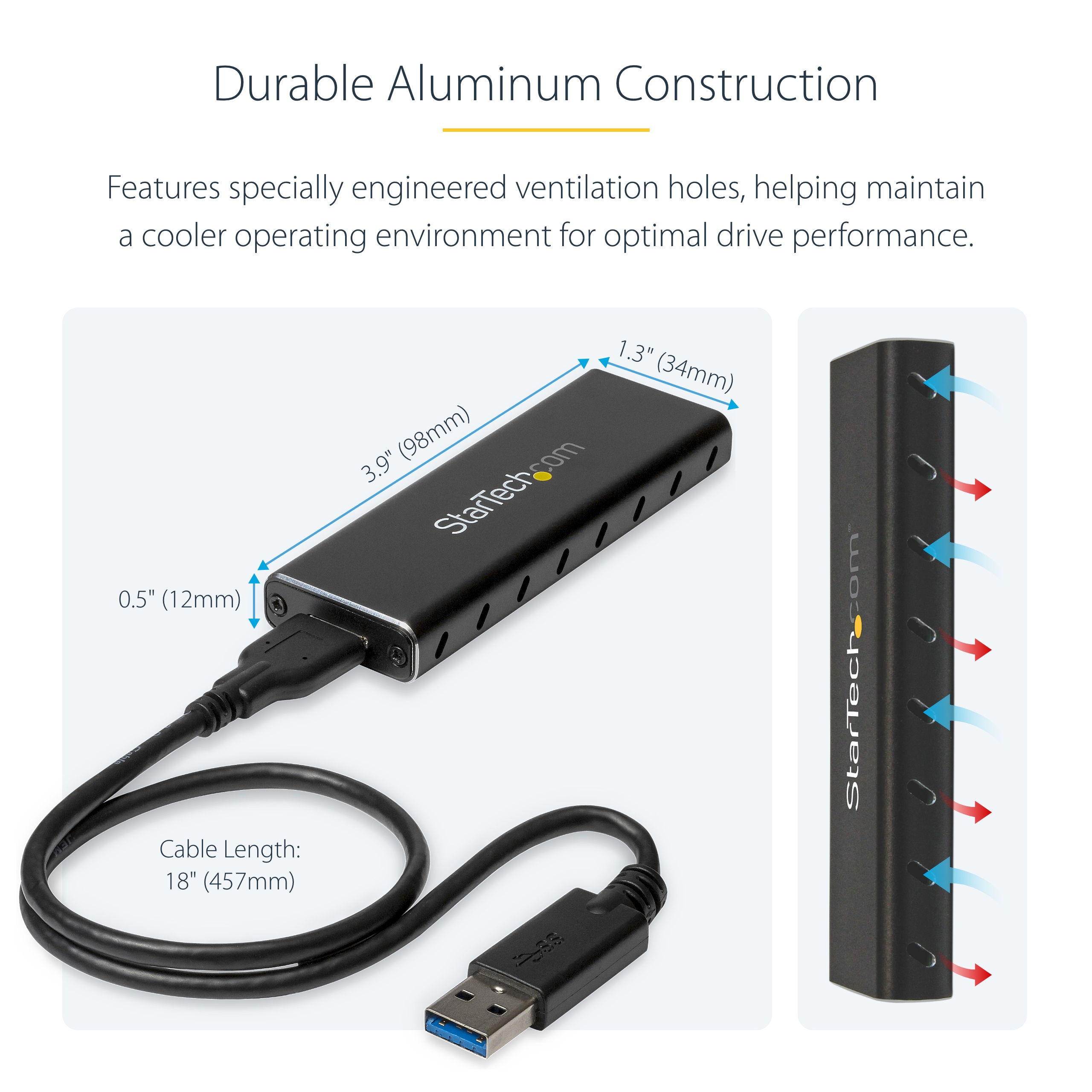

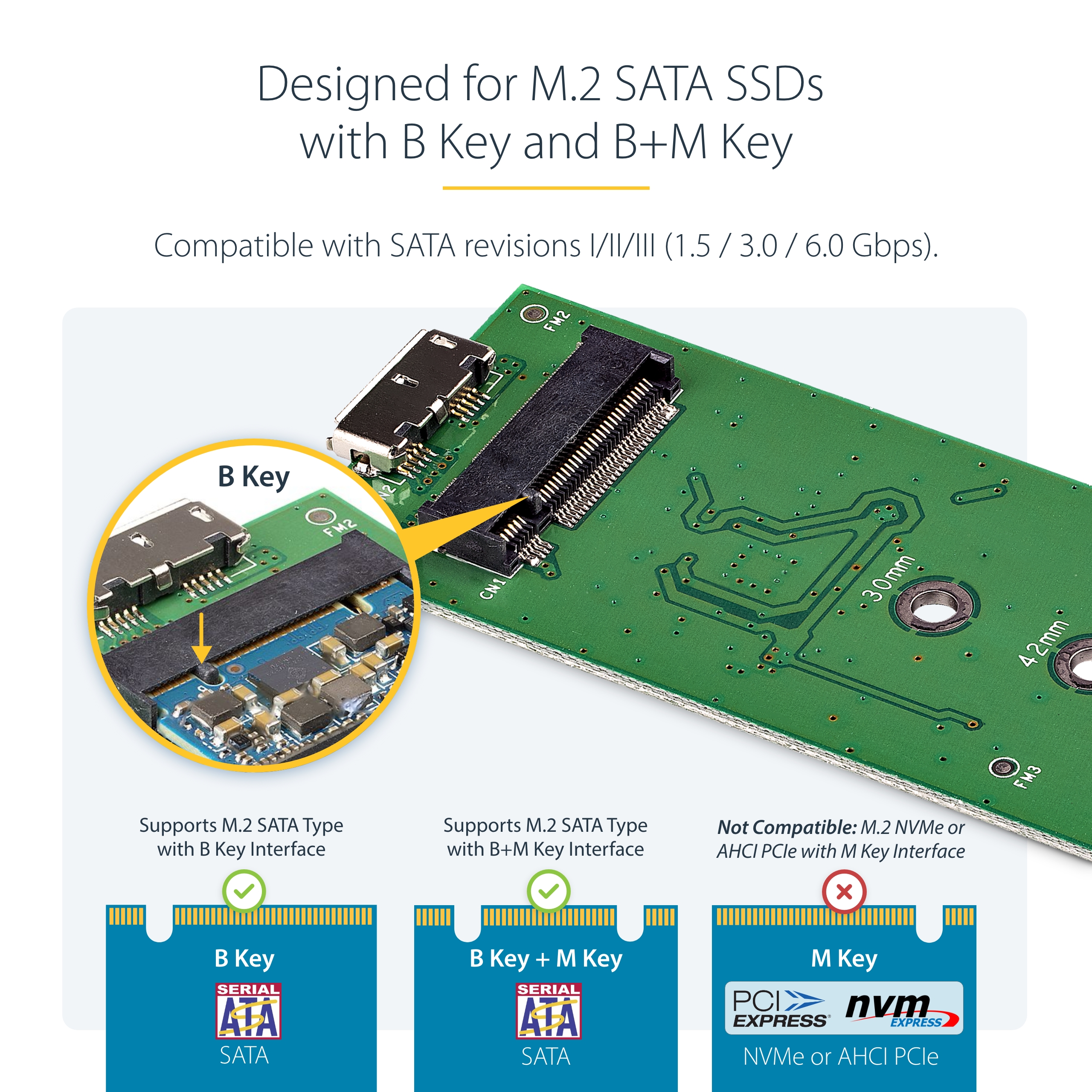

Input Voltage 5V DC Output Voltage (V) 5 DC Power Source USB-Powered Color Black Humidity 5% to 95% RH Material Aluminum Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Aluminum Product Length (mm) 100 Product Width (mm) 35 Product Height (mm) 15 Product Weight (g) 50 Storage Temperature -10°C to 85°C (14°F to 185°F) TAA Compliant Yes 4Kn Support Yes General Specifications Not compatible with M.2 NVMe or AHCI PCI-Express SSDs Maximum Data Transfer Rate 5 Gbps OS Compatibility OS Independent SATA Type and Rate SATA III (6 Gbps) TRIM Support No UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID ASMedia - ASM1153E Compatible Drive Types - M.2 (SATA, B-Key, NGFF)
- M.2 (SATA, B+M-Key, NGFF)

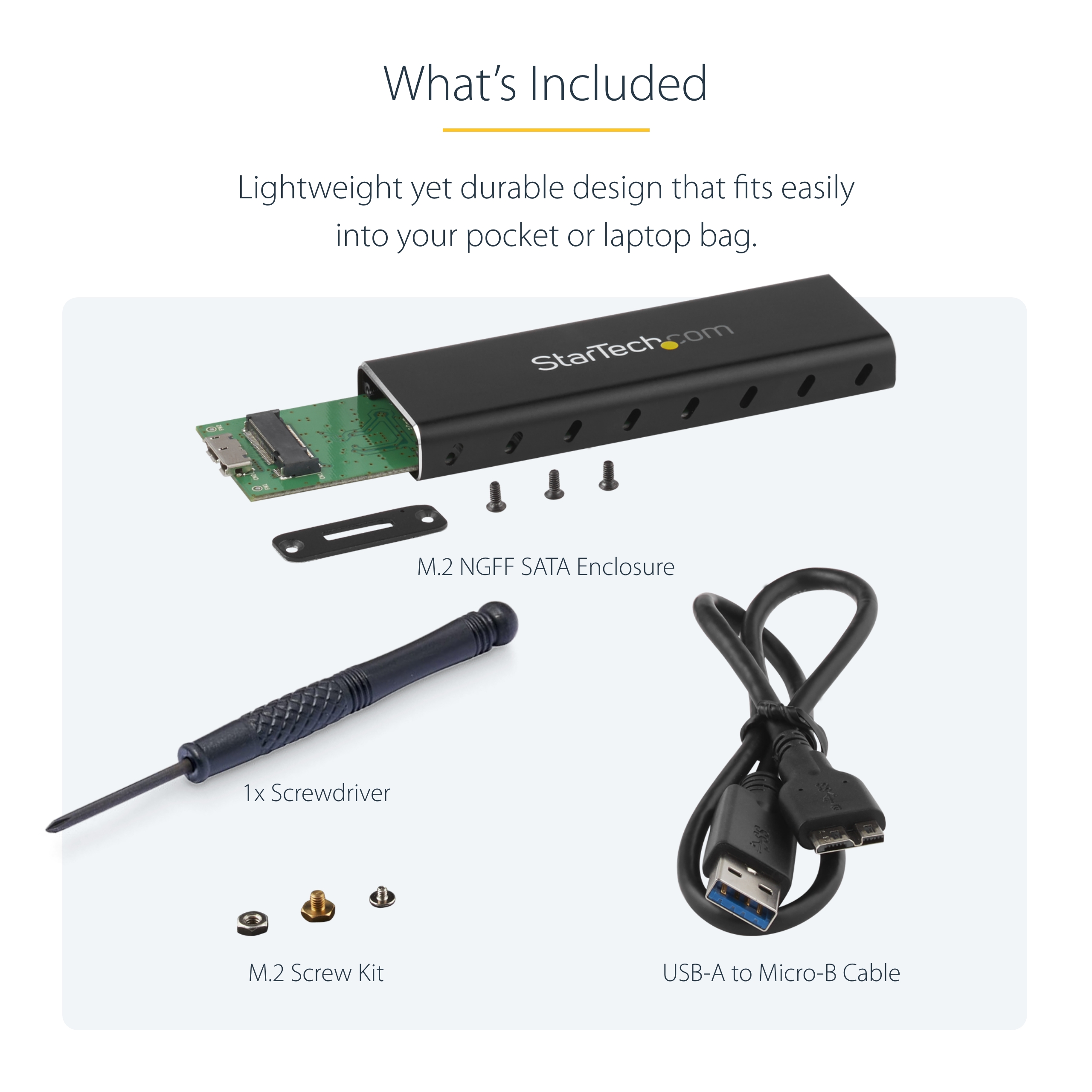

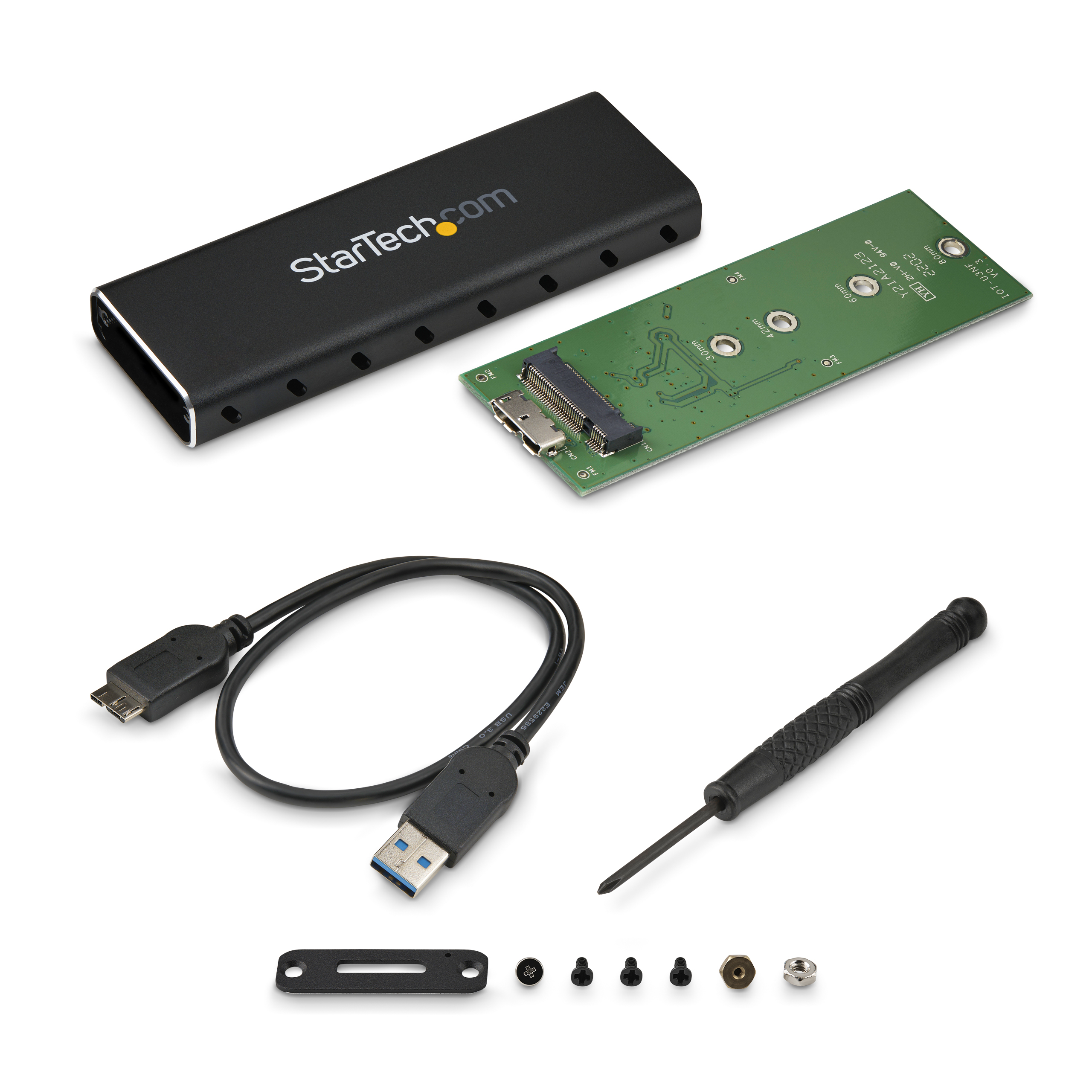

Interface/Bridge USB 3.2 Gen 1 (5Gbps) Number of Drives 1 Carton Depth (mm) 569 Carton Height (mm) 342 Carton Quantity 100 Carton Weight Gross (g) 12892 Included in Package - 1 - USB 3.0 to M.2 NGFF SSD Enclosure
- 1 - SSD screw kit
- 1 - USB 3.0 Cable
- 1 - Instruction manual
- 1 - Mini screw driver
Package Depth (mm) 162 Package Height (mm) 32 Package Width (mm) 131 Package Quantity 1 Package Weight (g) 114 Packaging Description USB 3.0 to M.2 NGFF SSD Enclosure with UASP Packaging Description India USB 3.0 to M.2 NGFF SSD Enclosure with UASP Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 M.2 B-Key (SATA, AHCI) Connector 1 (Quantity) 1 Host Connector 1 USB Micro-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-08-22 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2014-10-27 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
