SMS1BMU313
USB 3 1 Gen 2 mSATA Enclosure
Turn your mSATA or mSATA Mini drive into a portable, high performance storage solution over USB 3.1 Gen 2
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name USB 3 1 Gen 2 mSATA Enclosure Product Number SMS1BMU313 UPC 065030863452 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 SATA Enclosures - USB-A 10Gbps Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX039X Product Title (Ultra-Short) mSATA Enclosure Product Title (Short) USB 3.1 (10Gbps) mSATA Drive Enclosure Product Title (Medium) USB 3.1 (10Gbps) mSATA Drive Enclosure - Aluminum - Supports mSATA & mSATA Mini Product Title (Standard) USB 3.1 Gen 2 (10Gbps) mSATA Drive Enclosure - Aluminum - Portable Data Storage for mSATA and mSATA Mini (Half-Size) Product Title (Long) USB 3.1 (10Gbps) mSATA Drive Enclosure - Aluminum - TAA Product Title (AMZ) USB 3.1 Gen 2 (10Gbps) Enclosure - Portable mSATA SSD Enclosure - Aluminum mSATA Drive Enclosure with UASP (SMS1BMU313) Title Ingram (Part 1) USB 3.1 (10Gbps) mSATA & mSATA Title Ingram (Part 2) Mini Drive Enclosure - Aluminum Website Product Headline Turn your mSATA or mSATA Mini drive into a portable, high performance storage solution over USB 3.1 Gen 2 Bullet 1 PORTABLE DESIGN: With its compact design and metal housing, this USB 3.2 (10Gbps) mSATA drive enclosure is compatible with all standard mSATA drives, including mSATA Mini (Half-Size) and is the ideal accessory for laptop or desktop computers Bullet 2 IMPROVED PERFORMANCE: With support for USB 3.2 Gen 2 and SATA III (6Gbps) host connections, the aluminum mSATA hard drive enclosure lets you maximize the performance of your mSATA solid-state drives; Confirm drive operation with power and activity LED Bullet 3 STURDY CONSTRUCTION: The portable mSATA/mSATA mini enclosure provides dependable protection with its solid aluminum housing. It features ventilation holes to help protect your drive from overheating Bullet 4 QUICK SETUP: This USB 3.2 Gen 2 mSATA enclosure is OS independent and does not require a driver or additional software; Includes a USB-A host cable and screwdriver Bullet 5 THE IT PRO’S CHOICE: Designed and built for IT Professionals, this TAA compliant USB 3.2 Gen 2 mSATA enclosure is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) Turn your mSATA or mSATA Mini drive into a portable high performance storage solution over USB 3.1 Gen 2 (10Gbps) - mSATA Drive Enclosure - Solid aluminum housing - Supports mSATA & mSATA Mini drives (full height and half height mSATA) - UASP support Bullets (Consolidated) Turn your mSATA or mSATA Mini drive into a portable high performance storage solution over USB 3.1 Gen 2 (10Gbps) - mSATA Drive Enclosure - Solid aluminum housing - Supports mSATA and mSATA Mini drives (full height and half height mSATA) - UASP support - USB 3.1 mSATA enclosure - mSATA drive enclosure with UASP support - Backward compatible with USB 3.0, USB 2.0, USB 1.x Marketing Copy Marketing Copy (No HTML) Add high-speed data storage to your laptop or desktop computer, with this portable mSATA drive enclosure with UASP. It gives you fast data transfer speeds with USB 3.1 (10Gbps) in a solid aluminum enclosure. With its compact design and metal housing, the portable mSATA SSD enclosure gives you a highly portable, high-speed storage solution. Slim and stylish, the mSATA hard drive enclosure makes the ideal accessory for laptop or desktop computers.The aluminum mSATA enclosure provides dependable drive protection with its durable, solid aluminum housing. The USB 3.1 (10Gbps) enclosure also features ventilation holes to help protect your drive from overheating by allowing heat to dissipate and help maintain an optimum operating temperature. With support for USB 3.1 (also known as USB 3.1 Gen 2) and SATA III (6Gbps) host connections, the mSATA drive enclosure with UASP lets you maximize the performance of your mSATA solid-state drives to achieve greater data transfer speeds. The portable mSATA SSD enclosure also supports UASP for enhanced performance.This mSATA hard drive enclosure is compatible with all standard mSATA drives, including the mSATA Mini (Half-Size) form factor.The aluminum mSATA enclosure is backed by a StarTech.com 2-year warranty and free lifetime technical support. Applications - Mobile professionals who need fast external data storage
- Quickly add portable external storage to your laptop or desktop using an mSATA SSD
- Move data quickly and easily between multiple workstations using a high speed connection
Website Search Keyword - mSATA enclosure
- mSATA drive enclosure
- USB 3.1 mSATA drive enclosure
- USB 3.1 (10Gbps) mSATA drive enclosure
- USB 3.1 (10Gbps) mSATA Drive Enclosure - Aluminum
- miniSATA drive enclosure
- miniSATA enclosure
- miniSATA
- mSATA
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes Windows 7 and earlier Windows versions do not support TRIM with USB to SATA devices. Accessory Products - USB3SAUB1
- PEXUSB312A
- USB3AUB15CMS
- USB3AUB50CMB
Related Products - S251BMU313
- S351BU313
- SDOCK2U313
- SDOCKU313
- USB312SAT3CB
- SM21BMU31C3
Input Voltage 5V DC Output Voltage (V) 5 DC Power Source USB-Powered Color Black Material Aluminum Max Drive Height (mm) 50.8 Primary Material Aluminum Product Length (mm) 98.000 Product Width (mm) 40.000 Product Height (mm) 12.000 Product Weight (g) 58.000 TAA Compliant Yes 4Kn Support Yes Max Drive Capacity Currently tested with up to 1TB mSATA drives OS Compatibility OS Independent Port Multiplier No RAID No SATA Type and Rate SATA III (6 Gbps) TRIM Support Yes UASP Support Yes USB Type and Rate USB 10Gbps Chipset ID ASMedia - ASM1351 Compatible Drive Types mSATA (Mini SATA) Fans Included? Yes/No No Interface/Bridge USB 3.2 Gen 2 LED Indicators 1 - Power and Activity Number of Drives 1 Supported Drive Height(s) - Full Size (50.8mm)
- Half Size (26.8mm)

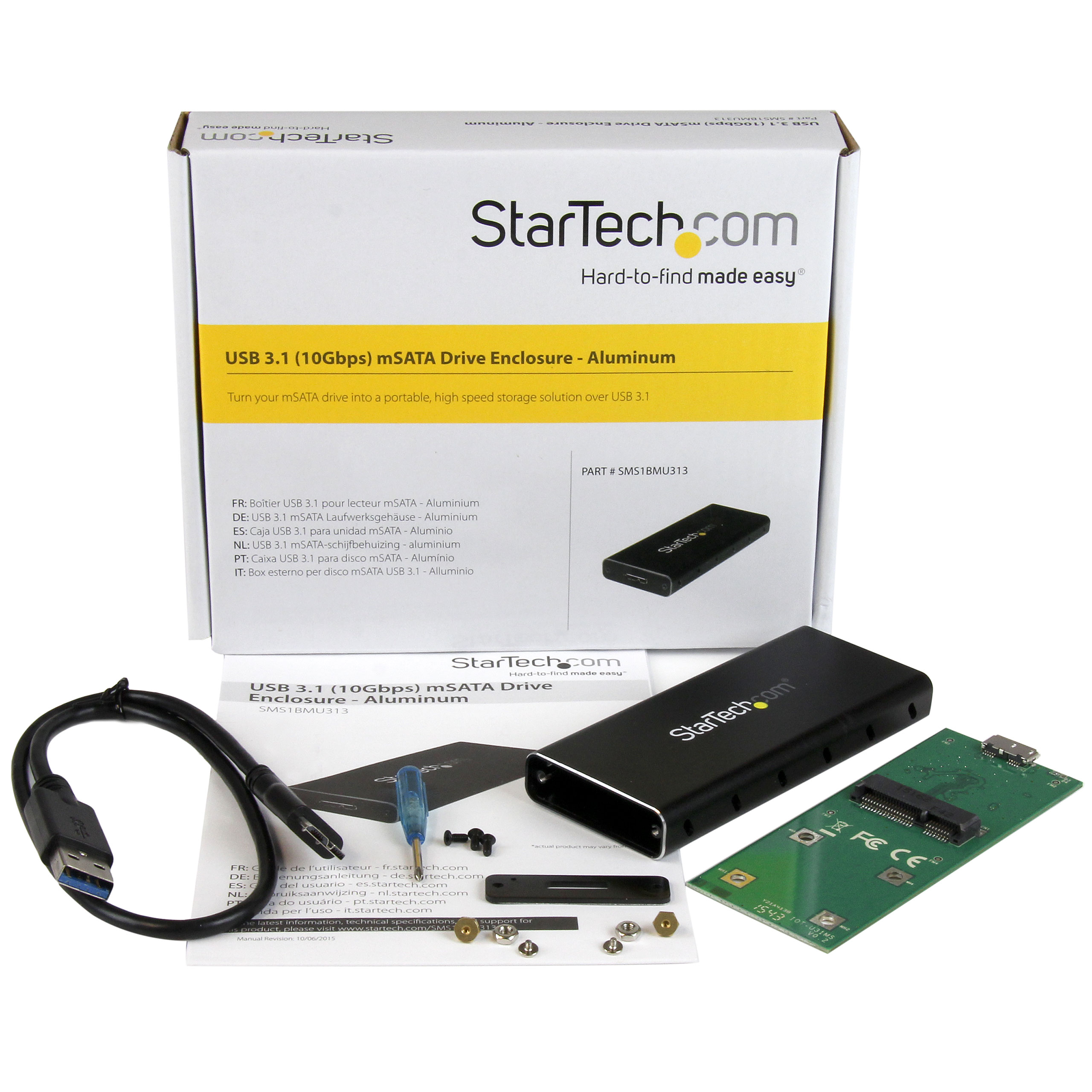

Carton Depth (mm) 480 Carton Height (mm) 336 Carton Quantity 100 Carton Weight Gross (g) 15258 Included in Package - 1 - USB 3.1 mSATA SSD enclosure - aluminum
- 1 - USB A to Micro B cable - 18.25 inches
- 4 - assembly screws
- 1 - screwdriver
- 1 - quick start guide
- 2 - sets of mSATA mount hardware (preinstalled)
Package Depth (mm) 130 Package Height (mm) 34 Package Width (mm) 158 Package Quantity 1 Package Weight (g) 138 Packaging Description USB 3.1 mSATA Drive Enclosure - Aluminum Packaging Description India USB 3.1 mSATA Drive Enclosure - Aluminum Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 mSATA (52-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB Micro-B (10Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2015-06-04 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IT,JP,MX,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2015-09-18 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle None
