SMS2BU31C3R

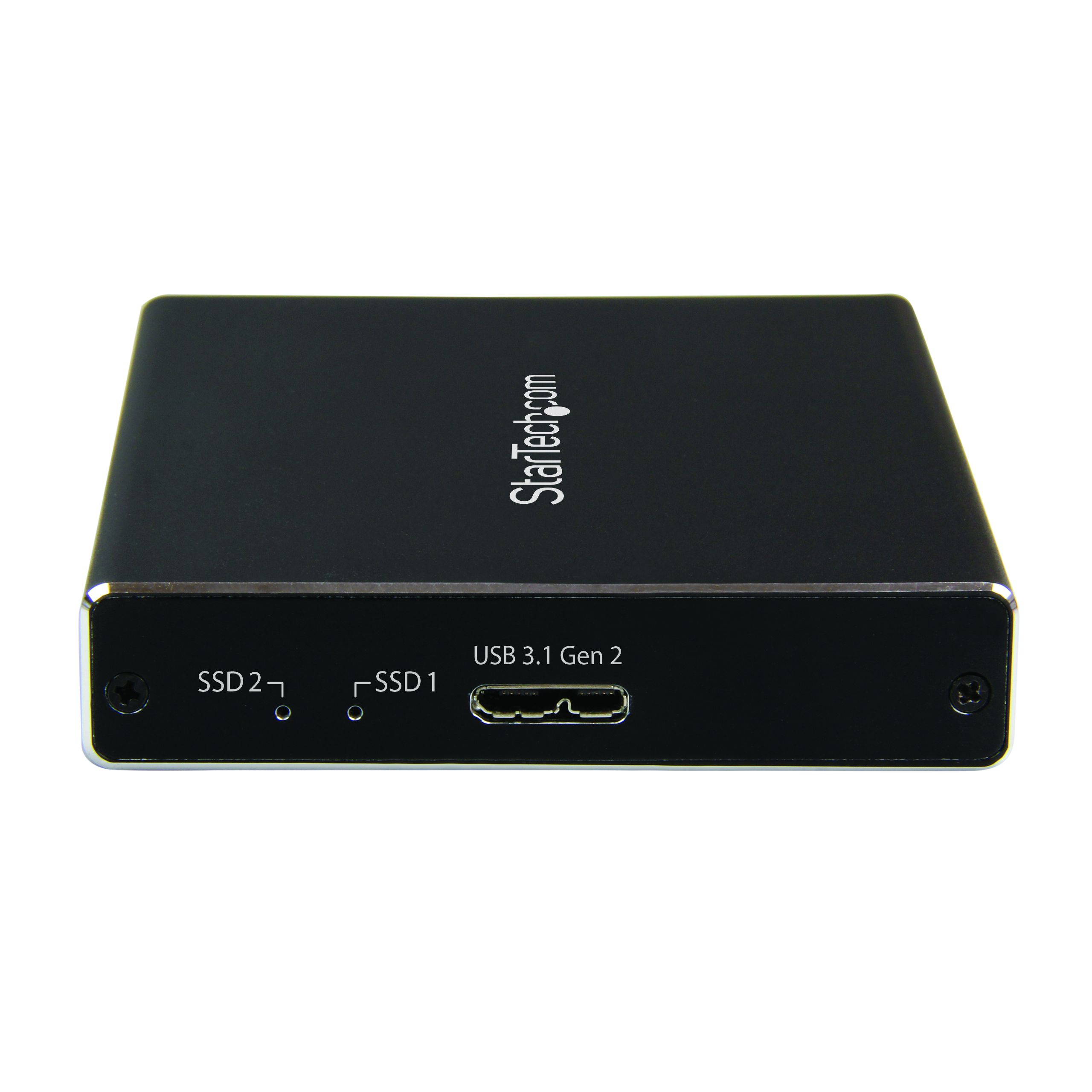

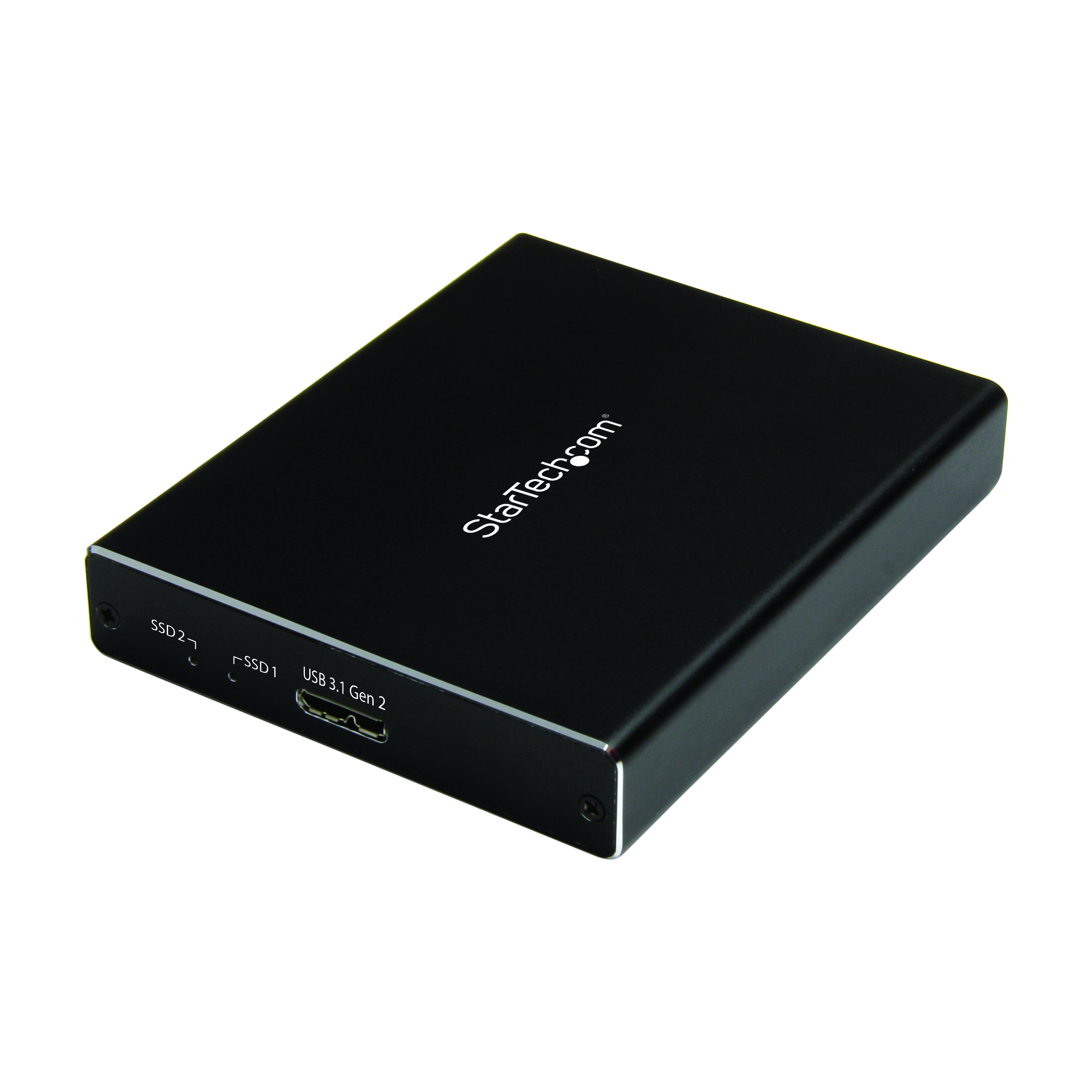

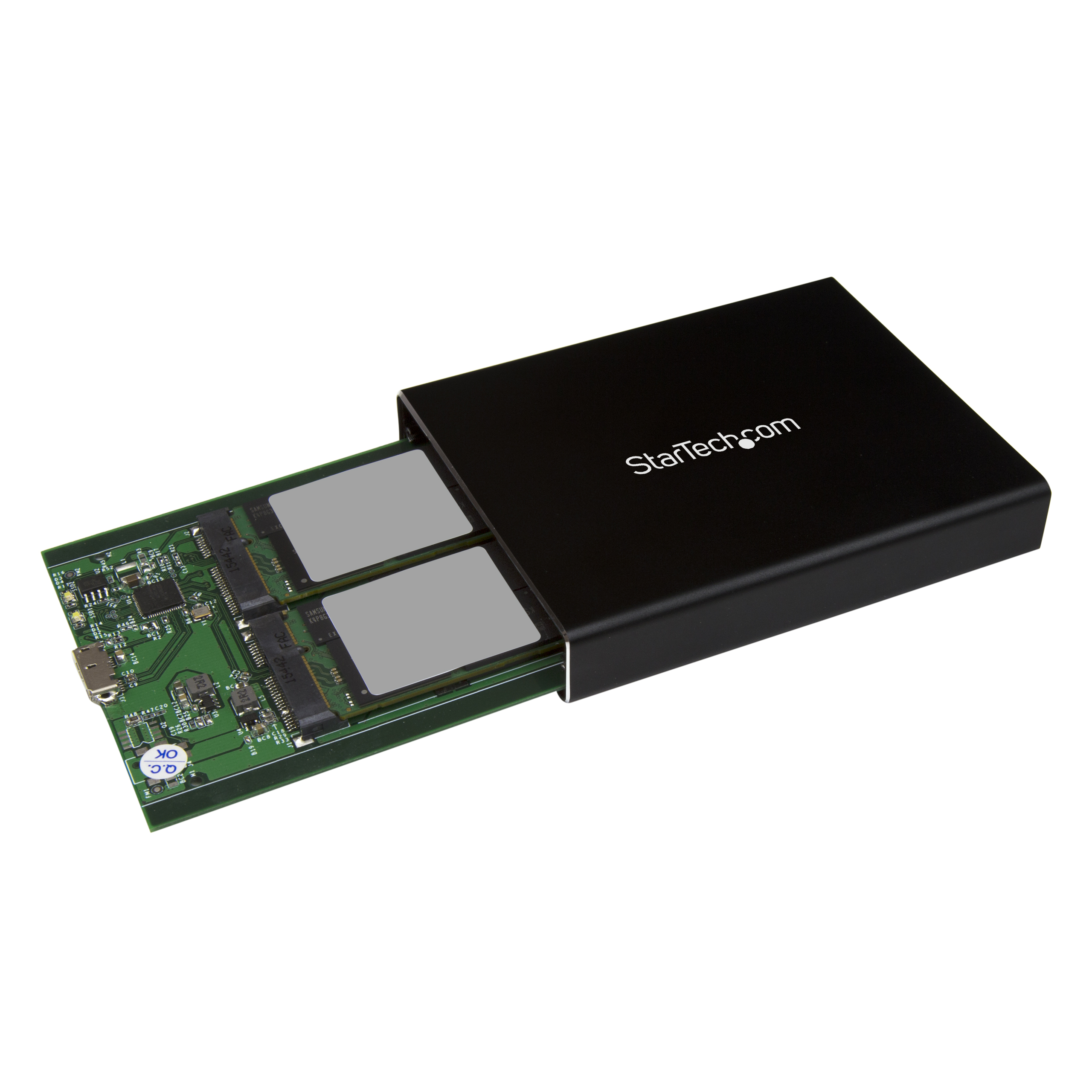

Dual mSATA RAID Enclosure - USB 3.1 - USB-C, USB-A
Quickly access and back up the data from your USB-C or USB-A enabled device, through ultra-fast USB 3.1 Gen 2
Main Image
Product Images
Product Images
BOM Image
Product Name Dual mSATA RAID Enclosure - USB 3.1 - USB-C, USB-A Product Number SMS2BU31C3R UPC 065030866880 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 SATA Enclosures - USB-C 10Gbps Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX039X Product Title (Ultra-Short) Dual mSATA Enclosure Product Title (Short) Enclosure, Dual mSATA - USB 3.1 - RAID Product Title (Medium) Dual mSATA RAID Enclosure - USB 3.1 (10Gbps) - USB-C & USB-A External Enclosure Product Title (Standard) Dual mSATA Enclosure - RAID - mSATA SSD Enclosure - USB 3.1 (10Gbps) - USB-C & USB-A External Enclosure - Aluminum Product Title (Long) Dual-Slot Drive Enclosure for mSATA SSDs - USB 3.1 (10Gbps) - RAID Product Title (AMZ) Dual-Slot Drive Enclosure for mSATA SSDs - USB 3.1 Enclosure for mSATA and mSATA Mini Drives - RAID Enclosure (SMS2BU31C3R) Title Ingram (Part 1) Dual mSATA Enclosure with RAID Title Ingram (Part 2) - USB 3.1 (10Gbps) - USB-C, USB-A Website Product Headline Quickly access and back up the data from your USB-C or USB-A enabled device, through ultra-fast USB 3.1 Gen 2 Bullet 1 Add fast, portable external storage to your USB-C or USB-A enabled laptop, tablet or desktop computer Bullet 2 Maximize the performance of your mSATA SSDs with USB 3.1 Gen 2 (10Gbps) connectivity Bullet 3 Dual mSATA RAID enclosure supports mSATA and mSATA Mini (full-height and half-height mSATA drives) Bullet 4 Supports RAID 0, RAID 1, JBOD and SPAN (BIG) for optimal performance, capacity and redundancy Bullet 5 Supports SSD TRIM to prolong drive lifespan and performance Bullets (Compact) Quickly access and back up data from your USB-C or USB-A enabled device, through ultra-fast USB 3.1 Gen 2 (10 Gbps) - Dual mSATA RAID Enclosure for mSATA and mSATA Mini SSDs - Portable mSATA SSD drive enclosure supports RAID 0, RAID 1, JBOD and BIG Bullets (Consolidated) Quickly access and back up data from your USB-C or USB-A enabled device through ultra-fast USB 3.1 Gen 2 (10Gbps) - Dual mSATA RAID Enclosure for mSATA and mSATA Mini SSDs - Portable mSATA SSD drive enclosure supports RAID 0/RAID 1/JBOD/BIG - USB 3.1 Gen 2 external mSATA enclosure for USB Type-C enabled host incl MacBook or Chromebook Pixel or Dell XPS - Compatible with Thunderbolt 3 USB C port - Supports SATA I/II/III - USB C dual mSATA enclosure/USB 3.1 Gen 2 Dual mSATA SSD enclosure Marketing Copy Marketing Copy (No HTML) This USB 3.1 (10Gbps) mSATA enclosure for mSATA and mSATA mini drives makes it easy to add ultra-fast, portable external storage to your USB-C or USB-A enabled device. The USB 3.1 Gen 2 mSATA enclosure also provides RAID functionality for increased capacity, improved performance, or data redundancy. The dual-slot mSATA enclosure takes advantage of USB 3.1 Gen 2 with up to 10 Gbps data transfer rates. The mSATA SSD enclosure supports RAID 0, RAID 1, JBOD and SPAN (BIG) enabling you to choose your preferred backup mode. It also supports SSD TRIM, to prolong drive lifespan and performance. The mSATA raid enclosure leverages the small form factor of mSATA SSD drives with the speed of USB 3.1 Gen 2 to create a highly portable storage solution. The USB 3.1 (10Gbps) mSATA enclosure enables you to add two mSATA SSDs externally to your laptop or desktop computer for fast, portable data storage. The USB 3.1 Gen 2 mSATA enclosure powered directly from the USB port on your device, so no external power is required. Engineered with a solid aluminum housing, the dual-slot mSATA enclosure helps to safeguard your data wherever you are. It comes with two USB cables (USB-C to Micro-B and USB-A to Micro-B) for flexible use with the latest devices as legacy devices. The mSATA SSD enclosure is also compatible with a Thunderbolt 3 USB-C port. The mSATA raid enclosure is backed by a StarTech.com 2-year warranty and free lifetime technical support. Applications - Add portable external data storage to your USB-C or USB-A enabled laptop, tablet or desktop computer using an mSATA or mSATA Mini SSD
- Gain fast access to important data and files through ultra-fast USB 3.1 Gen 2 (10Gbps), ideal for office professionals, sales executives, teachers, researchers, medical personnel and other mobile workers
- Re-use or re-purpose drives to expand PC storage or to back up data
- Ideal for protecting drives against dust and other potential hazards
- Access drives for data recovery, backup, or repair
Website Search Keyword - Dual mSATA RAID Enclosure
- Dual mSATA Enclosure
- mSATA RAID Enclosure
- mSATA Enclosure
- mSATA
- Dual mSATA SSD Enclosure
- Dual mSATA
- USB 3.1 (10 Gbps)
- USB-C enclosure
- USB-A Enclosure
- external enclosure
- portable data storage
- portable enclosure
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes Windows 7 and earlier Windows versions do not support TRIM with USB to SATA devices. Accessory Products - USB3SAUB1
- USB3SAUB3BK
- USB3SAUB3
- USB31CUB1M
Related Products - SMS1BMU313
- SM21BMU31C3
- SM22BU31C3R
- SM2NGFFMBU33
- S252BU313R
- S251BMU313
- S251BPU31C3
- S251BU31C3CB
- S251BPU313
- S351BU313
Input Voltage 5V DC Output Voltage (V) 5 DC Power Source USB-Powered Color Black Humidity 5% ~ 95% Material Aluminum Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 100 Product Width (mm) 80 Product Height (mm) 16 Product Weight (g) 100 Storage Temperature -10°C to 85°C (14°F to 185°F) TAA Compliant Yes 4Kn Support Yes Maximum Data Transfer Rate 10 Gbps MTBF (hours) 5,000,000 Hours OS Compatibility OS Independent Port Multiplier Yes RAID Yes SATA Type and Rate SATA III (6 Gbps) TRIM Support Yes UASP Support Yes USB Type and Rate USB 10Gbps Bus Type USB 3.2 Gen 2 Chipset ID ASMedia - ASM1352R Compatible Drive Types mSATA (Mini SATA) Fans Included? Yes/No No Interface/Bridge USB 3.2 Gen 2 LED Indicators - 2 - Read / Write (white)
- 2 - Error / Rebuilt (red)
Number of Drives 2 Supported Drive Height(s) - Full Size (50.8mm)
- Half Size (26.8mm)

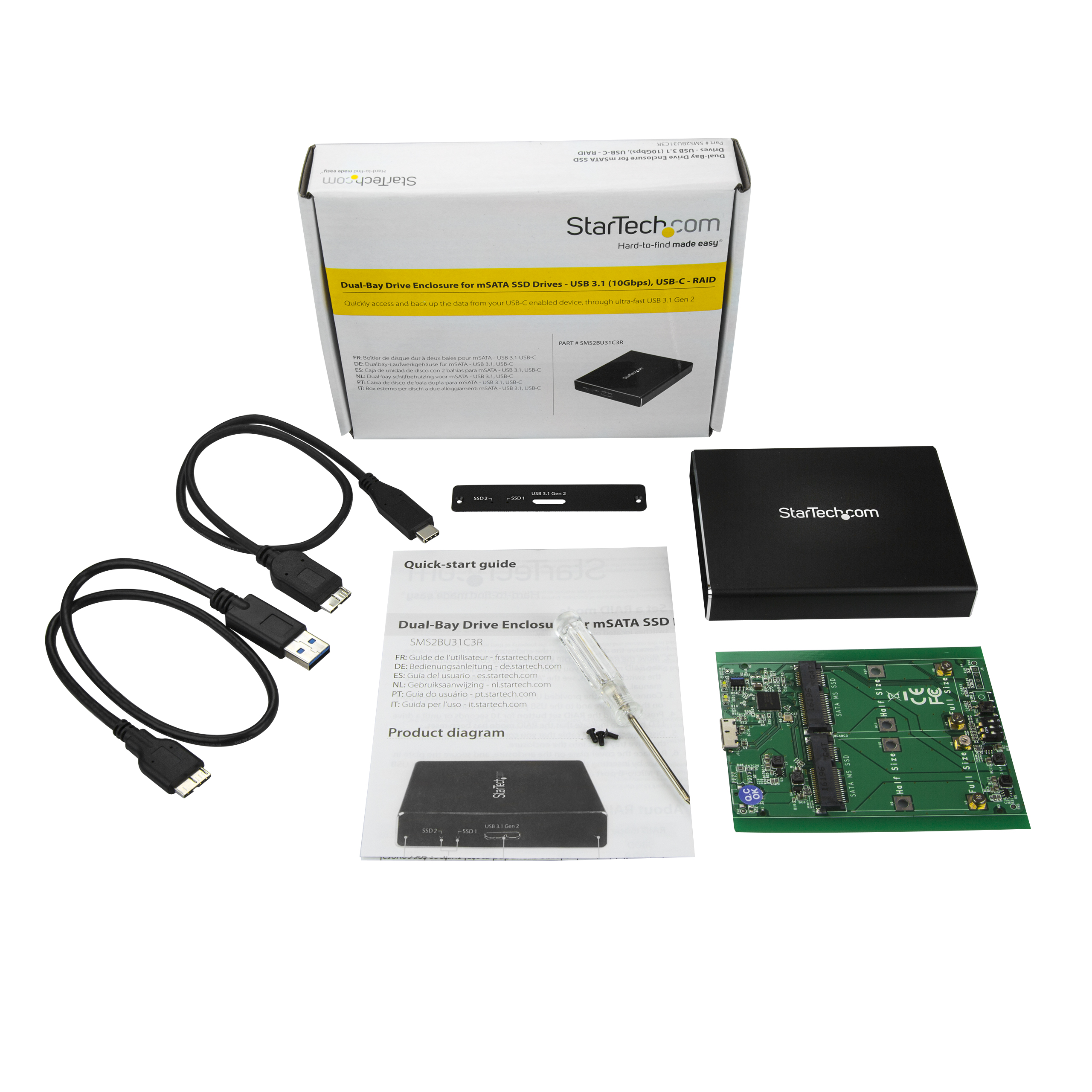

Carton Depth (mm) 493 Carton Height (mm) 323 Carton Quantity 100 Carton Weight Gross (g) 21450 Included in Package - 1 - dual-bay drive enclosure
- 1 - USB-C to Micro-B cable - 18.5 inches
- 2 - sets of mSATA mounting hardware
- 4 - housing assembly screws
- 1 - quick-start guide
- 1 - screwdriver
- 1 - USB-A to Micro-B cable - 18.5 inches
Package Depth (mm) 130 Package Height (mm) 30 Package Width (mm) 160 Package Quantity 1 Package Weight (g) 202 Packaging Description Dual-Bay Drive Enclosure for mSATA - USB 3.1, USB-C Packaging Description India Dual-Bay Drive Enclosure for mSATA - USB 3.1, USB-C Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 mSATA (52-Pin) Connector 1 (Quantity) 2 Host Connector 1 USB Micro-B (10Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2016-09-30 Digital Content Due Date 2017-02-03 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology USB-C Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2016-10-28 Target Production Release 2016-11-25 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle None
