SNT127A
Main Image

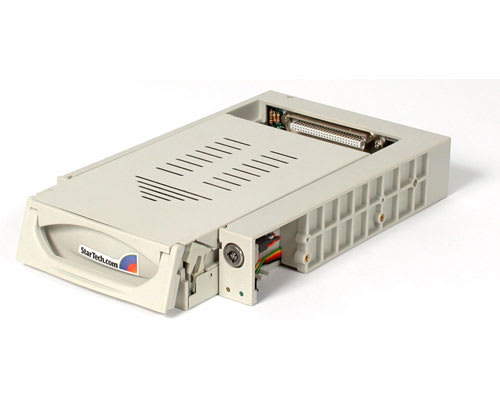

Product Name IDE Removable Drive Drawer Mobile Rack Product Number SNT127A UPC 065030781176 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan South Korea Country of Origin North America South Korea Product Title (Long) IDE Removable Drive Drawer Mobile Rack Bullet 1 Easy to operate, inexpensive, secure, portable Hard Disk Drive system for 3.5" HDDs Bullet 2 Provides removable high capacity data storage Bullet 3 Ideal for mission critical control PCs where downtime must be minimized Bullet 4 Includes dual LEDs for operating status, ball bearing cooling fan, and a keylock that prevents the drive from being removed while in operation Bullet 5 Extra drive bays and drive caddys are available (SNT127ABAY, SNT127ACADDY) Marketing Copy StarTech.com’s SNT127A removable hard drive drawer allows IDE hard drives to be quickly inserted or removed from any PC with an available 5.25 inch drive bay without opening the computer. It is an ideal solution for high-speed back-ups of critical files, moving large files from one computer to another, and for running multiple operating systems on the same PC. The unit consists of two pieces: a bay that mounts into the PC, and a removable drawer that encases the hard drive. It also supports Ultra ATA/66, ATA/100, and ATA/133 IDE transfer rates of up to 133 MB/s. The SNT127A guarantees compatibility with your computer system and its high-quality construction offers protection for critical data - meaning you’ll never have to worry for the drive’s safety as you move it from one place to another. Additional features include: a locking mechanism that prevent the drive from being removed while operating; a handle-activated drawer release mechanism that allows the drive to be inserted or removed with minimal force; a ball-bearing cooling fan that provides air-flow over the hard drive, preventing overheating and data loss; dual LEDs indicating drive power and activity status. Applications - Can be used as a fast, high-capacity, removable backup system
- Can be used in education for providing the ability to run multiple operating systems and applications on the same group of PCs
- Can be used for transporting huge files or databases from one location to another
Accessory Products - SNT127ACADDY
- DRAWERBAG
- SNTFAN
Related Products - SNT127ABK
- DRW110ATA
Color Beige Material Steel and Plastic Product Length (mm) 225 Product Width (mm) 148 Product Height (mm) 41 Product Weight (g) 540 TAA Compliant No General Specifications - Dimensions: 8.86 x 5.75 x 1.61 Inches (22.5 x 14.8 x 4.1 cm)
- Weight (without drive): 1.18 lbs (0.54 kg)
- Internal Connectors: 40 Pin Header Female, 4 Pin LP4 Female
- External Connectors: 40 Pin Header Male, 4 Pin LP4 Male
- LEDs: Yellow - Drive Activity, Green - Drive Power
- Fans: One rear-mounted 4cm ball bearing fan
- Certifications: CE
- Note: Unit is model specific and is not meant for use with different models of drive drawer unless otherwise stated
Fans 1 - 40 mm Front Door Key Lock Yes LED Indicators - 1 - Power
- 1 - Activity
Carton Depth (mm) 247 Carton Height (mm) 525 Carton Quantity 30 Carton Weight Gross (g) 18300 Included in Package - 1 - HARD DISK CADDY
- 1 - HARD DISK DRAWER
- 1 - SET OF SCREWS AND KEYS
- 1 - INSTRUCTION MANUAL
Package Depth (mm) 44 Package Height (mm) 222 Package Width (mm) 150 Package Weight (g) 570 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 IDE / PATA (ATA/133) Connector 1 (Quantity) 1 Connector 2 IDE / PATA (ATA/133) Connector 2 (Quantity) 1 Connector 3 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 Connector 4 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 4 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
