SNT127ABK
Main Image

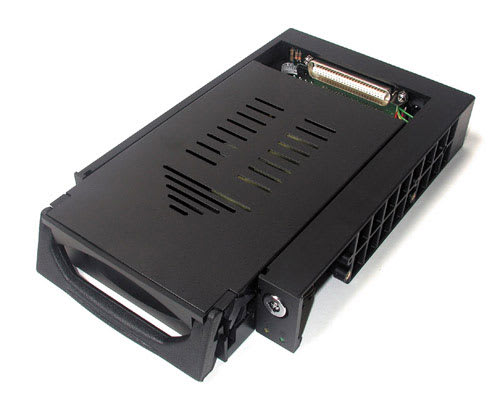

Product Name Black IDE Removable Drive Drawer Product Number SNT127ABK UPC 065030793544 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX075X Product Title (Long) Black IDE Removable Drive Drawer Mobile Rack Bullet 1 Easy to operate, inexpensive, secure, portable Hard Disk Drive system for 3.5" HDDs Bullet 2 Provides removable high capacity data storage Bullet 3 Ideal for mission critical control PCs where downtime must be minimized Bullet 4 Includes dual LEDs for operating status, ball bearing cooling fan, and a keylock that prevents the drive from being removed while in operation Bullet 5 Requires a PC with available 5.25" drive bay, drive connection cable, internal power cable Marketing Copy Applications - Can be used as a fast, high-capacity, removable backup system
- Can be used in education for providing the ability to run multiple operating systems and applications on the same group of PCs
- Can be used for transporting huge files or databases from one location to another
Accessory Products - DRAWERBAG
- IDE100RND18
- IDE100RND24
- IDE100RND36
- IDE100TPO18
Related Products - IDE66PRODRWR
- IDE66BASIC
- SNT127A
Color Black Material Steel Product Length (mm) 225 Product Width (mm) 148 Product Height (mm) 41 Product Weight (g) 540 TAA Compliant No General Specifications - Dimensions: 8.86 x 5.75 x 1.61 Inches (22.5 x 14.8 x 4.1 cm)
- Weight (without drive): 1.18 lbs (0.54 kg)
- Internal Connectors: 40 Pin Header Female, 4 Pin LP4 Female
- External Connectors: 40 Pin Header Male, 4 Pin LP4 Male
- LEDs: Yellow - Drive Activity, Green - Drive Power
- Fans: One rear-mounted 4cm ball bearing fan
- Certifications: CE
- Note: Unit is model specific and is not meant for use with different models of drive drawer unless otherwise stated
Fans 1 - 40 mm Front Door Key Lock Yes LED Indicators - 1 - Power
- 1 - Activity
Carton Depth (mm) 240 Carton Height (mm) 510 Carton Quantity 30 Carton Weight Gross (g) 19200 Included in Package - 1 - Black IDE Removable Drive Drawer
- 1 - Manual
Package Depth (mm) 45 Package Height (mm) 220 Package Width (mm) 150 Package Weight (g) 600 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 IDE / PATA (ATA/133) Connector 1 (Quantity) 1 Connector 2 IDE / PATA (ATA/133) Connector 2 (Quantity) 1 Connector 3 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 Connector 4 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 4 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
