SP123DP
1 to 3 DisplayPort Screen Spanner/Splitter
Mirror or Expand a Single DisplayPort® Source Across Three DisplayPort Displays
Main Image
Product Images
BOM Image
Product Name 1 to 3 DisplayPort Screen Spanner/Splitter Product Number SP123DP UPC 065030837699 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Display and Video Adapters Category Level 2 DP and MDP Display Adapters Category Level 3 MST DP Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Ultra-Short) 3-port DP Spanner Product Title (Short) Triple Head DisplayPort® Adapter Product Title (Standard) Triple Head DisplayPort® Multi Monitor Adapter Product Title (Long) Triple Head DisplayPort Multi Monitor Adapter Product Title (AMZ) Triple Head DisplayPort Multi Monitor Adapter - 3 Port DisplayPlay Splitter (SP123DP) Title Ingram (Part 1) Triple Head DisplayPort® Graphic Title Ingram (Part 2) s Expansion Module Website Product Headline Mirror or Expand a Single DisplayPort® Source Across Three DisplayPort Displays Bullet 1 Supports resolutions up to 3840x1024 when connected to three displays Bullet 2 Quick and easy installation, requiring no software or drivers Bullet 3 Compatible with any DisplayPort video card output Bullet 4 Outputs single-mode DisplayPort signal Bullets (Consolidated) Mirror or Expand a Single DisplayPort® Source Across Three DisplayPort Displays - Triple Head DisplayPort - Graphics Expansion Module Adapter - Muiti Monitor Adapter - 3 Port DisplayPlay Splitter Marketing Copy Marketing Copy (No HTML) Applications - Output a maximum resolution of 3840x1024 across three displays
- Edit images, video or audio clips across three displays
- Create a panoramic video wall for DisplayPort digital signage applications
- Clone your primary display and use the SP123DP graphics expansion module as a 3-port splitter
- Enjoy the panoramic views built into games and display helpful codes/walk-through data on one display at the same time
- Perfect for spanning a large Excel worksheet across all three displays, to avoid side-scrolling
Website Search Keyword - DisplayPort Splitter
- DisplayPort Desktop Extender
- External Multi-Display
- Multi-Display DisplayPort
- Matrox
- TripleHead2GO
- DualHead2GO
- Clone
- Mirror
- External DisplayPort Video Card
- Triple Monitor
- Dual Monitor
- DP
- Triple Head DisplayPort Graphics Expansion Module
- Graphics Expansion Module
- Desktop Expansion
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes Maximum Resolution is dependent on video card capabilities. A video card capable of outputting a maximum resolution of 3840x1024 from one DisplayPort port will power three monitors at 1280x1024. Accessory Products - SVUSBPOWER
- DISPLPORT6L
- DISPLPORT10L
- DISPLPORT15L
- MDP2DPMM6
- MDP2DPMM10
- DP2VGA
- DP2DVIS
- DP2HD4KS
- SVA5N3NEUA

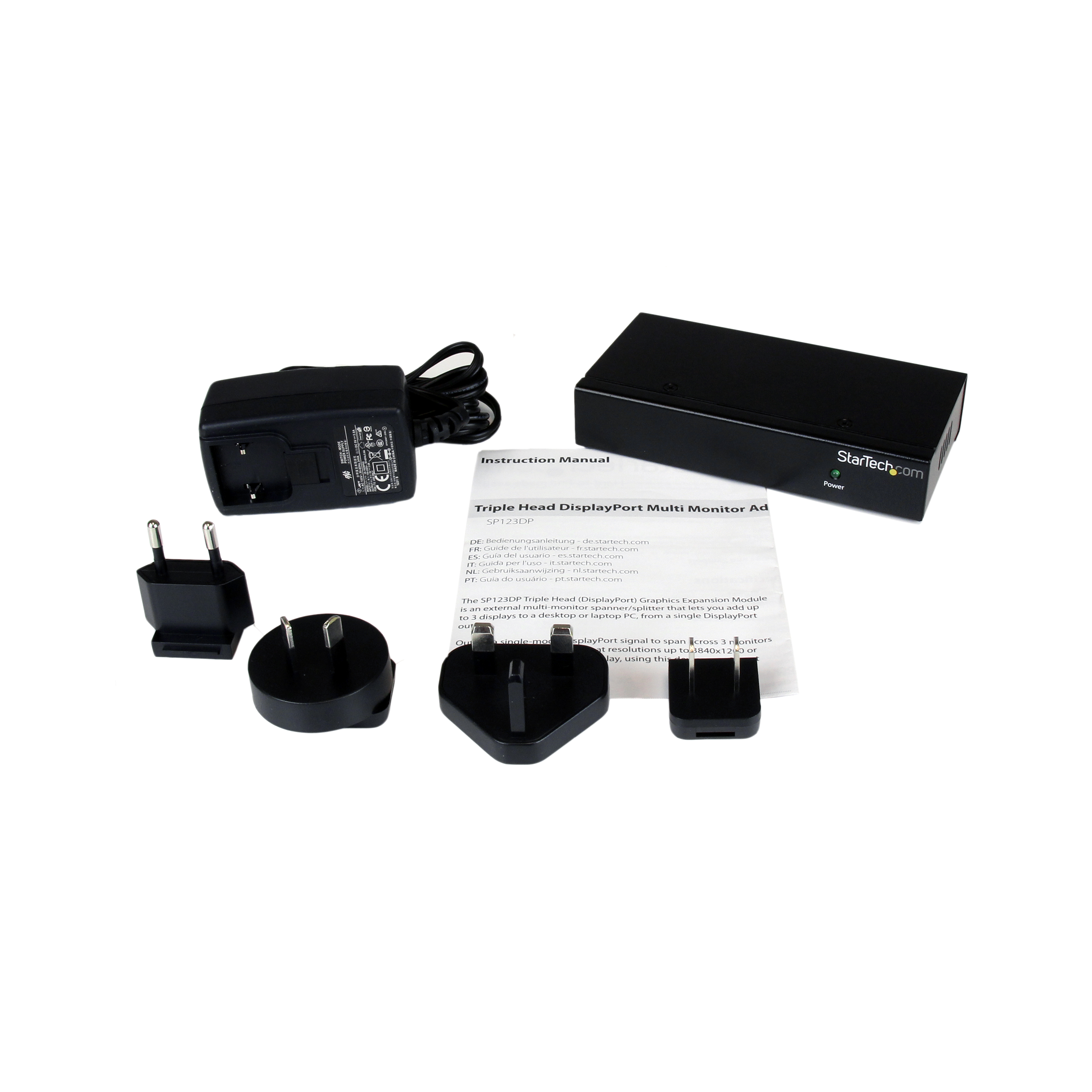

Related Products SP123DP2DVI Input Current 0.5 A Input Voltage 110V-240V AC Output Current 2A Output Voltage (V) 5 DC Power Consumption (In Watts) 10 Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Color Black Humidity 0~90% RH Non-Condensing Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 131.000 Product Width (mm) 65.000 Product Height (mm) 26.000 Product Weight (g) 270.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes General Specifications Maximum Digital Resolutions Wide Screen Supported Yes LED Indicators 1 - Power indicator Carton Depth (mm) 405 Carton Height (mm) 300 Carton Quantity 10 Carton Weight Gross (g) 8750 Included in Package - 1 - 3 Port DisplayPort Spanner / Splitter
- 1 - Instruction Manual
- 1 - Power Adapter
Package Depth (mm) 190 Package Height (mm) 79 Package Width (mm) 273 Package Quantity 1 Package Weight (g) 781 Packaging Description Triple Head DisplayPort® Adapter Packaging Description India Triple Head DisplayPort® Adapter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DisplayPort Connector 1 (Quantity) 1 Connector 2 DisplayPort Connector 2 (Quantity) 3 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2013-08-21 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
