Main Image
ST10000SPEX
PCI Express 10GBASE-T NIC -10Gbps Ethernet Adapter
Add a 10 Gigabit Ethernet port (10 Gbps) to a client, server or workstation through a PCI Express slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name PCI Express 10GBASE-T NIC -10Gbps Ethernet Adapter Product Number ST10000SPEX UPC 065030857390 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Desktop and Server Network Cards Category Level 3 Ethernet Cards Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Product Title (Ultra-Short) 1Pt PCIe 10Gb NIC Product Title (Short) PCIe 10 Gigabit Ethernet Network Card Product Title (Medium) 1 Port PCI Express 10 Gigabit Ethernet Network Card - PCIe x4 10Gb NIC Product Title (Standard) 1 Port PCI Express 10 Gigabit Ethernet Network Card - PCIe x4 10Gb NIC Product Title (Long) 1 Port PCI Express 10 Gigabit Ethernet Network Card - PCIe x4 10Gb NIC Product Title (AMZ) 1 Port PCI Express 10 Gigabit Ethernet Network Card - PCIe x4 10Gb NIC - 802.3an 10GBASE-T NIC - 10Gbps Ethernet Adapter (ST10000SPEX) Title Ingram (Part 1) PCI Express 802.3an 10GBASE-T Title Ingram (Part 2) NIC - 10Gbps Ethernet Adapter Website Product Headline Add a 10 Gigabit Ethernet port (10 Gbps) to a client, server or workstation through a PCI Express slot Bullet 1 10Gbps PCIe networking over standard Cat 6a cabling Bullet 2 IEEE 802.3az compliant energy-efficient chipset Bullet 3 Compliant with PCI Express Rev 2.0 specification, using PCIe x4 (or higher) slot Bullet 4 Backward compatible with 1 Gbps and 100 Mbps networks Bullet 5 Up to 16K Jumbo Frame support Bullets (Consolidated) Add a 10 Gigabit Ethernet port (10 Gbps) to a client, server or workstation through a PCI Express x4 (or higher) slot - 1 Port PCI Express 10 Gigabit Ethernet Network Card - PCIe x4 10Gb NIC - 802.3an 10GBASE-T NIC - 10Gbps Ethernet Adapter - Configured with standard profile bracket, low profile/half-height bracket included Marketing Copy Applications - Add 10Gbps network connectivity to file or application servers and high-performance workstations
- Upgrade your onboard network adapter to 10 Gigabit for faster communication
- Create a video / audio editing console with 10 Gbps access to network storage
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
System and Cable Requirements Available PCI Express x4 slot Accessory Products - C6ASPAT3BL
- C6ASPAT3GR
- C6ASPAT10BL
- C6ASPAT10GR
Related Products - ST2000SPEXI
- PEX1000SFP
- ST1000SPEX2
Product Length (mm) 83 Product Width (mm) 19 Product Height (mm) 120 Product Weight (g) 50 TAA Compliant No Compatible Networks 100/1000/10000 Mbps (10Gb) Full Duplex Support Yes Jumbo Frame Support 16K max. Maximum Data Transfer Rate 10 Gbps OS Compatibility - Windows 8
- Windows 7
- Linux
- Windows 10
- Mac OS X El Capitan (10.11)
- macOS Sierra (10.12)
- Windows Server 2016
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- Windows Server 2019
- Windows 11
- Windows Server 2022

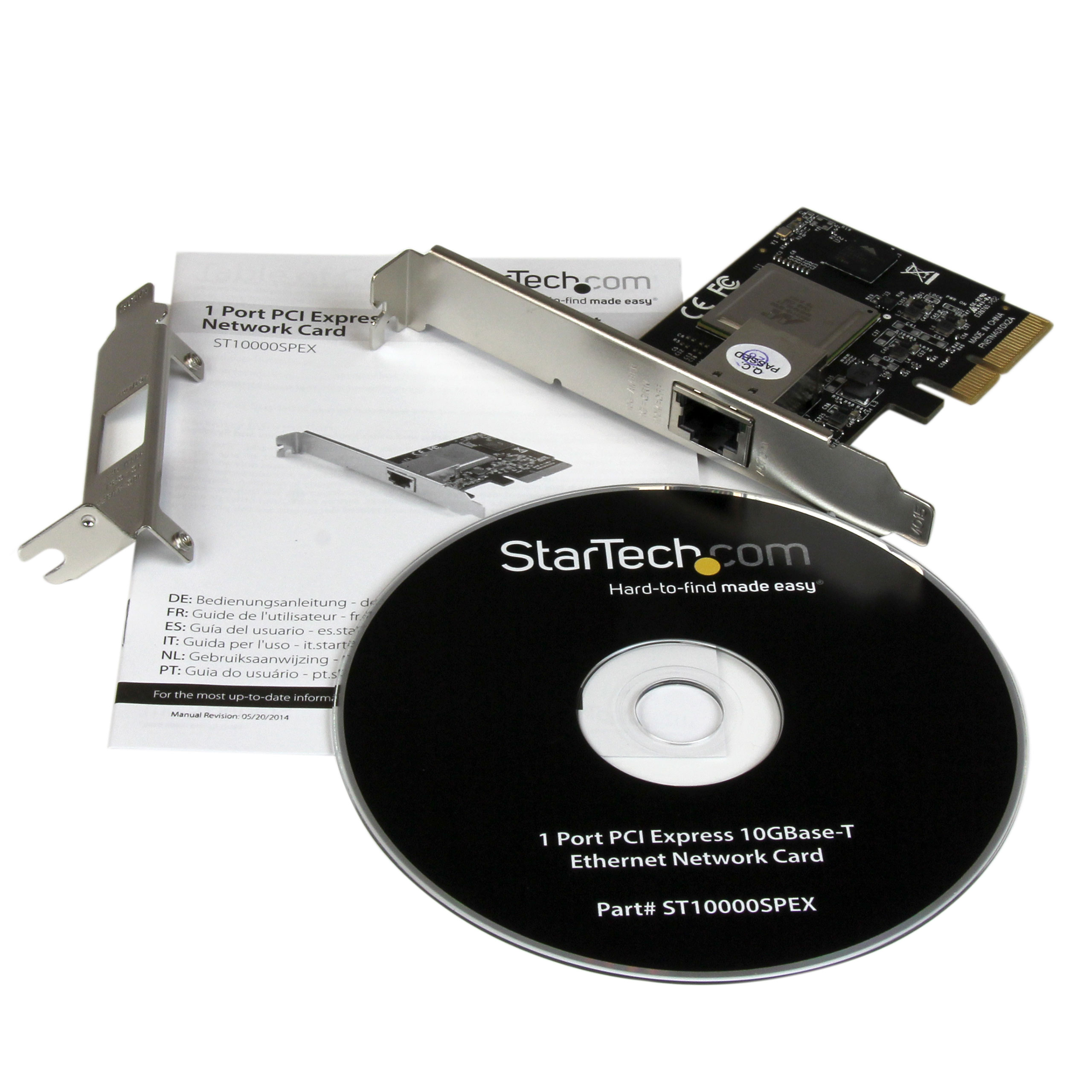

Promiscuous Mode Yes Supported Protocols IEEE 802.3ad (link aggregation), IEEE 802.1q (VLAN tagging), RFC 2819 (RMON MIB statistics) Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Industry Standards Interface/Bridge RJ45 (10 Gigabit Ethernet) Carton Depth (mm) 312 Carton Height (mm) 359 Carton Quantity 80 Carton Weight Gross (g) 11844 Included in Package - 1 - 1 Port PCI Express 10GBase-T Network Card
- 1 - Low Profile Bracket
- 1 - Driver CD
- 1 - Instruction Manual
Package Depth (mm) 170 Package Height (mm) 30 Package Width (mm) 141 Package Quantity 1 Package Weight (g) 149 Packaging Description 1 Port PCIe 10GBase-T Ethernet Network Card Packaging Description India 1 Port PCIe 10GBase-T Ethernet Network Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x4 Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-02-27 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,CL,EU,JP,NZ,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
