Main Image
ST10000SPEXI

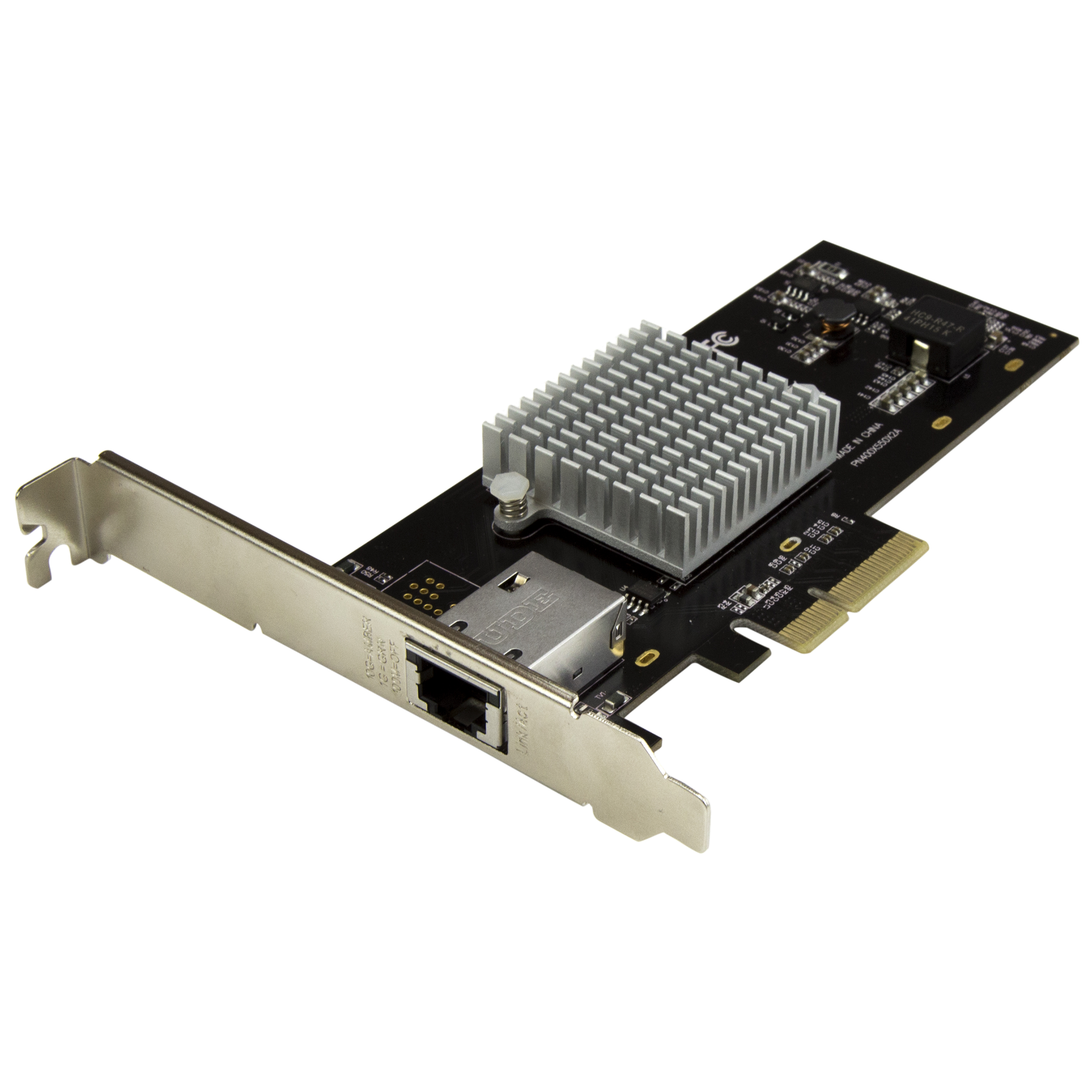

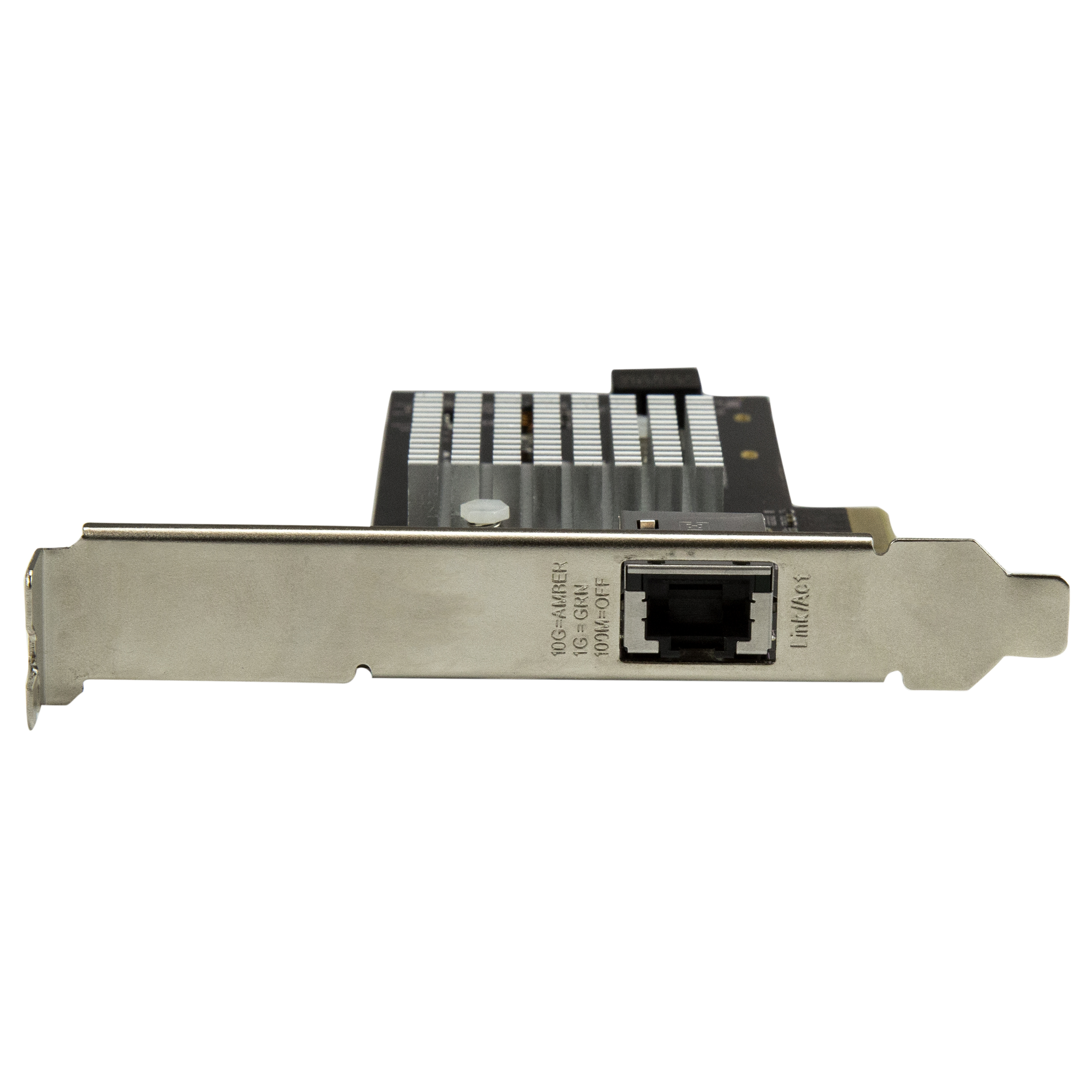

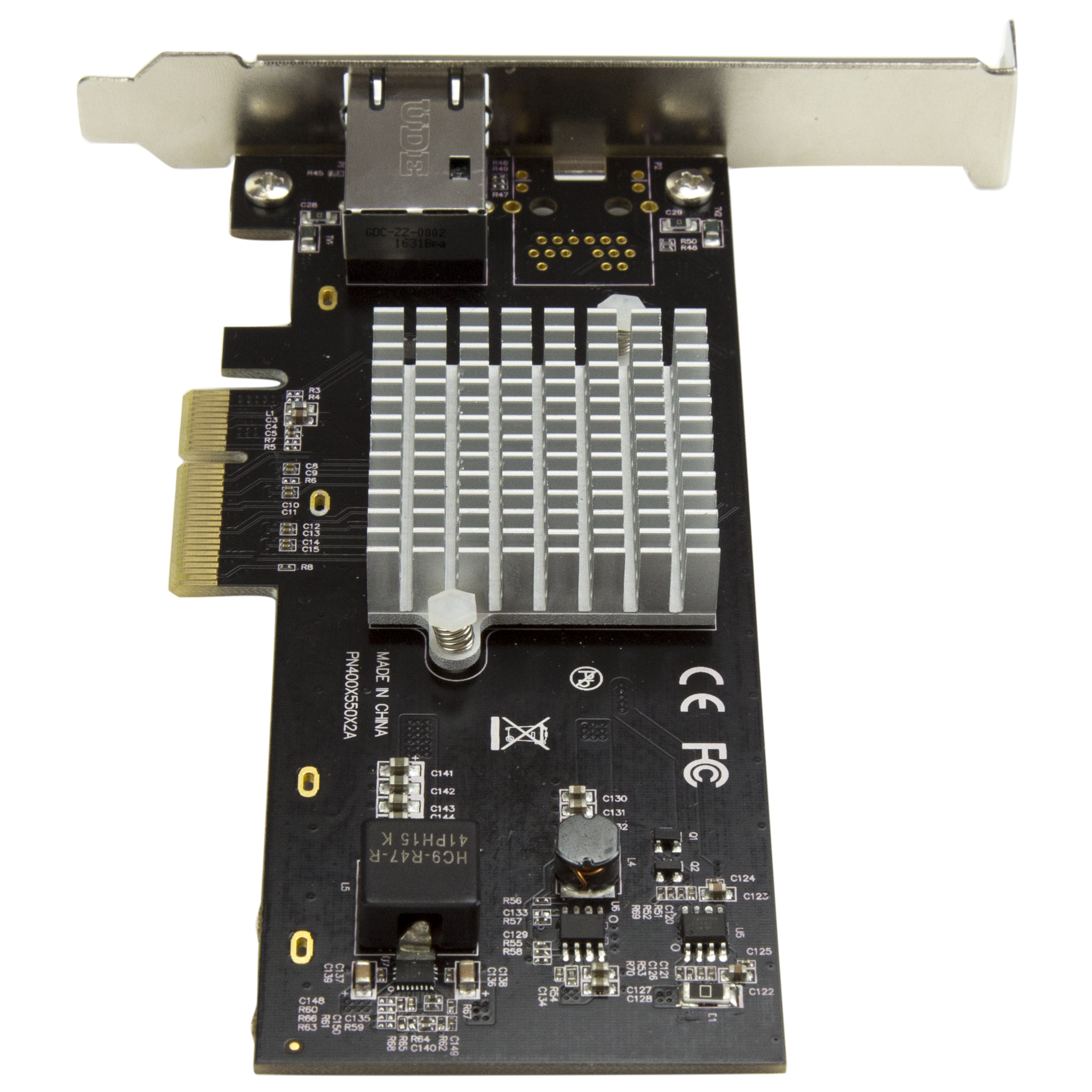

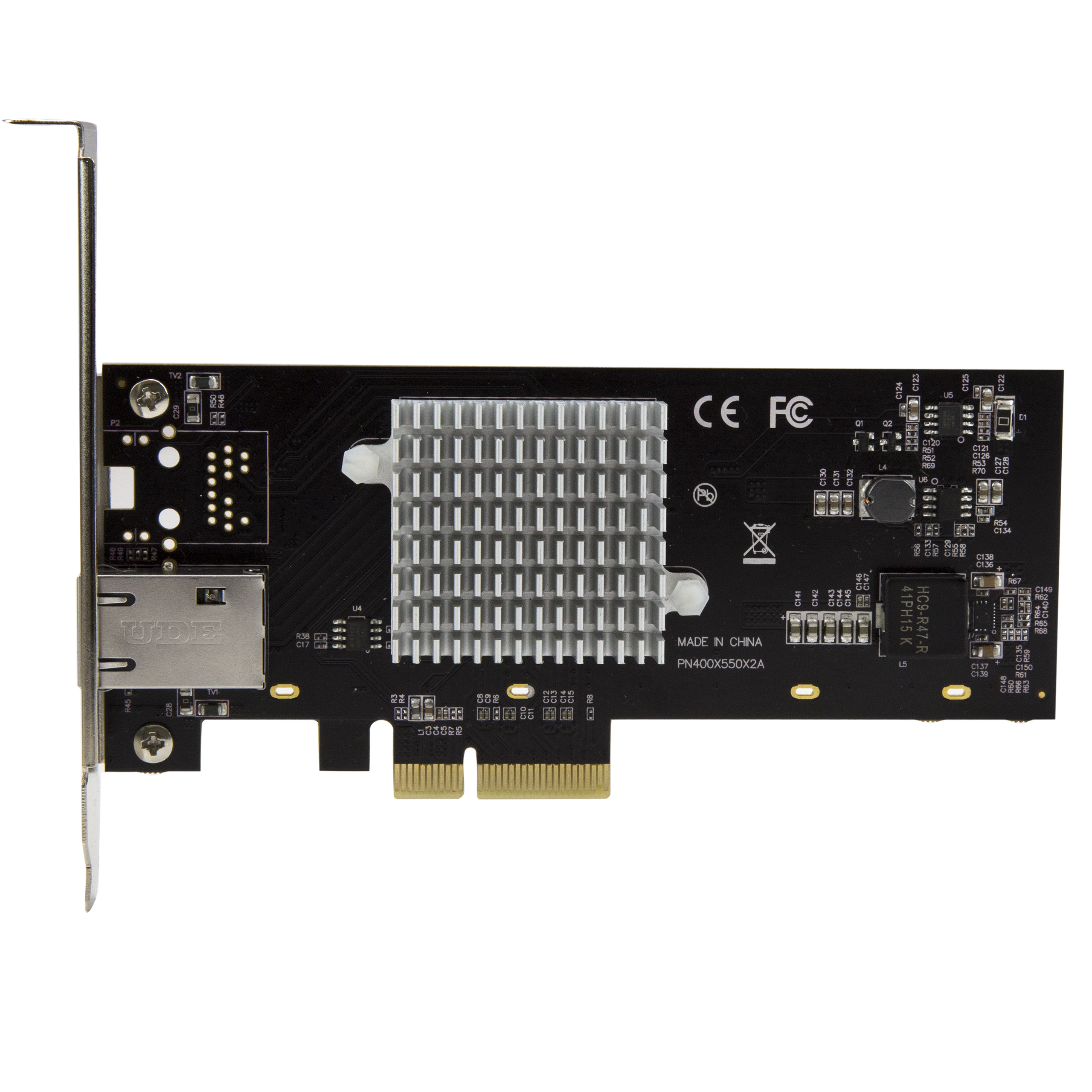

1-Port 10GbE network card with Intel Chip - PCIe
Upgrade your server or workstation to 10G networking over copper, by adding a 10GBase-T / NBASE-T RJ45 port
Main Image
Enhanced Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Product Name 1-Port 10GbE network card with Intel Chip - PCIe Product Number ST10000SPEXI UPC 065030866156 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Desktop and Server Network Cards Category Level 3 Ethernet Cards Family 10G PCIe Ethernet NICs - Copper Intel Country of Origin Europe & Japan Malaysia Country of Origin North America Malaysia Country of Origin History (1) Malaysia Country of Origin Revision (1) XXXXXX156X Country of Origin History (2) China Country of Origin Revision (2) XXXXXX163X Product Title (Ultra-Short) 1-Pt 10GbE NIC -PCIe Product Title (Short) 1-Port PCIe 10Gb Ethernet Network Card Product Title (Medium) 1-Port 10G Ethernet Network Card - PCI Express - Intel Chip - 10GBase-T/NBASE-T Product Title (Standard) 10G Network Card – NBASE-T – RJ45 Port – Intel X550 chipset – Ethernet Card – Network Adapter – Intel NIC Card Product Title (Long) 1-Port 10G Ethernet Network Card - PCI Express - Intel X550-AT Chip Product Title (AMZ) 1 Port 10G PCIe Network Card - 10GBase-T / NBASE-T - RJ45 Port - Intel X550 Chipset - Ethernet Card - Network Adapter - Intel NIC Card (ST10000SPEXI) Title Ingram (Part 1) 1-Port 10GbE network card with Title Ingram (Part 2) Intel X550-AT Chip - PCI Express Website Product Headline Upgrade your server or workstation to 10G networking over copper, by adding a 10GBase-T / NBASE-T RJ45 port Bullet 1 Add a 10G /5G/2.5G/1G/100Mbps R-J45 Ethernet port to provide cost-effective network connectivity for high bandwidth workstations and servers Bullet 2 Compliant with 10GBase-T and NBASE-T specifications Bullet 3 Intel X550-AT chipset with Intel Virtualization Technology for connectivity (Intel VT-c) Bullet 4 Fully compliant with IEEE 802.3an (10GBASE-T), IEEE 802.3ab (1GBASE-T), IEEE 802.3u (100BASE-T) Bullet 5 Up to 20Gbps (full duplex) bandwidth Bullets (Compact) Upgrade your server or workstation to 10G networking over copper, by adding a 10GBase-T / NBASE-T RJ45 port - 1-Port 10G Ethernet Network Card - PCI Express - 10GbE NIC w/ Intel X550-AT Chip - Multi-speed 10G/5G/2.5G/1G/100Mbps network adapter card Bullets (Consolidated) Upgrade your server or workstation to 10G networking over copper by adding a 10GBase-T/NBASE-T RJ45 port - 1-Port 10G Ethernet Network Card - PCI Express - 10GbE NIC w/ Intel X550-AT Chip - Multi-speed 10G/5G/2.5G/1G/100Mbps network adapter card - One-port PCI Express 10 Gigabit NIC with Intel chip - Features Intel Virtualization Technology for connectivity (Intel VT-c) - 10Gb Ethernet server adapter with up to 20Gbps (full duplex) bandwidth - Up to 15K jumbo frame support Marketing Copy Marketing Copy (No HTML) Applications - Upgrade your server or workstation to provide enhanced performance, advanced features and greater reliability
- Upgrade a 10/100/1000 Ethernet port on your computer to 10GbE networking
- Ideal for high-demand database servers and mission-critical systems that need redundant network connectivity
- Add networking capabilities to an old system with no Ethernet port
Website Search Keyword - 10g Network Adapter
- network adapter card
- 1-Port PCIe 10G Ethernet Network Card
- 1-Port PCIe 10G Network Card
- 1-Port PCIe 10G Network Adapter Card
- 1-Port PCIe 10G NIC
- One-Port PCIe 10G Ethernet Network Card
- 1-Port NIC
- One-Port NIC
- 1 port network card
- Intel NIC
- 10gbase-t card
- 10gbase-t adapter
- 10G network card
- 10g network interface card
- 10g nic
- 10gbase-t nic
- pci express 10g nic
- pcie 10g network adapter
- intel 10g server adapter
- intel 10g nic
- 10 gigabit network card
- 10GBase-T / NBASE-T adapter card
- NBASE-T NIC
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes - Intel NIC Teaming is supported only on Windows Server OS (e.g., Server 2012, 2016) and not on desktop versions like Windows 10 or 11. System and Cable Requirements For Windows, NBase-T support requires Windows 8 or higher Accessory Products - C6ASPAT3BL
- C6ASPAT3GR
- C6ASPAT10BL
- C6ASPAT10GR
Related Products - ST10000SPEX
- PEX10000SFP
- ST1000SPEXI
- ST2000SPEXI
- PEX1000SFP
- ST1000SPEX2
- ST10GSPEXNB
Constrained SKU Alternatives (Limited Stock) ST10GPEXNDPI Input Voltage 12V DC Output Voltage (V) 12V DC Cable Length (mm) 100 Color Black Humidity 20~80% Material Steel Operating Temperature 5°C to 50°C (41°F to 122°F) Primary Material Steel Product Length (mm) 152.200 Product Width (mm) 68.500 Product Height (mm) 121.000 Product Weight (g) 96.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10 Gbps/5G/2.5G/1G/100 Mbps Full Duplex Support Yes Jumbo Frame Support 9K max. Maximum Data Transfer Rate 10 Gbps OS Compatibility - Windows 8
- Windows Server 2012
- Windows 10
- Windows 7
- Linux
- Windows Server 2016
- Windows Server 2019
- Windows 11
- Windows Server 2022
Promiscuous Mode Yes Supported Protocols Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Intel - X550AT Industry Standards - IEEE 802.1Q VLAN Tagging
- IEEE 802.3x Full Duplex Flow Control
- PCI Express Rev 2.0
Interface/Bridge RJ45 (10 Gigabit Ethernet) IO Card Port Style Integrated on Card LED Indicators - 1 - Link/Activity
- 1 - 10G/1G Speed

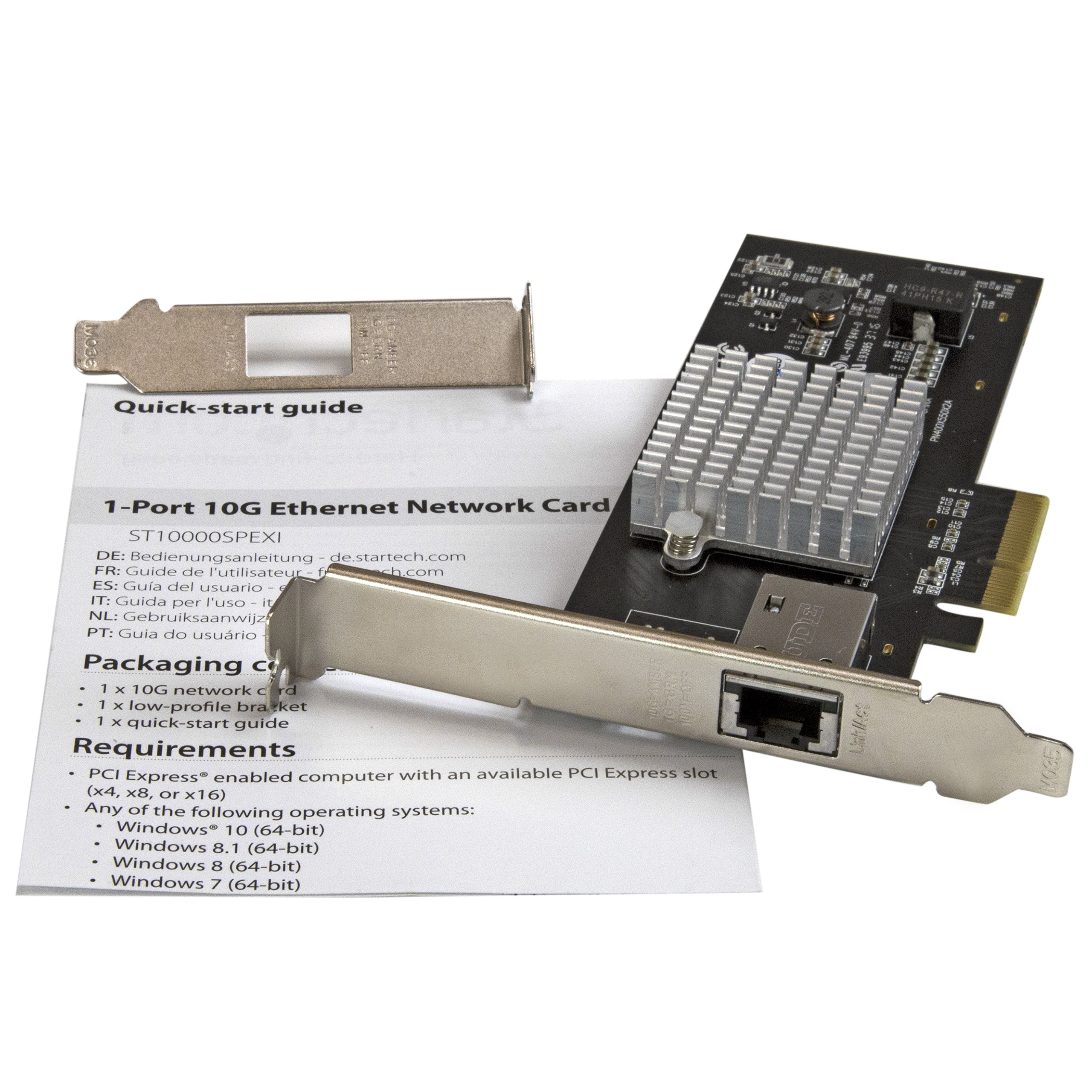

Carton Depth (mm) 420 Carton Height (mm) 318 Carton Quantity 40 Carton Weight Gross (g) 7994 Included in Package - 1 - 10G network card
- 1 - low-profile bracket
- 1 - quick-start guide
Package Depth (mm) 146 Package Height (mm) 41 Package Width (mm) 212 Package Quantity 1 Package Weight (g) 186 Packaging Description 1-Port 10G Ethernet Network Card - PCIe - Intel Chip Packaging Description India 1-Port 10G Ethernet Network Card - PCIe - Intel Chip Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x4 Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2016-07-22 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2016-08-19 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2016-08-19 Target Production Release 2016-07-29 Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
