ST1000BT32

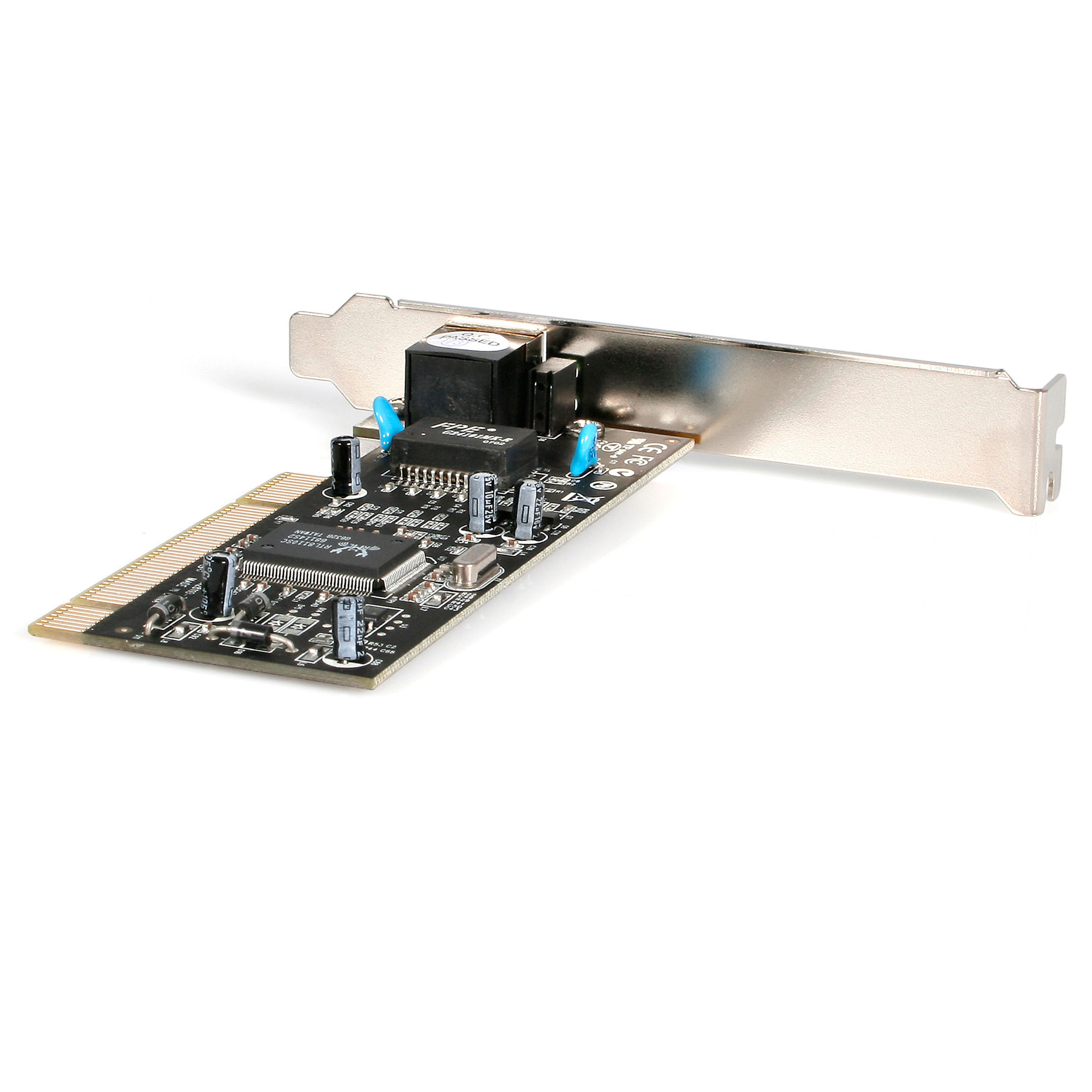

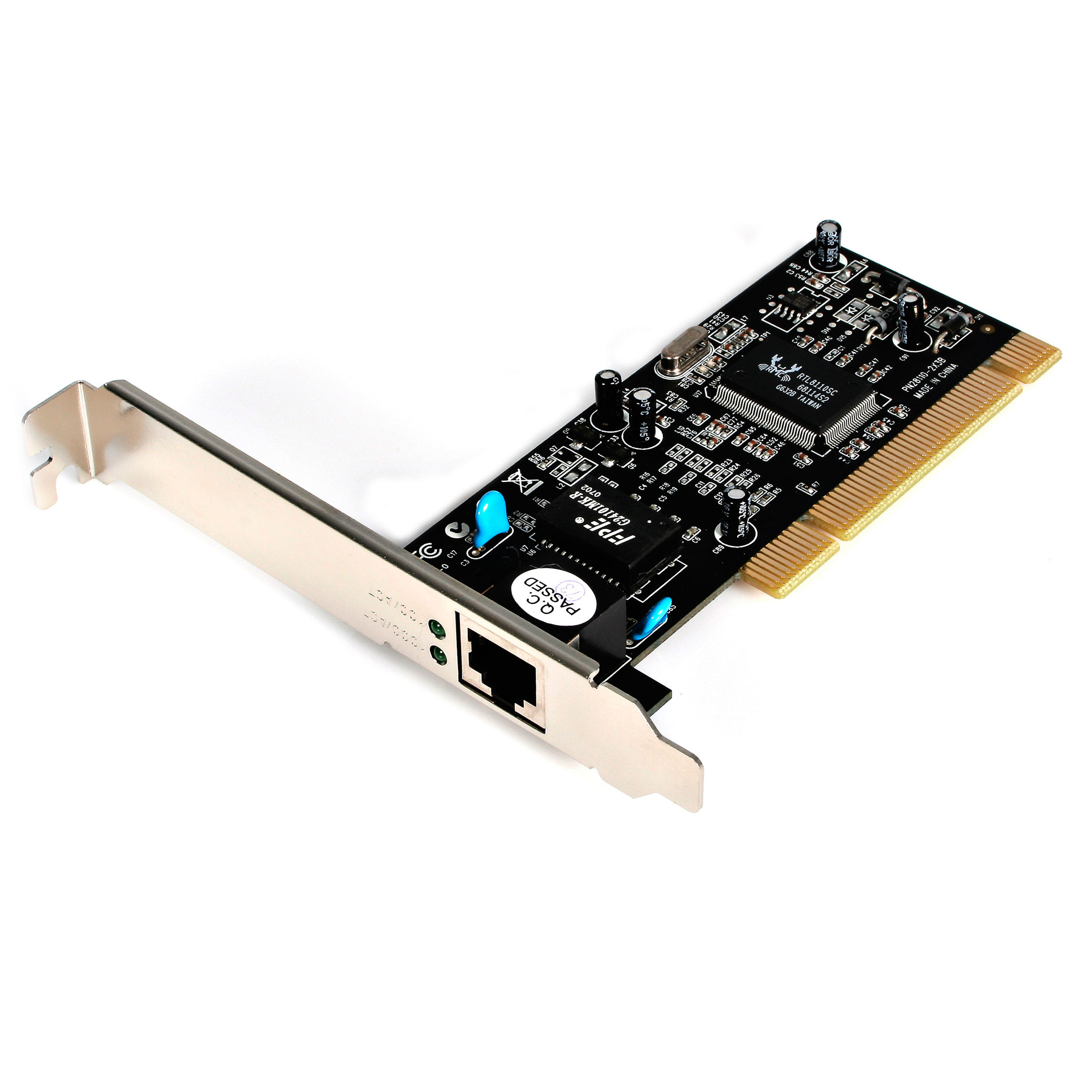

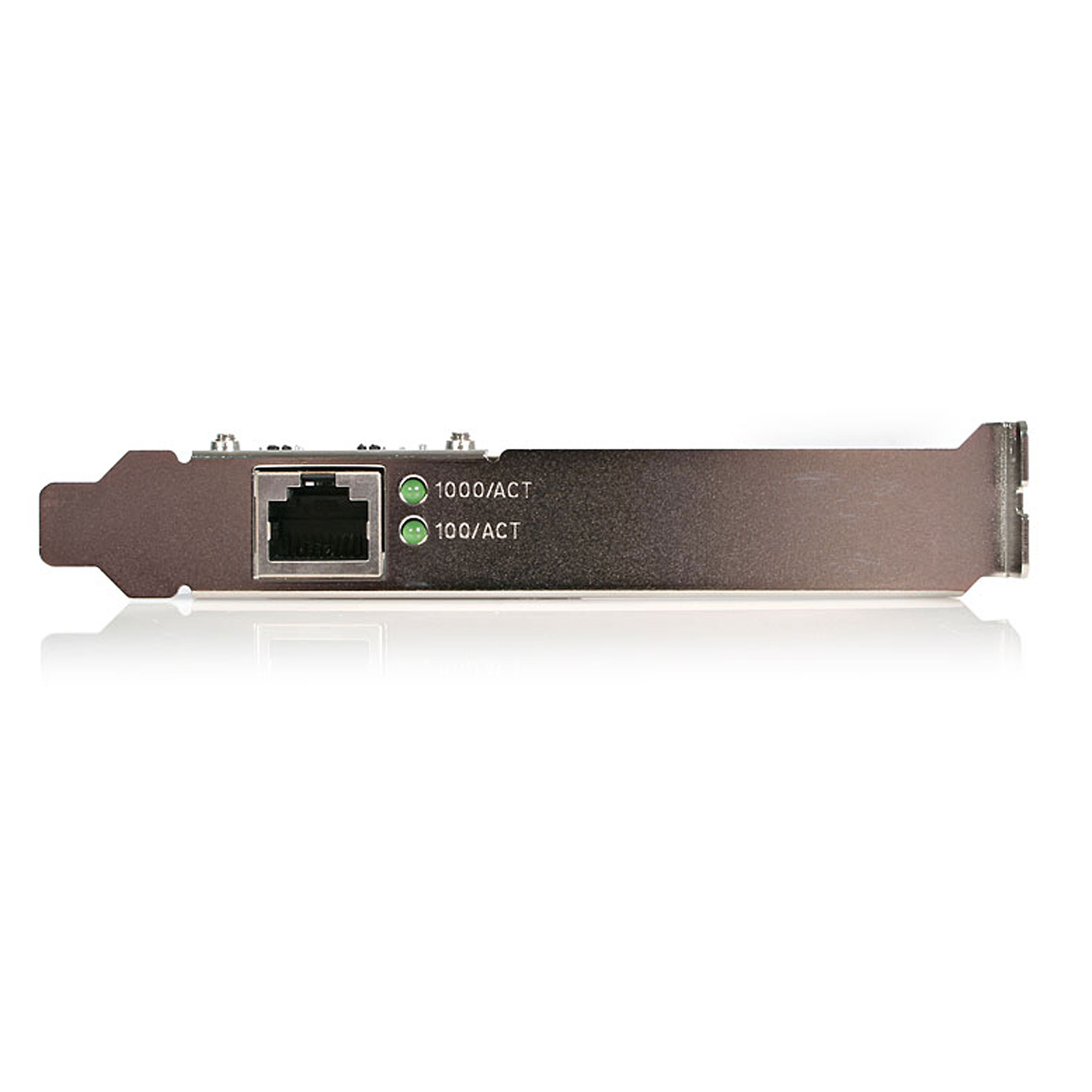

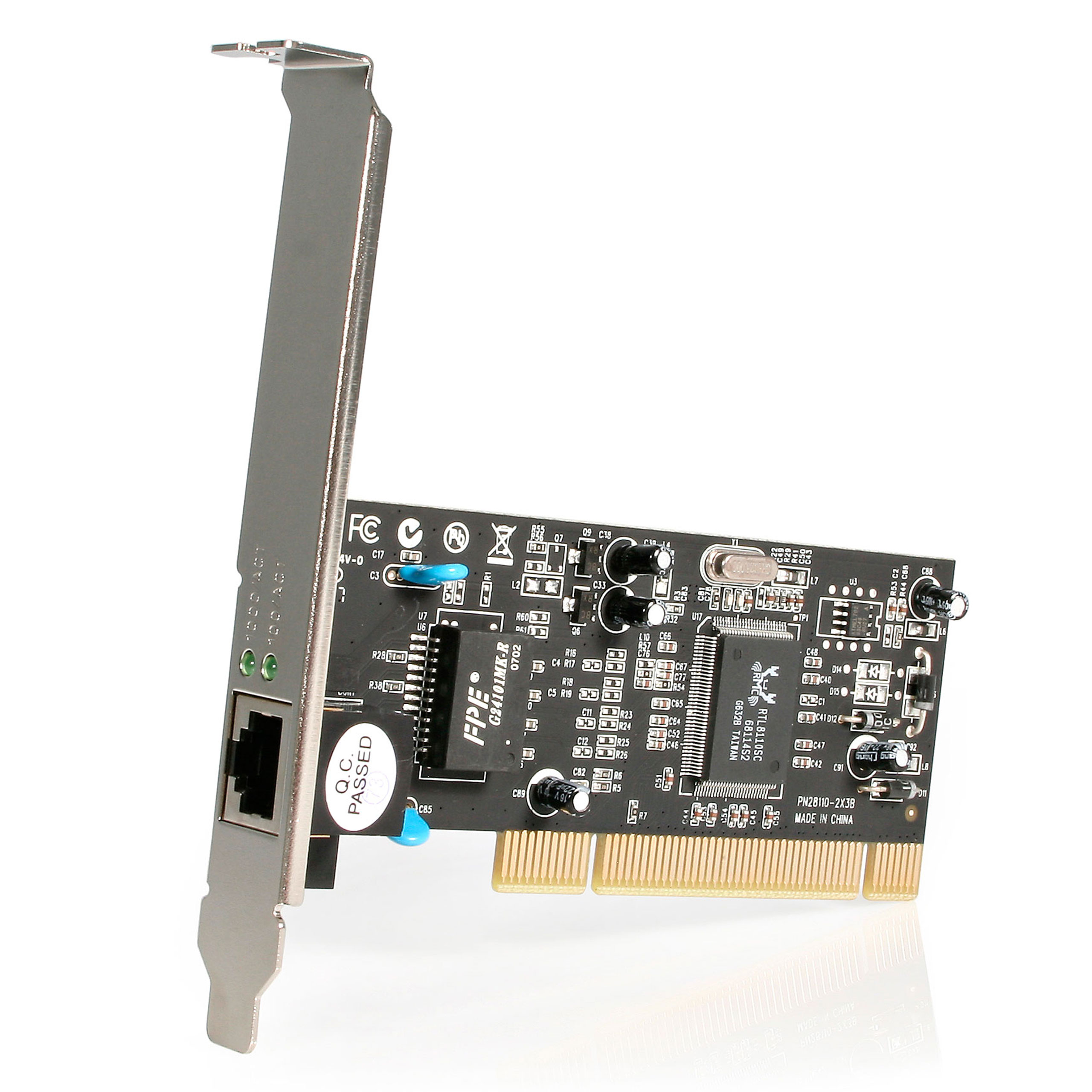

PCI 32 Bit Gb NIC Ethernet Network Adapter Card
Add a 10/100/1000Mbps Ethernet port to any PC through a PCI slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name PCI 32 Bit Gb NIC Ethernet Network Adapter Card Product Number ST1000BT32 UPC 065030795807 Lifecycle status End of Life Warranty Lifetime Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Desktop and Server Network Cards Category Level 3 Ethernet Cards Family No family Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Product Title (Short) 1 Port PCI Gigabit Ethernet Adapter Card Product Title (Medium) x Product Title (Standard) Ethernet Network adapter card - PCI - EN, Fast EN, Gigabit EN - 10Base-T, 100Base-TX, 1000Base-T Product Title (Long) Product Title (AMZ) 1 Port PCI 10/100/1000 32 Bit Gigabit Ethernet Network Adapter Card (ST1000BT32) Title Ingram (Part 1) One Port PCI 10/100/1000 32 Bit Title Ingram (Part 2) Gb Ethernet Network Adapter Card Website Product Headline Add a 10/100/1000Mbps Ethernet port to any PC through a PCI slot Bullet 1 A single 10/100/1000Mbps compatible RJ45 Ethernet port Bullet 2 Network Link/Activity and 10/100/1000 Mbps LED indicators Bullet 3 Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3ab, and supports IEEE 802.1Q VLAN tagging Bullet 4 Full and half duplex support Bullet 5 Supports Wake-on-LAN function Bullets (Compact) Add a 10/100/1000Mbps Ethernet port to any PC through a PCI slot - PCI gigabit Ethernet - Gigabit Ethernet adapter - Gigabit network card - Server adapter Bullets (Consolidated) Add a 10/100/1000Mbps Ethernet port to any PC through a PCI slot - PCI Gigabit Ethernet - Gigabit Ethernet Adapter - Gigabit Network Card - Server Adapter - PCI - 10/100/1000 - 10Base-T 100Base-TX 1000Base-T - 1 Port PCI 32 Bit Gigabit Ethernet Network Adapter Card - Low and Full Profile Bracket Included Marketing Copy Marketing Copy (No HTML) This 1Gb PCI network card provides a simple connection to a Gigabit Ethernet network, and is fully compatible with IEEE 802.3, 802.3u, 802.3ab and 802.3x standards. It supports 10/100/1000 Mbps transmission. Widely Compatible Suitable for any PCI-enabled client, server or workstation, the 1GbE network adapter supports high performance dual channel networking and maximum data transfer speeds of 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet. Versatile Functionality This 1G PCI LAN card is designed to be compatible with a broad range of operating systems, including Linux, Windows 10, 8/8.1, ME, 2000, XP, XP-64bit, Vista, Vista-64bit, 7, 7-64bit as well as Mac OS 10.4. This high-quality PCI Gigabit NIC includes an optional low-profile bracket that makes it easy to install the card in a small form factor/low profile computer case/server. This PCI interface card is backed by a lifetime StarTech.com warranty and free lifetime multilingual technical support. Applications - Add an additional Ethernet port to a workstation or server computer for redundancy
- Upgrade a computers 10/100 Ethernet port to a 1000 compatible port
- Add networking capabilities to an old system with no Ethernet port
Website Product Alert This product has been discontinued Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Special Notes IRQ Line & I/O Address allocated by system Color Black Humidity 10% ~ 95% RH Material Steel Operating Temperature 0°C to 55°C (32°F to 131°F) Primary Material Steel Product Length (mm) 123.000 Product Width (mm) 20.000 Product Height (mm) 63.000 Product Weight (g) 53.000 TAA Compliant No Compatible Networks 10/100/1000 Mbps Full Duplex Support Yes Maximum Data Transfer Rate 1000 Mbps MTBF (hours) 36,000 Hours OS Compatibility - Linux
- Windows Server 2012
- Windows 7
- Windows 8
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11

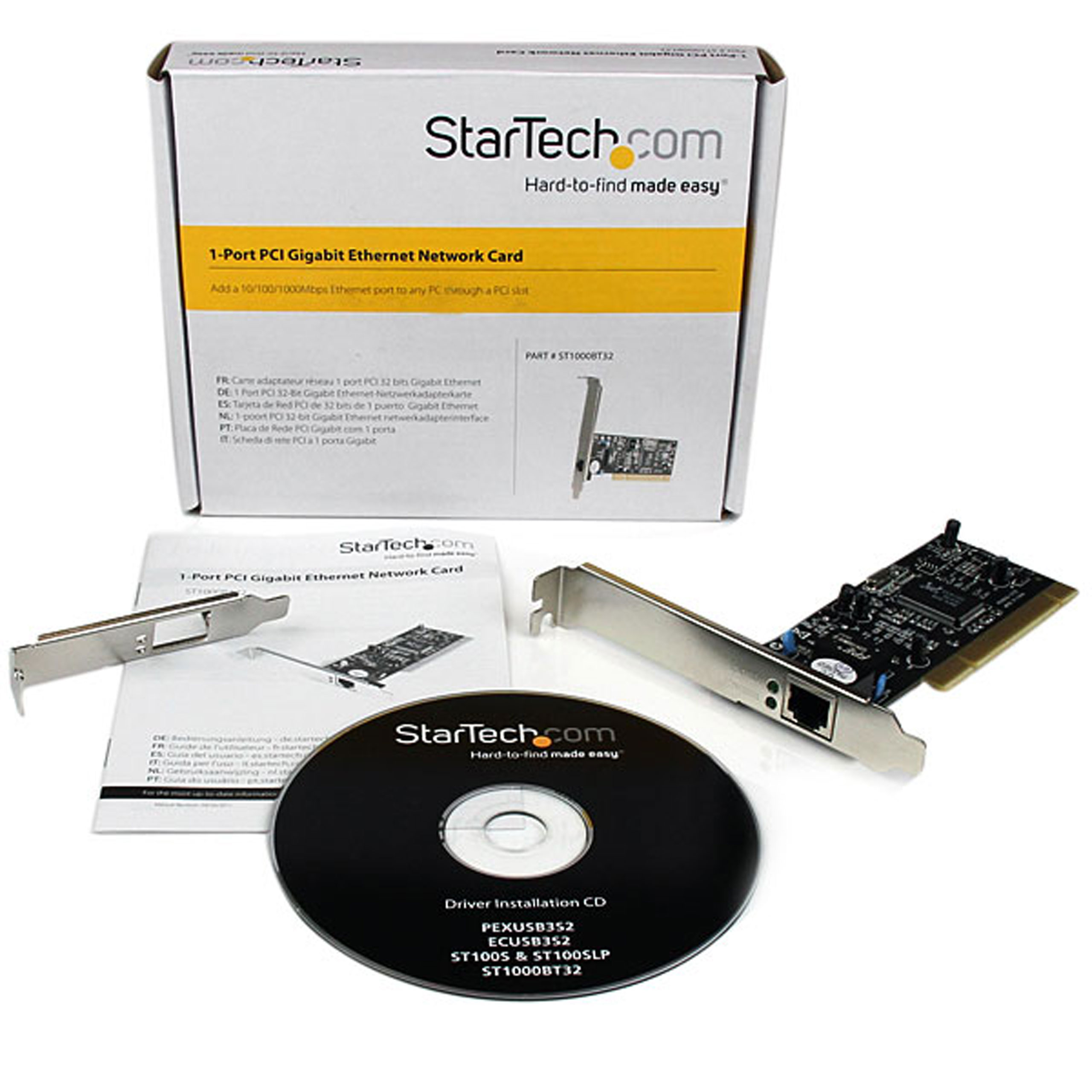

Supported Protocols CSMA/CD Wake-On-LAN (WOL) Yes Bus Type PCI / PCI-X (5 / 3.3V) Card Type Standard Profile (LP bracket incl.) Chipset ID Realtek - RTL8110SC Industry Standards Interface/Bridge RJ45 (Gigabit Ethernet) LED Indicators 1 - 10/100/1000 Mbits/sec Link/Activity Carton Depth (mm) 308 Carton Height (mm) 364 Carton Quantity 80 Carton Weight Gross (g) 11570 Included in Package - 1 - Gigabit Ethernet PCI Card
- 1 - Instruction Manual
- 1 - Driver CD
- 1 - Low Profile bracket
Package Depth (mm) 142 Package Height (mm) 30 Package Width (mm) 168 Package Quantity 1 Package Weight (g) 136 Packaging Description 1 Port PCI Gigabit Network Card Packaging Description India 1 Port PCI Gigabit Network Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IN,IT,JP,MX,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
