10/100/1000 Mbps 64 bit PCI EthernetCard

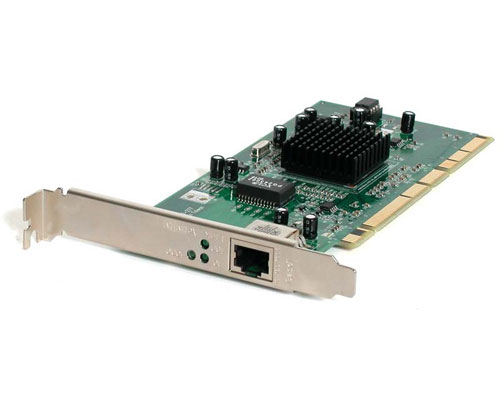

Main Image

Product Name	10/100/1000 Mbps 64 bit PCI EthernetCard
Product Number	ST1000BT64
UPC	065030795814
Lifecycle status	Discontinued
Warranty	Lifetime
Taxonomy	Product > Legacy Discontinued
Category Level 1	Legacy Category
Category Level 2	Legacy Sub-Category
Category Level 3	Legacy Group
Country of Origin Europe & Japan	Taiwan
Country of Origin North America	Taiwan
Country of Origin History (1)	Taiwan
Country of Origin Revision (1)	XXXXXX022X

Manual https://images.salsify.com/image/upload/s--cCv5ojo1--/bbef90614e89e7b0646a1e3c507ffe869d353b04.pdf

Product Title (Long)	10/100/1000 Mbps 64 bit PCI Gigabit Ethernet Card
Bullet 1	Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab and IEEE 802.3x standards
Bullet 2	Supports 32/64 bit 33/66MHz PCI Local Bus Master for high-speed operation
Bullet 3	One RJ-45 connector supports 1000Mbits/sec, 100Mbits/sec or 10Mbits/sec network speed and Auto-MDI/MDI-X
Bullet 4	Plug-and-Play installation
Bullet 5	Support IEEE 802.3x full-duplex flow control
Marketing Copy
Applications	Servers with high performance network applications and congested network segments Industries that needs to increase productivity and cost savings through high network throughput Ideal for enterprise and data center environments

General Specifications

Compliant Standards:
: IEEE 802.3: 10BaseT Ethernet
: IEEE 802.3u: 100BaseTX Fast Ethernet
: IEEE 802.3ab: 1000BaseT Gigabit Ethernet
: IEEE 802.3x: Flow Control
Bus Architecture: PCI Version 2.2/2.1,32/64 bit 33/66MHz Bus
Network Port: RJ-45 x 1 (Auto-MDI/MDI-X)
Network Media:
: 10BaseT: UTP/STP category 3, 4 or 5 cable
: 100BaseTX: UTP/STP category 5 cable
: 1000BaseT: 4 pair’s category 5 cable
Protocol: CSMA/CD
Data Transmission Rate:
: 1000Mbits/sec Full/Half
: 100Mbits/sec Full/Half
: 10Mbits/sec Full/Half
IRQ Line & I/O Address: Allocated by system
Support Drivers: Windows 98SE/Me/NT/2000/XP, Netware Server 5.x, Netware ODI for DOS, Linux and UNIX
LED Indicators:
: 10Mbits/sec Link/Activity
: 100Mbits/sec Link/Activity
: 1000Mbits/sec Link/Activity
Dimension: 144 x 63 mm
Certification: FCC Class B & CE Mark C-tick
