ST1000PEXPSE
1 Port PCI Express 2 5Gbps Ethernet Card with PoE
IEEE 802.3af and IEEE 802.3at (PoE/PoE+) | 2.5GBASE-T
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Quick-Start Guide
Product Name 1 Port PCI Express 2 5Gbps Ethernet Card with PoE Product Number ST1000PEXPSE UPC 065030893107 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Desktop and Server Network Cards Category Level 3 Ethernet Cards Family no family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Ultra-Short) PoE Network Card Product Title (Short) 30W 2.5Gbps PCIe PoE Network Card, NIC Product Title (Medium) 1 Port 2.5Gbps PoE Network Card, PCIe Ethernet Card, 30W 802.3at NIC, NBASE-T Product Title (Standard) 1 Port 2.5Gbps PoE Network Card, PCIe Ethernet Adapter, 30W 802.3at PoE NIC for PC/Servers, RJ45/Network LAN, NBaseT, TAA Product Title (Long) 1 Port 2.5Gbps PoE Network Card, PCIe Ethernet Card w/RJ45, 30W 802.3at PoE NIC for Desktops/Servers, Network PoE LAN Adapter w/Low-Profile Bracket, NBaseT, Windows/Linux - TAA Product Title (AMZ) 1 Port 2.5Gbps PoE Network Card, PCIe Ethernet Card w/RJ45, 30W 802.3at PoE NIC for Desktops/Servers, Network PoE LAN Adapter w/Low-Profile Bracket, NBaseT, Windows/Linux , TAA Title Ingram (Part 1) PoE Network Card, 2.5G NIC - Title Ingram (Part 2) PCIe Ethernet LAN Adapter Website Product Headline IEEE 802.3af and IEEE 802.3at (PoE/PoE+) | 2.5GBASE-T Bullet 1 2.5G NETWORK CARD WITH POE: This PCI Express x1 Network Card enables 2.5Gbps network speeds and supplies (PSE) 30W PoE over a single CAT5e (or later) cable - Leverage existing copper cabling without the use of a Power over Ethernet (PoE) injector Bullet 2 POE+ COMPLIANT: Card provides up to 30W PSE and 25.5W PD at 48V DC to a connected device - Supports IEEE 802.3af (PoE) and 802.3at (PoE+) to power remote devices such as access points, RFID readers, and IP cameras Bullet 3 MULTI-GIGABIT CONNECTIVITY: The Network PoE Card features 2.5GBASE-T (802.3bz) and will auto negotiate to the connected device's highest possible speed - The PCIe Network Card supports Wake-on-LAN and RealWoW for remote wake up of the host computer Bullet 4 TECH SPECS: 2.5Gbps/1Gbps/100Mbps/10Mbps - NBASE-T - 1x RJ45 Port - Realtek RTL8125B - IEEE 802.3af/at - 802.3az EEE - PCIe 2.1 x1 - SATA & SP4 Power Connectors - Link/PoE LED Indicators - 16K Jumbo Frame - VLAN - PXE Boot - Full and Low-Profile Brackets Bullet 5 VERSATILE POE NETWORK CARD: The PCIe Ethernet Adapter supports Windows and Linux - Variable speed options and includes a low-profile bracket for Small Form Factor (SFF) systems ensures compatibility of the PoE NIC with current and legacy devices Bullets (Compact) PCI Express x1 PoE Network Card supports 2.5Gbps and supplies 30W PSE/25.5W PD at 48V DC; Use existing copper cables without a PoE injector; PCIe NIC supports 802.3af/at (PoE+) and NBASE-T; SATA/SP4 power connectors; Windows/Linux; LP Bracket incl. Bullets (Consolidated) CI Express x1 PoE Network Card supports up to 2.5Gbps network speeds and supplies 30W PSE/25.5W PD at 48V DC to the connected device - Uses a single CAT5e (or later) cable to leverage existing copper cabling without the use of a Power over Ethernet injector - PoE Network Adapter supports IEEE 802.3af/802.3at (PoE+) | 2.5GBASE-T (802.3bz) | Wake-on-LAN - SATA and SP4 power connectors for versatile connectivity - PCIe NIC is Windows and Linux compatible; Full and Low-Profile Brackets included Marketing Copy Marketing Copy (No HTML) Applications - Connect Power over Ethernet enabled IP cameras, phones, or Wireless Access Points
- Provide power to remote powered devices that require a PoE power source
Website Search Keyword - network poe
- PCIe ethernet card
- pcie network adapter
- pcie network card
- pcie poe
- poe card
- poe ethernet card
- poe lan adapter
- poe network card
- poe nic
Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Accessory Products - SATAPOWADAP
- SATAPOWEXT12
Related Products - ST2000PEXPSE
- ST4000PEXPSE
- C6PATCH10BK
- C6PATCH25BK
- C6PATCH50BK
- C6PATCH100BK
Output Voltage (V) 48 DC Humidity 5% ~ 95% RH Operating Temperature 0°C to 55°C (32°F to 131°F) Product Length (mm) 95.000 Product Width (mm) 12.5 Product Height (mm) 63 Product Weight (g) 66 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant Yes Auto MDIX Yes Compatible Networks 2.5G/1G/100Mbps/10Mbps Flow Control Yes Full Duplex Support Yes Jumbo Frame Support 16K max. Maximum Cable Length (mm) 100000 Maximum Data Transfer Rate 2500 Mbps OS Compatibility - Windows 10
- Windows 11
- Windows 8.1
- Linux
- Windows 7
- Windows Server 2019
- Windows Server 2012 R2
- Windows Server 2008 R2
- Windows Server 2022

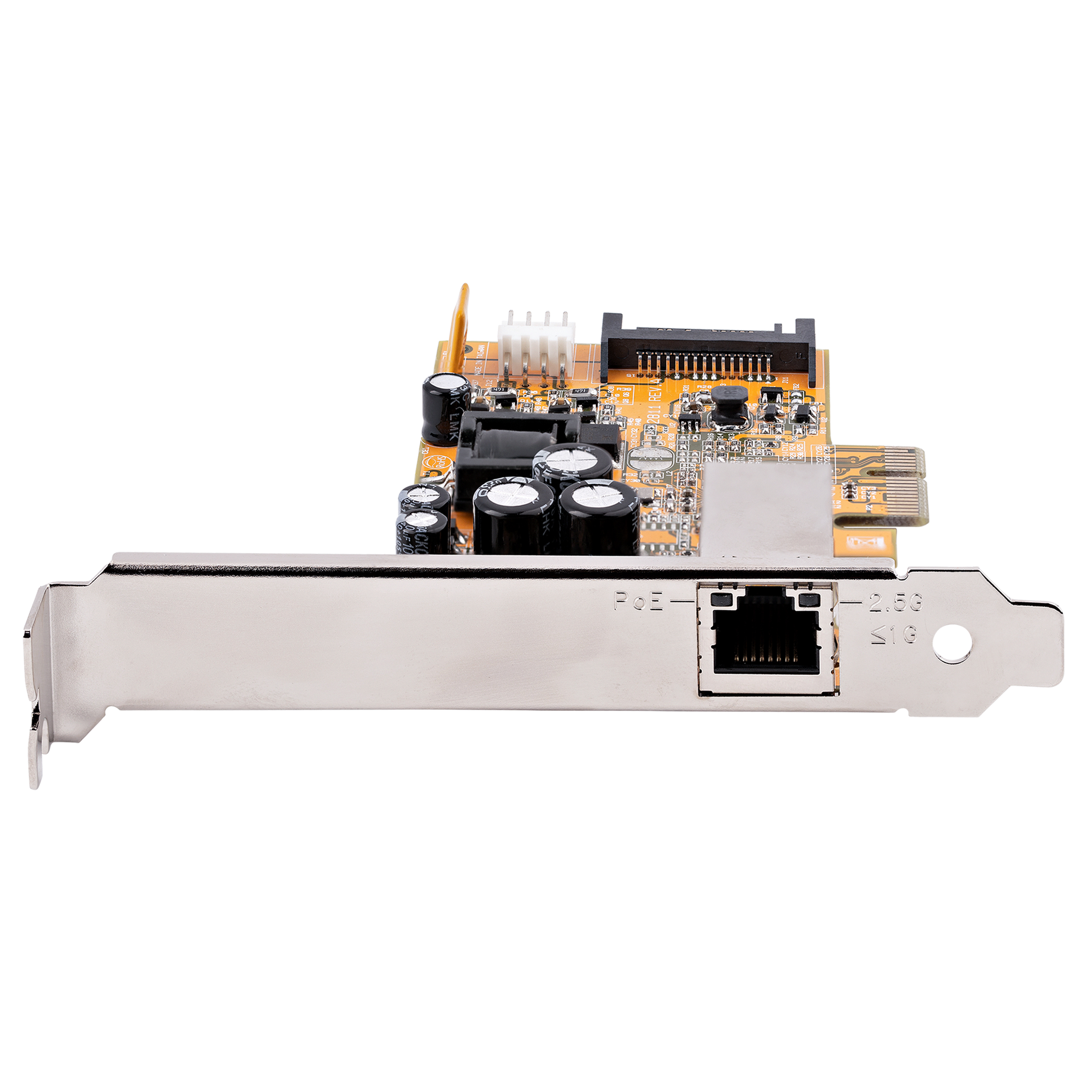

PXE Yes Total Available Power Output (In Watts) 30W Wake-On-LAN (WOL) Yes Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Realtek - RTL8125B Industry Standards Interface/Bridge RJ45 (Gigabit Ethernet) IO Card Port Style Integrated on Card LED Indicators - 1 - PoE LED: Green when supplying power
- 1 - 2.5G <1G LED: </br> 2.5 Gbps Amber </br> 1 Gbps /100 Mbps/10 Mbps Green
Carton Depth (mm) 537 Carton Height (mm) 345 Carton Quantity 50 Carton Weight Gross (g) 9108 Included in Package - 1 - Network Card

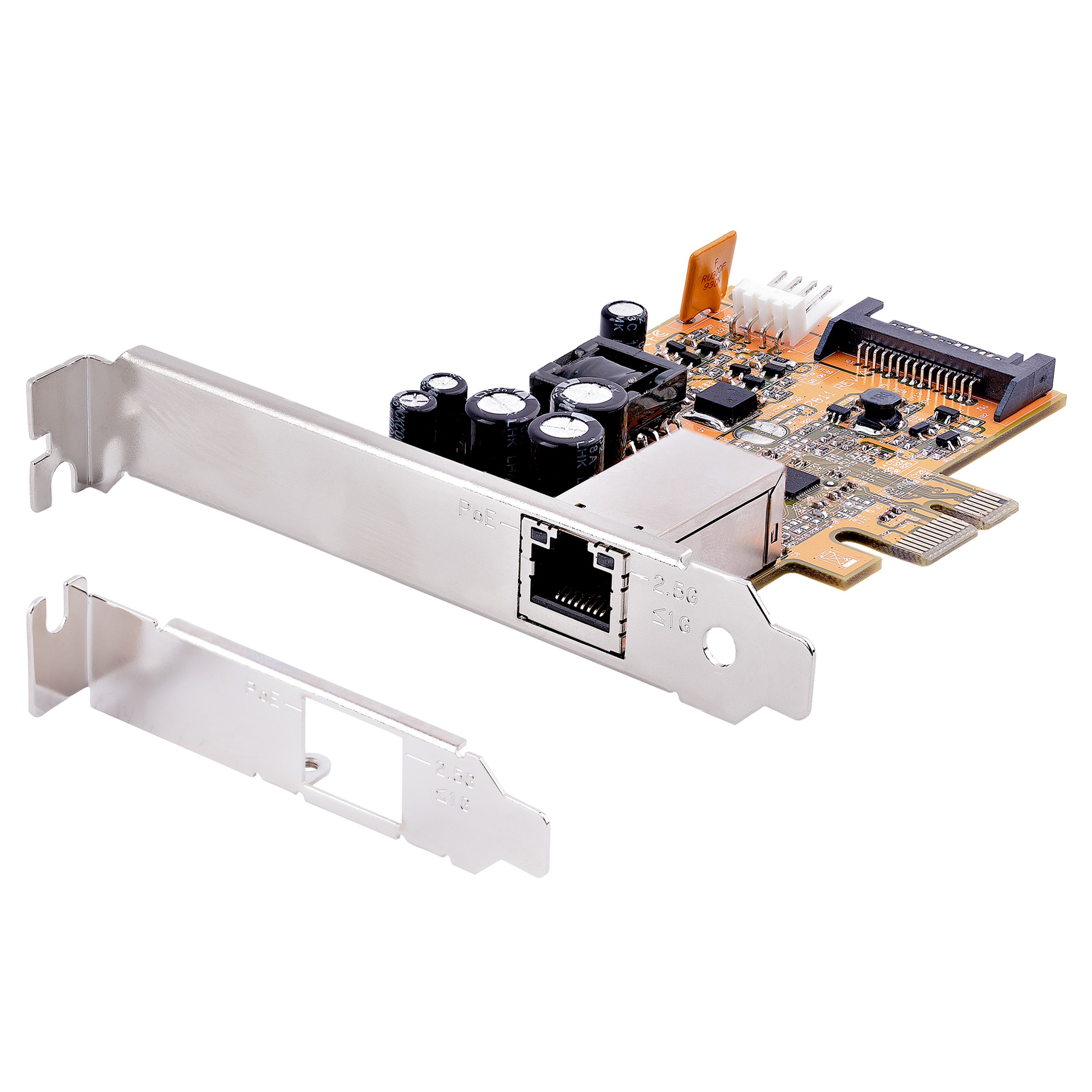

- 1 - Low-profile Bracket
- 1 - Quick-start Guide
Included In Package for Label - 1 - Quick-Start Guide
- 1 - Low-Profile Bracket
- 1 - Network Card
Package Depth (mm) 144 Package Height (mm) 41 Package Width (mm) 212 Package Quantity 1 Package Weight (g) 158 Packaging Description 1-Port PCIe 2.5Gbps Ethernet PoE Network Adapter Card Packaging Description India 1-Port PCIe 2.5Gbps Ethernet PoE Network Converter Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Connector 3 SP4 / Floppy Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 Connector 4 SATA (15-Pin) Connector 4 (Quantity) 1 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Application Photos Uploaded Artwork Due Date 2021-11-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2022-07-15 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FR,HK,IE,IN,IT,JP,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2021-11-11 Target Production Release 2021-12-23 Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle None Video Not Required
