ST1000SMPEX

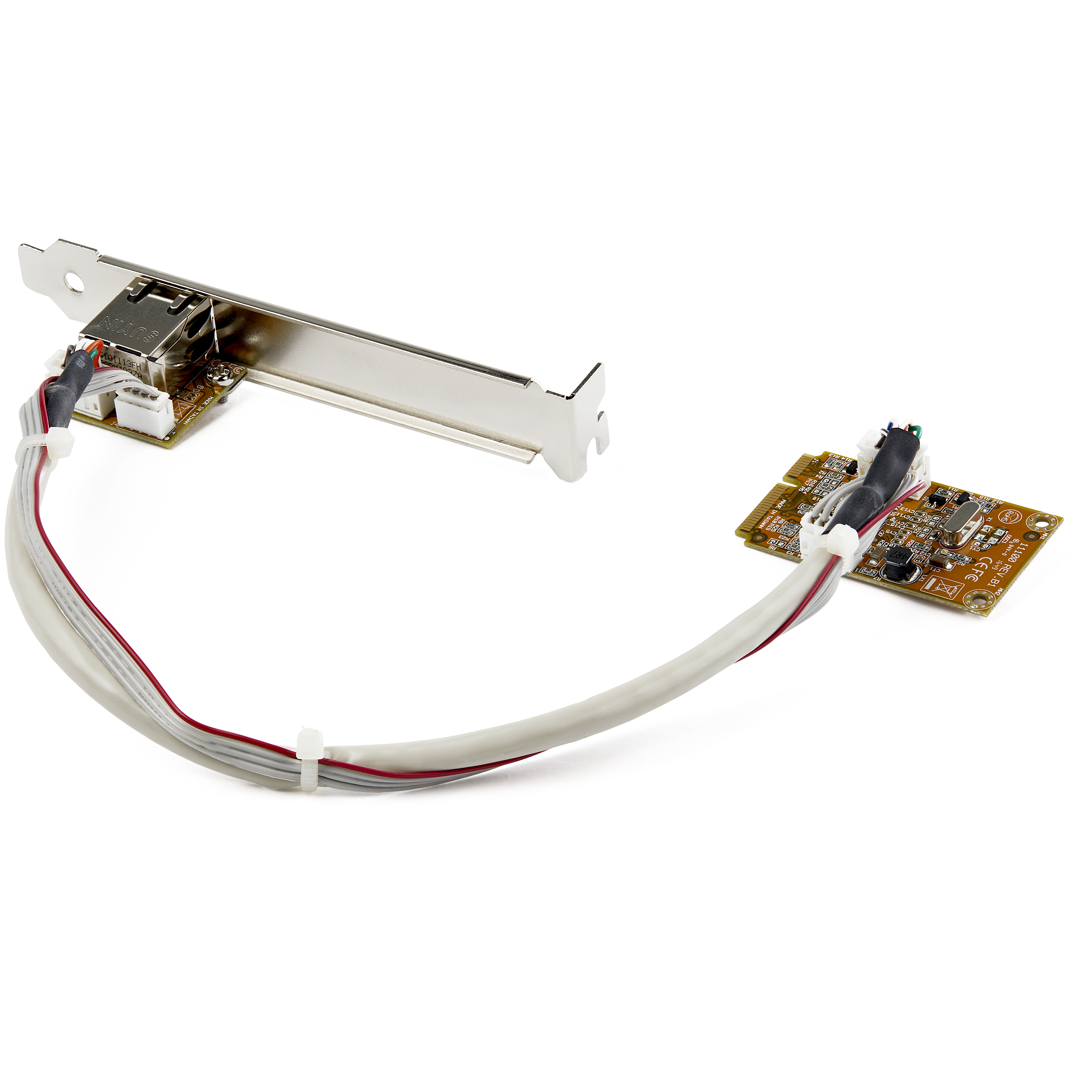

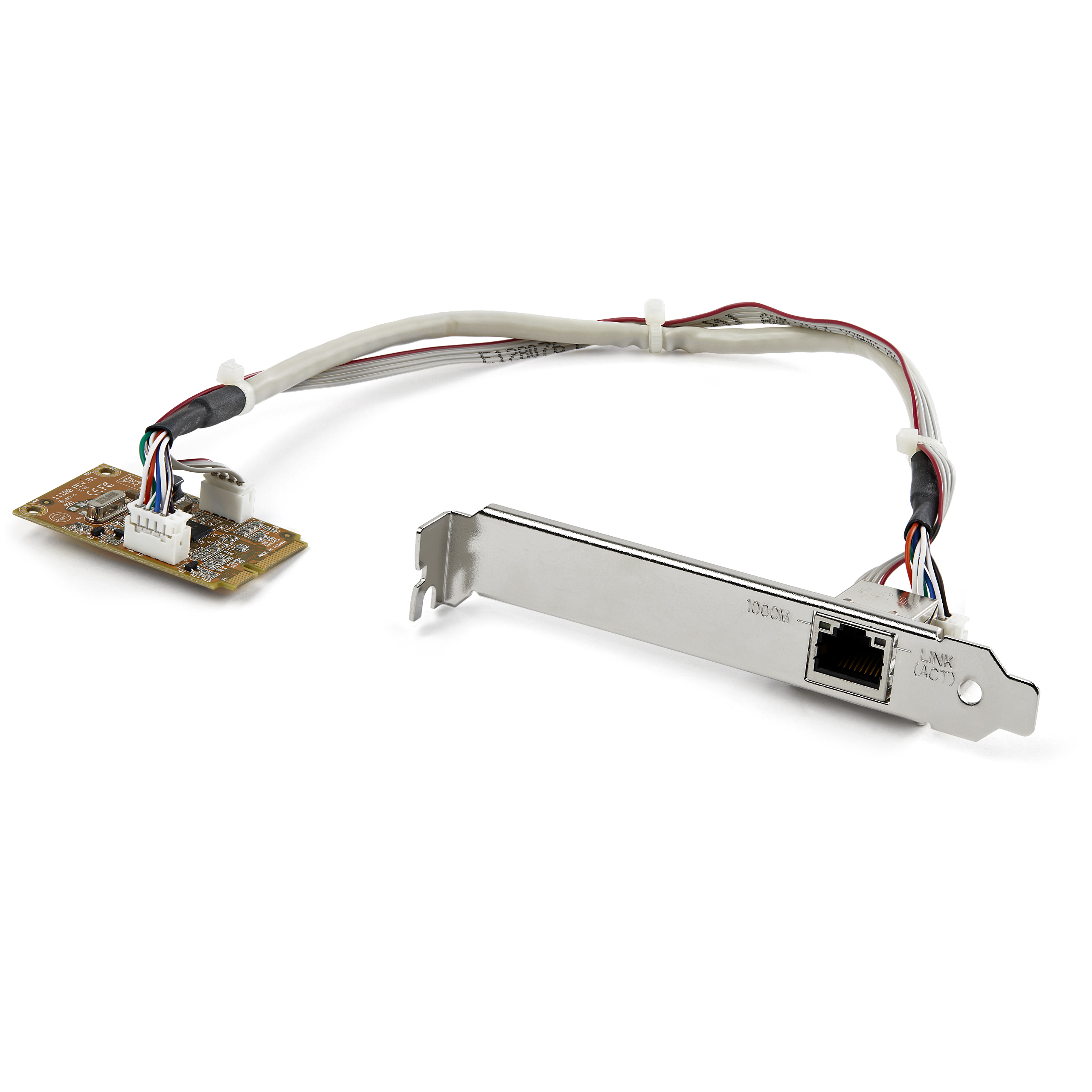

Mini PCI Express Gb Ethernet Network Adapter Card
Add a Gigabit RJ45 port through a Mini PCI Express slot
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name Mini PCI Express Gb Ethernet Network Adapter Card Product Number ST1000SMPEX UPC 065030846554 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Desktop and Server Network Cards Category Level 3 Ethernet Cards Family No family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Short) Mini PCIe Gigabit Network Adapter Card Product Title (Medium) x Product Title (Standard) Mini PCI Express Gigabit Ethernet Network Adapter NIC Card, TAA Product Title (Long) Mini PCI Express Gigabit Ethernet Network Adapter NIC Card - TAA Product Title (AMZ) Mini PCIe Card - 10/100/1000Mbps RJ45 Port - IEEE 802.3 - Jumbo Frame - Network Card , TAA (ST1000SMPEX) Title Ingram (Part 1) Mini PCI Express Gigabit Etherne Title Ingram (Part 2) t Network Adapter NIC Card Website Product Headline Add a Gigabit RJ45 port through a Mini PCI Express slot Bullet 1 One 10/100/1000Mbps compatible RJ-45 Ethernet port Bullet 2 Microsoft® NDIS5 Checksum Offload (IPv4, TCP, UDP) and Large Send Offload support Bullet 3 Supports Full and Half duplex operating modes Bullet 4 IEEE 802.1Q VLAN Tagging support Bullet 5 Fully complaint with IEEE 802.3, 802.3u, and 802.3ab specifications for 10/100/1000 Mbps connections Bullets (Compact) Add a Gigabit RJ45 port through a Mini PCI Express slot - Mini PCI Express gigabit - Mini PCIe gigabit - Mini PCI Express NIC - Gigabit Ethernet adapter - Gigabit Ethernet card Bullets (Consolidated) Add a Gigabit RJ45 port through a Mini PCI Express slot - Mini PCIe Gigabit Network Adapter Card - - mini pci express gigabit - mini pcie gigabit - mini pci express nic - gigabit ethernet adapter - gigabit ethernet card - 10/100/100 Marketing Copy Applications - Add a Gigabit networking port to a small form factor mini-ITX system with a mini PCI Express slot
- Add a Gigabit networking port to a Mini-ITX system through mini PCIe instead of taking up the full PCIe slot
- Replacement for a failed built-in Gigabit Ethernet port
Website Search Keyword - 1000 mbps
- gigabit
- network server adapter
- pcie mini card
- 1000mbps
- network adapter card
- NIC
- mini pcie
- network interface card
- pci express
- 10/100/1000
- Mini PCI Express Gigabit Ethernet Network Adapter NIC Card
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
System and Cable Requirements Available mini PCI Express slot and expansion card slot Accessory Products - C6PATCH1BL
- WIRC6PATYLRL
- C6PATCH1WH
- WIRC6PATBKRL
- C6PATCH1RD
- WIRC6CMRBL
- WIRC6PATWHRL
- N6PATCH100GN
- WIRC6PATBLRL
- C6PATCH1BK
- C6PATCH1GN
- C6ASPAT1BL
- C6PATCH1YL
Related Products - USB21000S
- ST1000SPEX4
- EC2000S
- ST100SLP
- EC1000S
- ST1000SPEXD2
- ST1000SPEX
- ST1000BT32
- PCI100MMST
- PEX1000MMST
Color Yellow Humidity 5% ~ 95% RH Material Steel Operating Temperature 0°C to 55°C (32°F to 131°F) Primary Material Steel Product Length (mm) 51.000 Product Width (mm) 8.000 Product Height (mm) 30.000 Product Weight (g) 46.000 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant Yes Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Full Duplex Support Yes MTBF (hours) 482765 Hours OS Compatibility - Windows Server 2012
- Linux
- Mac OS X
- Windows 8
- Windows 7
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11

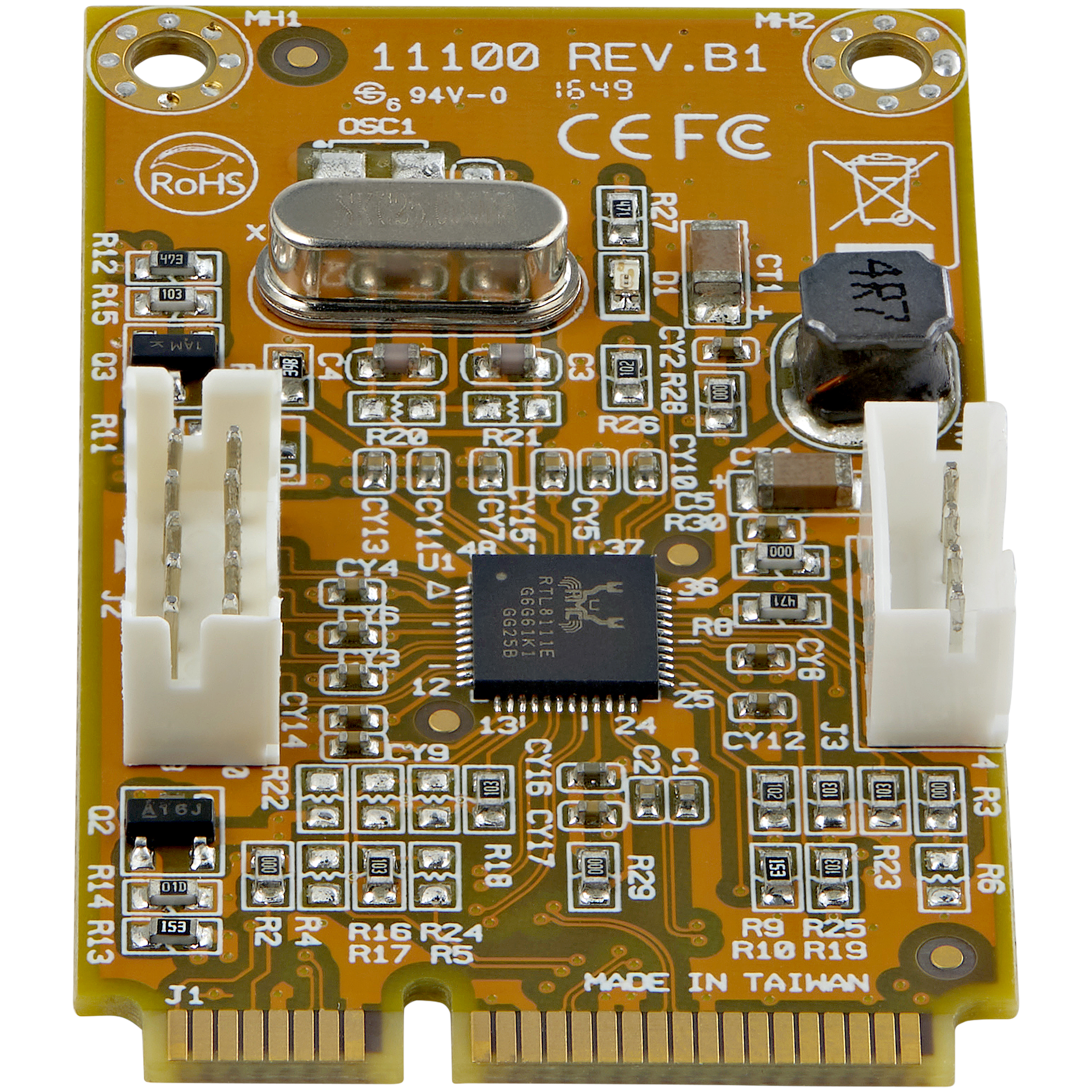

Promiscuous Mode Yes Wake-On-LAN (WOL) Yes Bus Type Mini PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Realtek - RTL8111H Industry Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab Interface/Bridge RJ45 (Gigabit Ethernet) LED Indicators - 1 - Activity
- 1 - Link

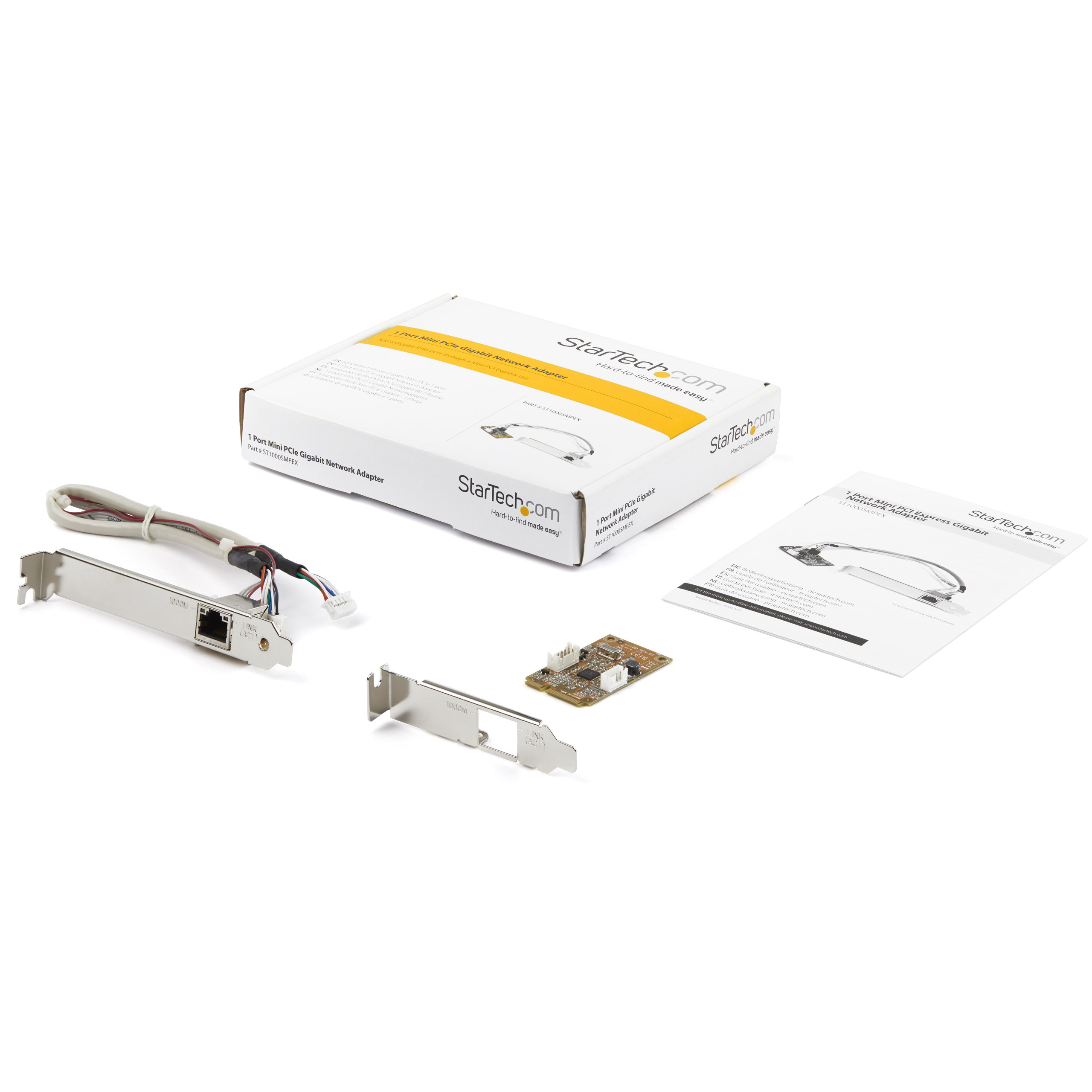

Carton Depth (mm) 446 Carton Height (mm) 346 Carton Quantity 80 Carton Weight Gross (g) 13684 Included in Package - 1 - Mini PCIe Card

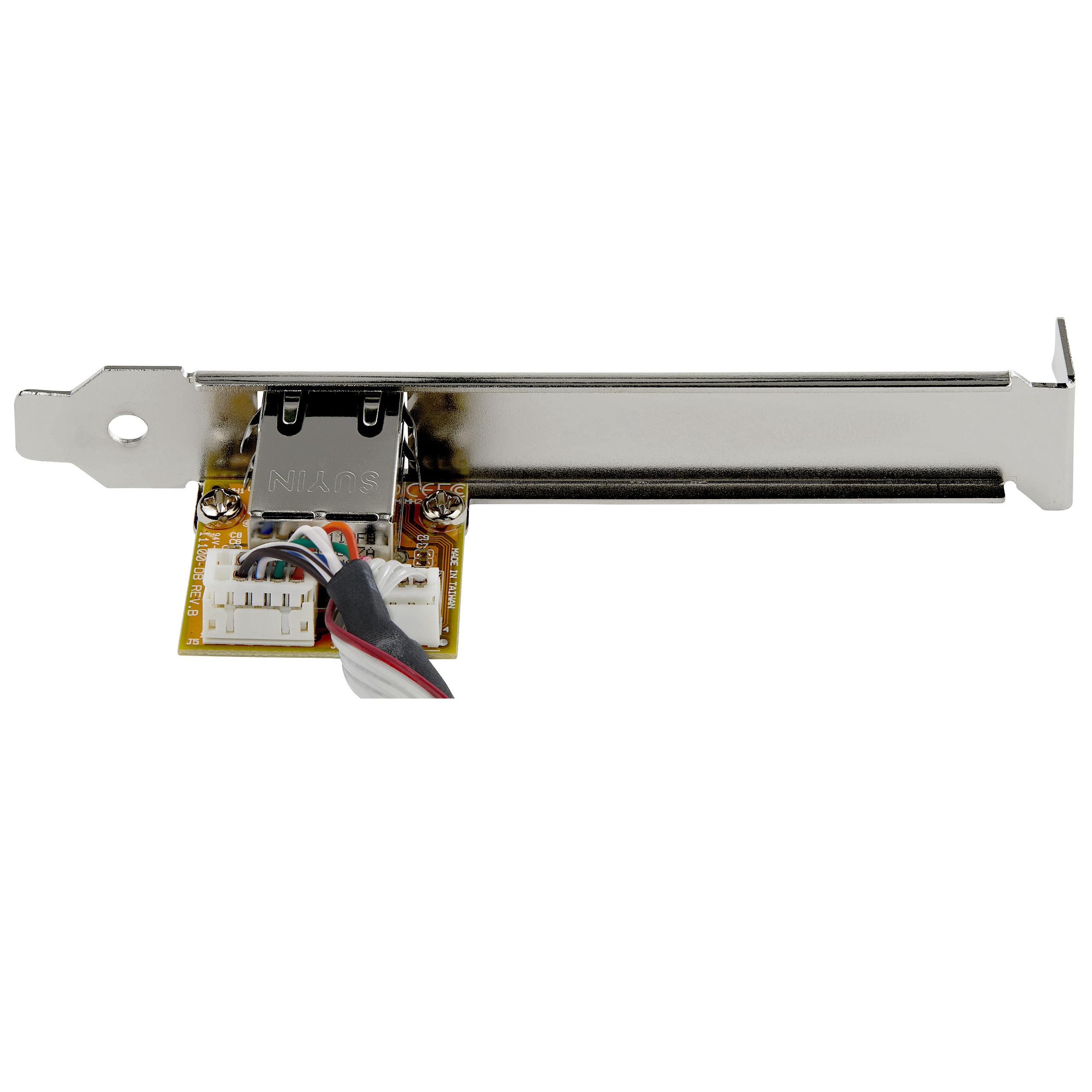

- 1 - RJ45 Daughter Board
- 1 - Instruction Manual
- 1 - Driver CD
- 1 - Low Profile Bracket
- 1 - Internal LED Cable
- 1 - Internal Data Cable
Included In Package for Label - 1 - Low Profile Bracket
- 1 - CD
- 1 - Product Documentation
- 1 - Rj45 Board
- 1 - Mini PCIe Card
- 1 - Data Cable
- 1 - Led Cable
Package Depth (mm) 144 Package Height (mm) 33 Package Width (mm) 174 Package Quantity 1 Package Weight (g) 134 Packaging Description 1 Port Mini PCIe Gigabit Network Adapter Packaging Description India 1 Port Mini PCIe Gigabit Network Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Mini PCI Express x1 Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
