ST1000SPEX

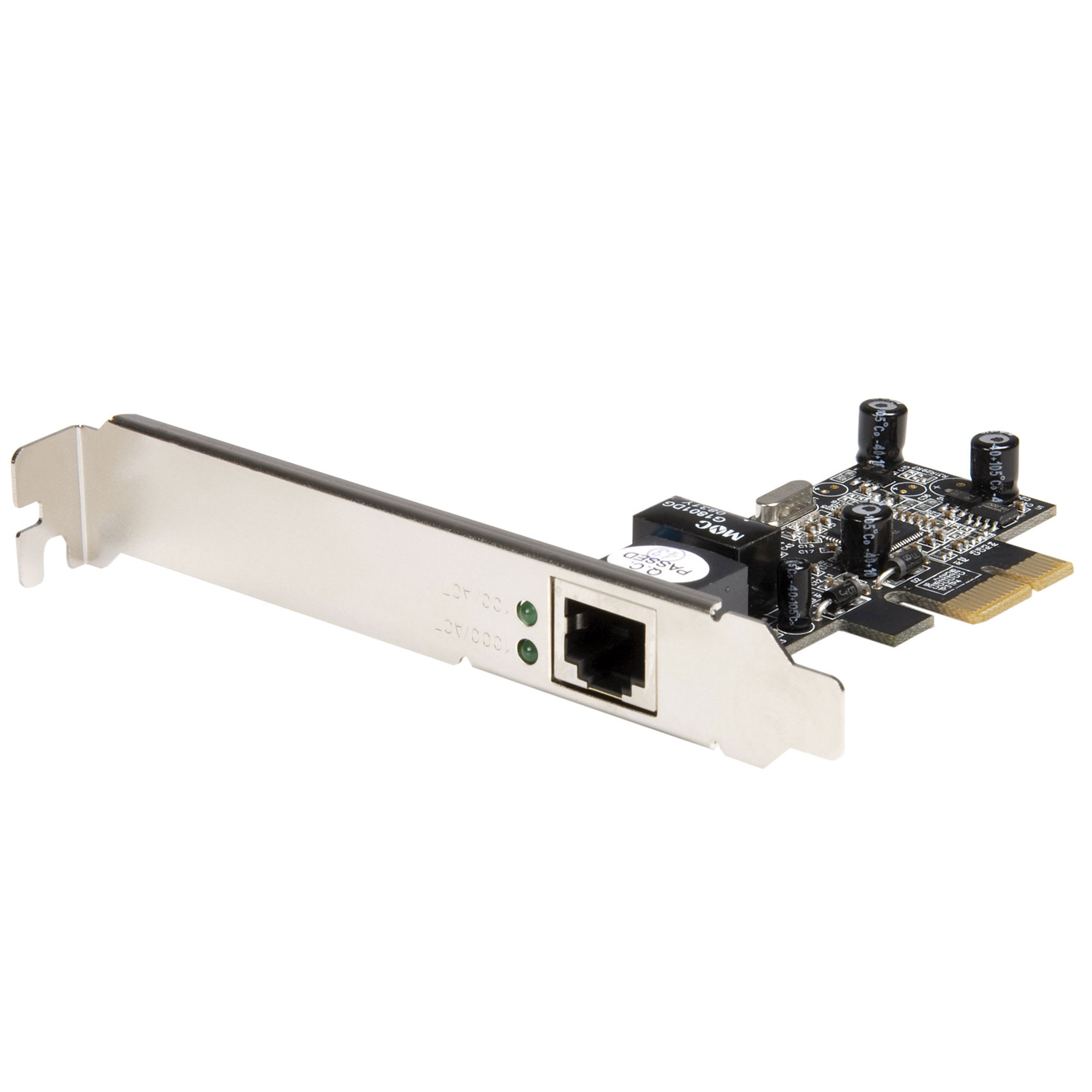

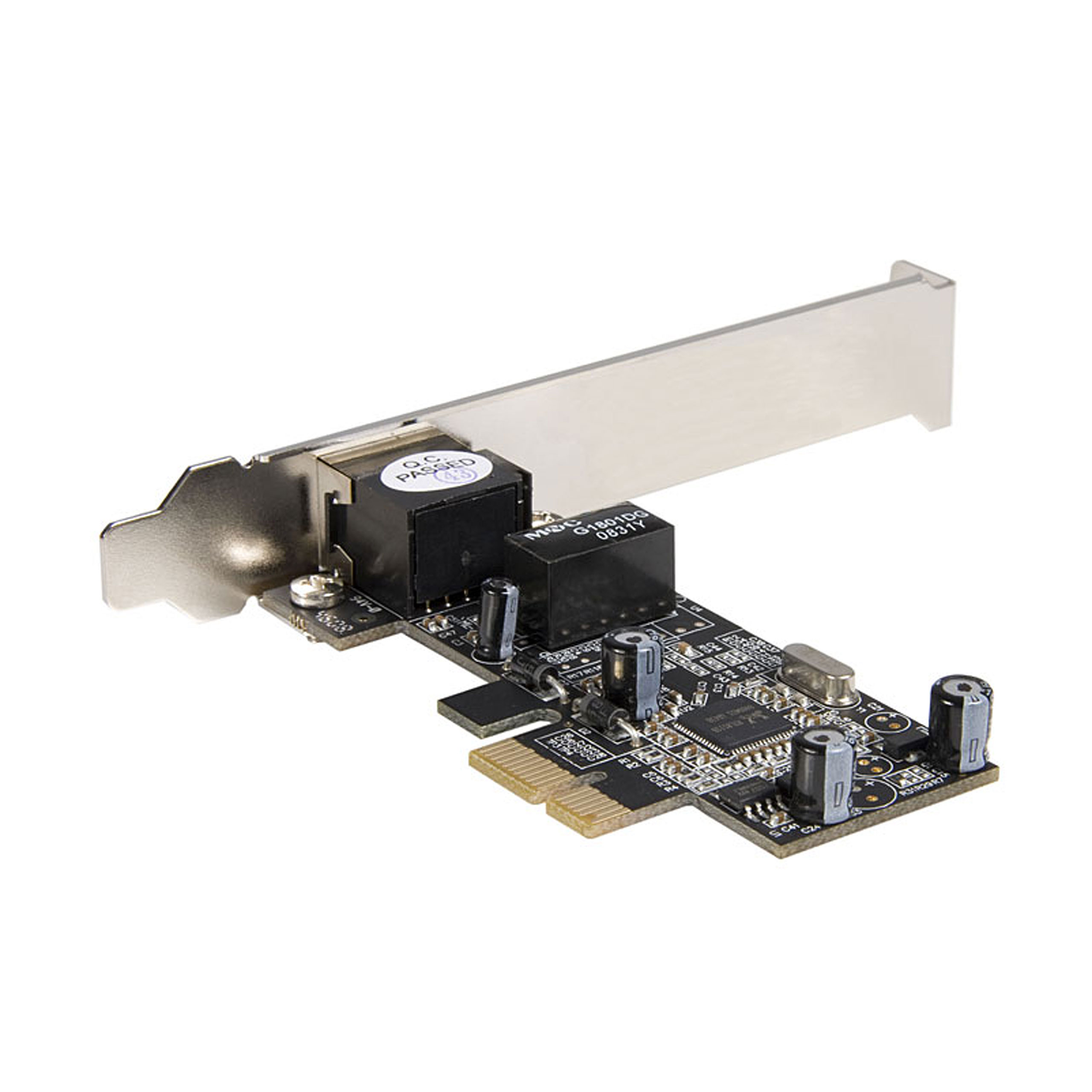

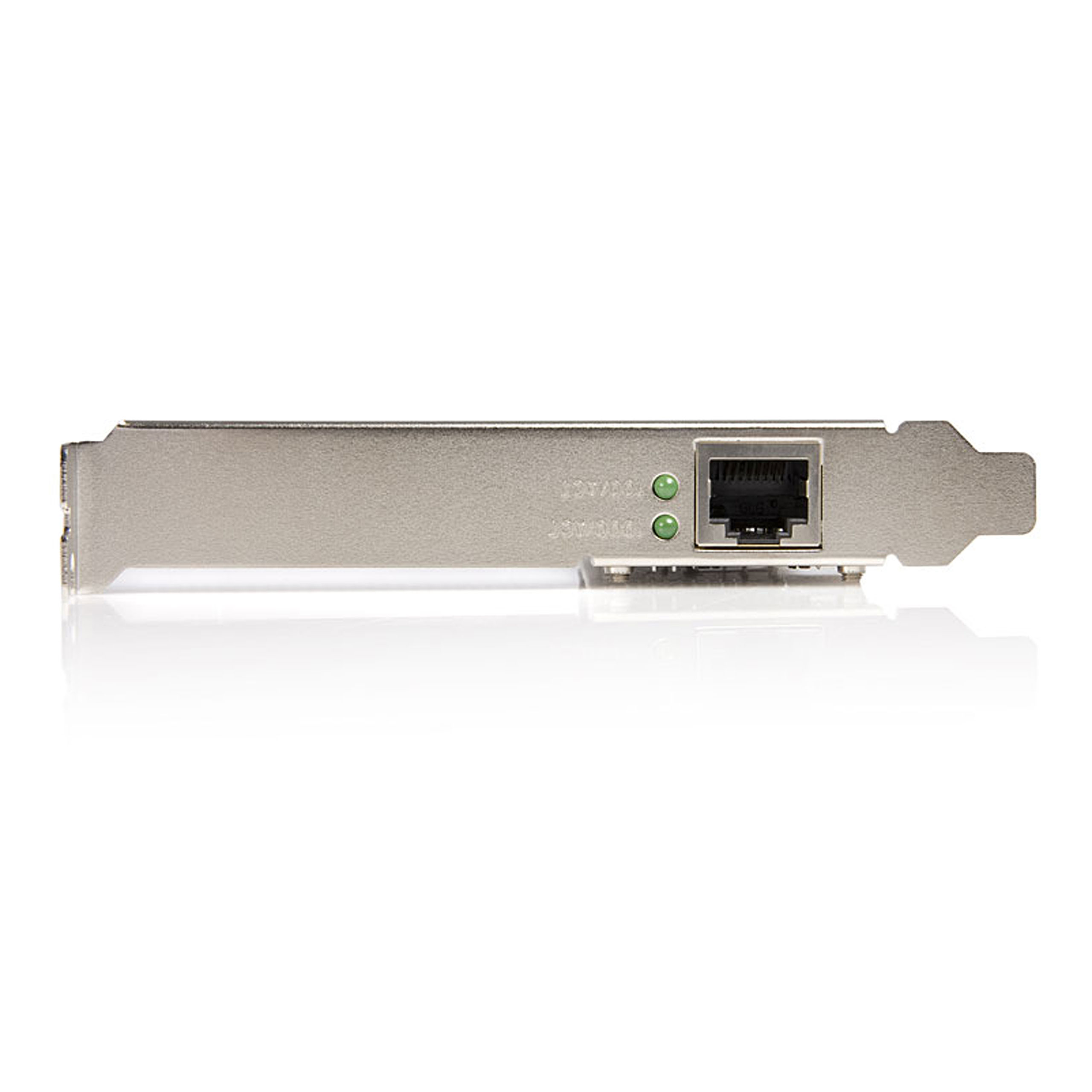

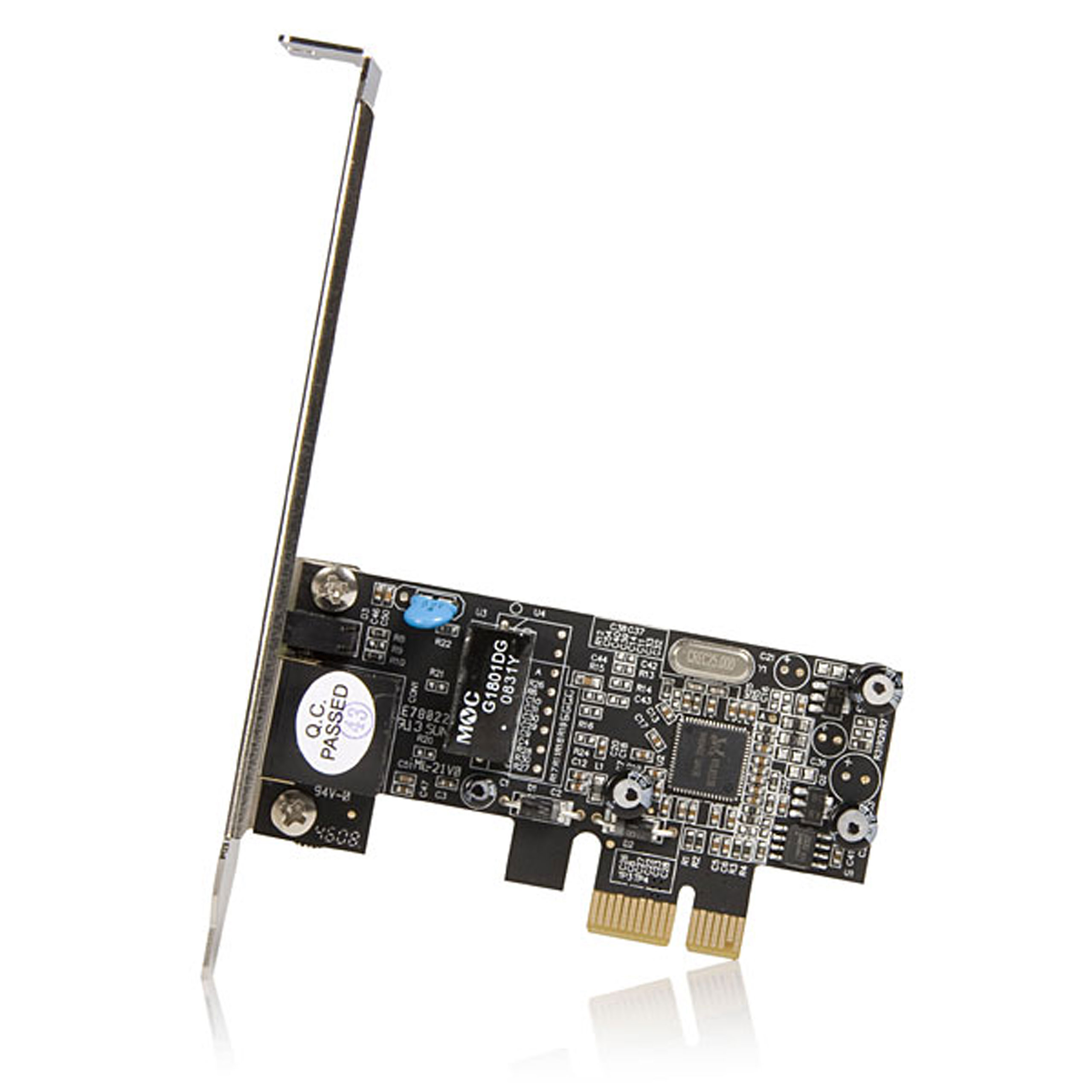

PCI Express 10/100/1000Mbps Gigabit Ethernet Card
Add a 10/100/1000Mbps Ethernet port to any PC through a PCI Express slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name PCI Express 10/100/1000Mbps Gigabit Ethernet Card Product Number ST1000SPEX UPC 065030833745 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Product Title (Short) 1 Port PCIe Gigabit Network Adapter Card Product Title (Standard) 1 Port PCIe Gigabit Ethernet NIC Network Adapter Product Title (Long) 1 Port PCI Express Gigabit Ethernet NIC Network Adapter Card Title Ingram (Part 1) 1 Port PCI Express Gigabit Ether Title Ingram (Part 2) net NIC Network Adapter Card Website Product Headline Add a 10/100/1000Mbps Ethernet port to any PC through a PCI Express slot Bullet 1 A single 10/100/1000Mbps compatible RJ45 Ethernet port Bullet 2 Network Link/Activity and 10/100/1000 Mbps LED indicators Bullet 3 Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3ab Bullet 4 Jumbo frame support Bullet 5 Full and half duplex support Marketing Copy Applications - Add an additional Ethernet port to a workstation or server computer for redundancy or bridging
- Upgrade a computers 10/100 Ethernet port to a 1000 compatible port
- Add networking capabilities to an old system with no Ethernet port
Website Search Keyword - PCI pci-e express card
- gigabit ethernet card
- 10/100/1000 ethernet adapter card
- gigabit lan card
- gigabit network card
- PCIe
Accessory Products - C6PATCH6BK
- C6PATCH10BL
- C6PATCH15BL
- M45PATCH6BK
- M45PATCH6BL
- M45PATCH10BK
- M45PATCH10BL
Related Products - PEX100S
- ST1000BT32
- EC1000BT
- ST1000SPEXDP
Replacement Product ST1000SPEX2 Operating Temperature 0 degrees Celcius to 50 degrees Celcius Product Length (mm) 120 Product Width (mm) 21 Product Height (mm) 92.5 Product Weight (g) 40 Storage Temperature 20 degrees Celcius to 70 degrees Celcius TAA Compliant No Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Full Duplex Support Yes Maximum Data Transfer Rate 1000 Mbps OS Compatibility - Windows 7
- Windows Server 2012
- Linux
- Windows 8
- Mac OS X Mavericks (10.9)

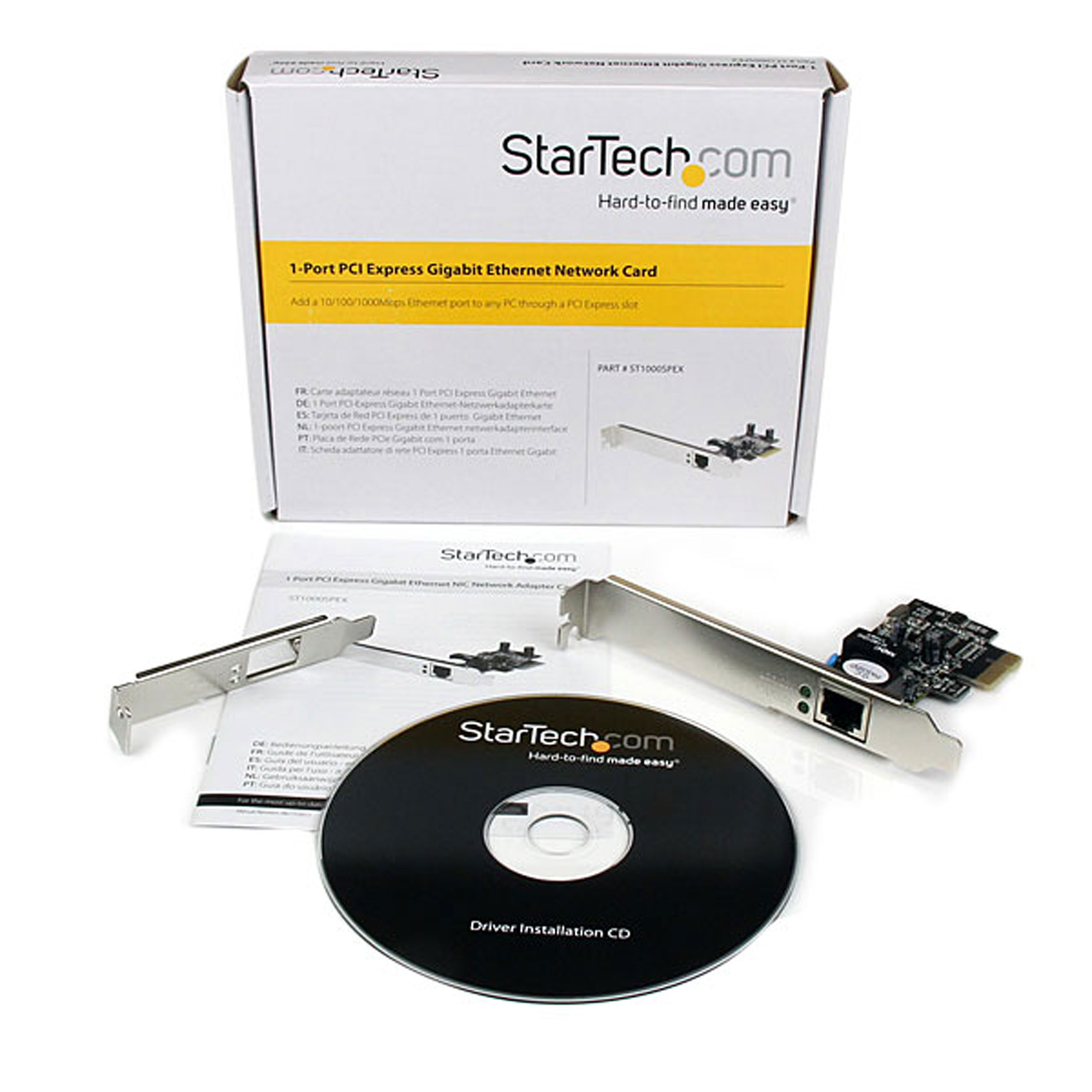

Supported Protocols CSMA/CD Wake-On-LAN (WOL) Yes Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Realtek - RTL8111DL Interface/Bridge RJ45 (Gigabit Ethernet) LED Indicators 2 - 100 Link/Active LED (Green) Gigabit Link/Active LED (Green) Carton Depth (mm) 610 Carton Height (mm) 383 Carton Quantity 80 Carton Weight Gross (g) 10760 Included in Package - 1 - Gigabit Ethernet PCI Express Card
- 1 - Instruction Manual
- 1 - Driver CD
- 1 - Low Profile Bracket
Package Depth (mm) 140 Package Height (mm) 30 Package Width (mm) 175 Package Weight (g) 122 Packaging Description 1 Port PCIe Gigabit Network Card Packaging Description India 1 Port PCIe Gigabit Network Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
