ST1000SPEX2
1-Port PCIe Gigabit Network Card
Add a 10/100/1000Mbps Ethernet port to any PC through a PCI Express slot
Main Image
Product Images
Product Images
Product Images
Product Images
Quick-Start Guide
Product Name 1-Port PCIe Gigabit Network Card Product Number ST1000SPEX2 UPC 065030849265 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Desktop and Server Network Cards Category Level 3 Ethernet Cards Family PCIe Gigabit NIC - Realtek Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX072X Product Title (Short) PCIe Gigabit Network Server Adapter NIC Product Title (Medium) x Product Title (Standard) 1 Port PCI Express PCIe Gigabit Network Server Adapter NIC Card - Dual Profile Product Title (Long) 1 Port PCI Express PCIe Gigabit Network Server Adapter NIC Card - Dual Profile Product Title (AMZ) 1 Port PCIe Gigabit Network Server Adapter NIC Card - Dual Profile - Gigabit Desktop Adapter REV E Intel 6 Chip support (ST1000SPEX2) Title Ingram (Part 1) 1Port PCI Express Gigabit Server Title Ingram (Part 2) Adapter - PCIe Network Card Website Product Headline Add a 10/100/1000Mbps Ethernet port to any PC through a PCI Express slot Bullet 1 A single 10/100/1000Mbps compatible RJ45 Ethernet port Bullet 2 Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x and IEEE 802.3ab standards Bullet 3 Jumbo frame support Bullet 4 Full and half duplex support Bullet 5 Supports Wake-on-LAN function Bullets (Compact) Add a 10/100/1000Mbps Ethernet port to any PC through a PCI Express slot - PCIe network card - Gigabit Ethernet card w/ full profile and low profile installation brackets - Gigabit NIC card - 1Gb network card - Gb server adapter - PCIe Ethernet card Bullets (Consolidated) Add a 10/100/1000Mbps Ethernet port to any PC through a PCI Express slot - PCI Express Gigabit Network Card - PCI Express Gigabit LAN Card - PCI Express Gigabit Server Adapter - Gigabit Network Card - PCIe Gigabit NIC - Low Profile PCI Express Network Card - Dual Profile Marketing Copy Applications - Add an Ethernet port to a workstation or server computer, for redundancy or bridging
- Upgrade 10/100 Ethernet capability to Gigabit capability
- Add networking capabilities to an old system with no Ethernet port
Website Search Keyword PCE-1G-01 Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
System and Cable Requirements Available PCI Express expansion card slot Accessory Products - C6PATCH6BK
- C6PATCH10BL
- C6PATCH15BL
- M45PATCH6BK
- M45PATCH6BL
- M45PATCH10BK
- M45PATCH10BL
- WIRC5ECMR
- WIRC6CMRBL
Related Products - PEX100S
- ST1000BT32
- EC1000BT
- ST1000SPEXD2
- ST1000SPEX4
- ST1000SPEXDP
- ST1000SPEX2L
Constrained SKU Alternatives (Limited Stock) ST1000SPEX2L Input Voltage 12V DC Output Voltage (V) 12V DC Color Black Humidity 10% ~ 90% RH Material Steel Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Steel Product Length (mm) 65.900 Product Width (mm) 42.300 Product Height (mm) 120.000 Product Weight (g) 38.000 Storage Temperature 0°C to 100°C (32°F to 212°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Full Duplex Support Yes Jumbo Frame Support 9K max. Maximum Data Transfer Rate 1000 Mbps MTBF (hours) 376,212 Hours OS Compatibility - Windows Server 2012
- Linux
- Windows 8
- Mac OS X Mavericks (10.9)
- Windows 7
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11

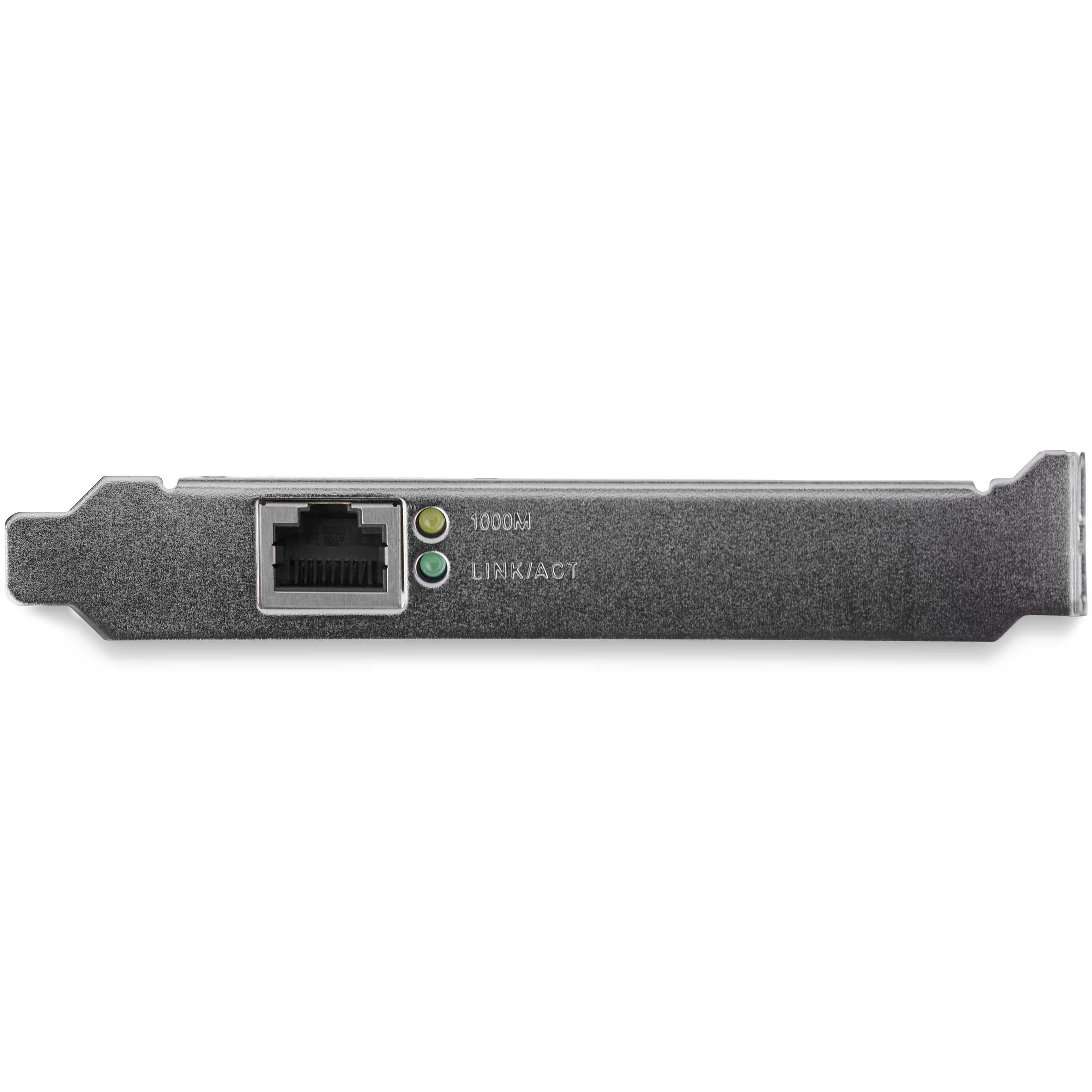

Promiscuous Mode Yes Supported Protocols CSMA/CD Wake-On-LAN (WOL) Yes Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Realtek - RTL8111 Industry Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab Interface/Bridge RJ45 (Gigabit Ethernet) LED Indicators - 1 - Gigabit Detect (Yellow)
- 1 - Link/Activity (Green)
Carton Depth (mm) 479 Carton Height (mm) 315 Carton Quantity 50 Carton Weight Gross (g) 5326 Included in Package - 1 - Gigabit Ethernet PCI Express Card
- 1 - Low Profile Bracket
- 1 - Instruction Manual
Included In Package for Label - 1 - Gigabit Ethernet PCI Express Card
- 1 - Low Profile Bracket
- 1 - Instruction Manual
Package Depth (mm) 143 Package Height (mm) 32 Package Width (mm) 143 Package Quantity 1 Package Weight (g) 94 Packaging Description 1 Port PCIe Gigabit Network Card Packaging Description India 1-Port PCIe Gigabit Network Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
